Intrepid2
Public Types | Public Member Functions | Static Private Attributes | List of all members
Intrepid2::CubatureDirectTetDefault< ExecSpaceType, pointValueType, weightValueType > Class Template Reference

Defines direct integration rules on a tetrahedron. More...

#include <Intrepid2_CubatureDirectTetDefault.hpp>

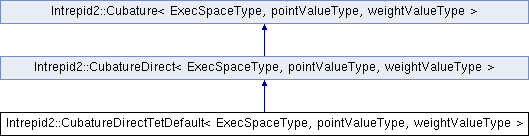

Inheritance diagram for Intrepid2::CubatureDirectTetDefault< ExecSpaceType, pointValueType, weightValueType >:
Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType > Intrepid2::Cubature< ExecSpaceType, pointValueType, weightValueType >

Public Types

typedef CubatureDirect
< ExecSpaceType,
pointValueType,
weightValueType >
::CubatureDataStatic 		CubatureDataStatic

typedef CubatureDirect
< ExecSpaceType,
pointValueType,
weightValueType >
::CubatureData 		CubatureData

typedef CubatureDirect
< ExecSpaceType,
pointValueType,
weightValueType >
::pointViewType 		pointViewType

typedef CubatureDirect
< ExecSpaceType,
pointValueType,
weightValueType >
::weightViewType 		weightViewType

- Public Types inherited from Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >
typedef Cubature
< ExecSpaceType,
pointValueType,
weightValueType >
::pointViewType 		pointViewType

typedef Cubature
< ExecSpaceType,
pointValueType,
weightValueType >
::weightViewType 		weightViewType

- Public Types inherited from Intrepid2::Cubature< ExecSpaceType, pointValueType, weightValueType >
typedef Kokkos::DynRankView
< pointValueType,
Kokkos::LayoutStride,
ExecSpaceType > 		pointViewType

typedef Kokkos::DynRankView
< weightValueType,
Kokkos::LayoutStride,
ExecSpaceType > 		weightViewType


Public Member Functions

 CubatureDirectTetDefault (const ordinal_type degree=0)
 Constructor. More...

virtual const char * getName () const
 Returns cubature name.

- Public Member Functions inherited from Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >
virtual void getCubature (pointViewType cubPoints, weightViewType cubWeights) const
 Returns cubature points and weights (return arrays must be pre-sized/pre-allocated). More...

virtual ordinal_type getNumPoints () const
 Returns the number of cubature points.

virtual ordinal_type getDimension () const
 Returns dimension of integration domain.

virtual ordinal_type getAccuracy () const
 Returns max. degree of polynomials that are integrated exactly. The return vector has size 1.

 CubatureDirect (const CubatureDirect &b)

 CubatureDirect (const ordinal_type degree, const ordinal_type dimension)

- Public Member Functions inherited from Intrepid2::Cubature< ExecSpaceType, pointValueType, weightValueType >
virtual void getCubature (pointViewType, weightViewType, pointViewType) const
 Returns cubature points and weights on physical cells (return arrays must be pre-sized/pre-allocated). More...


Static Private Attributes

static constexpr ordinal_type cubatureDataStaticSize =21

static const CubatureDataStatic cubatureDataStatic_ [cubatureDataStaticSize]
 Complete set of data defining default cubature rules on a triangle.


Additional Inherited Members

- Protected Member Functions inherited from Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >
template<typename cubPointValueType , class... cubPointProperties, typename cubWeightValueType , class... cubWeightProperties>
void getCubatureFromData (Kokkos::DynRankView< cubPointValueType, cubPointProperties...> cubPoints, Kokkos::DynRankView< cubWeightValueType, cubWeightProperties...> cubWeights, const CubatureData cubData) const
 Returns cubature points and weights. More...

- Protected Attributes inherited from Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >
ordinal_type degree_
 The degree of polynomials that are integrated exactly by this cubature rule.

ordinal_type dimension_
 Dimension of integration domain.

CubatureData cubatureData_
 Cubature data on device.


Detailed Description

template<typename ExecSpaceType = void, typename pointValueType = double, typename weightValueType = double>
class Intrepid2::CubatureDirectTetDefault< ExecSpaceType, pointValueType, weightValueType >

Defines direct integration rules on a tetrahedron.

Definition at line 63 of file Intrepid2_CubatureDirectTetDefault.hpp.

Constructor & Destructor Documentation

template<typename SpT , typename PT , typename WT >
Intrepid2::CubatureDirectTetDefault< SpT, PT, WT >::CubatureDirectTetDefault ( const ordinal_type  degree = 0)

Constructor.

Parameters
degree[in] - The degree of polynomials that are integrated exactly by this cubature rule. Default: 0.

Definition at line 53 of file Intrepid2_CubatureDirectTetDefaultDef.hpp.

References Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >::cubatureData_, Intrepid2::CubatureDirectTetDefault< ExecSpaceType, pointValueType, weightValueType >::cubatureDataStatic_, Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >::degree_, Intrepid2::Parameters::MaxCubatureDegreeTet, Intrepid2::Parameters::MaxDimension, Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >::CubatureDataStatic::numPoints_, Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >::CubatureData::numPoints_, Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >::CubatureData::points_, and Intrepid2::CubatureDirect< ExecSpaceType, pointValueType, weightValueType >::CubatureData::weights_.

The documentation for this class was generated from the following files:
