fei::Factory Class Reference

#include <fei_Factory.hpp>

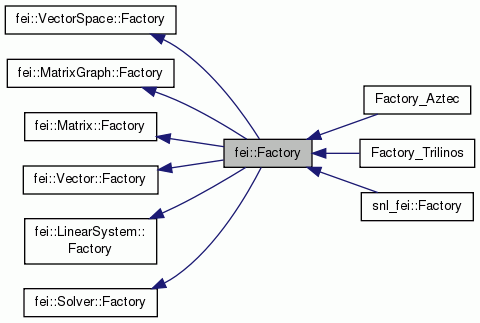

Inheritance diagram for fei::Factory:

Public Member Functions
	Factory (MPI_Comm comm)
virtual	~Factory ()
virtual fei::SharedPtr< Factory >	clone () const =0
virtual void	parameters (const fei::ParameterSet &paramset)
virtual fei::SharedPtr< FEI >	createFEI (fei::SharedPtr< LibraryWrapper > wrapper, MPI_Comm comm)
virtual fei::SharedPtr< FEI >	createFEI (MPI_Comm comm)
virtual int	getOutputLevel () const =0
Public Member Functions inherited from fei::VectorSpace::Factory
virtual fei::SharedPtr < VectorSpace >	createVectorSpace (MPI_Comm, const char *name)
Public Member Functions inherited from fei::MatrixGraph::Factory
virtual fei::SharedPtr < fei::MatrixGraph >	createMatrixGraph (fei::SharedPtr< fei::VectorSpace > rowSpace, fei::SharedPtr< fei::VectorSpace > columnSpace, const char *name)=0
Public Member Functions inherited from fei::Matrix::Factory
virtual fei::SharedPtr < fei::Matrix >	createMatrix (fei::SharedPtr< fei::MatrixGraph > matrixGraph)=0
Public Member Functions inherited from fei::Vector::Factory
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::VectorSpace > vecSpace, int numVectors=1)=0
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::VectorSpace > vecSpace, bool isSolutionVector, int numVectors=1)=0
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::MatrixGraph > matrixGraph, int numVectors=1)=0
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::MatrixGraph > matrixGraph, bool isSolutionVector, int numVectors=1)=0
Public Member Functions inherited from fei::LinearSystem::Factory
virtual fei::SharedPtr < fei::LinearSystem >	createLinearSystem (fei::SharedPtr< fei::MatrixGraph > &matrixGraph)
Public Member Functions inherited from fei::Solver::Factory
virtual fei::SharedPtr < fei::Solver >	createSolver (const char *name=0)=0

Private Member Functions
	Factory ()
	Factory (const Factory &src)

Detailed Description

Interface for creating fei:: instances. In all cases, input arguments (arguments required to construct the requested class) are followed by the result or output argument.

This interface inherits the various fei:: factory interfaces as a convenience mechanism, so that user code can deal with one factory object instead of a different factory for each class. In addition to inheriting the fei:: factories, this interface also provides methods for creating instances of the 'old' FEI class.

Definition at line 37 of file fei_Factory.hpp.

Constructor & Destructor Documentation

fei::Factory::Factory

(

MPI_Comm

comm

)

constructor

Definition at line 20 of file fei_Factory.cpp.

References fei::LogManager::getLogManager(), fei::localProc(), fei::numProcs(), and fei::LogManager::setNumProcs().

fei::Factory::~Factory ( )

virtual

virtual destructor

Reimplemented from fei::LinearSystem::Factory.

Reimplemented in snl_fei::Factory.

Definition at line 31 of file fei_Factory.cpp.

References fei::LogFile::closeOutputStream(), fei::LogFile::getLogFile(), fei::LogManager::getLogManager(), fei::NONE, and fei::LogManager::setOutputLevel().

fei::Factory::Factory ( )

private

fei::Factory::Factory ( const Factory &  src )

private

Member Function Documentation

virtual fei::SharedPtr<Factory> fei::Factory::clone ( ) const

pure virtual

Create and return a new Factory of the same type.

Implemented in Factory_Trilinos, Factory_Aztec, and snl_fei::Factory.

Referenced by fei::FEI_Impl::FEI_Impl(), and test_Factory::runtests().

void fei::Factory::parameters ( const fei::ParameterSet &  paramset )

virtual

Set parameters.

Reimplemented in Factory_Trilinos, Factory_Aztec, and snl_fei::Factory.

Definition at line 38 of file fei_Factory.cpp.

References fei::Param::BAD_TYPE, fei::ParameterSet::get(), fei::LogManager::getLogManager(), fei::Param::getStringValue(), fei::Param::getType(), fei::LogManager::setOutputLevel(), fei::LogManager::setOutputPath(), and fei::Param::STRING.

Referenced by beam_main(), fei::create_fei_Factory(), main(), snl_fei::Factory::parameters(), Factory_Aztec::parameters(), poisson3_main(), snl_fei_tester::setParameter(), test_Matrix_unit4(), and snl_fei_tester::testInitialization().

fei::SharedPtr< FEI > fei::Factory::createFEI ( fei::SharedPtr< LibraryWrapper >  wrapper, MPI_Comm  comm  )

virtual

  Produce an instance of the "old" FEI class (implements the FEI 2.1

interface specification).

  This function is virtual, but not pure-virtual. An implementation
  is provided by this class, and can be inherited by derived classes
  if desired.

Definition at line 65 of file fei_Factory.cpp.

References FEI_Implementation.

Referenced by beam_oldfei_main(), test_Factory::factory_test1(), main(), and poisson_main().

fei::SharedPtr< FEI > fei::Factory::createFEI ( MPI_Comm  comm )

virtual

  Produce an instance of the "old" FEI class (implements the FEI 2.1

interface specification).

  This function is virtual, but not pure-virtual. An implementation
  is provided by this class, and can be inherited by derived classes
  if desired.

Definition at line 76 of file fei_Factory.cpp.

virtual int fei::Factory::getOutputLevel ( ) const

pure virtual

  Query screen output-level (set by parameter-string "outputLevel n"

via parameters())

Implemented in Factory_Trilinos, Factory_Aztec, and snl_fei::Factory.

---

The documentation for this class was generated from the following files:

• fei_Factory.hpp
• fei_Factory.cpp
