Factory_Aztec Class Reference

#include <fei_Factory_Aztec.hpp>

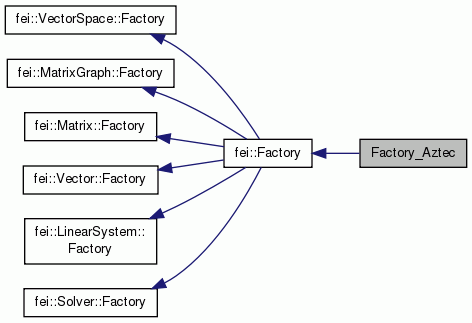

Inheritance diagram for Factory_Aztec:

Public Member Functions
	Factory_Aztec (MPI_Comm comm)
virtual	~Factory_Aztec ()
fei::SharedPtr< fei::Factory >	clone () const
int	parameters (int numParams, const char *const *paramStrings)
void	parameters (const fei::ParameterSet &parameterset)
fei::SharedPtr< fei::MatrixGraph >	createMatrixGraph (fei::SharedPtr< fei::VectorSpace > rowSpace, fei::SharedPtr< fei::VectorSpace > colSpace, const char *name=NULL)
fei::SharedPtr< fei::Vector >	createVector (fei::SharedPtr< fei::VectorSpace > vecSpace, int numVectors=1)
fei::SharedPtr< fei::Vector >	createVector (fei::SharedPtr< fei::VectorSpace > vecSpace, bool isSolutionVector, int numVectors=1)
fei::SharedPtr< fei::Vector >	createVector (fei::SharedPtr< fei::MatrixGraph > matrixGraph, int numVectors=1)
fei::SharedPtr< fei::Vector >	createVector (fei::SharedPtr< fei::MatrixGraph > matrixGraph, bool isSolutionVector, int numVectors=1)
fei::SharedPtr< fei::Matrix >	createMatrix (fei::SharedPtr< fei::MatrixGraph > matrixGraph)
fei::SharedPtr< fei::Solver >	createSolver (const char *name=0)
int	getOutputLevel () const
Public Member Functions inherited from fei::Factory
	Factory (MPI_Comm comm)
virtual	~Factory ()
virtual fei::SharedPtr< FEI >	createFEI (fei::SharedPtr< LibraryWrapper > wrapper, MPI_Comm comm)
virtual fei::SharedPtr< FEI >	createFEI (MPI_Comm comm)
Public Member Functions inherited from fei::VectorSpace::Factory
virtual fei::SharedPtr < VectorSpace >	createVectorSpace (MPI_Comm, const char *name)
Public Member Functions inherited from fei::LinearSystem::Factory
virtual fei::SharedPtr < fei::LinearSystem >	createLinearSystem (fei::SharedPtr< fei::MatrixGraph > &matrixGraph)

Private Attributes
MPI_Comm	comm_
fei::SharedPtr< fei::Reducer >	reducer_
bool	blockEntryMatrix_
int	outputLevel_

Detailed Description

Definition at line 70 of file fei_Factory_Aztec.hpp.

Constructor & Destructor Documentation

Factory_Aztec::Factory_Aztec

(

MPI_Comm

comm

)

Definition at line 51 of file fei_Factory_Aztec.cpp.

Referenced by clone().

Factory_Aztec::~Factory_Aztec ( )

virtual

Definition at line 60 of file fei_Factory_Aztec.cpp.

Member Function Documentation

fei::SharedPtr<fei::Factory> Factory_Aztec::clone ( ) const

inlinevirtual

Implementation of fei::Factory::clone()

Implements fei::Factory.

Definition at line 77 of file fei_Factory_Aztec.hpp.

References comm_, and Factory_Aztec().

int Factory_Aztec::parameters	(	int	numParams,
		const char *const *	paramStrings
	)

Implementation of fei::Factory::parameters()

Definition at line 64 of file fei_Factory_Aztec.cpp.

References fei::utils::char_ptrs_to_strings(), and fei::utils::parse_strings().

void Factory_Aztec::parameters ( const fei::ParameterSet &  parameterset )

virtual

Implementation of fei::Factory::parameters()

Reimplemented from fei::Factory.

Definition at line 77 of file fei_Factory_Aztec.cpp.

References blockEntryMatrix_, fei::ParameterSet::getBoolParamValue(), fei::ParameterSet::getIntParamValue(), outputLevel_, and fei::Factory::parameters().

fei::SharedPtr< fei::MatrixGraph > Factory_Aztec::createMatrixGraph ( fei::SharedPtr< fei::VectorSpace >  rowSpace, fei::SharedPtr< fei::VectorSpace >  columnSpace, const char *  name = NULL  )

virtual

Produce an instance of a MatrixGraph. Either or both of columnSpace and name may be NULL. If columnSpace is NULL, it will be assumed that the structure to be created/defined is symmetric. i.e., columnSpace will be assumed to be identically equal to rowSpace.

Implements fei::MatrixGraph::Factory.

Definition at line 93 of file fei_Factory_Aztec.cpp.

References fei::MatrixGraph_Impl2::Factory::createMatrixGraph().

fei::SharedPtr< fei::Vector > Factory_Aztec::createVector ( fei::SharedPtr< fei::VectorSpace >  vecSpace, int  numVectors = 1  )

virtual

Implementation of fei::Vector::Factory::createVector()

Implements fei::Vector::Factory.

Definition at line 141 of file fei_Factory_Aztec.cpp.

Referenced by createVector().

fei::SharedPtr< fei::Vector > Factory_Aztec::createVector ( fei::SharedPtr< fei::VectorSpace >  vecSpace, bool  isSolutionVector, int  numVectors = 1  )

virtual

Implementation of fei::Vector::Factory::createVector()

Implements fei::Vector::Factory.

Definition at line 102 of file fei_Factory_Aztec.cpp.

References blockEntryMatrix_, fei::SharedPtr< T >::get(), fei::VectorSpace::getBlkIndices_Owned(), fei::VectorSpace::getIndices_Owned(), fei::Reducer::getLocalReducedEqns(), fei::VectorSpace::getNumBlkIndices_Owned(), fei::VectorSpace::getNumIndices_Owned(), reducer_, and fei::SharedPtr< T >::reset().

fei::SharedPtr< fei::Vector > Factory_Aztec::createVector ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph, int  numVectors = 1  )

virtual

Produce an instance of a Vector using a MatrixGraph.

Implements fei::Vector::Factory.

Definition at line 149 of file fei_Factory_Aztec.cpp.

References createVector().

fei::SharedPtr< fei::Vector > Factory_Aztec::createVector ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph, bool  isSolutionVector, int  numVectors = 1  )

virtual

Produce an instance of a Vector using a MatrixGraph.

Implements fei::Vector::Factory.

Definition at line 157 of file fei_Factory_Aztec.cpp.

References fei::SharedPtr< T >::get(), fei::MatrixGraph::getGlobalNumSlaveConstraints(), fei::VectorSpace::getIndices_Owned(), fei::Reducer::getLocalReducedEqns(), fei::VectorSpace::getNumIndices_Owned(), fei::MatrixGraph::getReducer(), fei::MatrixGraph::getRowSpace(), reducer_, and fei::SharedPtr< T >::reset().

fei::SharedPtr< fei::Matrix > Factory_Aztec::createMatrix ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph )

virtual

Produce an instance of a Matrix.

Implements fei::Matrix::Factory.

Definition at line 196 of file fei_Factory_Aztec.cpp.

References fei::SharedPtr< T >::get(), fei::MatrixGraph::getGlobalNumSlaveConstraints(), fei::MatrixGraph::getReducer(), and reducer_.

fei::SharedPtr< fei::Solver > Factory_Aztec::createSolver ( const char *  name = 0 )

virtual

Produce an instance of a Solver

Implements fei::Solver::Factory.

Definition at line 209 of file fei_Factory_Aztec.cpp.

int Factory_Aztec::getOutputLevel ( ) const

inlinevirtual

  Query screen output-level (set by parameter-string "outputLevel n"

via parameters())

Implements fei::Factory.

Definition at line 120 of file fei_Factory_Aztec.hpp.

References outputLevel_.

Member Data Documentation

MPI_Comm Factory_Aztec::comm_

private

Definition at line 123 of file fei_Factory_Aztec.hpp.

Referenced by clone().

fei::SharedPtr<fei::Reducer> Factory_Aztec::reducer_

private

Definition at line 125 of file fei_Factory_Aztec.hpp.

Referenced by createMatrix(), and createVector().

bool Factory_Aztec::blockEntryMatrix_

private

Definition at line 126 of file fei_Factory_Aztec.hpp.

Referenced by createVector(), and parameters().

int Factory_Aztec::outputLevel_

private

Definition at line 128 of file fei_Factory_Aztec.hpp.

Referenced by getOutputLevel(), and parameters().

---

The documentation for this class was generated from the following files:

• fei_Factory_Aztec.hpp
• fei_Factory_Aztec.cpp
