snl_fei::Factory Class Reference

#include <snl_fei_Factory.hpp>

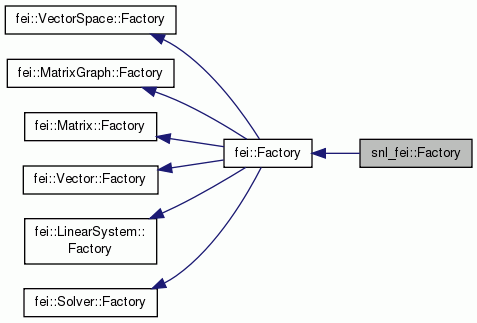

Inheritance diagram for snl_fei::Factory:

Public Member Functions
	Factory (MPI_Comm comm, fei::SharedPtr< LibraryWrapper > wrapper)
	Factory (MPI_Comm comm, fei::SharedPtr< LinearSystemCore > lsc)
	Factory (MPI_Comm comm, fei::SharedPtr< FiniteElementData > feData, int nodeIDType)
virtual	~Factory ()
fei::SharedPtr< fei::Factory >	clone () const
virtual void	parameters (const fei::ParameterSet &parameterset)
virtual fei::SharedPtr < fei::MatrixGraph >	createMatrixGraph (fei::SharedPtr< fei::VectorSpace > rowSpace, fei::SharedPtr< fei::VectorSpace > columnSpace, const char *name)
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::VectorSpace > vecSpace, int numVectors=1)
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::VectorSpace > vecSpace, bool isSolutionVector, int numVectors=1)
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::MatrixGraph > matrixGraph, int numVectors=1)
virtual fei::SharedPtr < fei::Vector >	createVector (fei::SharedPtr< fei::MatrixGraph > matrixGraph, bool isSolutionVector, int numVectors=1)
virtual fei::SharedPtr < fei::Matrix >	createMatrix (fei::SharedPtr< fei::MatrixGraph > matrixGraph)
virtual fei::SharedPtr < fei::LinearSystem >	createLinearSystem (fei::SharedPtr< fei::MatrixGraph > &matrixGraph)
virtual fei::SharedPtr < fei::Solver >	createSolver (const char *name=0)
fei::SharedPtr< LibraryWrapper >	get_LibraryWrapper () const
int	getOutputLevel () const
Public Member Functions inherited from fei::Factory
	Factory (MPI_Comm comm)
virtual fei::SharedPtr< FEI >	createFEI (fei::SharedPtr< LibraryWrapper > wrapper, MPI_Comm comm)
virtual fei::SharedPtr< FEI >	createFEI (MPI_Comm comm)
Public Member Functions inherited from fei::VectorSpace::Factory
virtual fei::SharedPtr < VectorSpace >	createVectorSpace (MPI_Comm, const char *name)

Private Member Functions
int	createBroker (fei::SharedPtr< fei::MatrixGraph > matrixGraph)
int	createBroker_LinSysCore (fei::SharedPtr< fei::MatrixGraph > matrixGraph, fei::SharedPtr< LinearSystemCore > lsc)
int	createBroker_FEData (fei::SharedPtr< fei::MatrixGraph > matrixGraph, fei::SharedPtr< FiniteElementData > feData)

Private Attributes
MPI_Comm	comm_
fei::SharedPtr< snl_fei::Broker >	broker_
fei::SharedPtr< fei::MatrixGraph >	matrixGraph_
fei::SharedPtr< fei::Reducer >	reducer_
int	nodeIDType_
fei::SharedPtr< LinearSystemCore >	lsc_
fei::SharedPtr< FiniteElementData >	feData_
fei::SharedPtr< LibraryWrapper >	wrapper_
int	outputLevel_
bool	blockMatrix_

Detailed Description

snl_fei:: implementation of the various fei:: Factory interfaces.

Definition at line 35 of file snl_fei_Factory.hpp.

Constructor & Destructor Documentation

snl_fei::Factory::Factory	(	MPI_Comm	comm,
		fei::SharedPtr< LibraryWrapper >	wrapper
	)

Constructor

Definition at line 16 of file snl_fei_Factory.cpp.

References feData_, fei::SharedPtr< T >::get(), LibraryWrapper::getFiniteElementData(), LibraryWrapper::getLinearSystemCore(), lsc_, and wrapper_.

snl_fei::Factory::Factory	(	MPI_Comm	comm,
		fei::SharedPtr< LinearSystemCore >	lsc
	)

Constructor

Definition at line 36 of file snl_fei_Factory.cpp.

snl_fei::Factory::Factory	(	MPI_Comm	comm,
		fei::SharedPtr< FiniteElementData >	feData,
		int	nodeIDType
	)

Constructor

Definition at line 52 of file snl_fei_Factory.cpp.

snl_fei::Factory::~Factory ( )

virtual

Destructor

Reimplemented from fei::Factory.

Definition at line 68 of file snl_fei_Factory.cpp.

Member Function Documentation

fei::SharedPtr< fei::Factory > snl_fei::Factory::clone ( ) const

virtual

Implementation of fei::Factory::clone()

Implements fei::Factory.

Definition at line 74 of file snl_fei_Factory.cpp.

References fei::SharedPtr< T >::reset().

void snl_fei::Factory::parameters ( const fei::ParameterSet &  parameterset )

virtual

Implementation of fei::Factory::parameters()

Reimplemented from fei::Factory.

Definition at line 92 of file snl_fei_Factory.cpp.

References fei::Param::BAD_TYPE, fei::Param::BOOL, fei::utils::convert_ParameterSet_to_strings(), FEI_OSTRINGSTREAM, fei::ParameterSet::get(), fei::Param::getBoolValue(), fei::ParameterSet::getIntParamValue(), fei::Param::getStringValue(), fei::Param::getType(), fei::Factory::parameters(), fei::Param::STRING, and fei::utils::strings_to_char_ptrs().

fei::SharedPtr< fei::MatrixGraph > snl_fei::Factory::createMatrixGraph ( fei::SharedPtr< fei::VectorSpace >  rowSpace, fei::SharedPtr< fei::VectorSpace >  columnSpace, const char *  name  )

virtual

Implementation of fei::MatrixGraph::Factory::createMatrixGraph.

Implements fei::MatrixGraph::Factory.

Definition at line 156 of file snl_fei_Factory.cpp.

References fei::MatrixGraph_Impl2::Factory::createMatrixGraph().

fei::SharedPtr< fei::Vector > snl_fei::Factory::createVector ( fei::SharedPtr< fei::VectorSpace >  vecSpace, int  numVectors = 1  )

virtual

Implementation of fei::Vector::Factory::createVector()

Implements fei::Vector::Factory.

Definition at line 167 of file snl_fei_Factory.cpp.

References fei::console_out(), and FEI_ENDL.

fei::SharedPtr< fei::Vector > snl_fei::Factory::createVector ( fei::SharedPtr< fei::VectorSpace >  vecSpace, bool  isSolutionVector, int  numVectors = 1  )

virtual

Implementation of fei::Vector::Factory::createVector()

Implements fei::Vector::Factory.

Definition at line 190 of file snl_fei_Factory.cpp.

References fei::console_out(), and FEI_ENDL.

fei::SharedPtr< fei::Vector > snl_fei::Factory::createVector ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph, int  numVectors = 1  )

virtual

Implementation of fei::Vector::Factory::createVector()

Implements fei::Vector::Factory.

Definition at line 214 of file snl_fei_Factory.cpp.

References fei::MatrixGraph::getReducer().

fei::SharedPtr< fei::Vector > snl_fei::Factory::createVector ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph, bool  isSolutionVector, int  numVectors = 1  )

virtual

Implementation of fei::Vector::Factory::createVector()

Implements fei::Vector::Factory.

Definition at line 231 of file snl_fei_Factory.cpp.

References fei::MatrixGraph::getReducer().

fei::SharedPtr< fei::Matrix > snl_fei::Factory::createMatrix ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph )

virtual

Implementation of fei::Matrix::Factory::createMatrix()

Implements fei::Matrix::Factory.

Definition at line 249 of file snl_fei_Factory.cpp.

References fei::console_out(), and FEI_ENDL.

fei::SharedPtr< fei::LinearSystem > snl_fei::Factory::createLinearSystem ( fei::SharedPtr< fei::MatrixGraph > &  matrixGraph )

virtual

  Implementation of

fei::LinearSystem::Factory::createLinearSystem()

Reimplemented from fei::LinearSystem::Factory.

Definition at line 274 of file snl_fei_Factory.cpp.

References fei::console_out(), and FEI_ENDL.

fei::SharedPtr< fei::Solver > snl_fei::Factory::createSolver ( const char *  name = 0 )

virtual

Implementation of fei::Solver::Factory::createSolver()

Implements fei::Solver::Factory.

Definition at line 299 of file snl_fei_Factory.cpp.

fei::SharedPtr< LibraryWrapper > snl_fei::Factory::get_LibraryWrapper

(

)

const

get LibraryWrapper attribute (power-users only)

Definition at line 307 of file snl_fei_Factory.cpp.

Referenced by fei::FEI_Impl::FEI_Impl().

int snl_fei::Factory::getOutputLevel ( ) const

virtual

  Query screen output-level (set by parameter-string "outputLevel n"

via parameters())

Implements fei::Factory.

Definition at line 313 of file snl_fei_Factory.cpp.

int snl_fei::Factory::createBroker ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph )

private

Definition at line 320 of file snl_fei_Factory.cpp.

int snl_fei::Factory::createBroker_LinSysCore ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph, fei::SharedPtr< LinearSystemCore >  lsc  )

private

Definition at line 335 of file snl_fei_Factory.cpp.

int snl_fei::Factory::createBroker_FEData ( fei::SharedPtr< fei::MatrixGraph >  matrixGraph, fei::SharedPtr< FiniteElementData >  feData  )

private

Definition at line 348 of file snl_fei_Factory.cpp.

Member Data Documentation

MPI_Comm snl_fei::Factory::comm_

private

Definition at line 110 of file snl_fei_Factory.hpp.

fei::SharedPtr<snl_fei::Broker> snl_fei::Factory::broker_

private

Definition at line 111 of file snl_fei_Factory.hpp.

fei::SharedPtr<fei::MatrixGraph> snl_fei::Factory::matrixGraph_

private

Definition at line 112 of file snl_fei_Factory.hpp.

fei::SharedPtr<fei::Reducer> snl_fei::Factory::reducer_

private

Definition at line 113 of file snl_fei_Factory.hpp.

int snl_fei::Factory::nodeIDType_

private

Definition at line 115 of file snl_fei_Factory.hpp.

fei::SharedPtr<LinearSystemCore> snl_fei::Factory::lsc_

private

Definition at line 117 of file snl_fei_Factory.hpp.

Referenced by Factory().

fei::SharedPtr<FiniteElementData> snl_fei::Factory::feData_

private

Definition at line 118 of file snl_fei_Factory.hpp.

Referenced by Factory().

fei::SharedPtr<LibraryWrapper> snl_fei::Factory::wrapper_

private

Definition at line 119 of file snl_fei_Factory.hpp.

Referenced by Factory().

int snl_fei::Factory::outputLevel_

private

Definition at line 120 of file snl_fei_Factory.hpp.

bool snl_fei::Factory::blockMatrix_

private

Definition at line 121 of file snl_fei_Factory.hpp.

---

The documentation for this class was generated from the following files:

• snl_fei_Factory.hpp
• snl_fei_Factory.cpp
