Provides access for Zoltan2 to Tpetra::RowMatrix data. More...

#include <Zoltan2_TpetraRowMatrixAdapter.hpp>

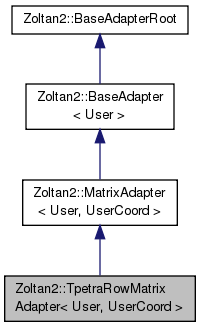

Inheritance diagram for Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >:

Collaboration diagram for Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >:

Public Member Functions
	TpetraRowMatrixAdapter (const RCP< const User > &inmatrix, int nWeightsPerRow=0)
	Constructor. More...

void	setWeights (const scalar_t *weightVal, int stride, int idx=0)
	Specify a weight for each entity of the primaryEntityType. More...

void	setWeightsDevice (typename Base::ConstWeightsDeviceView1D val, int idx)
	Provide a device view of weights for the primary entity type. More...

void	setWeightsHost (typename Base::ConstWeightsHostView1D val, int idx)
	Provide a host view of weights for the primary entity type. More...

void	setRowWeights (const scalar_t *weightVal, int stride, int idx=0)
	Specify a weight for each row. More...

void	setRowWeightsDevice (typename Base::ConstWeightsDeviceView1D val, int idx)
	Provide a device view to row weights. More...

void	setRowWeightsHost (typename Base::ConstWeightsHostView1D val, int idx)
	Provide a host view to row weights. More...

void	setWeightIsDegree (int idx)
	Specify an index for which the weight should be the degree of the entity. More...

void	setRowWeightIsNumberOfNonZeros (int idx)
	Specify an index for which the row weight should be the global number of nonzeros in the row. More...

size_t	getLocalNumRows () const
	Returns the number of rows on this process. More...

size_t	getLocalNumColumns () const
	Returns the number of columns on this process. More...

size_t	getLocalNumEntries () const
	Returns the number of nonzeros on this process. More...

bool	CRSViewAvailable () const
	Indicates whether the MatrixAdapter implements a view of the matrix in compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

void	getRowIDsView (const gno_t *&rowIds) const override

void	getRowIDsHostView (typename Base::ConstIdsHostView &rowIds) const override

void	getRowIDsDeviceView (typename Base::ConstIdsDeviceView &rowIds) const override

void	getCRSView (ArrayRCP< const offset_t > &offsets, ArrayRCP< const gno_t > &colIds) const

void	getCRSHostView (typename Base::ConstOffsetsHostView &offsets, typename Base::ConstIdsHostView &colIds) const override

void	getCRSDeviceView (typename Base::ConstOffsetsDeviceView &offsets, typename Base::ConstIdsDeviceView &colIds) const override

void	getCRSView (ArrayRCP< const offset_t > &offsets, ArrayRCP< const gno_t > &colIds, ArrayRCP< const scalar_t > &values) const

void	getCRSHostView (typename Base::ConstOffsetsHostView &offsets, typename Base::ConstIdsHostView &colIds, typename Base::ConstScalarsHostView &values) const override

void	getCRSDeviceView (typename Base::ConstOffsetsDeviceView &offsets, typename Base::ConstIdsDeviceView &colIds, typename Base::ConstScalarsDeviceView &values) const override

int	getNumWeightsPerRow () const
	Returns the number of weights per row (0 or greater). Row weights may be used when partitioning matrix rows. More...

void	getRowWeightsView (const scalar_t *&weights, int &stride, int idx=0) const
	Provide a pointer to the row weights, if any. More...

void	getRowWeightsDeviceView (typename Base::WeightsDeviceView1D &weights, int idx=0) const

void	getRowWeightsDeviceView (typename Base::WeightsDeviceView &weights) const override

void	getRowWeightsHostView (typename Base::WeightsHostView1D &weights, int idx=0) const

void	getRowWeightsHostView (typename Base::WeightsHostView &weights) const override

bool	useNumNonzerosAsRowWeight (int idx) const
	Indicate whether row weight with index idx should be the global number of nonzeros in the row. More...

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, RCP< User > &out, const PartitioningSolution< Adapter > &solution) const

Public Member Functions inherited from Zoltan2::MatrixAdapter< User, UserCoord >
enum BaseAdapterType	adapterType () const override
	Returns the type of adapter. More...

	MatrixAdapter ()

virtual void	getRowIDsView (const gno_t *&rowIds) const
	Sets pointer to this process' rows' global IDs. More...

virtual void	getRowIDsHostView (typename BaseAdapter< User >::ConstIdsHostView &rowIds) const

virtual void	getRowIDsDeviceView (typename BaseAdapter< User >::ConstIdsDeviceView &rowIds) const

virtual void	getCRSView (ArrayRCP< const offset_t > &offsets, ArrayRCP< const gno_t > &colIds) const
	Sets pointers to this process' matrix entries using compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getCRSHostView (typename BaseAdapter< User >::ConstOffsetsHostView &offsets, typename BaseAdapter< User >::ConstIdsHostView &colIds) const

virtual void	getCRSDeviceView (typename BaseAdapter< User >::ConstOffsetsDeviceView &offsets, typename BaseAdapter< User >::ConstIdsDeviceView &colIds) const

virtual void	getCRSView (ArrayRCP< const offset_t > &offsets, ArrayRCP< const gno_t > &colIds, ArrayRCP< const scalar_t > &values) const
	Sets pointers to this process' matrix entries and their values using compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getCRSHostView (typename BaseAdapter< User >::ConstOffsetsHostView &offsets, typename BaseAdapter< User >::ConstIdsHostView &colIds, typename BaseAdapter< User >::ConstScalarsHostView &values) const

virtual void	getCRSDeviceView (typename BaseAdapter< User >::ConstOffsetsDeviceView &offsets, typename BaseAdapter< User >::ConstIdsDeviceView &colIds, typename BaseAdapter< User >::ConstScalarsDeviceView &values) const

virtual void	getRowWeightsHostView (typename BaseAdapter< User >::WeightsHostView1D &weights, int=0) const

virtual void	getRowWeightsHostView (typename BaseAdapter< User >::WeightsHostView &weights) const

virtual void	getRowWeightsDeviceView (typename BaseAdapter< User >::WeightsDeviceView1D &weights, int=0) const

virtual void	getRowWeightsDeviceView (typename BaseAdapter< User >::WeightsDeviceView &weights) const

virtual bool	CCSViewAvailable () const
	Indicates whether the MatrixAdapter implements a view of the matrix in compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getColumnIDsView (const gno_t *&colIds) const
	Sets pointer to this process' columns' global IDs. More...

virtual void	getColumnIDsHostView (typename BaseAdapter< User >::ConstIdsHostView &colIds) const

virtual void	getColumnIDsDeviceView (typename BaseAdapter< User >::ConstIdsDeviceView &colIds) const

virtual void	getCCSView (ArrayRCP< const offset_t > &offsets, ArrayRCP< const gno_t > &rowIds) const
	Sets pointers to this process' matrix entries using compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getCCSView (ArrayRCP< const offset_t > &offsets, ArrayRCP< const gno_t > &rowIds, ArrayRCP< const scalar_t > &values) const
	Sets pointers to this process' matrix entries and their values using compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual int	getNumWeightsPerColumn () const
	Returns the number of weights per column (0 or greater). Column weights may be used when partitioning matrix columns. More...

virtual void	getColumnWeightsView (const scalar_t *&weights, int &stride, int idx=0) const
	Provide a pointer to the column weights, if any. More...

virtual void	getColumnWeightsHostView (typename BaseAdapter< User >::WeightsHostView1D &weights, int=0) const

virtual void	getColumnWeightsHostView (typename BaseAdapter< User >::WeightsHostView &weights) const

virtual void	getColumnWeightsDeviceView (typename BaseAdapter< User >::WeightsDeviceView1D &weights, int=0) const

virtual void	getColumnWeightsDeviceView (typename BaseAdapter< User >::WeightsDeviceView &weights) const

virtual bool	useNumNonzerosAsColumnWeight (int idx) const
	Indicate whether column weight with index idx should be the global number of nonzeros in the column. More...

void	setCoordinateInput (VectorAdapter< UserCoord > *coordData) override
	Allow user to provide additional data that contains coordinate info associated with the MatrixAdapter's primaryEntityType. Associated data must have the same parallel distribution and ordering of entries as the primaryEntityType. More...

bool	coordinatesAvailable () const
	Indicate whether coordinate information has been set for this MatrixAdapter. More...

VectorAdapter< UserCoord > *	getCoordinateInput () const override
	Obtain the coordinate data registered by the user. More...

enum MatrixEntityType	getPrimaryEntityType () const
	Returns the entity to be partitioned, ordered, colored, etc. Valid values are MATRIX_ROW, MATRIX_COLUMN, MATRIX_NONZERO. More...

void	setPrimaryEntityType (std::string typestr)
	Sets the primary entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to adjacencyEntityType to something reasonable: opposite of primaryEntityType. More...

size_t	getLocalNumIDs () const override
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const override
	Provide a pointer to this process' identifiers. More...

void	getIDsHostView (typename BaseAdapter< User >::ConstIdsHostView &ids) const override

void	getIDsDeviceView (typename BaseAdapter< User >::ConstIdsDeviceView &ids) const override

int	getNumWeightsPerID () const override
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const override
	Provide pointer to a weight array with stride. More...

void	getWeightsHostView (typename BaseAdapter< User >::WeightsHostView &hostWgts) const override

void	getWeightsHostView (typename BaseAdapter< User >::WeightsHostView1D &hostWgts, int idx=0) const override

void	getWeightsDeviceView (typename BaseAdapter< User >::WeightsDeviceView &deviceWgts) const override

void	getWeightsDeviceView (typename BaseAdapter< User >::WeightsDeviceView1D &deviceWgts, int idx=0) const override

bool	useDegreeAsWeight (int idx) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual void	getIDsKokkosView (ConstIdsDeviceView &ids) const
	Provide a Kokkos view to this process' identifiers. More...

virtual void	getIDsHostView (ConstIdsHostView &hostIds) const
	Provide a Kokkos view (Host side) to this process' identifiers. More...

virtual void	getIDsDeviceView (ConstIdsDeviceView &deviceIds) const
	Provide a Kokkos view (Device side) to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const
	Provide kokkos view of weights. More...

virtual void	getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsHostView (WeightsHostView &hostWgts) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView &deviceWgts) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

virtual void	getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const

virtual void	getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()=default

Protected Member Functions
	TpetraRowMatrixAdapter (int nWeightsPerRow, const RCP< const User > &inmatrix)

virtual RCP< User >	doMigration (const User &from, size_t numLocalRows, const gno_t *myNewRows) const

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Protected Attributes
RCP< const User >	matrix_

ArrayRCP< offset_t >	offset_

ArrayRCP< gno_t >	columnIds_

ArrayRCP< scalar_t >	values_

Base::ConstOffsetsHostView	offsHost_

Base::ConstIdsHostView	colIdsHost_

Base::ScalarsHostView	valuesHost_

Base::ConstOffsetsDeviceView	offsDevice_

Base::ConstIdsDeviceView	colIdsDevice_

Base::ScalarsDeviceView	valuesDevice_

int	nWeightsPerRow_

ArrayRCP< StridedData< lno_t, scalar_t > >	rowWeights_

Base::WeightsDeviceView	rowWeightsDevice_

Kokkos::View< bool *, host_t >	numNzWeight_

bool	mayHaveDiagonalEntries

Additional Inherited Members
Public Types inherited from Zoltan2::BaseAdapter< User >
using	lno_t = typename InputTraits< User >::lno_t

using	gno_t = typename InputTraits< User >::gno_t

using	scalar_t = typename InputTraits< User >::scalar_t

using	node_t = typename InputTraits< User >::node_t

using	part_t = typename InputTraits< User >::part_t

using	offset_t = typename InputTraits< User >::offset_t

using	host_t = typename Kokkos::HostSpace::memory_space

using	device_t = typename node_t::device_type

using	ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t >

using	ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

using	IdsDeviceView = Kokkos::View< gno_t *, device_t >

using	IdsHostView = typename IdsDeviceView::HostMirror

using	ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t >

using	ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

using	OffsetsDeviceView = Kokkos::View< offset_t *, device_t >

using	OffsetsHostView = typename OffsetsDeviceView::HostMirror

using	ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t >

using	ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

using	ScalarsDeviceView = Kokkos::View< scalar_t *, device_t >

using	ScalarsHostView = typename ScalarsDeviceView::HostMirror

using	ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t >

using	ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

using	WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t >

using	WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

using	ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t >

using	ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

using	WeightsDeviceView = Kokkos::View< scalar_t **, device_t >

using	WeightsHostView = typename WeightsDeviceView::HostMirror

Detailed Description

template<typename User, typename UserCoord = User>
class Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >

Provides access for Zoltan2 to Tpetra::RowMatrix data.

The scalar_t type, representing user data such as matrix values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::RowMatrix) have an inherent scalar type, and some (like Tpetra::RowGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.

Definition at line 42 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

Constructor & Destructor Documentation

template<typename User , typename UserCoord >

Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::TpetraRowMatrixAdapter	(	const RCP< const User > &	inmatrix,
		int	nWeightsPerRow = `0`
	)

Constructor.

Parameters

inmatrix	The user's Tpetra RowMatrix object
nWeightsPerRow	If row weights will be provided in setRowWeights(), then set `nWeightsPerRow` to the number of weights per row.

Definition at line 277 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::TpetraRowMatrixAdapter	(	int	nWeightsPerRow,
		const RCP< const User > &	inmatrix
	)

inlineprotected

Definition at line 243 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

Member Function Documentation

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setWeights	(	const scalar_t *	weightVal,
		int	stride,
		int	idx = `0`
	)

Specify a weight for each entity of the primaryEntityType.

Parameters

weightVal	A pointer to the weights for this index. A stride to be used in reading the values. The index `idx` weight for entity should be found at `weightVal[k*stride]`.
idx	A value between zero and one less that the `nWeightsPerRow` argument to the constructor.

The order of weights should correspond to the order of the primary entity type; see, e.g., setRowWeights below.

Definition at line 337 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setWeightsDevice	(	typename Base::ConstWeightsDeviceView1D	val,
		int	idx
	)

Provide a device view of weights for the primary entity type.

Parameters

val	A view to the weights for index `idx`.
idx	A number from 0 to one less than weight idx specified in the constructor.

The order of the weights should match the order that entities appear in the input data structure.

Definition at line 353 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setWeightsHost	(	typename Base::ConstWeightsHostView1D	val,
		int	idx
	)

Provide a host view of weights for the primary entity type.

Parameters

val	A view to the weights for index `idx`.
idx	A number from 0 to one less than weight idx specified in the constructor.

The order of the weights should match the order that entities appear in the input data structure.

Definition at line 369 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setRowWeights	(	const scalar_t *	weightVal,
		int	stride,
		int	idx = `0`
	)

Specify a weight for each row.

Parameters

weightVal	A pointer to the weights for this index.
stride	A stride to be used in reading the values. The index `idx` weight for row should be found at `weightVal[k*stride]`.
idx	A value between zero and one less that the `nWeightsPerRow` argument to the constructor.

The order of weights should correspond to the order of rows returned by

TheMatrix->getRowMap()->getLocalElementList();

Definition at line 385 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setRowWeightsDevice	(	typename Base::ConstWeightsDeviceView1D	val,
		int	idx
	)

Provide a device view to row weights.

Parameters

val	A pointer to the weights for index `idx`.
idx	A number from 0 to one less than number of row weights specified in the constructor.

The order of the row weights should match the order that rows appear in the input data structure.

TheMatrix->getRowMap()->getLocalElementList()

Definition at line 398 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setRowWeightsHost	(	typename Base::ConstWeightsHostView1D	val,
		int	idx
	)

Provide a host view to row weights.

Parameters

val	A pointer to the weights for index `idx`.
idx	A number from 0 to one less than number of row weights specified in the constructor.

The order of the row weights should match the order that rows appear in the input data structure.

TheMatrix->getRowMap()->getLocalElementList()

Definition at line 414 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setWeightIsDegree ( int idx )

Specify an index for which the weight should be the degree of the entity.

Parameters

idx	Zoltan2 will use the entity's degree as the entity weight for index `idx`.

Definition at line 427 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::setRowWeightIsNumberOfNonZeros ( int idx )

Specify an index for which the row weight should be the global number of nonzeros in the row.

Parameters

idx	Zoltan2 will use the global number of nonzeros in a row as the row weight for index `idx`.

Definition at line 442 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

size_t Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getLocalNumRows ( ) const

virtual

Returns the number of rows on this process.

Implements Zoltan2::MatrixAdapter< User, UserCoord >.

Definition at line 456 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

size_t Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getLocalNumColumns ( ) const

virtual

Returns the number of columns on this process.

Implements Zoltan2::MatrixAdapter< User, UserCoord >.

Definition at line 462 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

size_t Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getLocalNumEntries ( ) const

virtual

Returns the number of nonzeros on this process.

Implements Zoltan2::MatrixAdapter< User, UserCoord >.

Definition at line 468 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

bool Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::CRSViewAvailable ( ) const

virtual

Indicates whether the MatrixAdapter implements a view of the matrix in compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required.

Reimplemented from Zoltan2::MatrixAdapter< User, UserCoord >.

Definition at line 474 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowIDsView ( const gno_t *& rowIds ) const

override

Definition at line 478 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowIDsHostView ( typename Base::ConstIdsHostView & rowIds ) const

override

Definition at line 485 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowIDsDeviceView ( typename Base::ConstIdsDeviceView & rowIds ) const

override

Definition at line 497 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getCRSView	(	ArrayRCP< const offset_t > &	offsets,
		ArrayRCP< const gno_t > &	colIds
	)		const

Definition at line 510 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getCRSHostView	(	typename Base::ConstOffsetsHostView &	offsets,
		typename Base::ConstIdsHostView &	colIds
	)		const

override

Definition at line 518 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getCRSDeviceView	(	typename Base::ConstOffsetsDeviceView &	offsets,
		typename Base::ConstIdsDeviceView &	colIds
	)		const

override

Definition at line 532 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getCRSView	(	ArrayRCP< const offset_t > &	offsets,
		ArrayRCP< const gno_t > &	colIds,
		ArrayRCP< const scalar_t > &	values
	)		const

Definition at line 541 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getCRSHostView	(	typename Base::ConstOffsetsHostView &	offsets,
		typename Base::ConstIdsHostView &	colIds,
		typename Base::ConstScalarsHostView &	values
	)		const

override

Definition at line 551 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getCRSDeviceView	(	typename Base::ConstOffsetsDeviceView &	offsets,
		typename Base::ConstIdsDeviceView &	colIds,
		typename Base::ConstScalarsDeviceView &	values
	)		const

override

Definition at line 570 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

int Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getNumWeightsPerRow ( ) const

virtual

Returns the number of weights per row (0 or greater). Row weights may be used when partitioning matrix rows.

Reimplemented from Zoltan2::MatrixAdapter< User, UserCoord >.

Definition at line 581 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int	idx = `0`
	)		const

virtual

Provide a pointer to the row weights, if any.

Parameters

weights	is the list of weights with a given index for the rows returned in getRowIDsView().
stride	The k'th weight is located at weights[stride*k]
idx	ranges from zero to one less than getNumWeightsPerRow().

Reimplemented from Zoltan2::MatrixAdapter< User, UserCoord >.

Definition at line 585 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowWeightsDeviceView	(	typename Base::WeightsDeviceView1D &	weights,
		int	idx = `0`
	)		const

Definition at line 600 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowWeightsDeviceView ( typename Base::WeightsDeviceView & weights ) const

override

Definition at line 618 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowWeightsHostView	(	typename Base::WeightsHostView1D &	weights,
		int	idx = `0`
	)		const

Definition at line 626 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::getRowWeightsHostView ( typename Base::WeightsHostView & weights ) const

override

Definition at line 641 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

bool Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::useNumNonzerosAsRowWeight ( int idx ) const

virtual

Indicate whether row weight with index idx should be the global number of nonzeros in the row.

Reimplemented from Zoltan2::MatrixAdapter< User, UserCoord >.

Definition at line 650 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

template<typename Adapter >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::applyPartitioningSolution	(	const User &	in,
		User *&	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 655 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

template<typename Adapter >

void Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::applyPartitioningSolution	(	const User &	in,
		RCP< User > &	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 677 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord >

RCP< User > Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::doMigration	(	const User &	from,
		size_t	numLocalRows,
		const gno_t *	myNewRows
	)		const

protectedvirtual

Definition at line 696 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

Member Data Documentation

template<typename User , typename UserCoord = User>

RCP<const User> Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::matrix_

protected

Definition at line 247 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

ArrayRCP<offset_t> Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::offset_

protected

Definition at line 249 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

ArrayRCP<gno_t> Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::columnIds_

protected

Definition at line 250 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

ArrayRCP<scalar_t> Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::values_

protected

Definition at line 251 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Base::ConstOffsetsHostView Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::offsHost_

protected

Definition at line 253 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Base::ConstIdsHostView Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::colIdsHost_

protected

Definition at line 254 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Base::ScalarsHostView Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::valuesHost_

protected

Definition at line 255 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Base::ConstOffsetsDeviceView Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::offsDevice_

protected

Definition at line 257 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Base::ConstIdsDeviceView Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::colIdsDevice_

protected

Definition at line 258 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Base::ScalarsDeviceView Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::valuesDevice_

protected

Definition at line 259 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

int Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::nWeightsPerRow_

protected

Definition at line 261 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

ArrayRCP<StridedData<lno_t, scalar_t> > Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::rowWeights_

protected

Definition at line 262 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Base::WeightsDeviceView Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::rowWeightsDevice_

protected

Definition at line 263 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

Kokkos::View<bool *, host_t> Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::numNzWeight_

protected

Definition at line 264 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

template<typename User , typename UserCoord = User>

bool Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >::mayHaveDiagonalEntries

protected

Definition at line 266 of file Zoltan2_TpetraRowMatrixAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_TpetraRowMatrixAdapter.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<typename User, typename UserCoord = User> class Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename User, typename UserCoord = User>
class Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >
