Zoltan2
|
|
Zoltan2
|
This class represents a mesh. More...
#include <Zoltan2_PamgenMeshAdapter.hpp>
Public Types | |
| typedef InputTraits< User > ::scalar_t | scalar_t |
| typedef InputTraits< User >::lno_t | lno_t |
| typedef InputTraits< User >::gno_t | gno_t |
| typedef InputTraits< User > ::offset_t | offset_t |
| typedef InputTraits< User >::part_t | part_t |
| typedef InputTraits< User >::node_t | node_t |
| typedef User | user_t |
| typedef std::map< gno_t, gno_t > | MapType |
 Public Types inherited from Zoltan2::AdapterWithCoords< User > | |
| using | scalar_t = typename BaseAdapter< User >::scalar_t |
| using | device_t = typename BaseAdapter< User >::node_t::device_type |
| using | host_t = typename Kokkos::HostSpace::memory_space |
| using | CoordsDeviceView = Kokkos::View< scalar_t **, Kokkos::LayoutLeft, device_t > |
| using | CoordsHostView = typename CoordsDeviceView::HostMirror |
| Public Types inherited from Zoltan2::BaseAdapter< User > | |
| using | lno_t = typename InputTraits< User >::lno_t |
| using | gno_t = typename InputTraits< User >::gno_t |
| using | scalar_t = typename InputTraits< User >::scalar_t |
| using | node_t = typename InputTraits< User >::node_t |
| using | part_t = typename InputTraits< User >::part_t |
| using | offset_t = typename InputTraits< User >::offset_t |
| using | host_t = typename Kokkos::HostSpace::memory_space |
| using | device_t = typename node_t::device_type |
| using | ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t > |
| using | ConstIdsHostView = typename ConstIdsDeviceView::HostMirror |
| using | IdsDeviceView = Kokkos::View< gno_t *, device_t > |
| using | IdsHostView = typename IdsDeviceView::HostMirror |
| using | ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t > |
| using | ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror |
| using | OffsetsDeviceView = Kokkos::View< offset_t *, device_t > |
| using | OffsetsHostView = typename OffsetsDeviceView::HostMirror |
| using | ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t > |
| using | ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror |
| using | ScalarsDeviceView = Kokkos::View< scalar_t *, device_t > |
| using | ScalarsHostView = typename ScalarsDeviceView::HostMirror |
| using | ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t > |
| using | ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror |
| using | WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t > |
| using | WeightsHostView1D = typename WeightsDeviceView1D::HostMirror |
| using | ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t > |
| using | ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror |
| using | WeightsDeviceView = Kokkos::View< scalar_t **, device_t > |
| using | WeightsHostView = typename WeightsDeviceView::HostMirror |
Public Member Functions | |
| PamgenMeshAdapter (const Comm< int > &comm, std::string typestr="region", int nEntWgts=0) | |
| Constructor for mesh with identifiers but no coordinates or edges. More... | |
| void | setWeightIsDegree (int idx) |
Specify an index for which the weight should be the degree of the entity idx Zoltan2 will use the entity's degree as the entity weight for index idx. More... | |
| void | print (int) |
| bool | areEntityIDsUnique (MeshEntityType etype) const |
| Provide a pointer to the entity topology types. More... | |
| size_t | getLocalNumOf (MeshEntityType etype) const |
| Returns the global number of mesh entities of MeshEntityType. More... | |
| void | getIDsViewOf (MeshEntityType etype, const gno_t *&Ids) const |
| void | getTopologyViewOf (MeshEntityType etype, enum EntityTopologyType const *&Types) const |
| Provide a pointer to the entity topology types. More... | |
| void | getWeightsViewOf (MeshEntityType etype, const scalar_t *&weights, int &stride, int idx=0) const |
| int | getDimension () const |
| Return dimension of the entity coordinates, if any. More... | |
| void | getCoordinatesViewOf (MeshEntityType etype, const scalar_t *&coords, int &stride, int dim) const |
| bool | availAdjs (MeshEntityType source, MeshEntityType target) const |
| Returns whether a first adjacency combination is available. More... | |
| size_t | getLocalNumAdjs (MeshEntityType source, MeshEntityType target) const |
| Returns the number of first adjacencies on this process. More... | |
| void | getAdjsView (MeshEntityType source, MeshEntityType target, const offset_t *&offsets, const gno_t *&adjacencyIds) const |
| bool | avail2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const |
| Returns whether a second adjacency combination is available. If combination is not available in the MeshAdapter, Zoltan2 will compute them, using A^T A, where A is matrix of first adjacencies. More... | |
| size_t | getLocalNum2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const |
| if avail2ndAdjs(), returns the number of second adjacencies on this process. More... | |
| void | get2ndAdjsView (MeshEntityType sourcetarget, MeshEntityType through, const offset_t *&offsets, const gno_t *&adjacencyIds) const |
| bool | useDegreeAsWeightOf (MeshEntityType etype, int idx) const |
| Optional method allowing the idx-th weight of entity type etype to be set as the number of neighbors (the degree) of the entity Default is false; user can change in his MeshAdapter implementation. More... | |
| Public Member Functions inherited from Zoltan2::MeshAdapter< User > | |
| enum BaseAdapterType | adapterType () const override |
| Returns the type of adapter. More... | |
| MeshAdapter () | |
| virtual void | getIDsViewOf (MeshEntityType etype, gno_t const *&Ids) const =0 |
| Provide a pointer to this process' identifiers. More... | |
| virtual int | getNumWeightsPerOf (MeshEntityType etype) const |
| Return the number of weights per entity. More... | |
| virtual void | getWeightsViewOf (MeshEntityType etype, const scalar_t *&weights, int &stride, int idx=0) const |
| Provide a pointer to one of the number of this process' optional entity weights. More... | |
| virtual void | getCoordinatesViewOf (MeshEntityType etype, const scalar_t *&coords, int &stride, int coordDim) const |
| Provide a pointer to one dimension of entity coordinates. More... | |
| virtual void | getAdjsView (MeshEntityType source, MeshEntityType target, const offset_t *&offsets, const gno_t *&adjacencyIds) const |
| Sets pointers to this process' mesh first adjacencies. More... | |
| virtual void | get2ndAdjsView (MeshEntityType sourcetarget, MeshEntityType through, const offset_t *&offsets, const gno_t *&adjacencyIds) const |
| if avail2ndAdjs(), set pointers to this process' second adjacencies More... | |
| virtual int | getNumWeightsPer2ndAdj (MeshEntityType sourcetarget, MeshEntityType through) const |
| Returns the number (0 or greater) of weights per second adjacency. Note: second-adjacency weights may be used only if avail2ndAdjs(). More... | |
| virtual void | get2ndAdjWeightsView (MeshEntityType sourcetarget, MeshEntityType through, const scalar_t *&weights, int &stride, int idx) const |
| Provide a pointer to the second adjacency weights, if any. Note: second-adjacency weights may be used only if avail2ndAdjs(). More... | |
| enum MeshEntityType | getPrimaryEntityType () const |
| Returns the entity to be partitioned, ordered, colored, etc. More... | |
| enum MeshEntityType | getAdjacencyEntityType () const |
| Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. That is, a primaryEntityType that contains an adjacencyEntityType are adjacent. More... | |
| enum MeshEntityType | getSecondAdjacencyEntityType () const |
| Returns the entity that describes second adjacencies between the entities to be partitioned, ordered, colored, etc. That is, two primaryEntityType that share a secondAdjacencyEntityType are adjacent. More... | |
| void | setEntityTypes (std::string ptypestr, std::string atypestr, std::string satypestr) |
| Sets the primary, adjacency, and second adjacency entity types. Called by algorithm based on parameter values in parameter list from application. Also sets primaryEntityType, adjacencyEntityType, and secondAdjacencyEntityType to something reasonable: primaryEntityType not adjacencyEntityType or secondAdjacencyEntityType. More... | |
| size_t | getLocalNumIDs () const override |
| Returns the number of objects on this process. More... | |
| void | getIDsView (const gno_t *&Ids) const override |
| Provide a pointer to this process' identifiers. More... | |
| void | getIDsKokkosView (Kokkos::View< const gno_t *, typename node_t::device_type > &ids) const override |
| int | getNumWeightsPerID () const override |
| Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More... | |
| void | getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const override |
| Provide pointer to a weight array with stride. More... | |
| void | getCoordinatesView (const scalar_t *&coords, int &stride, int coordDim) const override |
| void | getCoordinatesKokkosView (Kokkos::View< scalar_t **, Kokkos::LayoutLeft, typename node_t::device_type > &elements) const override |
| bool | useDegreeAsWeight (int idx) const |
| Public Member Functions inherited from Zoltan2::AdapterWithCoords< User > | |
| virtual void | getCoordinatesKokkosView (CoordsDeviceView &elements) const =0 |
| virtual void | getCoordinatesHostView (CoordsHostView &) const |
| virtual void | getCoordinatesDeviceView (CoordsDeviceView &elements) const |
| Public Member Functions inherited from Zoltan2::BaseAdapter< User > | |
| virtual void | getIDsKokkosView (ConstIdsDeviceView &ids) const |
| Provide a Kokkos view to this process' identifiers. More... | |
| virtual void | getIDsHostView (ConstIdsHostView &hostIds) const |
| Provide a Kokkos view (Host side) to this process' identifiers. More... | |
| virtual void | getIDsDeviceView (ConstIdsDeviceView &deviceIds) const |
| Provide a Kokkos view (Device side) to this process' identifiers. More... | |
| virtual void | getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const |
| Provide kokkos view of weights. More... | |
| virtual void | getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const |
| Provide a Kokkos view (Host side) of the weights. More... | |
| virtual void | getWeightsHostView (WeightsHostView &hostWgts) const |
| Provide a Kokkos view (Host side) of the weights. More... | |
| virtual void | getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const |
| Provide a Kokkos view (Device side) of the weights. More... | |
| virtual void | getWeightsDeviceView (WeightsDeviceView &deviceWgts) const |
| Provide a Kokkos view (Device side) of the weights. More... | |
| virtual void | getPartsView (const part_t *&inputPart) const |
| Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More... | |
| virtual void | getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const |
| virtual void | getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const |
| template<typename Adapter > | |
| void | applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const |
| Apply a PartitioningSolution to an input. More... | |
| Public Member Functions inherited from Zoltan2::BaseAdapterRoot | |
| virtual | ~BaseAdapterRoot ()=default |
Additional Inherited Members | |
| Protected Member Functions inherited from Zoltan2::BaseAdapter< User > | |
| void | generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const |
This class represents a mesh.
A mesh can be a collection of global Identifiers and their associated weights, if any.
The user supplies the identifiers and weights by way of pointers to arrays.
The template parameter (User) is a C++ class type which provides the actual data types with which the Zoltan2 library will be compiled, through a Traits mechanism. User may be the actual class used by application to represent coordinates, or it may be the empty helper class BasicUserTypes with which a Zoltan2 user can easily supply the data types for the library.
The scalar_t type, representing use data such as matrix values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::CrsMatrix) have an inherent scalar type, and some (like Tpetra::CrsGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.
Definition at line 91 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef InputTraits<User>::scalar_t Zoltan2::PamgenMeshAdapter< User >::scalar_t |
Definition at line 95 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef InputTraits<User>::lno_t Zoltan2::PamgenMeshAdapter< User >::lno_t |
Definition at line 96 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef InputTraits<User>::gno_t Zoltan2::PamgenMeshAdapter< User >::gno_t |
Definition at line 97 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef InputTraits<User>::offset_t Zoltan2::PamgenMeshAdapter< User >::offset_t |
Definition at line 98 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef InputTraits<User>::part_t Zoltan2::PamgenMeshAdapter< User >::part_t |
Definition at line 99 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef InputTraits<User>::node_t Zoltan2::PamgenMeshAdapter< User >::node_t |
Definition at line 100 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef User Zoltan2::PamgenMeshAdapter< User >::user_t |
Definition at line 101 of file Zoltan2_PamgenMeshAdapter.hpp.
| typedef std::map<gno_t, gno_t> Zoltan2::PamgenMeshAdapter< User >::MapType |
Definition at line 102 of file Zoltan2_PamgenMeshAdapter.hpp.
| Zoltan2::PamgenMeshAdapter< User >::PamgenMeshAdapter | ( | const Comm< int > & | comm, |
| std::string | typestr = "region", |
||
| int | nEntWgts = 0 |
||
| ) |
Constructor for mesh with identifiers but no coordinates or edges.
| etype | is the mesh entity type of the identifiers |
The values pointed to the arguments must remain valid for the lifetime of this InputAdapter.
Definition at line 352 of file Zoltan2_PamgenMeshAdapter.hpp.
| void Zoltan2::PamgenMeshAdapter< User >::setWeightIsDegree | ( | int | idx | ) |
Specify an index for which the weight should be the degree of the entity idx Zoltan2 will use the entity's degree as the entity weight for index idx.
Definition at line 897 of file Zoltan2_PamgenMeshAdapter.hpp.
| void Zoltan2::PamgenMeshAdapter< User >::print | ( | int | me | ) |
Definition at line 907 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Provide a pointer to the entity topology types.
| Types | will on return point to the list of entity topology types for this process. |

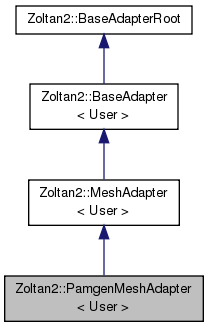

Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 129 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Returns the global number of mesh entities of MeshEntityType.
Returns the number of mesh entities on this process.
Implements Zoltan2::MeshAdapter< User >.
Definition at line 133 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inline |
Definition at line 147 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Provide a pointer to the entity topology types.
| Types | will on return point to the list of entity topology types for this process. |
Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 161 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inline |
Definition at line 175 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Return dimension of the entity coordinates, if any.
Some algorithms can partition mesh entities using geometric coordinate information
Some algorithms can use geometric entity coordinate information if it is present.
Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 182 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inline |
Definition at line 184 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Returns whether a first adjacency combination is available.
Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 215 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Returns the number of first adjacencies on this process.
Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 226 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inline |
Definition at line 241 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Returns whether a second adjacency combination is available. If combination is not available in the MeshAdapter, Zoltan2 will compute them, using A^T A, where A is matrix of first adjacencies.
Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 264 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
if avail2ndAdjs(), returns the number of second adjacencies on this process.
Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 277 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inline |
Definition at line 295 of file Zoltan2_PamgenMeshAdapter.hpp.
|
inlinevirtual |
Optional method allowing the idx-th weight of entity type etype to be set as the number of neighbors (the degree) of the entity Default is false; user can change in his MeshAdapter implementation.
Reimplemented from Zoltan2::MeshAdapter< User >.
Definition at line 316 of file Zoltan2_PamgenMeshAdapter.hpp.
1.8.5
