#include <Zoltan2_APFMeshAdapter.hpp>

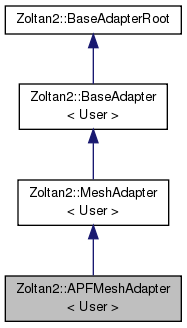

Inheritance diagram for Zoltan2::APFMeshAdapter< User >:

Collaboration diagram for Zoltan2::APFMeshAdapter< User >:

Public Member Functions
	APFMeshAdapter (const Comm< int > &comm, apf::Mesh *m, std::string primary, std::string adjacency, bool needSecondAdj=false)

Public Member Functions inherited from Zoltan2::MeshAdapter< User >
enum BaseAdapterType	adapterType () const override
	Returns the type of adapter. More...

	MeshAdapter ()

virtual bool	areEntityIDsUnique (MeshEntityType etype) const
	Provide a pointer to the entity topology types. More...

virtual size_t	getLocalNumOf (MeshEntityType etype) const =0
	Returns the global number of mesh entities of MeshEntityType. More...

virtual void	getIDsViewOf (MeshEntityType etype, gno_t const *&Ids) const =0
	Provide a pointer to this process' identifiers. More...

virtual void	getTopologyViewOf (MeshEntityType etype, enum EntityTopologyType const *&Types) const
	Provide a pointer to the entity topology types. More...

virtual int	getNumWeightsPerOf (MeshEntityType etype) const
	Return the number of weights per entity. More...

virtual void	getWeightsViewOf (MeshEntityType etype, const scalar_t *&weights, int &stride, int idx=0) const
	Provide a pointer to one of the number of this process' optional entity weights. More...

virtual int	getDimension () const
	Return dimension of the entity coordinates, if any. More...

virtual void	getCoordinatesViewOf (MeshEntityType etype, const scalar_t *&coords, int &stride, int coordDim) const
	Provide a pointer to one dimension of entity coordinates. More...

virtual bool	availAdjs (MeshEntityType source, MeshEntityType target) const
	Returns whether a first adjacency combination is available. More...

virtual size_t	getLocalNumAdjs (MeshEntityType source, MeshEntityType target) const
	Returns the number of first adjacencies on this process. More...

virtual void	getAdjsView (MeshEntityType source, MeshEntityType target, const offset_t &offsets, const gno_t &adjacencyIds) const
	Sets pointers to this process' mesh first adjacencies. More...

virtual bool	avail2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const
	Returns whether a second adjacency combination is available. If combination is not available in the MeshAdapter, Zoltan2 will compute them, using A^T A, where A is matrix of first adjacencies. More...

virtual size_t	getLocalNum2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const
	if avail2ndAdjs(), returns the number of second adjacencies on this process. More...

virtual void	get2ndAdjsView (MeshEntityType sourcetarget, MeshEntityType through, const offset_t &offsets, const gno_t &adjacencyIds) const
	if avail2ndAdjs(), set pointers to this process' second adjacencies More...

virtual int	getNumWeightsPer2ndAdj (MeshEntityType sourcetarget, MeshEntityType through) const
	Returns the number (0 or greater) of weights per second adjacency. Note: second-adjacency weights may be used only if avail2ndAdjs(). More...

virtual void	get2ndAdjWeightsView (MeshEntityType sourcetarget, MeshEntityType through, const scalar_t *&weights, int &stride, int idx) const
	Provide a pointer to the second adjacency weights, if any. Note: second-adjacency weights may be used only if avail2ndAdjs(). More...

enum MeshEntityType	getPrimaryEntityType () const
	Returns the entity to be partitioned, ordered, colored, etc. More...

enum MeshEntityType	getAdjacencyEntityType () const
	Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. That is, a primaryEntityType that contains an adjacencyEntityType are adjacent. More...

enum MeshEntityType	getSecondAdjacencyEntityType () const
	Returns the entity that describes second adjacencies between the entities to be partitioned, ordered, colored, etc. That is, two primaryEntityType that share a secondAdjacencyEntityType are adjacent. More...

void	setEntityTypes (std::string ptypestr, std::string atypestr, std::string satypestr)
	Sets the primary, adjacency, and second adjacency entity types. Called by algorithm based on parameter values in parameter list from application. Also sets primaryEntityType, adjacencyEntityType, and secondAdjacencyEntityType to something reasonable: primaryEntityType not adjacencyEntityType or secondAdjacencyEntityType. More...

virtual bool	useDegreeAsWeightOf (MeshEntityType etype, int idx) const
	Optional method allowing the idx-th weight of entity type etype to be set as the number of neighbors (the degree) of the entity Default is false; user can change in his MeshAdapter implementation. More...

size_t	getLocalNumIDs () const override
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const override
	Provide a pointer to this process' identifiers. More...

void	getIDsKokkosView (Kokkos::View< const gno_t *, typename node_t::device_type > &ids) const override

int	getNumWeightsPerID () const override
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const override
	Provide pointer to a weight array with stride. More...

void	getCoordinatesView (const scalar_t *&coords, int &stride, int coordDim) const override

void	getCoordinatesKokkosView (Kokkos::View< scalar_t **, Kokkos::LayoutLeft, typename node_t::device_type > &elements) const override

bool	useDegreeAsWeight (int idx) const

Public Member Functions inherited from Zoltan2::AdapterWithCoords< User >
virtual void	getCoordinatesKokkosView (CoordsDeviceView &elements) const =0

virtual void	getCoordinatesHostView (CoordsHostView &) const

virtual void	getCoordinatesDeviceView (CoordsDeviceView &elements) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual void	getIDsKokkosView (ConstIdsDeviceView &ids) const
	Provide a Kokkos view to this process' identifiers. More...

virtual void	getIDsHostView (ConstIdsHostView &hostIds) const
	Provide a Kokkos view (Host side) to this process' identifiers. More...

virtual void	getIDsDeviceView (ConstIdsDeviceView &deviceIds) const
	Provide a Kokkos view (Device side) to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const
	Provide kokkos view of weights. More...

virtual void	getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsHostView (WeightsHostView &hostWgts) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView &deviceWgts) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

virtual void	getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const

virtual void	getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()=default

Additional Inherited Members
Public Types inherited from Zoltan2::AdapterWithCoords< User >
using	scalar_t = typename BaseAdapter< User >::scalar_t

using	device_t = typename BaseAdapter< User >::node_t::device_type

using	host_t = typename Kokkos::HostSpace::memory_space

using	CoordsDeviceView = Kokkos::View< scalar_t **, Kokkos::LayoutLeft, device_t >

using	CoordsHostView = typename CoordsDeviceView::HostMirror

Public Types inherited from Zoltan2::BaseAdapter< User >
using	lno_t = typename InputTraits< User >::lno_t

using	gno_t = typename InputTraits< User >::gno_t

using	scalar_t = typename InputTraits< User >::scalar_t

using	node_t = typename InputTraits< User >::node_t

using	part_t = typename InputTraits< User >::part_t

using	offset_t = typename InputTraits< User >::offset_t

using	host_t = typename Kokkos::HostSpace::memory_space

using	device_t = typename node_t::device_type

using	ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t >

using	ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

using	IdsDeviceView = Kokkos::View< gno_t *, device_t >

using	IdsHostView = typename IdsDeviceView::HostMirror

using	ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t >

using	ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

using	OffsetsDeviceView = Kokkos::View< offset_t *, device_t >

using	OffsetsHostView = typename OffsetsDeviceView::HostMirror

using	ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t >

using	ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

using	ScalarsDeviceView = Kokkos::View< scalar_t *, device_t >

using	ScalarsHostView = typename ScalarsDeviceView::HostMirror

using	ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t >

using	ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

using	WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t >

using	WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

using	ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t >

using	ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

using	WeightsDeviceView = Kokkos::View< scalar_t **, device_t >

using	WeightsHostView = typename WeightsDeviceView::HostMirror

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User>
class Zoltan2::APFMeshAdapter< User >

Definition at line 32 of file Zoltan2_APFMeshAdapter.hpp.

Constructor & Destructor Documentation

template<typename User>

Zoltan2::APFMeshAdapter< User >::APFMeshAdapter	(	const Comm< int > &	comm,
		apf::Mesh *	m,
		std::string	primary,
		std::string	adjacency,
		bool	needSecondAdj = `false`
	)

inline

Definition at line 37 of file Zoltan2_APFMeshAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_APFMeshAdapter.hpp
