#include <Xpetra_EpetraVector.hpp>

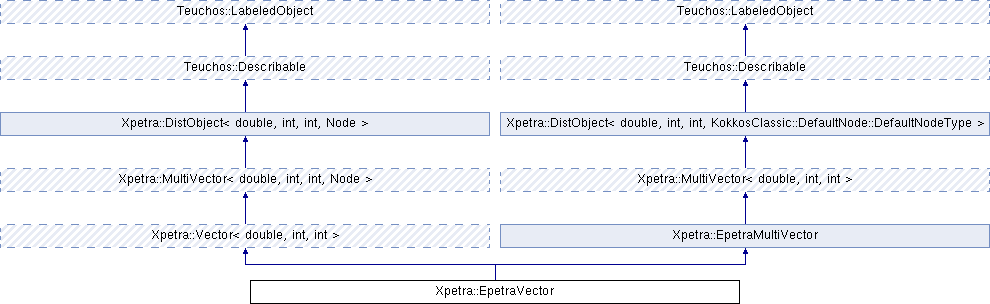

Inheritance diagram for Xpetra::EpetraVector:

Private Types
typedef double	Scalar

typedef int	LocalOrdinal

typedef int	GlobalOrdinal

typedef KokkosClassic::DefaultNode::DefaultNodeType	Node

Private Attributes
const RCP< const Epetra_MultiVector >	internalRefToBaseMV_

Constructor/Destructor Methods
	EpetraVector (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &map, bool zeroOut=true)
	Sets all vector entries to zero. More...

	EpetraVector (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source)
	Vector copy constructor. More...

virtual	~EpetraVector ()
	Destructor. More...

Post-construction modification routines
void	replaceGlobalValue (GlobalOrdinal globalRow, const Scalar &value)
	Replace current value at the specified location with specified value. More...

void	sumIntoGlobalValue (GlobalOrdinal globalRow, const Scalar &value)
	Adds specified value to existing value at the specified location. More...

void	replaceLocalValue (LocalOrdinal myRow, const Scalar &value)
	Replace current value at the specified location with specified values. More...

void	sumIntoLocalValue (LocalOrdinal myRow, const Scalar &value)
	Adds specified value to existing value at the specified location. More...

Mathematical methods
Scalar	dot (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &a) const
	Computes dot product of this Vector against input Vector x. More...

Teuchos::ScalarTraits< Scalar > ::magnitudeType	norm1 () const
	Return 1-norm of this Vector. More...

Teuchos::ScalarTraits< Scalar > ::magnitudeType	norm2 () const
	Compute 2-norm of this Vector. More...

Teuchos::ScalarTraits< Scalar > ::magnitudeType	normInf () const
	Compute Inf-norm of this Vector. More...

Teuchos::ScalarTraits< Scalar > ::magnitudeType	normWeighted (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &weights) const
	Compute Weighted 2-norm (RMS Norm) of this Vector. More...

Scalar	meanValue () const
	Compute mean (average) value of this Vector. More...

Overridden from Teuchos::Describable
std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Xpetra specific
	EpetraVector (const Teuchos::RCP< Epetra_Vector > &vec)
	EpetraMultiVector constructor to wrap a Epetra_Vector object. More...

Epetra_Vector *	getEpetra_Vector () const
	Get the underlying Epetra vector. More...

	EpetraVector (const RCP< Epetra_MultiVector > &mv, size_t j)

Additional Inherited Members
Public Member Functions inherited from Xpetra::Vector< double, int, int >
virtual	~Vector ()
	Destructor. More...

virtual double	dot (const Vector< double, int, int, Node > &a) const =0
	Computes dot product of this Vector against input Vector x. More...

virtual Teuchos::ScalarTraits < double >::magnitudeType	normWeighted (const Vector< double, int, int, Node > &weights) const =0
	Compute Weighted 2-norm (RMS Norm) of this Vector. More...

Public Member Functions inherited from Xpetra::MultiVector< double, int, int, Node >
virtual	~MultiVector ()
	Destructor. More...

MultiVector< double, int, int, Node > &	operator= (const MultiVector< double, int, int, Node > &rhs)
	Assignment operator: Does a deep copy. More...

virtual void	replaceGlobalValue (intglobalRow, size_t vectorIndex, const double &value)=0
	Replace value, using global (row) index. More...

virtual void	sumIntoGlobalValue (intglobalRow, size_t vectorIndex, const double &value)=0
	Add value to existing value, using global (row) index. More...

virtual void	replaceLocalValue (intmyRow, size_t vectorIndex, const double &value)=0
	Replace value, using local (row) index. More...

virtual void	sumIntoLocalValue (intmyRow, size_t vectorIndex, const double &value)=0
	Add value to existing value, using local (row) index. More...

virtual void	putScalar (const double &value)=0
	Set all values in the multivector with the given value. More...

virtual Teuchos::RCP< const Vector< double, int, int, Node > >	getVector (size_t j) const =0
	Return a Vector which is a const view of column j. More...

virtual Teuchos::RCP< Vector < double, int, int, Node > >	getVectorNonConst (size_t j)=0
	Return a Vector which is a nonconst view of column j. More...

virtual Teuchos::ArrayRCP < const double >	getData (size_t j) const =0
	Const view of the local values in a particular vector of this multivector. More...

virtual Teuchos::ArrayRCP< double >	getDataNonConst (size_t j)=0
	View of the local values in a particular vector of this multivector. More...

virtual void	dot (const MultiVector< double, int, int, Node > &A, const Teuchos::ArrayView< double > &dots) const =0
	Compute dot product of each corresponding pair of vectors, dots[i] = this[i].dot(A[i]). More...

virtual void	abs (const MultiVector< double, int, int, Node > &A)=0
	Put element-wise absolute values of input Multi-vector in target: A = abs(this). More...

virtual void	reciprocal (const MultiVector< double, int, int, Node > &A)=0
	Put element-wise reciprocal values of input Multi-vector in target, this(i,j) = 1/A(i,j). More...

virtual void	scale (const double &alpha)=0
	Scale the current values of a multi-vector, this = alpha*this. More...

virtual void	scale (Teuchos::ArrayView< const double > alpha)=0
	Scale the current values of a multi-vector, this[j] = alpha[j]*this[j]. More...

virtual void	update (const double &alpha, const MultiVector< double, int, int, Node > &A, const double &beta)=0
	Update multi-vector values with scaled values of A, this = betathis + alphaA. More...

virtual void	update (const double &alpha, const MultiVector< double, int, int, Node > &A, const double &beta, const MultiVector< double, int, int, Node > &B, const double &gamma)=0
	Update multi-vector with scaled values of A and B, this = gammathis + alphaA + beta*B. More...

virtual void	norm1 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< double >::magnitudeType > &norms) const =0
	Compute 1-norm of each vector in multi-vector. More...

virtual void	norm2 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< double >::magnitudeType > &norms) const =0

virtual void	normInf (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< double >::magnitudeType > &norms) const =0
	Compute Inf-norm of each vector in multi-vector. More...

virtual void	normWeighted (const MultiVector< double, int, int, Node > &weights, const Teuchos::ArrayView< typename Teuchos::ScalarTraits< double >::magnitudeType > &norms) const =0

virtual void	meanValue (const Teuchos::ArrayView< double > &means) const =0
	Compute mean (average) value of each vector in multi-vector. The outcome of this routine is undefined for non-floating point scalar types (e.g., int). More...

virtual void	multiply (Teuchos::ETransp transA, Teuchos::ETransp transB, const double &alpha, const MultiVector< double, int, int, Node > &A, const MultiVector< double, int, int, Node > &B, const double &beta)=0
	Matrix-matrix multiplication: this = betathis + alphaop(A)*op(B). More...

virtual void	elementWiseMultiply (doublescalarAB, const Vector< double, int, int, Node > &A, const MultiVector< double, int, int, Node > &B, doublescalarThis)=0
	Element-wise multiply of a Vector A with a MultiVector B. More...

virtual size_t	getNumVectors () const =0
	Number of columns in the multivector. More...

virtual size_t	getLocalLength () const =0
	Local number of rows on the calling process. More...

virtual global_size_t	getGlobalLength () const =0
	Global number of rows in the multivector. More...

virtual void	replaceMap (const RCP< const Map< int, int, Node > > &map)=0

virtual void	setSeed (unsigned int seed)=0
	Set seed for Random function. More...

virtual void	randomize (bool bUseXpetraImplementation=false)=0

virtual void	Xpetra_randomize ()
	Set multi-vector values to random numbers. XPetra implementation. More...

Public Member Functions inherited from Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Import data into this object using an Import object ("forward mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Export data into this object using an Export object ("forward mode"). More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Export data into this object using an Import object ("reverse mode"). More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Public Member Functions inherited from Xpetra::EpetraMultiVector
void	randomize (bool bUseXpetraImplementation=false)
	Set multi-vector values to random numbers. More...

Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getMap () const
	Implements DistObject interface. More...

void	doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import. More...

void	doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export. More...

void	doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import (using an Exporter). More...

void	doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export (using an Importer). More...

void	replaceMap (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &map)
	Replace the underlying Map in place. More...

	EpetraMultiVector (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &map, size_t NumVectors, bool zeroOut=true)
	Basic MultiVector constuctor. More...

	EpetraMultiVector (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source)
	MultiVector copy constructor. More...

	EpetraMultiVector (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &map, const Teuchos::ArrayView< const Teuchos::ArrayView< const Scalar > > &ArrayOfPtrs, size_t NumVectors)
	Set multi-vector values from array of pointers using Teuchos memory management classes. (copy). More...

virtual	~EpetraMultiVector ()
	MultiVector destructor. More...

void	replaceGlobalValue (GlobalOrdinal globalRow, size_t vectorIndex, const Scalar &value)
	Replace value, using global (row) index. More...

void	sumIntoGlobalValue (GlobalOrdinal globalRow, size_t vectorIndex, const Scalar &value)
	Add value to existing value, using global (row) index. More...

void	replaceLocalValue (LocalOrdinal myRow, size_t vectorIndex, const Scalar &value)
	Replace value, using local (row) index. More...

void	sumIntoLocalValue (LocalOrdinal myRow, size_t vectorIndex, const Scalar &value)
	Add value to existing value, using local (row) index. More...

void	putScalar (const Scalar &value)
	Set all values in the multivector with the given value. More...

Teuchos::RCP< const Vector < Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getVector (size_t j) const
	Return a Vector which is a const view of column j. More...

Teuchos::RCP< Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getVectorNonConst (size_t j)
	Return a Vector which is a nonconst view of column j. More...

Teuchos::ArrayRCP< const Scalar >	getData (size_t j) const
	Const view of the local values in a particular vector of this multivector. More...

Teuchos::ArrayRCP< Scalar >	getDataNonConst (size_t j)
	View of the local values in a particular vector of this multivector. More...

void	dot (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Teuchos::ArrayView< Scalar > &dots) const
	Compute the dot product of each corresponding pair of vectors (columns) in A and B. More...

void	abs (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A)
	Put element-wise absolute values of input Multi-vector in target: A = abs(this). More...

void	reciprocal (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A)
	Put element-wise reciprocal values of input Multi-vector in target, this(i,j) = 1/A(i,j). More...

void	scale (const Scalar &alpha)
	Scale in place: this = alpha*this. More...

void	scale (Teuchos::ArrayView< const Scalar > alpha)
	Scale the current values of a multi-vector, this[j] = alpha[j]*this[j]. More...

void	update (const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Scalar &beta)
	Update: this = betathis + alphaA. More...

void	update (const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Scalar &beta, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, const Scalar &gamma)
	Update: this = gammathis + alphaA + beta*B. More...

void	norm1 (const Teuchos::ArrayView< Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const
	Compute 1-norm of each vector in multi-vector. More...

void	norm2 (const Teuchos::ArrayView< Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const

void	normInf (const Teuchos::ArrayView< Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const
	Compute Inf-norm of each vector in multi-vector. More...

void	normWeighted (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &weights, const Teuchos::ArrayView< Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const

void	meanValue (const Teuchos::ArrayView< Scalar > &means) const
	Compute mean (average) value of each vector in multi-vector. The outcome of this routine is undefined for non-floating point scalar types (e.g., int). More...

void	multiply (Teuchos::ETransp transA, Teuchos::ETransp transB, const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, const Scalar &beta)
	Matrix-matrix multiplication: this = betathis + alphaop(A)*op(B). More...

void	elementWiseMultiply (Scalar scalarAB, const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, Scalar scalarThis)
	Multiply a Vector A elementwise by a MultiVector B. More...

size_t	getNumVectors () const
	Number of columns in the multivector. More...

size_t	getLocalLength () const
	Local number of rows on the calling process. More...

global_size_t	getGlobalLength () const
	Global number of rows in the multivector. More...

	EpetraMultiVector (const RCP< Epetra_MultiVector > &vec)
	EpetraMultiVector constructor to wrap a Epetra_MultiVector object. More...

RCP< Epetra_MultiVector >	getEpetra_MultiVector () const
	Get the underlying Epetra multivector. More...

void	setSeed (unsigned int seed)
	Set seed for Random function. More...

Public Member Functions inherited from Xpetra::MultiVector< double, int, int >
virtual	~MultiVector ()
	Destructor. More...

MultiVector< double, int, int, KokkosClassic::DefaultNode::DefaultNodeType > &	operator= (const MultiVector< double, int, int, KokkosClassic::DefaultNode::DefaultNodeType > &rhs)
	Assignment operator: Does a deep copy. More...

virtual void	Xpetra_randomize ()
	Set multi-vector values to random numbers. XPetra implementation. More...

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from Xpetra::MultiVector< double, int, int, Node >
virtual void	assign (const MultiVector< double, int, int, Node > &rhs)=0
	Implementation of the assignment operator (operator=); does a deep copy. More...

Protected Member Functions inherited from Xpetra::EpetraMultiVector
virtual void	assign (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &rhs)
	Implementation of the assignment operator (operator=); does a deep copy. More...

Detailed Description

Definition at line 71 of file Xpetra_EpetraVector.hpp.

Member Typedef Documentation

typedef double Xpetra::EpetraVector::Scalar

private

Definition at line 75 of file Xpetra_EpetraVector.hpp.

typedef int Xpetra::EpetraVector::LocalOrdinal

private

Definition at line 76 of file Xpetra_EpetraVector.hpp.

typedef int Xpetra::EpetraVector::GlobalOrdinal

private

Definition at line 77 of file Xpetra_EpetraVector.hpp.

typedef KokkosClassic::DefaultNode::DefaultNodeType Xpetra::EpetraVector::Node

private

Definition at line 78 of file Xpetra_EpetraVector.hpp.

Constructor & Destructor Documentation

Xpetra::EpetraVector::EpetraVector	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	map,
		bool	zeroOut = `true`
	)

explicit

Sets all vector entries to zero.

Xpetra::EpetraVector::EpetraVector ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & source )

Vector copy constructor.

virtual Xpetra::EpetraVector::~EpetraVector ( )

inlinevirtual

Destructor.

Definition at line 103 of file Xpetra_EpetraVector.hpp.

Xpetra::EpetraVector::EpetraVector ( const Teuchos::RCP< Epetra_Vector > & vec )

inline

EpetraMultiVector constructor to wrap a Epetra_Vector object.

Definition at line 162 of file Xpetra_EpetraVector.hpp.

Xpetra::EpetraVector::EpetraVector	(	const RCP< Epetra_MultiVector > &	mv,
		size_t	j
	)

This constructor creates a Vector which is a view of column j of the MultiVector 'mv'. It implements the logic of MultiVector::getVector/getVectorNonConst() for Epetra MultiVector. The newly created Xpetra::EpetraVector will remain valid after the disappearance of the references to 'mv' in user code.

Definition at line 164 of file Xpetra_EpetraVector.cpp.

Member Function Documentation

void Xpetra::EpetraVector::replaceGlobalValue	(	GlobalOrdinal	globalRow,
		const Scalar &	value
	)

virtual

Replace current value at the specified location with specified value.

Implements Xpetra::Vector< double, int, int >.

Definition at line 54 of file Xpetra_EpetraVector.cpp.

void Xpetra::EpetraVector::sumIntoGlobalValue	(	GlobalOrdinal	globalRow,
		const Scalar &	value
	)

virtual

Adds specified value to existing value at the specified location.

Implements Xpetra::Vector< double, int, int >.

Definition at line 56 of file Xpetra_EpetraVector.cpp.

void Xpetra::EpetraVector::replaceLocalValue	(	LocalOrdinal	myRow,
		const Scalar &	value
	)

virtual

Replace current value at the specified location with specified values.

Implements Xpetra::Vector< double, int, int >.

Definition at line 58 of file Xpetra_EpetraVector.cpp.

void Xpetra::EpetraVector::sumIntoLocalValue	(	LocalOrdinal	myRow,
		const Scalar &	value
	)

virtual

Adds specified value to existing value at the specified location.

Implements Xpetra::Vector< double, int, int >.

Definition at line 60 of file Xpetra_EpetraVector.cpp.

double Xpetra::EpetraVector::dot ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & a ) const

Computes dot product of this Vector against input Vector x.

Definition at line 62 of file Xpetra_EpetraVector.cpp.

Teuchos::ScalarTraits< double >::magnitudeType Xpetra::EpetraVector::norm1 ( ) const

virtual

Return 1-norm of this Vector.

Implements Xpetra::Vector< double, int, int >.

Definition at line 74 of file Xpetra_EpetraVector.cpp.

Teuchos::ScalarTraits< double >::magnitudeType Xpetra::EpetraVector::norm2 ( ) const

virtual

Compute 2-norm of this Vector.

Implements Xpetra::Vector< double, int, int >.

Definition at line 76 of file Xpetra_EpetraVector.cpp.

Teuchos::ScalarTraits< double >::magnitudeType Xpetra::EpetraVector::normInf ( ) const

virtual

Compute Inf-norm of this Vector.

Implements Xpetra::Vector< double, int, int >.

Definition at line 78 of file Xpetra_EpetraVector.cpp.

Teuchos::ScalarTraits< double >::magnitudeType Xpetra::EpetraVector::normWeighted ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & weights ) const

Compute Weighted 2-norm (RMS Norm) of this Vector.

Definition at line 80 of file Xpetra_EpetraVector.cpp.

double Xpetra::EpetraVector::meanValue ( ) const

virtual

Compute mean (average) value of this Vector.

Implements Xpetra::Vector< double, int, int >.

Definition at line 87 of file Xpetra_EpetraVector.cpp.

std::string Xpetra::EpetraVector::description ( ) const

virtual

Return a simple one-line description of this object.

Reimplemented from Xpetra::EpetraMultiVector.

Definition at line 89 of file Xpetra_EpetraVector.cpp.

void Xpetra::EpetraVector::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

virtual

Print the object with some verbosity level to an FancyOStream object.

Reimplemented from Xpetra::EpetraMultiVector.

Definition at line 99 of file Xpetra_EpetraVector.cpp.

Epetra_Vector* Xpetra::EpetraVector::getEpetra_Vector ( ) const

inline

Get the underlying Epetra vector.

Definition at line 165 of file Xpetra_EpetraVector.hpp.

Member Data Documentation

const RCP<const Epetra_MultiVector> Xpetra::EpetraVector::internalRefToBaseMV_

private

Definition at line 178 of file Xpetra_EpetraVector.hpp.

The documentation for this class was generated from the following files:

Private Types

Private Attributes

Constructor/Destructor Methods

Post-construction modification routines

Mathematical methods

Overridden from Teuchos::Describable

Xpetra specific

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
