Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

A distributed graph accessed by rows (adjacency lists) and stored sparsely. More...

#include <Tpetra_CrsGraph_decl.hpp>

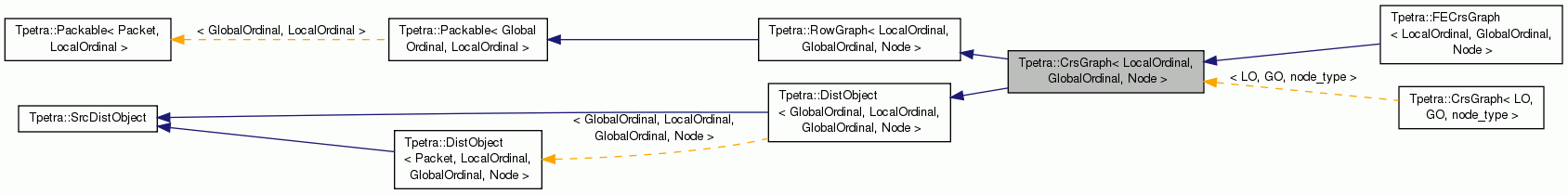

Inheritance diagram for Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >:

Public Types
using	local_ordinal_type = LocalOrdinal
	The type of the graph's local indices. More...
using	global_ordinal_type = GlobalOrdinal
	The type of the graph's global indices. More...
using	device_type = typename Node::device_type
	This class' Kokkos device type. More...
using	execution_space = typename device_type::execution_space
	This class' Kokkos execution space. More...
using	node_type = Node
	This class' Kokkos Node type. More...
using	local_graph_device_type = Kokkos::StaticCrsGraph< local_ordinal_type, Kokkos::LayoutLeft, device_type, void, size_t >
	The type of the part of the sparse graph on each MPI process. More...
using	local_graph_host_type = typename local_graph_device_type::HostMirror
	The type of the part of the sparse graph on each MPI process. More...
using	map_type = ::Tpetra::Map< LocalOrdinal, GlobalOrdinal, Node >
	The Map specialization used by this class. More...
using	import_type = ::Tpetra::Import< LocalOrdinal, GlobalOrdinal, Node >
	The Import specialization used by this class. More...
using	export_type = ::Tpetra::Export< LocalOrdinal, GlobalOrdinal, Node >
	The Export specialization used by this class. More...
using	local_inds_device_view_type = typename row_graph_type::local_inds_device_view_type
	The Kokkos::View type for views of local ordinals on device and host. More...
using	global_inds_device_view_type = typename row_graph_type::global_inds_device_view_type
	The Kokkos::View type for views of global ordinals on device and host. More...

Public Member Functions
void	importAndFillComplete (Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &destGraph, const import_type &importer, const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null) const
	Import from this to the given destination graph, and make the result fill complete. More...
void	importAndFillComplete (Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &destGraph, const import_type &rowImporter, const import_type &domainImporter, const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params) const
	Import from this to the given destination graph, and make the result fill complete. More...
void	exportAndFillComplete (Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &destGraph, const export_type &exporter, const Teuchos::RCP< const map_type > &domainMap=Teuchos::null, const Teuchos::RCP< const map_type > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null) const
	Export from this to the given destination graph, and make the result fill complete. More...
void	exportAndFillComplete (Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &destGraph, const export_type &rowExporter, const export_type &domainExporter, const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params) const
	Export from this to the given destination graph, and make the result fill complete. More...
bool	haveGlobalConstants () const
	Returns true if globalConstants have been computed; false otherwise. More...
void	computeGlobalConstants ()
	Compute global constants, if they have not yet been computed. More...
local_graph_device_type	getLocalGraphDevice () const
	Get the local graph. More...
Constructor/Destructor Methods
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const size_t maxNumEntriesPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying a single upper bound for the number of entries in all rows on the calling process. More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Kokkos::DualView< const size_t *, device_type > &numEntPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying a (possibly different) upper bound for the number of entries in each row. More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Teuchos::ArrayView< const size_t > &numEntPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying a (possibly different) upper bound for the number of entries in each row (legacy KokkosClassic version). More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const size_t maxNumEntriesPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and a single upper bound for the number of entries in all rows on the calling process. More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const Kokkos::DualView< const size_t *, device_type > &numEntPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and number of entries in each row. More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const Teuchos::ArrayView< const size_t > &numEntPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and number of entries in each row (legacy KokkosClassic version). More...
	CrsGraph (CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &originalGraph, const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and an existing graph to subview. The graph created will point to the views of the existing graph, but only have the rows contained in the passed-in rowMap. This constructor assumes it will alias the first N rows of the graph, where N is the number of rows in rowMap. More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const typename local_graph_device_type::row_map_type &rowPointers, const typename local_graph_device_type::entries_type::non_const_type &columnIndices, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and arrays containing the graph. In almost all cases the indices must be sorted on input, but if they aren't sorted, "sorted" must be set to false in params. More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const Teuchos::ArrayRCP< size_t > &rowPointers, const Teuchos::ArrayRCP< local_ordinal_type > &columnIndices, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and arrays containing the graph. In almost all cases the indices must be sorted on input, but if they aren't sorted, "sorted" must be set to false in params. More...
	CrsGraph (const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const local_graph_device_type &lclGraph, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Constructor specifying column Map and a local graph, which the resulting CrsGraph views. In almost all cases the local graph must be sorted on input, but if it isn't sorted, "sorted" must be set to false in params. More...
	CrsGraph (const local_graph_device_type &lclGraph, const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const Teuchos::RCP< const map_type > &domainMap=Teuchos::null, const Teuchos::RCP< const map_type > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column, domain and range maps, and a local graph, which the resulting CrsGraph views. In almost all cases the local graph must be sorted on input, but if it isn't sorted, "sorted" must be set to false in params. More...
	CrsGraph (const local_graph_device_type &lclGraph, const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< const import_type > &importer, const Teuchos::RCP< const export_type > &exporter, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	CrsGraph (const row_ptrs_device_view_type &rowPointers, const local_inds_wdv_type &columnIndices, const Teuchos::RCP< const map_type > &rowMap, const Teuchos::RCP< const map_type > &colMap, const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< const import_type > &importer, const Teuchos::RCP< const export_type > &exporter, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying the local row pointer and column indices arrays of the local graph; the row, column, domain, and range maps; and the importer and exporter. In almost all cases, the local graph must be sorted on input, but if it isn't sorted, "sorted" must be set to false in params. More...
	CrsGraph (const CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &)=default
	Copy constructor (default). More...
CrsGraph &	operator= (const CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &)=default
	Assignment operator (default). More...
	CrsGraph (CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &&)=default
	Move constructor (default). More...
CrsGraph &	operator= (CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &&)=default
	Move assignment (default). More...
virtual	~CrsGraph ()=default
	Destructor (virtual for memory safety of derived classes). More...
bool	isIdenticalTo (const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > &graph) const
	Create a cloned CrsGraph for a different Node type. More...
Implementation of Teuchos::ParameterListAcceptor
void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &params) override
	Set the given list of parameters (must be nonnull). More...
Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override
	Default parameter list suitable for validation. More...
Insertion/Removal Methods
void	insertGlobalIndices (const global_ordinal_type globalRow, const Teuchos::ArrayView< const global_ordinal_type > &indices)
	Insert global indices into the graph. More...
void	insertGlobalIndices (const global_ordinal_type globalRow, const local_ordinal_type numEnt, const global_ordinal_type inds[])
	Epetra compatibility version of insertGlobalIndices (see above) that takes input as a raw pointer, rather than Teuchos::ArrayView. More...
void	insertLocalIndices (const local_ordinal_type localRow, const Teuchos::ArrayView< const local_ordinal_type > &indices)
	Insert local indices into the graph. More...
void	insertLocalIndices (const local_ordinal_type localRow, const local_ordinal_type numEnt, const local_ordinal_type inds[])
	Epetra compatibility version of insertLocalIndices (see above) that takes input as a raw pointer, rather than Teuchos::ArrayView. More...
void	removeLocalIndices (local_ordinal_type localRow)
	Remove all graph indices from the specified local row. More...
Collective methods for changing the graph's global state
void	globalAssemble ()
	Communicate nonlocal contributions to other processes. More...
void	resumeFill (const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Resume fill operations. More...
void	fillComplete (const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Tell the graph that you are done changing its structure. More...
void	fillComplete (const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Tell the graph that you are done changing its structure; set default domain and range Maps. More...
void	expertStaticFillComplete (const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap, const Teuchos::RCP< const import_type > &importer=Teuchos::null, const Teuchos::RCP< const export_type > &exporter=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Perform a fillComplete on a graph that already has data, via setAllIndices(). More...
Methods implementing RowGraph.
Teuchos::RCP< const Teuchos::Comm< int > >	getComm () const override
	Returns the communicator. More...
Teuchos::RCP< const map_type >	getRowMap () const override
	Returns the Map that describes the row distribution in this graph. More...
Teuchos::RCP< const map_type >	getColMap () const override
	Returns the Map that describes the column distribution in this graph. More...
Teuchos::RCP< const map_type >	getDomainMap () const override
	Returns the Map associated with the domain of this graph. More...
Teuchos::RCP< const map_type >	getRangeMap () const override
	Returns the Map associated with the domain of this graph. More...
Teuchos::RCP< const import_type >	getImporter () const override
	Returns the importer associated with this graph. More...
Teuchos::RCP< const export_type >	getExporter () const override
	Returns the exporter associated with this graph. More...
global_size_t	getGlobalNumRows () const override
	Returns the number of global rows in the graph. More...
global_size_t	getGlobalNumCols () const override
	Returns the number of global columns in the graph. More...
size_t	getLocalNumRows () const override
	Returns the number of graph rows owned on the calling node. More...
size_t	getLocalNumCols () const override
	Returns the number of columns connected to the locally owned rows of this graph. More...
global_ordinal_type	getIndexBase () const override
	Returns the index base for global indices for this graph. More...
global_size_t	getGlobalNumEntries () const override
	Returns the global number of entries in the graph. More...
size_t	getLocalNumEntries () const override
	The local number of entries in the graph. More...
size_t	getNumEntriesInGlobalRow (global_ordinal_type globalRow) const override
	Returns the current number of entries on this node in the specified global row. More...
size_t	getNumEntriesInLocalRow (local_ordinal_type localRow) const override
	Get the number of entries in the given row (local index). More...
size_t	getLocalAllocationSize () const
	The local number of indices allocated for the graph, over all rows on the calling (MPI) process. More...
size_t	getNumAllocatedEntriesInGlobalRow (global_ordinal_type globalRow) const
	Current number of allocated entries in the given row on the calling (MPI) process, using a global row index. More...
size_t	getNumAllocatedEntriesInLocalRow (local_ordinal_type localRow) const
	Current number of allocated entries in the given row on the calling (MPI) process, using a local row index. More...
size_t	getGlobalMaxNumRowEntries () const override
	Maximum number of entries in any row of the graph, over all processes in the graph's communicator. More...
size_t	getLocalMaxNumRowEntries () const override
	Maximum number of entries in any row of the graph, on this process. More...
bool	hasColMap () const override
	Whether the graph has a column Map. More...
bool	isLocallyIndexed () const override
	Whether the graph's column indices are stored as local indices. More...
bool	isGloballyIndexed () const override
	Whether the graph's column indices are stored as global indices. More...
bool	isFillComplete () const override
	Whether fillComplete() has been called and the graph is in compute mode. More...
bool	isFillActive () const
	Whether resumeFill() has been called and the graph is in edit mode. More...
bool	isSorted () const
	Whether graph indices in all rows are known to be sorted. More...
bool	isStorageOptimized () const
	Returns true if storage has been optimized. More...
void	getGlobalRowCopy (global_ordinal_type gblRow, nonconst_global_inds_host_view_type &gblColInds, size_t &numColInds) const override
	Get a copy of the given row, using global indices. More...
void	getLocalRowCopy (local_ordinal_type gblRow, nonconst_local_inds_host_view_type &gblColInds, size_t &numColInds) const override
	Get a copy of the given row, using local indices. More...
void	getGlobalRowView (const global_ordinal_type gblRow, global_inds_host_view_type &gblColInds) const override
	Get a const view of the given global row's global column indices. More...
bool	supportsRowViews () const override
	Whether this class implements getLocalRowView() and getGlobalRowView() (it does). More...
void	getLocalRowView (const LocalOrdinal lclRow, local_inds_host_view_type &lclColInds) const override
	Get a const view of the given local row's local column indices. More...
Overridden from Teuchos::Describable
std::string	description () const override
	Return a one-line human-readable description of this object. More...
void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const override
	Print this object to the given output stream with the given verbosity level. More...
Advanced methods, at increased risk of deprecation.
void	getLocalDiagOffsets (const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &offsets) const
	Get offsets of the diagonal entries in the graph. More...
void	getLocalOffRankOffsets (offset_device_view_type &offsets) const
	Get offsets of the off-rank entries in the graph. More...
void	getLocalDiagOffsets (Teuchos::ArrayRCP< size_t > &offsets) const
	Backwards compatibility overload of the above method. More...
void	setAllIndices (const typename local_graph_device_type::row_map_type &rowPointers, const typename local_graph_device_type::entries_type::non_const_type &columnIndices)
	Set the graph's data directly, using 1-D storage. More...
void	setAllIndices (const Teuchos::ArrayRCP< size_t > &rowPointers, const Teuchos::ArrayRCP< local_ordinal_type > &columnIndices)
	Set the graph's data directly, using 1-D storage. More...
row_ptrs_host_view_type	getLocalRowPtrsHost () const
	Get a host view of the packed row offsets. More...
row_ptrs_device_view_type	getLocalRowPtrsDevice () const
	Get a device view of the packed row offsets. More...
local_inds_host_view_type	getLocalIndicesHost () const
	Get a host view of the packed column indicies. More...
local_inds_device_view_type	getLocalIndicesDevice () const
	Get a device view of the packed column indicies. More...
void	replaceColMap (const Teuchos::RCP< const map_type > &newColMap)
	Replace the graph's current column Map with the given Map. More...
void	reindexColumns (const Teuchos::RCP< const map_type > &newColMap, const Teuchos::RCP< const import_type > &newImport=Teuchos::null, const bool sortIndicesInEachRow=true)
	Reindex the column indices in place, and replace the column Map. Optionally, replace the Import object as well. More...
void	replaceDomainMap (const Teuchos::RCP< const map_type > &newDomainMap)
	Replace the current domain Map with the given objects. More...
void	replaceDomainMapAndImporter (const Teuchos::RCP< const map_type > &newDomainMap, const Teuchos::RCP< const import_type > &newImporter)
	Replace the current domain Map and Import with the given parameters. More...
void	replaceRangeMap (const Teuchos::RCP< const map_type > &newRangeMap)
	Replace the current Range Map with the given objects. More...
void	replaceRangeMapAndExporter (const Teuchos::RCP< const map_type > &newRangeMap, const Teuchos::RCP< const export_type > &newExporter)
	Replace the current Range Map and Export with the given parameters. More...
virtual void	removeEmptyProcessesInPlace (const Teuchos::RCP< const map_type > &newMap) override
	Remove processes owning zero rows from the Maps and their communicator. More...
Access to entries in a row
virtual void	getGlobalRowCopy (const GlobalOrdinal gblRow, nonconst_global_inds_host_view_type &gblColInds, size_t &numColInds) const =0
	Get a copy of the global column indices in a given row of the graph. More...
virtual void	getLocalRowCopy (const LocalOrdinal lclRow, nonconst_local_inds_host_view_type &lclColInds, size_t &numColInds) const =0
	Get a copy of the local column indices in a given row of the graph. More...
virtual void	getLocalRowView (const LocalOrdinal lclRow, local_inds_host_view_type &lclColInds) const =0
	Get a constant, nonpersisting, locally indexed view of the given row of the graph. More...
virtual void	getGlobalRowView (const GlobalOrdinal gblRow, global_inds_host_view_type &gblColInds) const =0
	Get a const, non-persisting view of the given global row's global column indices, as a Teuchos::ArrayView. More...
Public methods for redistributing data
void	doImport (const SrcDistObject &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
	Import data into this object using an Import object ("forward mode"). More...
void	doImport (const SrcDistObject &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
	Import data into this object using an Export object ("reverse mode"). More...
void	doExport (const SrcDistObject &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
	Export data into this object using an Export object ("forward mode"). More...
void	doExport (const SrcDistObject &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
	Export data into this object using an Import object ("reverse mode"). More...
void	beginImport (const SrcDistObject &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
void	beginImport (const SrcDistObject &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
void	beginExport (const SrcDistObject &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
void	beginExport (const SrcDistObject &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
void	endImport (const SrcDistObject &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
void	endImport (const SrcDistObject &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
void	endExport (const SrcDistObject &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
void	endExport (const SrcDistObject &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
bool	transferArrived () const
	Whether the data from an import/export operation has arrived, and is ready for the unpack and combine step. More...
Attribute accessor methods
bool	isDistributed () const
	Whether this is a globally distributed object. More...
virtual Teuchos::RCP< const map_type >	getMap () const
	The Map describing the parallel distribution of this object. More...
I/O methods
void	print (std::ostream &os) const
	Print this object to the given output stream. More...
Methods for use only by experts
virtual void	removeEmptyProcessesInPlace (const Teuchos::RCP< const map_type > &newMap)
	Remove processes which contain no entries in this object's Map. More...

Protected Member Functions
void	setDomainRangeMaps (const Teuchos::RCP< const map_type > &domainMap, const Teuchos::RCP< const map_type > &rangeMap)
void	computeLocalConstants ()
	Compute local constants, if they have not yet been computed. More...
RowInfo	getRowInfo (const local_ordinal_type myRow) const
	Get information about the locally owned row with local index myRow. More...
RowInfo	getRowInfoFromGlobalRowIndex (const global_ordinal_type gblRow) const
	Get information about the locally owned row with global index gblRow. More...
void	checkInternalState () const
	Throw an exception if the internal state is not consistent. More...
void	swap (CrsGraph< local_ordinal_type, global_ordinal_type, Node > &graph)
	Swaps the data from *this with the data and maps from graph. More...
const row_ptrs_device_view_type &	getRowPtrsUnpackedDevice () const
	Get the unpacked row pointers on device. More...
const row_ptrs_host_view_type &	getRowPtrsUnpackedHost () const
	Get the unpacked row pointers on host. Lazily make a copy from device. More...
const row_ptrs_device_view_type &	getRowPtrsPackedDevice () const
	Get the packed row pointers on device. More...
const row_ptrs_host_view_type &	getRowPtrsPackedHost () const
	Get the packed row pointers on host. Lazily make a copy from device. More...
local_inds_dualv_type::t_host::const_type	getLocalIndsViewHost (const RowInfo &rowinfo) const
	Get a const, locally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow). More...
local_inds_dualv_type::t_dev::const_type	getLocalIndsViewDevice (const RowInfo &rowinfo) const
	Get a const, locally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow). More...
global_inds_dualv_type::t_host::const_type	getGlobalIndsViewHost (const RowInfo &rowinfo) const
	Get a const, globally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow). More...
global_inds_dualv_type::t_dev::const_type	getGlobalIndsViewDevice (const RowInfo &rowinfo) const
	Get a const, globally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow). More...
local_inds_dualv_type::t_host	getLocalIndsViewHostNonConst (const RowInfo &rowinfo)
	Get a ReadWrite locally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow). More...
virtual size_t	constantNumberOfPackets () const
	Whether the implementation's instance promises always to have a constant number of packets per LID (local index), and if so, how many packets per LID there are. More...
virtual void	doTransfer (const SrcDistObject &src, const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &transfer, const char modeString[], const ReverseOption revOp, const CombineMode CM, const bool restrictedMode)
	Redistribute data across (MPI) processes. More...
virtual bool	reallocArraysForNumPacketsPerLid (const size_t numExportLIDs, const size_t numImportLIDs)
	Reallocate numExportPacketsPerLID_ and/or numImportPacketsPerLID_, if necessary. More...
void	beginTransfer (const SrcDistObject &src, const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &transfer, const char modeString[], const ReverseOption revOp, const CombineMode CM, const bool restrictedMode)
	Implementation detail of doTransfer. More...
Methods governing changes between global and local indices
void	makeColMap (Teuchos::Array< int > &remotePIDs)
	Make and set the graph's column Map. More...
std::pair< size_t, std::string >	makeIndicesLocal (const bool verbose=false)
	Convert column indices from global to local. More...
void	makeImportExport (Teuchos::Array< int > &remotePIDs, const bool useRemotePIDs)
	Make the Import and Export objects, if needed. More...

Protected Attributes
Teuchos::RCP< const map_type >	rowMap_
	The Map describing the distribution of rows of the graph. More...
Teuchos::RCP< const map_type >	colMap_
	The Map describing the distribution of columns of the graph. More...
Teuchos::RCP< const map_type >	rangeMap_
	The Map describing the range of the (matrix corresponding to the) graph. More...
Teuchos::RCP< const map_type >	domainMap_
	The Map describing the domain of the (matrix corresponding to the) graph. More...
Teuchos::RCP< const import_type >	importer_
	The Import from the domain Map to the column Map. More...
Teuchos::RCP< const export_type >	exporter_
	The Export from the row Map to the range Map. More...
size_t	nodeMaxNumRowEntries_
	Local maximum of the number of entries in each row. More...
global_size_t	globalNumEntries_
	Global number of entries in the graph. More...
global_size_t	globalMaxNumRowEntries_
	Global maximum of the number of entries in each row. More...
local_inds_wdv_type	lclIndsUnpacked_wdv
	Local ordinals of column indices for all rows Valid when isLocallyIndexed is true If OptimizedStorage, storage is PACKED after fillComplete If not OptimizedStorate, storage is UNPACKED after fillComplete; that is, the views have storage equal to sizes provided in CrsGraph constructor. More...
local_inds_wdv_type	lclIndsPacked_wdv
	Local ordinals of column indices for all rows Valid when isLocallyIndexed is true Built during fillComplete or non-fillComplete constructors Storage is PACKED after fillComplete that is, the views have storage equal to sizes provided in CrsGraph constructor. More...
global_inds_wdv_type	gblInds_wdv
	Global ordinals of column indices for all rows. More...
Kokkos::View< const size_t *, device_type >::HostMirror	k_numAllocPerRow_
	The maximum number of entries to allow in each locally owned row, per row. More...
size_t	numAllocForAllRows_
	The maximum number of entries to allow in each locally owned row. More...
Details::EStorageStatus	storageStatus_
	Status of the graph's storage, when not in a fill-complete state. More...
bool	indicesAreSorted_ = true
	Whether the graph's indices are sorted in each row, on this process. More...
bool	noRedundancies_ = true
	Whether the graph's indices are non-redundant (merged) in each row, on this process. More...
bool	haveLocalConstants_ = false
	Whether this process has computed local constants. More...
bool	haveGlobalConstants_ = false
	Whether all processes have computed global constants. More...
nonlocals_type	nonlocals_
	Nonlocal data given to insertGlobalIndices. More...
bool	sortGhostsAssociatedWithEachProcessor_ = true
	Whether to require makeColMap() (and therefore fillComplete()) to order column Map GIDs associated with each remote process in ascending order. More...

Related Functions
(Note that these are not member functions.)
template<class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< CrsGraph < LocalOrdinal, GlobalOrdinal, Node > >	createCrsGraph (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &map, size_t maxNumEntriesPerRow=0, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Nonmember function to create an empty CrsGraph given a row Map and the max number of entries allowed locally per row. More...
template<class CrsGraphType >
Teuchos::RCP< CrsGraphType >	importAndFillCompleteCrsGraph (const Teuchos::RCP< const CrsGraphType > &sourceGraph, const Import< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &importer, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Nonmember CrsGraph constructor that fuses Import and fillComplete(). More...
template<class CrsGraphType >
Teuchos::RCP< CrsGraphType >	importAndFillCompleteCrsGraph (const Teuchos::RCP< const CrsGraphType > &sourceGraph, const Import< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &rowImporter, const Import< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &domainImporter, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &domainMap, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Nonmember CrsGraph constructor that fuses Import and fillComplete(). More...
template<class CrsGraphType >
Teuchos::RCP< CrsGraphType >	exportAndFillCompleteCrsGraph (const Teuchos::RCP< const CrsGraphType > &sourceGraph, const Export< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &exporter, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Nonmember CrsGraph constructor that fuses Export and fillComplete(). More...
template<class CrsGraphType >
Teuchos::RCP< CrsGraphType >	exportAndFillCompleteCrsGraph (const Teuchos::RCP< const CrsGraphType > &sourceGraph, const Export< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &rowExporter, const Export< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &domainExporter, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &domainMap, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Nonmember CrsGraph constructor that fuses Export and fillComplete(). More...

Implementation of DistObject
using	buffer_device_type = typename dist_object_type::buffer_device_type
	Kokkos::Device specialization for communication buffers. More...
using	packet_type = global_ordinal_type
	Type of each entry of the DistObject communication buffer. More...
using	padding_type = Details::CrsPadding< local_ordinal_type, global_ordinal_type >
virtual bool	checkSizes (const SrcDistObject &source) override
	Compare the source and target (this) objects for compatibility. More...
virtual void	copyAndPermute (const SrcDistObject &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs, const CombineMode CM) override
void	applyCrsPadding (const padding_type &padding, const bool verbose)
std::unique_ptr< padding_type >	computeCrsPadding (const RowGraph< local_ordinal_type, global_ordinal_type, node_type > &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs, const bool verbose) const
std::unique_ptr< padding_type >	computeCrsPaddingForImports (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< packet_type *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const bool verbose) const
std::unique_ptr< padding_type >	computePaddingForCrsMatrixUnpack (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< char *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const bool verbose) const
void	computeCrsPaddingForSameIDs (padding_type &padding, const RowGraph< local_ordinal_type, global_ordinal_type, node_type > &source, const local_ordinal_type numSameIDs) const
void	computeCrsPaddingForPermutedIDs (padding_type &padding, const RowGraph< local_ordinal_type, global_ordinal_type, node_type > &source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs) const
virtual void	packAndPrepare (const SrcDistObject &source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets) override
virtual void	pack (const Teuchos::ArrayView< const local_ordinal_type > &exportLIDs, Teuchos::Array< global_ordinal_type > &exports, const Teuchos::ArrayView< size_t > &numPacketsPerLID, size_t &constantNumPackets) const override
void	packFillActive (const Teuchos::ArrayView< const local_ordinal_type > &exportLIDs, Teuchos::Array< global_ordinal_type > &exports, const Teuchos::ArrayView< size_t > &numPacketsPerLID, size_t &constantNumPackets) const
void	packFillActiveNew (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets) const
virtual void	unpackAndCombine (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< packet_type *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, const CombineMode combineMode) override

Methods for inserting indices or transforming values
static const bool	useAtomicUpdatesByDefault
	Whether transformLocalValues should use atomic updates by default. More...
size_t	insertIndices (RowInfo &rowInfo, const SLocalGlobalViews &newInds, const ELocalGlobal lg, const ELocalGlobal I)
	Insert indices into the given row. More...
size_t	insertGlobalIndicesImpl (const local_ordinal_type lclRow, const global_ordinal_type inputGblColInds[], const size_t numInputInds)
	Insert global indices, using an input local row index. More...
size_t	insertGlobalIndicesImpl (const RowInfo &rowInfo, const global_ordinal_type inputGblColInds[], const size_t numInputInds, std::function< void(const size_t, const size_t, const size_t)> fun=std::function< void(const size_t, const size_t, const size_t)>())
	Insert global indices, using an input RowInfo. More...
void	insertLocalIndicesImpl (const local_ordinal_type lclRow, const Teuchos::ArrayView< const local_ordinal_type > &gblColInds, std::function< void(const size_t, const size_t, const size_t)> fun=std::function< void(const size_t, const size_t, const size_t)>())
size_t	findGlobalIndices (const RowInfo &rowInfo, const Teuchos::ArrayView< const global_ordinal_type > &indices, std::function< void(const size_t, const size_t, const size_t)> fun) const
	Finds indices in the given row. More...
void	insertGlobalIndicesFiltered (const local_ordinal_type lclRow, const global_ordinal_type gblColInds[], const local_ordinal_type numGblColInds)
	Like insertGlobalIndices(), but with column Map filtering. More...
void	insertGlobalIndicesIntoNonownedRows (const global_ordinal_type gblRow, const global_ordinal_type gblColInds[], const local_ordinal_type numGblColInds)
	Implementation of insertGlobalIndices for nonowned rows. More...

Methods for sorting and merging column indices.
bool	isMerged () const
	Whether duplicate column indices in each row have been merged. More...
void	setLocallyModified ()
	Report that we made a local modification to its structure. More...
size_t	sortAndMergeRowIndices (const RowInfo &rowInfo, const bool sorted, const bool merged)
	Sort and merge duplicate column indices in the given row. More...

Graph data structures (packed and unpacked storage).
typedef Kokkos::View< size_t *, Kokkos::LayoutLeft, device_type >::HostMirror	num_row_entries_type
	Row offsets for "1-D" storage. More...
num_row_entries_type	k_numRowEntries_
	The number of local entries in each locally owned row. More...
offset_device_view_type	k_offRankOffsets_
	The offsets for off-rank entries. More...

Methods implemented by subclasses and used by doTransfer().
The doTransfer() method uses the subclass' implementations of these methods to implement data transfer. Subclasses of DistObject must implement these methods. This is an instance of the Template Method Pattern. ("Template" here doesn't mean "C++ template"; it means "pattern with holes that are filled in by the subclass' method implementations.")
Teuchos::RCP< const map_type >	map_
	The Map over which this object is distributed. More...
Kokkos::DualView< packet_type *, buffer_device_type >	imports_
	Buffer into which packed data are imported (received from other processes). More...
Kokkos::DualView< size_t *, buffer_device_type >	numImportPacketsPerLID_
	Number of packets to receive for each receive operation. More...
Kokkos::DualView< packet_type *, buffer_device_type >	exports_
	Buffer from which packed data are exported (sent to other processes). More...
Kokkos::DualView< size_t *, buffer_device_type >	numExportPacketsPerLID_
	Number of packets to send for each send operation. More...
virtual void	copyAndPermute (const SrcDistObject &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs, const CombineMode CM)
	Perform copies and permutations that are local to the calling (MPI) process. More...
virtual void	copyAndPermute (const SrcDistObject &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs, const CombineMode CM, const execution_space &space)
	Same as copyAndPermute, but do operations in space. More...
virtual void	packAndPrepare (const SrcDistObject &source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets)
	Pack data and metadata for communication (sends). More...
virtual void	packAndPrepare (const SrcDistObject &source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets, const execution_space &space)
	Same as packAndPrepare, but in an execution space instance. More...
virtual void	unpackAndCombine (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< packet_type *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, const CombineMode combineMode)
	Perform any unpacking and combining after communication. More...
virtual void	unpackAndCombine (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< packet_type *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, const CombineMode combineMode, const execution_space &space)
std::unique_ptr< std::string >	createPrefix (const char className[], const char methodName[]) const
virtual bool	reallocImportsIfNeeded (const size_t newSize, const bool verbose, const std::string *prefix, const bool remoteLIDsContiguous=false, const CombineMode CM=INSERT)
	Reallocate imports_ if needed. More...

Detailed Description

template<class LocalOrdinal, class GlobalOrdinal, class Node>
class Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >

A distributed graph accessed by rows (adjacency lists) and stored sparsely.

Template Parameters

LocalOrdinal	The type of local indices. See the documentation of Map for requirements.
GlobalOrdinal	The type of global indices. See the documentation of Map for requirements.
Node	The Kokkos Node type. See the documentation of Map for requirements.

This class implements a distributed-memory parallel sparse graph. It provides access by rows to the elements of the graph, as if the local data were stored in compressed sparse row format (adjacency lists, in graph terms). (Implementations are not required to store the data in this way internally.) This class has an interface like that of Epetra_CrsGraph, but also allows insertion of data into nonowned rows, much like Epetra_FECrsGraph.

Prerequisites

Before reading the rest of this documentation, it helps to know something about the Teuchos memory management classes, in particular Teuchos::RCP, Teuchos::ArrayRCP, and Teuchos::ArrayView. You should also know a little bit about MPI (the Message Passing Interface for distributed-memory programming). You won't have to use MPI directly to use CrsGraph, but it helps to be familiar with the general idea of distributed storage of data over a communicator. Finally, you should read the documentation of Map.

Local vs. global indices and nonlocal insertion

Graph entries can be added using either local or global coordinates for the indices. The accessors isGloballyIndexed() and isLocallyIndexed() indicate whether the indices are currently stored as global or local indices. Many of the class methods are divided into global and local versions, which differ only in whether they accept/return indices in the global or local coordinate space. Some of these methods may only be used if the graph coordinates are in the appropriate coordinates. For example, getGlobalRowView() returns a View to the indices in global coordinates; if the indices are not in global coordinates, then no such View can be created.

The global/local distinction does distinguish between operation on the global/local graph. Almost all methods operate on the local graph, i.e., the rows of the graph associated with the local node, per the distribution specified by the row map. Access to non-local rows requires performing an explicit communication via the import/export capabilities of the CrsGraph object; see DistObject. However, the method insertGlobalIndices() is an exception to this rule, as non-local rows are allowed to be added via the local graph. These rows are stored in the local graph and communicated to the appropriate node on the next call to globalAssemble() or fillComplete() (the latter calls the former).

Definition at line 189 of file Tpetra_CrsGraph_decl.hpp.

Member Typedef Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type = LocalOrdinal

The type of the graph's local indices.

Definition at line 209 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type = GlobalOrdinal

The type of the graph's global indices.

Definition at line 211 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::device_type = typename Node::device_type

This class' Kokkos device type.

Definition at line 213 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::execution_space = typename device_type::execution_space

This class' Kokkos execution space.

Definition at line 215 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::node_type = Node

This class' Kokkos Node type.

This is a leftover that will be deprecated and removed. See e.g., GitHub Issue #57.

Definition at line 221 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_device_type = Kokkos::StaticCrsGraph<local_ordinal_type, Kokkos::LayoutLeft, device_type, void, size_t>

The type of the part of the sparse graph on each MPI process.

Definition at line 226 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_host_type = typename local_graph_device_type::HostMirror

The type of the part of the sparse graph on each MPI process.

Definition at line 229 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::map_type = ::Tpetra::Map<LocalOrdinal, GlobalOrdinal, Node>

The Map specialization used by this class.

Definition at line 232 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::import_type = ::Tpetra::Import<LocalOrdinal, GlobalOrdinal, Node>

The Import specialization used by this class.

Definition at line 234 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::export_type = ::Tpetra::Export<LocalOrdinal, GlobalOrdinal, Node>

The Export specialization used by this class.

Definition at line 236 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_inds_device_view_type = typename row_graph_type::local_inds_device_view_type

The Kokkos::View type for views of local ordinals on device and host.

Definition at line 260 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::global_inds_device_view_type = typename row_graph_type::global_inds_device_view_type

The Kokkos::View type for views of global ordinals on device and host.

Definition at line 268 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::buffer_device_type

Kokkos::Device specialization for communication buffers.

See #1088 for why this is not just device_type::device_type.

Definition at line 1174 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

using Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::packet_type = global_ordinal_type

Type of each entry of the DistObject communication buffer.

Definition at line 1176 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

typedef Kokkos::View<size_t*, Kokkos::LayoutLeft, device_type>::HostMirror Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::num_row_entries_type

protected

Row offsets for "1-D" storage.

This is only allocated if "1-D" storage is active. In that case, if beg = k_rowPtrs_(i_lcl) and end = k_rowPtrs_(i_lcl+1) for local row index i_lcl, then

• if the graph is locally indexed, k_lclInds1D_(beg:end-1) (inclusive range) is the space for any local column indices in local row i_lcl, else
• if the graph is globally indexed, k_gblInds1D_(beg:end-1) (inclusive range) is the space for any global column indices in local row i_lcl.

Only the first k_numRowEntries_(i_lcl) of these entries are actual valid column indices. Any remaining entries are "extra space." If the graph's storage is packed, then there is no extra space, and the k_numRowEntries_ array is invalid.

If it is allocated, k_rowPtrs_ has length getLocalNumRows()+1. The k_numRowEntries_ array has has length getLocalNumRows(), again if it is allocated. The type of k_numRowEntries_ (see below).

This View gets used only on host. However, making this literally a host View (of Kokkos::HostSpace) causes inexplicable test failures only on CUDA. Thus, I left it as a HostMirror, which means (given Trilinos' current UVM requirement) that it will be a UVM allocation.

Definition at line 2430 of file Tpetra_CrsGraph_decl.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const size_t	maxNumEntriesPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying a single upper bound for the number of entries in all rows on the calling process.

Parameters

rowMap	[in] Distribution of rows of the graph.
maxNumEntriesPerRow	[in] Maximum number of graph entries per row. This is a strict upper bound.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 263 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Kokkos::DualView< const size_t *, device_type > &	numEntPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying a (possibly different) upper bound for the number of entries in each row.

Parameters

rowMap	[in] Distribution of rows of the graph.
numEntPerRow	[in] Maximum number of graph entries to allocate for each row. This is a strict upper bound.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 363 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::ArrayView< const size_t > &	numEntPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying a (possibly different) upper bound for the number of entries in each row (legacy KokkosClassic version).

Parameters

rowMap	[in] Distribution of rows of the graph.
numEntPerRow	[in] Maximum number of graph entries to allocate for each row. This is a strict upper bound.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 308 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const size_t	maxNumEntriesPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying column Map and a single upper bound for the number of entries in all rows on the calling process.

Parameters

rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph. See replaceColMap() for the requirements.
maxNumEntriesPerRow	[in] Maximum number of graph entries per row. This is a strict upper bound.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 284 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const Kokkos::DualView< const size_t *, device_type > &	numEntPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying column Map and number of entries in each row.

Parameters

rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph. See replaceColMap() for the requirements.
numEntPerRow	[in] Maximum number of graph entries to allocate for each row. This is a strict upper bound.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 401 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const Teuchos::ArrayView< const size_t > &	numEntPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying column Map and number of entries in each row (legacy KokkosClassic version).

Parameters

rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph. See replaceColMap() for the requirements.
numEntPerRow	[in] Maximum number of graph entries to allocate for each row. This is a strict upper bound.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 441 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &	originalGraph,
		const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying column Map and an existing graph to subview. The graph created will point to the views of the existing graph, but only have the rows contained in the passed-in rowMap. This constructor assumes it will alias the first N rows of the graph, where N is the number of rows in rowMap.

Parameters

rowMap	[in] Distribution of rows of the graph.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 497 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const typename local_graph_device_type::row_map_type &	rowPointers,
		const typename local_graph_device_type::entries_type::non_const_type &	columnIndices,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying column Map and arrays containing the graph. In almost all cases the indices must be sorted on input, but if they aren't sorted, "sorted" must be set to false in params.

Parameters

rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph. See replaceColMap() for the requirements.
rowPointers	[in] The beginning of each row in the graph, as in a CSR "rowptr" array. The length of this vector should be equal to the number of rows in the graph, plus one. This last entry should store the nunber of nonzeros in the graph.
columnIndices	[in] The local indices of the columns, as in a CSR "colind" array. The length of this vector should be equal to the number of unknowns in the graph. Entries in each row must be sorted (by local index).
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 532 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const Teuchos::ArrayRCP< size_t > &	rowPointers,
		const Teuchos::ArrayRCP< local_ordinal_type > &	columnIndices,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying column Map and arrays containing the graph. In almost all cases the indices must be sorted on input, but if they aren't sorted, "sorted" must be set to false in params.

Parameters

rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph. See replaceColMap() for the requirements.
rowPointers	[in] The beginning of each row in the graph, as in a CSR "rowptr" array. The length of this vector should be equal to the number of rows in the graph, plus one. This last entry should store the nunber of nonzeros in the graph.
columnIndices	[in] The local indices of the columns, as in a CSR "colind" array. The length of this vector should be equal to the number of unknowns in the graph. Entries in each row must be sorted (by local index).
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 559 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const local_graph_device_type &	lclGraph,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

Constructor specifying column Map and a local graph, which the resulting CrsGraph views. In almost all cases the local graph must be sorted on input, but if it isn't sorted, "sorted" must be set to false in params.

Unlike most other CrsGraph constructors, successful completion of this constructor will result in a fill-complete graph.

Parameters

rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph. See replaceColMap() for the requirements.
lclGraph	[in] A locally indexed Kokkos::StaticCrsGraph whose local row indices come from the specified row Map, and whose local column indices come from the specified column Map.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 586 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const local_graph_device_type &	lclGraph,
		const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const Teuchos::RCP< const map_type > &	domainMap = Teuchos::null,
		const Teuchos::RCP< const map_type > &	rangeMap = Teuchos::null,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying column, domain and range maps, and a local graph, which the resulting CrsGraph views. In almost all cases the local graph must be sorted on input, but if it isn't sorted, "sorted" must be set to false in params.

Unlike most other CrsGraph constructors, successful completion of this constructor will result in a fill-complete graph.

Parameters

rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph.
domainMap	[in] The graph's domain Map. MUST be one to one!
rangeMap	[in] The graph's range Map. MUST be one to one! May be, but need not be, the same as the domain Map.
lclGraph	[in] A locally indexed Kokkos::StaticCrsGraph whose local row indices come from the specified row Map, and whose local column indices come from the specified column Map.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 600 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const local_graph_device_type &	lclGraph,
		const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const Teuchos::RCP< const map_type > &	domainMap,
		const Teuchos::RCP< const map_type > &	rangeMap,
		const Teuchos::RCP< const import_type > &	importer,
		const Teuchos::RCP< const export_type > &	exporter,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Create a fill-complete CrsGraph from all the things it needs.

Parameters

lclGraph

[in] The local graph. In almost all cases the local graph must be sorted on input, but if it isn't sorted, "sorted" must be set to false in params.

Definition at line 670 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph	(	const row_ptrs_device_view_type &	rowPointers,
		const local_inds_wdv_type &	columnIndices,
		const Teuchos::RCP< const map_type > &	rowMap,
		const Teuchos::RCP< const map_type > &	colMap,
		const Teuchos::RCP< const map_type > &	domainMap,
		const Teuchos::RCP< const map_type > &	rangeMap,
		const Teuchos::RCP< const import_type > &	importer,
		const Teuchos::RCP< const export_type > &	exporter,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Constructor specifying the local row pointer and column indices arrays of the local graph; the row, column, domain, and range maps; and the importer and exporter. In almost all cases, the local graph must be sorted on input, but if it isn't sorted, "sorted" must be set to false in params.

Unlike most other CrsGraph constructors, successful completion of this constructor will result in a fill-complete graph.

Parameters

rowPointers	[in] The beginning of each row in the graph, as in a CSR "rowptr" array. The length of this vector should be equal to the number of rows in the graph, plus one. This last entry should store the nunber of nonzeros in the graph.
columnIndices	[in] The local indices of the columns, as in a CSR "colind" array. The length of this vector should be equal to the number of unknowns in the graph. Entries in each row must be sorted (by local index).
rowMap	[in] Distribution of rows of the graph.
colMap	[in] Distribution of columns of the graph.
domainMap	[in] The graph's domain Map. MUST be one to one!
rangeMap	[in] The graph's range Map. MUST be one to one! May be, but need not be, the same as the domain Map.
importer	[in] Import from the graph's domain Map to its column Map. If no Import is necessary (i.e., if the domain and column Maps are the same, in the sense of Tpetra::Map::isSameAs), then this may be Teuchos::null.
exporter	[in] Export from the graph's row Map to its range Map. If no Export is necessary (i.e., if the row and range Maps are the same, in the sense of Tpetra::Map::isSameAs), then this may be Teuchos::null.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 724 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph ( const CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &  )

default

Copy constructor (default).

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::CrsGraph ( CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &&  )

default

Move constructor (default).

template<class LocalOrdinal, class GlobalOrdinal, class Node>

virtual Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::~CrsGraph ( )

virtualdefault

Destructor (virtual for memory safety of derived classes).

Note

To Tpetra developers: See the C++ Core Guidelines C.21 ("If you define or <tt>=delete</tt> any default operation, define or <tt>=delete</tt> them all"), in particular the AbstractBase example, for why this destructor declaration implies that we need the above four =default declarations for copy construction, move construction, copy assignment, and move assignment.

Member Function Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node>

CrsGraph& Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::operator= ( const CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &  )

default

Assignment operator (default).

template<class LocalOrdinal, class GlobalOrdinal, class Node>

CrsGraph& Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::operator= ( CrsGraph< local_ordinal_type, global_ordinal_type, node_type > &&  )

default

Move assignment (default).

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isIdenticalTo

(

const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > &

graph

)

const

Create a cloned CrsGraph for a different Node type.

This method creates a new CrsGraph on a specified Kokkos Node type, with all of the entries of this CrsGraph object.

Parameters

node2	[in] Kokkos Node instance for constructing the clone CrsGraph and its constituent objects.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values. See the list below for valid options.

Parameters accepted by this method:

• "Static profile clone" [bool, default: true] If true, creates the clone with a static allocation profile. If false, a dynamic allocation profile is used.
• "Locally indexed clone" [bool] If true, fills clone using this graph's column map and local indices (requires that this graph have a column map.) If false, fills clone using global indices and does not provide a column map. By default, will use local indices only if this graph is using local indices.
• "fillComplete clone" [boolean, default: true] If true, calls fillComplete() on the cloned CrsGraph object, with parameters from params sublist "CrsGraph". The domain map and range maps passed to fillComplete() are those of the map being cloned, if they exist. Otherwise, the row map is used. True if and only if CrsGraph is identical to this CrsGraph

Warning

THIS METHOD IS FOR TPETRA DEVELOPERS ONLY. DO NOT RELY ON THIS METHOD. WE MAKE NO PROMISES OF BACKWARDS COMPATIBILITY.

This performs exact matches on objects with in the graphs. That is, internal data structures such as arrays must match exactly in both content and order. This is not performing any sort of isomorphic search.

Parameters

graph

[in] a CrsGraph to compare against this one.

Returns

True if the other CrsGraph's data structure is identical to this CrsGraph.

Definition at line 7417 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > &  params )

override

Set the given list of parameters (must be nonnull).

Definition at line 816 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const Teuchos::ParameterList > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getValidParameters ( ) const

override

Default parameter list suitable for validation.

Definition at line 780 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndices	(	const global_ordinal_type	globalRow,
		const Teuchos::ArrayView< const global_ordinal_type > &	indices
	)

Insert global indices into the graph.

Precondition

globalRow is a valid index in the row Map. It need not be owned by the calling process.

isLocallyIndexed() == false

isStorageOptimized() == false

Postcondition

indicesAreAllocated() == true

isGloballyIndexed() == true

If globalRow does not belong to the graph on this process, then it will be communicated to the appropriate process when globalAssemble() is called. (That method will be called automatically during the next call to fillComplete().) Otherwise, the entries will be inserted into the part of the graph owned by the calling process.

If the graph row already contains entries at the indices corresponding to values in indices, then the redundant indices will be eliminated. This may happen either at insertion or during the next call to fillComplete().

Definition at line 2581 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndices	(	const global_ordinal_type	globalRow,
		const local_ordinal_type	numEnt,
		const global_ordinal_type	inds[]
	)

Epetra compatibility version of insertGlobalIndices (see above) that takes input as a raw pointer, rather than Teuchos::ArrayView.

Arguments are the same and in the same order as Epetra_CrsGraph::InsertGlobalIndices.

Definition at line 2504 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertLocalIndices	(	const local_ordinal_type	localRow,
		const Teuchos::ArrayView< const local_ordinal_type > &	indices
	)

Insert local indices into the graph.

Precondition

localRow is a local row belonging to the graph on this process.

isGloballyIndexed() == false

isStorageOptimized() == false

hasColMap() == true

Postcondition

indicesAreAllocated() == true

isLocallyIndexed() == true

Note

If the graph row already contains entries at the indices corresponding to values in indices, then the redundant indices will be eliminated; this may happen at insertion or during the next call to fillComplete().

Definition at line 2423 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertLocalIndices	(	const local_ordinal_type	localRow,
		const local_ordinal_type	numEnt,
		const local_ordinal_type	inds[]
	)

Epetra compatibility version of insertLocalIndices (see above) that takes input as a raw pointer, rather than Teuchos::ArrayView.

Arguments are the same and in the same order as Epetra_CrsGraph::InsertMyIndices.

Definition at line 2492 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::removeLocalIndices

(

local_ordinal_type

localRow

)

Remove all graph indices from the specified local row.

Precondition

localRow is a local row of this graph.

isGloballyIndexed() == false

isStorageOptimized() == false

Postcondition

getNumEntriesInLocalRow(localRow) == 0

indicesAreAllocated() == true

isLocallyIndexed() == true

Definition at line 2675 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::globalAssemble

(

)

Communicate nonlocal contributions to other processes.

This method is called automatically by fillComplete(). Most users do not need to call this themselves.

This method must be called collectively (that is, like any MPI collective) over all processes in the graph's communicator.

Definition at line 2899 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::resumeFill

(

const Teuchos::RCP< Teuchos::ParameterList > &

params = Teuchos::null

)

Resume fill operations.

After calling fillComplete(), resumeFill() must be called before initiating any changes to the graph.

resumeFill() may be called repeatedly.

Warning

A CrsGraph instance does not currently (as of 23 Jul 2017) and never did support arbitrary structure changes after the first fillComplete call on that instance. The safest thing to do is not to change structure at all after first fillComplete.

Postcondition

isFillActive() == true

isFillComplete() == false

This method must be called collectively (that is, like any MPI collective) over all processes in the graph's communicator.

Definition at line 3117 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete	(	const Teuchos::RCP< const map_type > &	domainMap,
		const Teuchos::RCP< const map_type > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Tell the graph that you are done changing its structure.

This tells the graph to optimize its data structures for computational kernels, and to prepare (MPI) communication patterns.

Off-process indices are distributed (via globalAssemble()), indices are sorted, redundant indices are eliminated, and global indices are transformed to local indices.

This method must be called collectively (that is, like any MPI collective) over all processes in the graph's communicator.

Warning

The domain Map and row Map arguments to this method MUST be one to one! If you have Maps that are not one to one, and you do not know how to make a Map that covers the same global indices but is one to one, then you may call Tpetra::createOneToOne() (see Map's header file) to make a one-to-one version of your Map.

Precondition

isFillActive() && ! isFillComplete()

Postcondition

! isFillActive() && isFillComplete()

Parameters

domainMap	[in] The graph's domain Map. MUST be one to one!
rangeMap	[in] The graph's range Map. MUST be one to one! May be, but need not be, the same as the domain Map.
params	[in/out] List of parameters controlling this method's behavior. See below for valid parameters.

List of valid parameters in params:

• "Optimize Storage" (bool): Default is false. If true, then isStorageOptimized() returns true after this method finishes. See isStorageOptimized() for consequences.

Definition at line 3158 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete

(

const Teuchos::RCP< Teuchos::ParameterList > &

params = Teuchos::null

)

Tell the graph that you are done changing its structure; set default domain and range Maps.

See above three-argument version of fillComplete for full documentation. If the graph does not yet have domain and range Maps (i.e., if fillComplete has not yet been called on this graph at least once), then this method uses the graph's row Map (result of this->getRowMap()) as both the domain Map and the range Map. Otherwise, this method uses the graph's existing domain and range Maps.

This method must be called collectively (that is, like any MPI collective) over all processes in the graph's communicator.

Warning

It is only valid to call this overload of fillComplete if the row Map is one to one! If the row Map is NOT one to one, you must call the above three-argument version of fillComplete, and supply one-to-one domain and range Maps. If you have Maps that are not one to one, and you do not know how to make a Map that covers the same global indices but is one to one, then you may call Tpetra::createOneToOne() (see Map's header file) to make a one-to-one version of your Map.

Parameters

params

[in/out] List of parameters controlling this method's behavior. See documentation of the three-argument version of fillComplete (above) for valid parameters.

Definition at line 3131 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::expertStaticFillComplete	(	const Teuchos::RCP< const map_type > &	domainMap,
		const Teuchos::RCP< const map_type > &	rangeMap,
		const Teuchos::RCP< const import_type > &	importer = Teuchos::null,
		const Teuchos::RCP< const export_type > &	exporter = Teuchos::null,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)

Perform a fillComplete on a graph that already has data, via setAllIndices().

The graph must already have filled local 1-D storage. If the graph has been constructed in any other way, this method will throw an exception. This routine is needed to support other Trilinos packages and should not be called by ordinary users.

This method must be called collectively (that is, like any MPI collective) over all processes in the graph's communicator.

Warning

This method is intended for expert developer use only, and should never be called by user code.

Parameters

domainMap	[in] The graph's domain Map. MUST be one to one!
rangeMap	[in] The graph's range Map. MUST be one to one! May be, but need not be, the same as the domain Map.
importer	[in] Import from the graph's domain Map to its column Map. If no Import is necessary (i.e., if the domain and column Maps are the same, in the sense of Tpetra::Map::isSameAs), then this may be Teuchos::null.
exporter	[in] Export from the graph's row Map to its range Map. If no Export is necessary (i.e., if the row and range Maps are the same, in the sense of Tpetra::Map::isSameAs), then this may be Teuchos::null.
params	[in/out] List of parameters controlling this method's behavior.

Definition at line 3381 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const Teuchos::Comm< int > > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getComm ( ) const

overridevirtual

Returns the communicator.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1128 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const typename CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::map_type > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const

overridevirtual

Returns the Map that describes the row distribution in this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 878 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const typename CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::map_type > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const

overridevirtual

Returns the Map that describes the column distribution in this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 886 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const typename CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::map_type > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

overridevirtual

Returns the Map associated with the domain of this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 894 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const typename CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::map_type > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

overridevirtual

Returns the Map associated with the domain of this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 902 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const typename CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::import_type > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getImporter ( ) const

overridevirtual

Returns the importer associated with this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 910 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const typename CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::export_type > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getExporter ( ) const

overridevirtual

Returns the exporter associated with this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 918 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

global_size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const

overridevirtual

Returns the number of global rows in the graph.

Undefined if isFillActive().

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 827 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

global_size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const

overridevirtual

Returns the number of global columns in the graph.

Returns the number of entries in the domain map of the matrix. Undefined if isFillActive().

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 835 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumRows ( ) const

overridevirtual

Returns the number of graph rows owned on the calling node.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 849 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumCols ( ) const

overridevirtual

Returns the number of columns connected to the locally owned rows of this graph.

Throws std::runtime_error if hasColMap() == false

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 860 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

GlobalOrdinal Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getIndexBase ( ) const

overridevirtual

Returns the index base for global indices for this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1136 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

global_size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const

overridevirtual

Returns the global number of entries in the graph.

Undefined if isFillActive ().

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 950 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumEntries ( ) const

overridevirtual

The local number of entries in the graph.

"Local" means "local to the calling (MPI) process."

Warning

If the graph is not fill complete, this may launch a thread-parallel computational kernel. This is because we do not store the number of entries as a separate integer field, since doing so and keeping it updated would hinder thread-parallel insertion of new entries. See #1357.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 965 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( global_ordinal_type  globalRow ) const

overridevirtual

Returns the current number of entries on this node in the specified global row.

Returns OrdinalTraits<size_t>::invalid() if the specified global row does not belong to this graph.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 2170 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( local_ordinal_type  localRow ) const

overridevirtual

Get the number of entries in the given row (local index).

Returns

The number of entries in the given row, specified by local index, on the calling MPI process. If the specified local row index is invalid on the calling process, return Teuchos::OrdinalTraits<size_t>::invalid().

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 2185 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalAllocationSize

(

)

const

The local number of indices allocated for the graph, over all rows on the calling (MPI) process.

"Local" means "local to the calling (MPI) process."

Warning

If the graph is not fill complete, this may require computation. This is because we do not store the allocation count as a separate integer field, since doing so and keeping it updated would hinder thread-parallel insertion of new entries.

This is the allocation available to the user. Actual allocation may be larger, for example, after calling fillComplete(). Thus, this does not necessarily reflect the graph's memory consumption.

Returns

If indicesAreAllocated() is true, the allocation size. Otherwise, Tpetra::Details::OrdinalTraits<size_t>::invalid().

Definition at line 1083 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInGlobalRow

(

global_ordinal_type

globalRow

)

const

Current number of allocated entries in the given row on the calling (MPI) process, using a global row index.

Returns

If the given row index is in the row Map on the calling process, then return this process' allocation size for that row. Otherwise, return Tpetra::Details::OrdinalTraits<size_t>::invalid().

Definition at line 2200 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInLocalRow

(

local_ordinal_type

localRow

)

const

Current number of allocated entries in the given row on the calling (MPI) process, using a local row index.

Returns

If the given row index is in the row Map on the calling process, then return this process' allocation size for that row. Otherwise, return Tpetra::Details::OrdinalTraits<size_t>::invalid().

Definition at line 2215 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

global_size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const

overridevirtual

Maximum number of entries in any row of the graph, over all processes in the graph's communicator.

Precondition

! isFillActive()

Note

This is the same as the result of a global maximum of getLocalMaxNumRowEntries() over all processes. That may not necessarily mean what you think it does if some rows of the matrix are owned by multiple processes. In particular, some processes might only own some of the entries in a particular row. This method only counts the number of entries in each row that a process owns, not the total number of entries in the row over all processes.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1028 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalMaxNumRowEntries ( ) const

overridevirtual

Maximum number of entries in any row of the graph, on this process.

Precondition

! isFillActive()

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1042 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::hasColMap ( ) const

overridevirtual

Whether the graph has a column Map.

A CrsGraph has a column Map either because it was given to its constructor, or because it was constructed in fillComplete(). Calling fillComplete() always makes a column Map if the graph does not already have one.

A column Map lets the graph

• use local indices for storing entries in each row, and
• compute an Import from the domain Map to the column Map.

The latter is mainly useful for a graph associated with a CrsMatrix.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 926 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const

overridevirtual

Whether the graph's column indices are stored as local indices.

Weird quirk inherited from Epetra: ! isLocallyIndexed() && ! isGloballyIndexed() means that there are no graph entries on the calling process. Please don't rely on this behavior, but note that it's possible.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1067 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const

overridevirtual

Whether the graph's column indices are stored as global indices.

Weird quirk inherited from Epetra: ! isLocallyIndexed() && ! isGloballyIndexed() means that there are no graph entries on the calling process. Please don't rely on this behavior, but note that it's possible.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1075 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const

overridevirtual

Whether fillComplete() has been called and the graph is in compute mode.

Implements Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1050 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isFillActive

(

)

const

Whether resumeFill() has been called and the graph is in edit mode.

Definition at line 1058 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isSorted

(

)

const

Whether graph indices in all rows are known to be sorted.

A fill-complete graph is always sorted, as is a newly constructed graph. A graph is sorted immediately after calling resumeFill(), but any changes to the graph may result in the sorting status becoming unknown (and therefore, presumed unsorted).

Definition at line 1152 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isStorageOptimized

(

)

const

Returns true if storage has been optimized.

Optimized storage means that the allocation of each row is equal to the number of entries. The effect is that a pass through the matrix, i.e., during a mat-vec, requires minimal memory traffic. One limitation of optimized storage is that no new indices can be added to the graph.

Definition at line 934 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowCopy ( global_ordinal_type  gblRow, nonconst_global_inds_host_view_type &  gblColInds, size_t &  numColInds  ) const

override

Get a copy of the given row, using global indices.

Parameters

gblRow	[in] Global index of the row.
gblColInds	[out] On output: Global column indices.
numColInds	[out] Number of indices returned.

Definition at line 2309 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowCopy ( local_ordinal_type  gblRow, nonconst_local_inds_host_view_type &  gblColInds, size_t &  numColInds  ) const

override

Get a copy of the given row, using local indices.

Parameters

lclRow	[in] Local index of the row.
lclColInds	[out] On output: Local column indices.
numColInds	[out] Number of indices returned.

Precondition

hasColMap()

Definition at line 2263 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView ( const global_ordinal_type  gblRow, global_inds_host_view_type &  gblColInds  ) const

override

Get a const view of the given global row's global column indices.

Parameters

gblRow	[in] Global index of the row.
gblColInds	[out] Global column indices in the row. If the given row is not a valid row index on the calling process, then the result has no entries (its size is zero).

Precondition

! isLocallyIndexed()

Postcondition

gblColInds.size() == getNumEntriesInGlobalRow(gblRow)

Definition at line 2385 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::supportsRowViews ( ) const

overridevirtual

Whether this class implements getLocalRowView() and getGlobalRowView() (it does).

Reimplemented from Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 6662 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView ( const LocalOrdinal  lclRow, local_inds_host_view_type &  lclColInds  ) const

override

Get a const view of the given local row's local column indices.

Parameters

lclRow	[in] Local index of the row.
lclColInds	[out] Local column indices in the row. If the given row is not a valid row index on the calling process, then the result has no entries (its size is zero).

Precondition

! isGloballyIndexed()

Postcondition

lclColInds.size() == getNumEntriesInLocalRow(lclRow)

Definition at line 2346 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

std::string Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

overridevirtual

Return a one-line human-readable description of this object.

Reimplemented from Tpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 4635 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::describe ( Teuchos::FancyOStream &  out, const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default  ) const

overridevirtual

Print this object to the given output stream with the given verbosity level.

Reimplemented from Tpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 4658 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::checkSizes ( const SrcDistObject &  source )

overridevirtual

Compare the source and target (this) objects for compatibility.

Returns

True if they are compatible, else false.

Implements Tpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 4781 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::copyAndPermute ( const SrcDistObject &  source, const size_t  numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteFromLIDs, const CombineMode  CM  )

overridevirtual

DistObject copyAndPermute has multiple overloads – use copyAndPermutes for anything we don't override

Definition at line 4793 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::pack ( const Teuchos::ArrayView< const local_ordinal_type > &  exportLIDs, Teuchos::Array< global_ordinal_type > &  exports, const Teuchos::ArrayView< size_t > &  numPacketsPerLID, size_t &  constantNumPackets  ) const

overridevirtual

< DistObject overloads packAndPrepare. Explicitly use DistObject's packAndPrepare for anything we don't override

Reimplemented from Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 5592 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::unpackAndCombine ( const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  importLIDs, Kokkos::DualView< packet_type *, buffer_device_type >  imports, Kokkos::DualView< size_t *, buffer_device_type >  numPacketsPerLID, const size_t  constantNumPackets, const CombineMode  combineMode  )

overridevirtual

< DistObject has overloaded unpackAndCombine, use the DistObject's implementation for anything we don't override.

Definition at line 6035 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagOffsets

(

const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &

offsets

)

const

Get offsets of the diagonal entries in the graph.

Warning

This method is only for expert users.

We make no promises about backwards compatibility for this method. It may disappear or change at any time.

This method must be called collectively. We reserve the right to do extra checking in a debug build that will require collectives.

This method helps users optimize Tpetra::CrsMatrix::getLocalDiagCopy and Tpetra::Experimental::BlockCrsMatrix::getLocalDiagCopy, for several calls when the graph's structure does not change. The method fills an array of offsets of the local diagonal entries in the matrix. getLocalDiagCopy uses the offsets to extract the diagonal entries directly, without needing to search for them using Map lookups and search in each row of the graph.

The output array's contents are not defined in any other context other than for use in getLocalDiagCopy. For example, you should not rely on offsets(i) being the index of the diagonal entry in the views returned by Tpetra::CrsMatrix::getLocalRowView. This may be the case, but it need not be. (For example, we may choose to optimize the lookups down to the optimized storage level, in which case the offsets will be computed with respect to the underlying storage format, rather than with respect to the views.)

Changes to the graph's structure, or calling fillComplete on the graph (if its structure is not already fixed), may make the output array's contents invalid. "Invalid" means that you must call this method again to recompute the offsets.

Precondition

The graph must have a column Map.

All diagonal entries of the graph must be populated on this process. Results are undefined otherwise.

offsets.extent(0) >= this->getLocalNumRows()

Parameters

offsets

[out] Output array of offsets. This method does NOT allocate the array; the caller must allocate. Must have getLocalNumRows() entries on the calling process. (This may be different on different processes.)

Definition at line 6298 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalOffRankOffsets

(

offset_device_view_type &

offsets

)

const

Get offsets of the off-rank entries in the graph.

Definition at line 6492 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagOffsets

(

Teuchos::ArrayRCP< size_t > &

offsets

)

const

Backwards compatibility overload of the above method.

This method takes a Teuchos::ArrayRCP instead of a Kokkos::View. It also reallocates the output array if it is not long enough.

Parameters

offsets

[out] Output array of offsets. This method reallocates the array if it is not long enough. This is why the method takes the array by reference.

Definition at line 6624 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::setAllIndices	(	const typename local_graph_device_type::row_map_type &	rowPointers,
		const typename local_graph_device_type::entries_type::non_const_type &	columnIndices
	)

Set the graph's data directly, using 1-D storage.

Precondition

columnIndices are sorted within rows

hasColMap() == true

rowPointers.size() == getLocalNumRows()+1

No insert routines have been called.

Warning

This method is intended for expert developer use only, and should never be called by user code.

Definition at line 2709 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::setAllIndices	(	const Teuchos::ArrayRCP< size_t > &	rowPointers,
		const Teuchos::ArrayRCP< local_ordinal_type > &	columnIndices
	)

Set the graph's data directly, using 1-D storage.

Precondition

columnIndices are sorted within rows

hasColMap() == true

rowPointers.size() == getLocalNumRows()+1

No insert routines have been called.

Warning

This method is intended for expert developer use only, and should never be called by user code.

Definition at line 2824 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::row_ptrs_host_view_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowPtrsHost

(

)

const

Get a host view of the packed row offsets.

Definition at line 2230 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::row_ptrs_device_view_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowPtrsDevice

(

)

const

Get a device view of the packed row offsets.

Definition at line 2238 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_inds_host_view_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalIndicesHost

(

)

const

Get a host view of the packed column indicies.

Definition at line 2247 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_inds_device_view_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalIndicesDevice

(

)

const

Get a device view of the packed column indicies.

Definition at line 2255 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::replaceColMap

(

const Teuchos::RCP< const map_type > &

newColMap

)

Replace the graph's current column Map with the given Map.

This only replaces the column Map. It does not change the graph's current column indices, or otherwise apply a permutation. For example, suppose that before calling this method, the calling process owns a row containing local column indices [0, 2, 4]. These indices do not change, nor does their order change, as a result of calling this method.

Parameters

newColMap

[in] New column Map. Must be nonnull. Within Tpetra, there are no particular restrictions on the column map. However, if this graph will be used in Xpetra, Ifpack2, or MueLu, the column map's list of global indices must follow "Aztec ordering": locally owned GIDs (same order as in domain map), followed by remote GIDs (in order of owning proc, and sorted within each proc).

It is strongly recommended to use Tpetra::Details::makeColMap() to create the column map. makeColMap() follows Aztec ordering by default.

Definition at line 3783 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::reindexColumns	(	const Teuchos::RCP< const map_type > &	newColMap,
		const Teuchos::RCP< const import_type > &	newImport = Teuchos::null,
		const bool	sortIndicesInEachRow = true
	)

Reindex the column indices in place, and replace the column Map. Optionally, replace the Import object as well.

Precondition

On every calling process, every index owned by the current column Map must also be owned by the new column Map.

If the new Import object is provided, the new Import object's source Map must be the same as the current domain Map, and the new Import's target Map must be the same as the new column Map.

Parameters

newColMap	[in] New column Map. Must be nonnull.
newImport	[in] New Import object. Optional; computed if not provided or if null. Computing an Import is expensive, so it is worth providing this if you can.
sortIndicesInEachRow	[in] If true, sort the indices in each row after reindexing.

Definition at line 3802 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::replaceDomainMap

(

const Teuchos::RCP< const map_type > &

newDomainMap

)

Replace the current domain Map with the given objects.

The Graph's Import object will be recomputed if needed.

Precondition

isFillComplete() == true

isFillActive() == false

Definition at line 4030 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::replaceDomainMapAndImporter	(	const Teuchos::RCP< const map_type > &	newDomainMap,
		const Teuchos::RCP< const import_type > &	newImporter
	)

Replace the current domain Map and Import with the given parameters.

Warning

This method is ONLY for use by experts.

We make NO promises of backwards compatibility. This method may change or disappear at any time.

Precondition

isFillComplete() == true

isFillActive() == false

Either the given Import object is null, or the target Map of the given Import is the same as this graph's column Map.

Either the given Import object is null, or the source Map of the given Import is the same as this graph's domain Map.

Definition at line 4051 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::replaceRangeMap

(

const Teuchos::RCP< const map_type > &

newRangeMap

)

Replace the current Range Map with the given objects.

The Graph's Export object will be recomputed if needed.

Precondition

isFillComplete() == true

isFillActive() == false

Definition at line 4093 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::replaceRangeMapAndExporter	(	const Teuchos::RCP< const map_type > &	newRangeMap,
		const Teuchos::RCP< const export_type > &	newExporter
	)

Replace the current Range Map and Export with the given parameters.

Warning

This method is ONLY for use by experts.

We make NO promises of backwards compatibility. This method may change or disappear at any time.

Precondition

isFillComplete() == true

isFillActive() == false

Either the given Export object is null, or the target Map of the given Export is the same as this graph's Range Map.

Either the given Export object is null, or the source Map of the given Export is the same as this graph's Row Map.

Definition at line 4114 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const map_type > &  newMap )

overridevirtual

Remove processes owning zero rows from the Maps and their communicator.

Warning

This method is ONLY for use by experts. We highly recommend using the nonmember function of the same name defined in Tpetra_DistObject_decl.hpp.

We make NO promises of backwards compatibility. This method may change or disappear at any time.

Parameters

newMap

[in] This must be the result of calling the removeEmptyProcesses() method on the row Map. If it is not, this method's behavior is undefined. This pointer will be null on excluded processes.

This method satisfies the strong exception guarantee, as long the destructors of Export, Import, and Map do not throw exceptions. This means that either the method returns normally (without throwing an exception), or there are no externally visible side effects. However, this does not guarantee no deadlock when the graph's original communicator contains more than one process. In order to prevent deadlock, you must still wrap this call in a try/catch block and do an all-reduce over all processes in the original communicator to test whether the call succeeded. This safety measure should usually be unnecessary, since the method call should only fail on user error or failure to allocate memory.

Definition at line 6200 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node>

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::importAndFillComplete	(	Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &	destGraph,
		const import_type &	importer,
		const Teuchos::RCP< const map_type > &	domainMap,
		const Teuchos::RCP< const map_type > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)		const

Import from this to the given destination graph, and make the result fill complete.

If destGraph.is_null(), this creates a new graph as the destination. (This is why destGraph is passed in by nonconst reference to RCP.) Otherwise it checks for "pristine" status and throws if that is not the case. "Pristine" means that the graph has no entries and is not fill complete.

Use of the "non-member constructor" version of this method, exportAndFillCompleteCrsGraph, is preferred for user applications.

Warning

This method is intended for expert developer use only, and should never be called by user code.

Definition at line 7311 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node>

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::importAndFillComplete	(	Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &	destGraph,
		const import_type &	rowImporter,
		const import_type &	domainImporter,
		const Teuchos::RCP< const map_type > &	domainMap,
		const Teuchos::RCP< const map_type > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)		const

Import from this to the given destination graph, and make the result fill complete.

If destGraph.is_null(), this creates a new graph as the destination. (This is why destGraph is passed in by nonconst reference to RCP.) Otherwise it checks for "pristine" status and throws if that is not the case. "Pristine" means that the graph has no entries and is not fill complete.

Use of the "non-member constructor" version of this method, exportAndFillCompleteCrsGraph, is preferred for user applications.

Warning

This method is intended for expert developer use only, and should never be called by user code.

Definition at line 7323 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node>

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::exportAndFillComplete	(	Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &	destGraph,
		const export_type &	exporter,
		const Teuchos::RCP< const map_type > &	domainMap = Teuchos::null,
		const Teuchos::RCP< const map_type > &	rangeMap = Teuchos::null,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = Teuchos::null
	)		const

Export from this to the given destination graph, and make the result fill complete.

If destGraph.is_null(), this creates a new graph as the destination. (This is why destGraph is passed in by nonconst reference to RCP.) Otherwise it checks for "pristine" status and throws if that is not the case. "Pristine" means that the graph has no entries and is not fill complete.

Use of the "non-member constructor" version of this method, exportAndFillCompleteCrsGraph, is preferred for user applications.

Warning

This method is intended for expert developer use only, and should never be called by user code.

Definition at line 7336 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node>

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::exportAndFillComplete	(	Teuchos::RCP< CrsGraph< local_ordinal_type, global_ordinal_type, Node > > &	destGraph,
		const export_type &	rowExporter,
		const export_type &	domainExporter,
		const Teuchos::RCP< const map_type > &	domainMap,
		const Teuchos::RCP< const map_type > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)		const

Export from this to the given destination graph, and make the result fill complete.

If destGraph.is_null(), this creates a new graph as the destination. (This is why destGraph is passed in by nonconst reference to RCP.) Otherwise it checks for "pristine" status and throws if that is not the case. "Pristine" means that the graph has no entries and is not fill complete.

Use of the "non-member constructor" version of this method, exportAndFillCompleteCrsGraph, is preferred for user applications.

Warning

This method is intended for expert developer use only, and should never be called by user code.

Definition at line 7348 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::makeColMap ( Teuchos::Array< int > &  remotePIDs )

protected

Make and set the graph's column Map.

This method makes the column Map, even if the graph already has one. It is the caller's responsibility not to call this method unnecessarily.

Parameters

remotePIDs

[out] The process ranks corresponding to the column Map's "remote" (not on the calling process in the domain Map) indices.

Definition at line 4412 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

std::pair< size_t, std::string > Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::makeIndicesLocal ( const bool  verbose = false )

protected

Convert column indices from global to local.

Precondition

The graph has a column Map.

Postcondition

The graph is locally indexed.

Parameters

verbose

[in] Whether to print verbose debugging output. This exists because CrsMatrix may want to control output independently of the CrsGraph that it owns.

Returns

Error code and error string. See below.

First return value is the number of column indices on this process, counting duplicates, that could not be converted to local indices, because they were not in the column Map on the calling process. If some error occurred before conversion happened, then this is Tpetra::Details::OrdinalTraits<size_t>::invalid().

Second return value is a human-readable error string. If the first return value is zero, then the string may be empty.

Definition at line 4254 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::makeImportExport ( Teuchos::Array< int > &  remotePIDs, const bool  useRemotePIDs  )

protected

Make the Import and Export objects, if needed.

Parameters

remotePIDs	[in/out] On input: the output of makeColMap(). May be modified on output.
useRemotePIDs	[in] Whether to use remotePIDs. Use it if we called makeColMap with this as the output argument, else don't use it.

Definition at line 4567 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertIndices ( RowInfo &  rowInfo, const SLocalGlobalViews &  newInds, const ELocalGlobal  lg, const ELocalGlobal  I  )

protected

Insert indices into the given row.

Precondition

! (lg == LocalIndices && I == GlobalIndices). It does not make sense to give this method local column indices (meaning that the graph has a column Map), yet to ask it to store global indices.

This method does no allocation; it just inserts the indices.

Parameters

rowInfo	[in/out] On input: Result of CrsGraph's getRowInfo() or updateAllocAndValues() methods, for the locally owned row (whose local index is rowInfo.localRow) for which you want to insert indices. On output: numEntries field is updated.
newInds	[in] View of the column indices to insert. If lg == GlobalIndices, then newInds.ginds, a Teuchos::ArrayView<const global_ordinal_type>, contains the (global) column indices to insert. Otherwise, if lg == LocalIndices, then newInds.linds, a Teuchos::ArrayView<const local_ordinal_type>, contains the (local) column indices to insert.
lg	If lg == GlobalIndices, then the input indices (in newInds) are global indices. Otherwise, if lg == LocalIndices, the input indices are local indices.
I	If lg == GlobalIndices, then this method will store the input indices as global indices. Otherwise, if I == LocalIndices, this method will store the input indices as local indices.

Returns

The number of indices inserted.

Definition at line 1586 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndicesImpl ( const local_ordinal_type  lclRow, const global_ordinal_type  inputGblColInds[], const size_t  numInputInds  )

protected

Insert global indices, using an input local row index.

Parameters

rowInfo	[in] Result of getRowInfo() on the row in which to insert.
inputGblColInds	[in] Input global column indices.
numInputInds	[in] The number of input global column indices.

Returns

The number of indices inserted.

Definition at line 1691 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndicesImpl ( const RowInfo &  rowInfo, const global_ordinal_type  inputGblColInds[], const size_t  numInputInds, std::function< void(const size_t, const size_t, const size_t)>  fun = std::function<void(const size_t, const size_t, const size_t)>()  )

protected

Insert global indices, using an input RowInfo.

Parameters

rowInfo	[in] Result of getRowInfo() on the row in which to insert.
inputGblColInds	[in] Input global column indices.
numInputInds	[in] The number of input global column indices.

Returns

The number of indices inserted.

Definition at line 1702 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::findGlobalIndices ( const RowInfo &  rowInfo, const Teuchos::ArrayView< const global_ordinal_type > &  indices, std::function< void(const size_t, const size_t, const size_t)>  fun  ) const

protected

Finds indices in the given row.

This method does no insertion; it just finds indices and calls a callback for each found index

Parameters

row	[in] Row of interest
indices	[in] Column indices to find in row
fun	Call back function called at each found index. Called as fun(k, start, offset); where k is the index in to indices, start is offset to the start of the row, and offset is the relative offset of indices[k] in the graphs indices.

Returns

The number of indices found.

Definition at line 1831 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndicesFiltered ( const local_ordinal_type  lclRow, const global_ordinal_type  gblColInds[], const local_ordinal_type  numGblColInds  )

protected

Like insertGlobalIndices(), but with column Map filtering.

"Column Map filtering" means that any column indices not in the column Map on the calling process, get silently dropped.

Parameters

lclRow	[in] Local index of the row in which to insert. This row MUST be in the row Map on the calling process.
gblColInds	[in] The global column indices to insert into that row.
numGblColInds	[in] The number of global column indices to insert into that row.

Definition at line 2592 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndicesIntoNonownedRows ( const global_ordinal_type  gblRow, const global_ordinal_type  gblColInds[], const local_ordinal_type  numGblColInds  )

protected

Implementation of insertGlobalIndices for nonowned rows.

A global row index is nonowned when it is not in the column Map on the calling process.

Parameters

gblRow	[in] Global index of the row in which to insert. This row must NOT be in the row Map on the calling process.
gblColInds	[in] The global column indices to insert into that row.
numGblColInds	[in] The number of global column indices to insert into that row.

Definition at line 2656 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isMerged ( ) const

protected

Whether duplicate column indices in each row have been merged.

Definition at line 1160 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::setLocallyModified ( )

protected

Report that we made a local modification to its structure.

Call this after making a local change to the graph's structure. Changing the structure locally invalidates the "is sorted" and "is merged" states.

Definition at line 1168 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::sortAndMergeRowIndices ( const RowInfo &  rowInfo, const bool  sorted, const bool  merged  )

protected

Sort and merge duplicate column indices in the given row.

Precondition

The graph is locally indexed: isGloballyIndexed() == false.

The graph is not already storage optimized: isStorageOptimized() == false

Returns

The number of duplicate column indices eliminated from the row.

Definition at line 1868 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::setDomainRangeMaps ( const Teuchos::RCP< const map_type > &  domainMap, const Teuchos::RCP< const map_type > &  rangeMap  )

protected

Set the domain and range Maps, and invalidate the Import and/or Export objects if necessary.

If the domain Map has changed, invalidate the Import object (if there is one). Likewise, if the range Map has changed, invalidate the Export object (if there is one).

Parameters

domainMap	[in] The new domain Map
rangeMap	[in] The new range Map

Definition at line 1905 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::haveGlobalConstants ( ) const

inline

Returns true if globalConstants have been computed; false otherwise.

Definition at line 2019 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::computeGlobalConstants

(

)

Compute global constants, if they have not yet been computed.

Warning

This is an implementation detail of Tpetra. It may change or disappear at any time. It is public only because MueLu setup needs it to be public.

Global constants include:

• globalNumEntries_
• globalMaxNumRowEntries_

Always compute the following:

• globalNumEntries_
• globalMaxNumRowEntries_

Definition at line 4177 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::computeLocalConstants ( )

protected

Compute local constants, if they have not yet been computed.

Warning

You MUST call fillLocalGraph (or CrsMatrix::fillLocalGraphAndMatrix) before calling this method! This method depends on the Kokkos::StaticCrsGraph (local_graph_device_type) object being ready.

Local constants include:

• nodeMaxNumRowEntries_

Always compute the following:

• nodeMaxNumRowEntries_

computeGlobalConstants calls this method, if global constants have not yet been computed.

Definition at line 4223 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

RowInfo Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowInfo ( const local_ordinal_type  myRow ) const

protected

Get information about the locally owned row with local index myRow.

Definition at line 1437 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

RowInfo Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowInfoFromGlobalRowIndex ( const global_ordinal_type  gblRow ) const

protected

Get information about the locally owned row with global index gblRow.

If gblRow is not locally owned, the localRow field of the returned struct is Teuchos::OrdinalTraits<size_t>::invalid().

The point of this method is to fuse the global-to-local row index lookup for checking whether gblRow is locally owned, with other error checking that getRowInfo() does. This avoids an extra global-to-local index lookup in methods like CrsMatrix::replaceGlobalValues().

Definition at line 1484 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_device_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalGraphDevice

(

)

const

Get the local graph.

Warning

THIS IS AN EXPERT MODE FUNCTION. THIS IS AN IMPLEMENTATION DETAIL. DO NOT CALL THIS FUNCTION!!!

This is only a valid representation of the local graph if the (global) graph is fill complete.

Definition at line 4157 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::checkInternalState ( ) const

protected

Throw an exception if the internal state is not consistent.

Definition at line 1936 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node>

void Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::swap ( CrsGraph< local_ordinal_type, global_ordinal_type, Node > &  graph )

protected

Swaps the data from *this with the data and maps from graph.

Parameters

graph

[in/out] a crsGraph

Definition at line 7362 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

const row_ptrs_device_view_type& Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowPtrsUnpackedDevice ( ) const

inlineprotected

Get the unpacked row pointers on device.

Definition at line 2187 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

const row_ptrs_host_view_type& Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowPtrsUnpackedHost ( ) const

inlineprotected

Get the unpacked row pointers on host. Lazily make a copy from device.

Definition at line 2193 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

const row_ptrs_device_view_type& Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowPtrsPackedDevice ( ) const

inlineprotected

Get the packed row pointers on device.

Definition at line 2230 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

const row_ptrs_host_view_type& Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowPtrsPackedHost ( ) const

inlineprotected

Get the packed row pointers on host. Lazily make a copy from device.

Definition at line 2236 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_inds_dualv_type::t_host::const_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalIndsViewHost ( const RowInfo &  rowinfo ) const

protected

Get a const, locally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow).

Definition at line 1367 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_inds_dualv_type::t_dev::const_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalIndsViewDevice ( const RowInfo &  rowinfo ) const

protected

Get a const, locally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow).

Definition at line 1409 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::global_inds_dualv_type::t_host::const_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalIndsViewHost ( const RowInfo &  rowinfo ) const

protected

Get a const, globally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow).

Definition at line 1395 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::global_inds_dualv_type::t_dev::const_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalIndsViewDevice ( const RowInfo &  rowinfo ) const

protected

Get a const, globally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow).

Definition at line 1423 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_inds_dualv_type::t_host Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalIndsViewHostNonConst ( const RowInfo &  rowinfo )

protected

Get a ReadWrite locally indexed view of the locally owned row myRow, such that rowinfo = getRowInfo(myRow).

Definition at line 1381 of file Tpetra_CrsGraph_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

virtual void Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowCopy ( const GlobalOrdinal  gblRow, nonconst_global_inds_host_view_type &  gblColInds, size_t &  numColInds  ) const

pure virtualinherited

Get a copy of the global column indices in a given row of the graph.

Given the global index of a row of the graph, get a copy of all the global column indices in that row that the calling process stores.

Parameters

gblRow	[in] Global index of the row.
gblColInds	[in/out] On output: All the global column indices in that row on the calling process.
numColInds	[out] Number of indices in the row on the calling process.

Precondition

getRowMap()->isNodeGlobalElement(gblRow) is true.

gblColInds.size() >= getNumEntriesInGlobalRow(gblRow) is true.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

virtual void Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowCopy ( const LocalOrdinal  lclRow, nonconst_local_inds_host_view_type &  lclColInds, size_t &  numColInds  ) const

pure virtualinherited

Get a copy of the local column indices in a given row of the graph.

Given the local index of a row of the graph, get a copy of all the local column indices in that row that the calling process stores.

Parameters

lclRow	[in] Local index of the row.
lclColInds	[in/out] On output: All the local column indices in that row on the calling process.
numColInds	[out] Number of indices in the row on the calling process.

Precondition

hasColMap() is true.

getRowMap()->isNodeLocalElement(lclRow) is true.

lclColInds.size() >= getNumEntriesInLocalRow(lclRow) is true.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

virtual void Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView ( const LocalOrdinal  lclRow, local_inds_host_view_type &  lclColInds  ) const

pure virtualinherited

Get a constant, nonpersisting, locally indexed view of the given row of the graph.

The returned views of the column indices are not guaranteed to persist beyond the lifetime of this. Furthermore, some RowGraph implementations allow changing the values, or the indices and values. Any such changes invalidate the returned views.

This method only gets the entries in the given row that are stored on the calling process. Note that if the graph has an overlapping row Map, it is possible that the calling process does not store all the entries in that row.

Precondition

isLocallyIndexed () && supportsRowViews ()

Postcondition

indices.size () == getNumEntriesInGlobalRow (LocalRow)

Parameters

lclRow	[in] Local index of the row.
lclColInds	[out] Local indices of the columns in the row. If the given row is not a valid row index on the calling process, then the result has no entries (its size is zero).

Subclasses are expected to implement this method. We would have made this method pure virtual, but that would have broken backwards compatibility, since we added the method at least one major release after introducing this class.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

virtual void Tpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView ( const GlobalOrdinal  gblRow, global_inds_host_view_type &  gblColInds  ) const

pure virtualinherited

Get a const, non-persisting view of the given global row's global column indices, as a Teuchos::ArrayView.

Parameters

gblRow	[in] Global index of the row.
gblColInds	[out] Global column indices in the row. If the given row is not a valid row index on the calling process, then the result has no entries (its size is zero).

Precondition

! isLocallyIndexed()

Postcondition

gblColInds.size() == getNumEntriesInGlobalRow(gblRow)

Subclasses are expected to implement this method. We would have made this method pure virtual, but that would have broken backwards compatibility, since we added the method at least one major release after introducing this class.

void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::doImport ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const Import< LocalOrdinal, GlobalOrdinal, Node > &  importer, const CombineMode  CM, const bool  restrictedMode = false  )

inherited

Import data into this object using an Import object ("forward mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use this method with your precomputed Import object if you want to do an Import, else use doExport() with a precomputed Export object.

"Restricted Mode" does two things:

1. Skips copyAndPermute
2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
importer	[in] Precomputed data redistribution plan. Its source Map must be the same as the input DistObject's Map, and its target Map must be the same as this->getMap().
CM	[in] How to combine incoming data with the same global index.

void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::doImport ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const Export< LocalOrdinal, GlobalOrdinal, Node > &  exporter, const CombineMode  CM, const bool  restrictedMode = false  )

inherited

Import data into this object using an Export object ("reverse mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use the version of doImport() that takes a precomputed Import object in that case.

"Restricted Mode" does two things:

1. Skips copyAndPermute
2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
exporter	[in] Precomputed data redistribution plan. Its target Map must be the same as the input DistObject's Map, and its source Map must be the same as this->getMap(). (Note the difference from forward mode.)
CM	[in] How to combine incoming data with the same global index.

void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::doExport ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const Export< LocalOrdinal, GlobalOrdinal, Node > &  exporter, const CombineMode  CM, const bool  restrictedMode = false  )

inherited

Export data into this object using an Export object ("forward mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use this method with your precomputed Export object if you want to do an Export, else use doImport() with a precomputed Import object.

"Restricted Mode" does two things:

1. Skips copyAndPermute
2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
exporter	[in] Precomputed data redistribution plan. Its source Map must be the same as the input DistObject's Map, and its target Map must be the same as this->getMap().
CM	[in] How to combine incoming data with the same global index.

void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::doExport ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const Import< LocalOrdinal, GlobalOrdinal, Node > &  importer, const CombineMode  CM, const bool  restrictedMode = false  )

inherited

Export data into this object using an Import object ("reverse mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use the version of doExport() that takes a precomputed Export object in that case.

"Restricted Mode" does two things:

1. Skips copyAndPermute
2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters

source	[in] The "source" object for redistribution.
importer	[in] Precomputed data redistribution plan. Its target Map must be the same as the input DistObject's Map, and its source Map must be the same as this->getMap(). (Note the difference from forward mode.)
CM	[in] How to combine incoming data with the same global index.

bool Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::transferArrived ( ) const

inherited

Whether the data from an import/export operation has arrived, and is ready for the unpack and combine step.

bool Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::isDistributed ( ) const

inherited

Whether this is a globally distributed object.

For a definition of "globally distributed" (and its opposite, "locally replicated"), see the documentation of Map's isDistributed() method.

virtual Teuchos::RCP<const map_type> Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

inlinevirtualinherited

The Map describing the parallel distribution of this object.

Note that some Tpetra objects might be distributed using multiple Map objects. For example, CrsMatrix has both a row Map and a column Map. It is up to the subclass to decide which Map to use when invoking the DistObject constructor.

Definition at line 559 of file Tpetra_DistObject_decl.hpp.

void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::print ( std::ostream &  os ) const

inherited

Print this object to the given output stream.

We generally assume that all MPI processes can print to the given stream.

virtual void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const map_type > &  newMap )

virtualinherited

Remove processes which contain no entries in this object's Map.

Warning

This method is ONLY for use by experts. We highly recommend using the nonmember function of the same name defined in this file.

We make NO promises of backwards compatibility. This method may change or disappear at any time.

On input, this object is distributed over the Map returned by getMap() (the "original Map," with its communicator, the "original communicator"). The input newMap of this method must be the same as the result of calling getMap()->removeEmptyProcesses(). On processes in the original communicator which contain zero entries ("excluded processes," as opposed to "included processes"), the input newMap must be Teuchos::null (which is what getMap()->removeEmptyProcesses() returns anyway).

On included processes, reassign this object's Map (that would be returned by getMap()) to the input newMap, and do any work that needs to be done to restore correct semantics. On excluded processes, free any data that needs freeing, and do any other work that needs to be done to restore correct semantics.

This method has collective semantics over the original communicator. On exit, the only method of this object which is safe to call on excluded processes is the destructor. This implies that subclasses' destructors must not contain communication operations.

Returns

The object's new Map. Its communicator is a new communicator, distinct from the old Map's communicator, which contains a subset of the processes in the old communicator.

Note

The name differs from Map's method removeEmptyProcesses(), in order to emphasize that the operation on DistObject happens in place, modifying the input, whereas the operation removeEmptyProcess() on Map does not modify the input.

To implementers of DistObject subclasses: The default implementation of this class throws std::logic_error.

virtual size_t Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::constantNumberOfPackets ( ) const

protectedvirtualinherited

Whether the implementation's instance promises always to have a constant number of packets per LID (local index), and if so, how many packets per LID there are.

If this method returns zero, the instance says that it might possibly have a different number of packets for each LID (local index) to send or receive. If it returns nonzero, the instance promises that the number of packets is the same for all LIDs, and that the return value is this number of packets per LID.

The default implementation of this method returns zero. This does not affect the behavior of doTransfer() in any way. If a nondefault implementation returns nonzero, doTransfer() will use this information to avoid unnecessary allocation and / or resizing of arrays.

virtual void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::doTransfer ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  src, const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &  transfer, const char  modeString[], const ReverseOption  revOp, const CombineMode  CM, const bool  restrictedMode  )

protectedvirtualinherited

Redistribute data across (MPI) processes.

Parameters

src	[in] The source object, to redistribute into the target object, which is *this object.
transfer	[in] The Export or Import object representing the communication pattern. (Details::Transfer is the common base class of these two objects.)
modeString	[in] Human-readable string, for verbose debugging output and error output, explaining what function called this method. Example: "doImport (forward)", "doExport (reverse)".
revOp	[in] Whether to do a forward or reverse mode redistribution.
CM	[in] The combine mode that describes how to combine values that map to the same global ID on the same process.

virtual bool Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::reallocArraysForNumPacketsPerLid ( const size_t  numExportLIDs, const size_t  numImportLIDs  )

protectedvirtualinherited

Reallocate numExportPacketsPerLID_ and/or numImportPacketsPerLID_, if necessary.

Parameters

numExportLIDs	[in] Number of entries in the exportLIDs input array argument of doTransfer().
numImportLIDs	[in] Number of entries in the remoteLIDs input array argument of doTransfer().

Returns

Whether we actually reallocated either of the arrays.

Warning

This is an implementation detail of doTransferNew(). This needs to be protected, but that doesn't mean users should call this method.

void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::beginTransfer ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  src, const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &  transfer, const char  modeString[], const ReverseOption  revOp, const CombineMode  CM, const bool  restrictedMode  )

protectedinherited

Implementation detail of doTransfer.

LID DualViews come from the Transfer object given to doTransfer. They are always sync'd on both host and device. Users must never attempt to modify or sync them.

virtual void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::copyAndPermute ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const size_t  numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteFromLIDs, const CombineMode  CM  )

protectedvirtualinherited

Perform copies and permutations that are local to the calling (MPI) process.

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, packs the source object's data.

Precondition

permuteToLIDs and permuteFromLIDs are sync'd to both host and device. That is, permuteToLIDs.need_sync_host(), permuteToLIDs.need_sync_device(), permuteFromLIDs.need_sync_host(), and permuteFromLIDs.need_sync_device() are all false.

Parameters

source	[in] On entry, the source object of the Export or Import operation.
numSameIDs	[in] The number of elements that are the same on the source and target objects. These elements live on the same process in both the source and target objects.
permuteToLIDs	[in] List of the elements that are permuted. They are listed by their local index (LID) in the destination object.
permuteFromLIDs	[in] List of the elements that are permuted. They are listed by their local index (LID) in the source object.
CM	[in] CombineMode to be used during copyAndPermute; may or may not be used by the particular object being called; behavior with respect to CombineMode may differ by object.

virtual void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::copyAndPermute ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const size_t  numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteFromLIDs, const CombineMode  CM, const execution_space &  space  )

protectedvirtualinherited

Same as copyAndPermute, but do operations in space.

virtual void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::packAndPrepare ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &  exports, Kokkos::DualView< size_t *, buffer_device_type >  numPacketsPerLID, size_t &  constantNumPackets  )

protectedvirtualinherited

Pack data and metadata for communication (sends).

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, packs the source object's data.

Precondition

exportLIDs is sync'd to both host and device. That is, exportLIDs.need_sync_host () and exportLIDs.need_sync_device() are both false.

Parameters

source	[in] Source object for the redistribution.
exportLIDs	[in] List of the entries (as local IDs in the source object) that Tpetra will send to other processes.
exports	[out] On exit, the packed data to send. Implementations must reallocate this as needed (prefer reusing the existing allocation if possible), and may modify and/or sync this wherever they like.
numPacketsPerLID	[out] On exit, the implementation of this method must do one of two things: either set numPacketsPerLID[i] to the number of packets to be packed for exportLIDs[i] and set constantNumPackets to zero, or set constantNumPackets to a nonzero value. If the latter, the implementation must not modify the entries of numPacketsPerLID. If the former, the implementation may sync numPacketsPerLID this wherever it likes, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
constantNumPackets	[out] On exit, 0 if the number of packets per LID could differ, else (if nonzero) the number of packets per LID (which must be constant).

virtual void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::packAndPrepare ( const SrcDistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &  source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &  exports, Kokkos::DualView< size_t *, buffer_device_type >  numPacketsPerLID, size_t &  constantNumPackets, const execution_space &  space  )

protectedvirtualinherited

Same as packAndPrepare, but in an execution space instance.

virtual void Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::unpackAndCombine ( const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  importLIDs, Kokkos::DualView< packet_type *, buffer_device_type >  imports, Kokkos::DualView< size_t *, buffer_device_type >  numPacketsPerLID, const size_t  constantNumPackets, const CombineMode  combineMode  )

protectedvirtualinherited

Perform any unpacking and combining after communication.

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, unpacks the received data into itself, possibly modifying its entries.

Precondition

importLIDs is sync'd to both host and device. That is, importLIDs.need_sync_host () and importLIDs.need_sync_device() are both false.

Parameters

importLIDs	[in] List of the entries (as LIDs in the destination object) we received from other processes.
imports	[in/out] On input: Buffer of received data to unpack. DistObject promises nothing about where this is sync'd. Implementations may sync this wherever they like, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
numPacketsPerLID	[in/out] On input: If constantNumPackets is zero, then numPacketsPerLID[i] contains the number of packets imported for importLIDs[i]. DistObject promises nothing about where this is sync'd. Implementations may sync this wherever they like, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
constantNumPackets	[in] If nonzero, then the number of packets per LID is the same for all entries ("constant") and constantNumPackets is that number. If zero, then numPacketsPerLID[i] is the number of packets to unpack for LID importLIDs[i].
combineMode	[in] The CombineMode to use when combining the imported entries with existing entries.

virtual bool Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::reallocImportsIfNeeded ( const size_t  newSize, const bool  verbose, const std::string *  prefix, const bool  remoteLIDsContiguous = false, const CombineMode  CM = INSERT  )

protectedvirtualinherited

Reallocate imports_ if needed.

This unfortunately must be declared protected, for the same reason that imports_ is declared protected.

Parameters

newSize	[in] New size of imports_.
verbose	[in] Whether to print verbose debugging output to stderr on every (MPI) process in the communicator.
prefix	[in] If verbose is true, then this is a nonnull prefix to print at the beginning of each line of verbose debugging output. Otherwise, not used.

Returns

Whether we actually reallocated.

We don't need a "reallocExportsIfNeeded" method, because exports_ always gets passed into packAndPrepare() by nonconst reference. Thus, that method can resize the DualView without needing to call other DistObject methods.

Friends And Related Function Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > createCrsGraph ( const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &  map, size_t  maxNumEntriesPerRow = 0, const Teuchos::RCP< Teuchos::ParameterList > &  params = Teuchos::null  )

related

Nonmember function to create an empty CrsGraph given a row Map and the max number of entries allowed locally per row.

Returns

A graph with at most the specified number of nonzeros per row (defaults to zero).

Definition at line 2552 of file Tpetra_CrsGraph_decl.hpp.

template<class CrsGraphType >

Teuchos::RCP< CrsGraphType > importAndFillCompleteCrsGraph ( const Teuchos::RCP< const CrsGraphType > &  sourceGraph, const Import< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &  importer, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  domainMap = Teuchos::null, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  rangeMap = Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &  params = Teuchos::null  )

related

Nonmember CrsGraph constructor that fuses Import and fillComplete().

Template Parameters

CrsGraphType

A specialization of CrsGraph.

A common use case is to create an empty destination CrsGraph, redistribute from a source CrsGraph (by an Import or Export operation), then call fillComplete() on the destination CrsGraph. This constructor fuses these three cases, for an Import redistribution.

Fusing redistribution and fillComplete() exposes potential optimizations. For example, it may make constructing the column Map faster, and it may avoid intermediate unoptimized storage in the destination CrsGraph.

The resulting graph is fill complete (in the sense of isFillComplete()) and has optimized storage (in the sense of isStorageOptimized()). By default, its domain Map is the domain Map of the source graph, and its range Map is the range Map of the source graph.

Warning

If the target Map of the Import is a subset of the source Map of the Import, then you cannot use the default range Map. You should instead construct a nonoverlapping version of the target Map and supply that as the nondefault value of the range Map.

Parameters

sourceGraph	[in] The source graph from which to import. The source of an Import must have a nonoverlapping distribution.
importer	[in] The Import instance containing a precomputed redistribution plan. The source Map of the Import must be the same as the rowMap of sourceGraph unless the "Reverse Mode" option on the params list, in which case the targetMap of Import must match the rowMap of the sourceGraph
domainMap	[in] Domain Map of the returned graph. If null, we use the default, which is the domain Map of the source graph.
rangeMap	[in] Range Map of the returned graph. If null, we use the default, which is the range Map of the source graph.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 2616 of file Tpetra_CrsGraph_decl.hpp.

template<class CrsGraphType >

Teuchos::RCP< CrsGraphType > importAndFillCompleteCrsGraph ( const Teuchos::RCP< const CrsGraphType > &  sourceGraph, const Import< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &  rowImporter, const Import< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &  domainImporter, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  domainMap, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &  params  )

related

Nonmember CrsGraph constructor that fuses Import and fillComplete().

Template Parameters

CrsGraphType

A specialization of CrsGraph.

A common use case is to create an empty destination CrsGraph, redistribute from a source CrsGraph (by an Import or Export operation), then call fillComplete() on the destination CrsGraph. This constructor fuses these three cases, for an Import redistribution.

Fusing redistribution and fillComplete() exposes potential optimizations. For example, it may make constructing the column Map faster, and it may avoid intermediate unoptimized storage in the destination CrsGraph.

The resulting graph is fill complete (in the sense of isFillComplete()) and has optimized storage (in the sense of isStorageOptimized()). By default, its domain Map is the domain Map of the source graph, and its range Map is the range Map of the source graph.

Warning

If the target Map of the Import is a subset of the source Map of the Import, then you cannot use the default range Map. You should instead construct a nonoverlapping version of the target Map and supply that as the nondefault value of the range Map.

Parameters

sourceGraph	[in] The source graph from which to import. The source of an Import must have a nonoverlapping distribution.
rowImporter	[in] The Import instance containing a precomputed redistribution plan. The source Map of the Import must be the same as the rowMap of sourceGraph unless the "Reverse Mode" option on the params list, in which case the targetMap of Import must match the rowMap of the sourceGraph
domainImporter	[in] The Import instance containing a precomputed redistribution plan. The source Map of the Import must be the same as the domainMap of sourceGraph unless the "Reverse Mode" option on the params list, in which case the targetMap of Import must match the domainMap of the sourceGraph
domainMap	[in] Domain Map of the returned graph.
rangeMap	[in] Range Map of the returned graph.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 2685 of file Tpetra_CrsGraph_decl.hpp.

template<class CrsGraphType >

Teuchos::RCP< CrsGraphType > exportAndFillCompleteCrsGraph ( const Teuchos::RCP< const CrsGraphType > &  sourceGraph, const Export< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &  exporter, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  domainMap = Teuchos::null, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  rangeMap = Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &  params = Teuchos::null  )

related

Nonmember CrsGraph constructor that fuses Export and fillComplete().

Template Parameters

CrsGraphType

A specialization of CrsGraph.

For justification, see the documentation of importAndFillCompleteCrsGraph() (which is the Import analog of this function).

The resulting graph is fill complete (in the sense of isFillComplete()) and has optimized storage (in the sense of isStorageOptimized()). By default, its domain Map is the domain Map of the source graph, and its range Map is the range Map of the source graph.

Parameters

sourceGraph	[in] The source graph from which to export. Its row Map may be overlapping, since the source of an Export may be overlapping.
exporter	[in] The Export instance containing a precomputed redistribution plan. The source Map of the Export must be the same as the row Map of sourceGraph.
domainMap	[in] Domain Map of the returned graph. If null, we use the default, which is the domain Map of the source graph.
rangeMap	[in] Range Map of the returned graph. If null, we use the default, which is the range Map of the source graph.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 2740 of file Tpetra_CrsGraph_decl.hpp.

template<class CrsGraphType >

Teuchos::RCP< CrsGraphType > exportAndFillCompleteCrsGraph ( const Teuchos::RCP< const CrsGraphType > &  sourceGraph, const Export< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &  rowExporter, const Export< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > &  domainExporter, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  domainMap, const Teuchos::RCP< const Map< typename CrsGraphType::local_ordinal_type, typename CrsGraphType::global_ordinal_type, typename CrsGraphType::node_type > > &  rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &  params  )

related

Nonmember CrsGraph constructor that fuses Export and fillComplete().

Template Parameters

CrsGraphType

A specialization of CrsGraph.

For justification, see the documentation of importAndFillCompleteCrsGraph() (which is the Import analog of this function).

The resulting graph is fill complete (in the sense of isFillComplete()) and has optimized storage (in the sense of isStorageOptimized()). By default, its domain Map is the domain Map of the source graph, and its range Map is the range Map of the source graph.

Parameters

sourceGraph	[in] The source graph from which to export. Its row Map may be overlapping, since the source of an Export may be overlapping.
rowExporter	[in] The Export instance containing a precomputed redistribution plan. The source Map of the Export must be the same as the row Map of sourceGraph.
domainExporter	[in] The Export instance containing a precomputed redistribution plan. The source Map of the Export must be the same as the domain Map of sourceGraph.
domainMap	[in] Domain Map of the returned graph.
rangeMap	[in] Range Map of the returned graph.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 2792 of file Tpetra_CrsGraph_decl.hpp.

Member Data Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node>

const bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::useAtomicUpdatesByDefault

staticprotected

Initial value:

=



      true

Whether transformLocalValues should use atomic updates by default.

Warning

This is an implementation detail.

Definition at line 1956 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Teuchos::RCP<const map_type> Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::rowMap_

protected

The Map describing the distribution of rows of the graph.

Definition at line 2111 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Teuchos::RCP<const map_type> Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::colMap_

protected

The Map describing the distribution of columns of the graph.

Definition at line 2113 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Teuchos::RCP<const map_type> Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::rangeMap_

protected

The Map describing the range of the (matrix corresponding to the) graph.

Definition at line 2115 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Teuchos::RCP<const map_type> Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::domainMap_

protected

The Map describing the domain of the (matrix corresponding to the) graph.

Definition at line 2117 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Teuchos::RCP<const import_type> Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::importer_

protected

The Import from the domain Map to the column Map.

This gets constructed by fillComplete. It may be null if the domain Map and the column Map are the same, since no Import is necessary in that case for sparse matrix-vector multiply.

Definition at line 2125 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Teuchos::RCP<const export_type> Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::exporter_

protected

The Export from the row Map to the range Map.

This gets constructed by fillComplete. It may be null if the row Map and the range Map are the same, since no Export is necessary in that case for sparse matrix-vector multiply.

Definition at line 2132 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::nodeMaxNumRowEntries_

protected

Initial value:

=
      Teuchos::OrdinalTraits<size_t>::invalid()

Local maximum of the number of entries in each row.

Computed in computeLocalConstants; only valid when isFillComplete() is true.

Definition at line 2138 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

global_size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::globalNumEntries_

protected

Initial value:

=
      Teuchos::OrdinalTraits<global_size_t>::invalid()

Global number of entries in the graph.

Only valid when isFillComplete() is true.

Definition at line 2144 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

global_size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::globalMaxNumRowEntries_

protected

Initial value:

=
      Teuchos::OrdinalTraits<global_size_t>::invalid()

Global maximum of the number of entries in each row.

Computed in computeGlobalConstants(); only valid when isFillComplete() is true.

Definition at line 2151 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

local_inds_wdv_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::lclIndsUnpacked_wdv

protected

Local ordinals of column indices for all rows Valid when isLocallyIndexed is true If OptimizedStorage, storage is PACKED after fillComplete If not OptimizedStorate, storage is UNPACKED after fillComplete; that is, the views have storage equal to sizes provided in CrsGraph constructor.

This is allocated only if

• The calling process has a nonzero number of entries
• The graph is locally indexed

UVM Removal Note: Device view takes place of k_lclInds1D_

Definition at line 2293 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

local_inds_wdv_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::lclIndsPacked_wdv

mutableprotected

Local ordinals of column indices for all rows Valid when isLocallyIndexed is true Built during fillComplete or non-fillComplete constructors Storage is PACKED after fillComplete that is, the views have storage equal to sizes provided in CrsGraph constructor.

This is allocated only if

• The calling process has a nonzero number of entries
• The graph is locally indexed

UVM Removal Note: Device view takes place of lclGraph_.entries

Definition at line 2308 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

global_inds_wdv_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::gblInds_wdv

protected

Global ordinals of column indices for all rows.

Global ordinals of column indices for all rows

This is allocated only if

• The calling process has a nonzero number of entries
• The graph is globally indexed

UVM Removal Note: Device view takes place of k_gblInds1D_

Definition at line 2323 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Kokkos::View<const size_t*, device_type>::HostMirror Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::k_numAllocPerRow_

protected

The maximum number of entries to allow in each locally owned row, per row.

This comes in as an argument to some of the graph's constructors. Either this or numAllocForAllRows_ is used, but not both. allocateIndices(), setAllIndices(), and expertStaticFillComplete() all deallocate this array once they are done with it.

This is a host View because it is only ever used on the host. It has the HostMirror type for backwards compatibility; this used to be a DualView with default layout, so making this a HostMirror ensures that we can still take it directly by assignment from the constructors that take DualView, without a deep copy.

This array only exists on a process before the graph's indices are allocated on that process. After that point, it is discarded, since the graph's allocation implicitly or explicitly represents the same information.

FIXME (mfh 07 Aug 2014) We want graph's constructors to allocate, rather than doing lazy allocation at first insert. This will make both k_numAllocPerRow_ and numAllocForAllRows_ obsolete.

Definition at line 2385 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

size_t Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::numAllocForAllRows_

protected

The maximum number of entries to allow in each locally owned row.

This is an argument to some of the graph's constructors. Either this or k_numAllocPerRow_ is used, but not both.

FIXME (mfh 07 Aug 2014) We want graph's constructors to allocate, rather than doing lazy allocation at first insert. This will make both k_numAllocPerRow_ and numAllocForAllRows_ obsolete.

Definition at line 2396 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

num_row_entries_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::k_numRowEntries_

protected

The number of local entries in each locally owned row.

This is deallocated in fillComplete() if fillComplete()'s "Optimize Storage" parameter is set to true.

This may also exist with 1-D storage, if storage is unpacked.

Definition at line 2448 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

offset_device_view_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::k_offRankOffsets_

mutableprotected

The offsets for off-rank entries.

When off-rank entries are sorted last, this rowPtr-lile view contains the offsets. It is compute on the first call to getLocalOffRankOffsets().

Definition at line 2455 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Details::EStorageStatus Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::storageStatus_

protected

Initial value:

=
      Details::STORAGE_1D_UNPACKED

Status of the graph's storage, when not in a fill-complete state.

The phrase "When not in a fill-complete state" is important. When the graph is fill complete, it always uses 1-D "packed" storage. However, if the "Optimize Storage" parameter to fillComplete was false, the graph may keep unpacked 1-D storage around and resume it on the next resumeFill call.

Definition at line 2468 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::indicesAreSorted_ = true

protected

Whether the graph's indices are sorted in each row, on this process.

Definition at line 2477 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::noRedundancies_ = true

protected

Whether the graph's indices are non-redundant (merged) in each row, on this process.

Definition at line 2480 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::haveLocalConstants_ = false

protected

Whether this process has computed local constants.

Definition at line 2482 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::haveGlobalConstants_ = false

protected

Whether all processes have computed global constants.

Definition at line 2484 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

nonlocals_type Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::nonlocals_

protected

Nonlocal data given to insertGlobalIndices.

Definition at line 2491 of file Tpetra_CrsGraph_decl.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::sortGhostsAssociatedWithEachProcessor_ = true

protected

Whether to require makeColMap() (and therefore fillComplete()) to order column Map GIDs associated with each remote process in ascending order.

makeColMap() always groups remote GIDs by process rank, so that all remote GIDs with the same owning rank occur contiguously. By default, it always sorts remote GIDs in increasing order within those groups. This behavior differs from Epetra, which does not sort remote GIDs with the same owning process.

This is true by default, which means "sort remote GIDs." If you don't want to sort (for compatibility with Epetra), call sortGhostColumnGIDsWithinProcessBlock(false).

Definition at line 2507 of file Tpetra_CrsGraph_decl.hpp.

Teuchos::RCP<const map_type> Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::map_

protectedinherited

The Map over which this object is distributed.

Definition at line 968 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<packet_type*, buffer_device_type> Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::imports_

protectedinherited

Buffer into which packed data are imported (received from other processes).

Unfortunately, I had to declare these protected, because CrsMatrix uses them at one point. Please, nobody else use them.

Definition at line 981 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<size_t*, buffer_device_type> Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::numImportPacketsPerLID_

protectedinherited

Number of packets to receive for each receive operation.

This array is used in Distributor::doPosts() (and doReversePosts()) when starting the ireceive operation.

This may be ignored in doTransfer() if constantNumPackets is nonzero, indicating a constant number of packets per LID. (For example, MultiVector sets the constantNumPackets output argument of packAndPrepare() to the number of columns in the multivector.)

Unfortunately, I had to declare this protected, because CrsMatrix uses it at one point. Please, nobody else use it.

Definition at line 1021 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<packet_type*, buffer_device_type> Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::exports_

protectedinherited

Buffer from which packed data are exported (sent to other processes).

Unfortunately, I had to declare this protected, because CrsMatrix uses it at one point. Please, nobody else use it.

Definition at line 1028 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<size_t*, buffer_device_type> Tpetra::DistObject< GlobalOrdinal , LocalOrdinal, GlobalOrdinal, Node >::numExportPacketsPerLID_

protectedinherited

Number of packets to send for each send operation.

This array is used in Distributor::doPosts() (and doReversePosts()) for preparing for the send operation.

This may be ignored in doTransfer() if constantNumPackets is nonzero, indicating a constant number of packets per LID. (For example, MultiVector sets the constantNumPackets output argument of packAndPrepare() to the number of columns in the multivector.)

Unfortunately, I had to declare this protected, because CrsMatrix uses them at one point. Please, nobody else use it.

Definition at line 1043 of file Tpetra_DistObject_decl.hpp.

---

The documentation for this class was generated from the following files:

• Tpetra_CrsGraph_decl.hpp
• Tpetra_CrsGraph_def.hpp
