A parallel distribution of indices over processes. More...

#include <Tpetra_Map_decl.hpp>

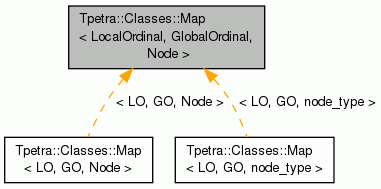

Inheritance diagram for Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >:

Public Types
Typedefs
typedef LocalOrdinal	local_ordinal_type
	The type of local indices. More...

typedef GlobalOrdinal	global_ordinal_type
	The type of global indices. More...

typedef Node	node_type
	The type of the Kokkos Node. More...

typedef Node::execution_space	execution_space
	The Kokkos execution space. More...

typedef Node::memory_space	memory_space
	The Kokkos memory space. More...

typedef Node::device_type	device_type
	The Kokkos device type over which to allocate Views and perform work. More...

typedef ::Tpetra::Details::LocalMap < LocalOrdinal, GlobalOrdinal, device_type >	local_map_type
	Type of the "local" Map. More...

Public Member Functions
Constructors and destructor
	Map (global_size_t numGlobalElements, GlobalOrdinal indexBase, const Teuchos::RCP< const Teuchos::Comm< int > > &comm, LocalGlobal lg=GloballyDistributed, const Teuchos::RCP< Node > &node=Teuchos::rcp(new Node))
	Constructor with contiguous uniform distribution. More...

	Map (global_size_t numGlobalElements, size_t numLocalElements, GlobalOrdinal indexBase, const Teuchos::RCP< const Teuchos::Comm< int > > &comm, const Teuchos::RCP< Node > &node=Teuchos::rcp(new Node))
	Constructor with contiguous, possibly nonuniform distribution. More...

	Map (const global_size_t numGlobalElements, const Kokkos::View< const GlobalOrdinal *, device_type > &indexList, const GlobalOrdinal indexBase, const Teuchos::RCP< const Teuchos::Comm< int > > &comm)
	Constructor with arbitrary (possibly noncontiguous and/or nonuniform and/or overlapping) distribution, taking the input global indices as a Kokkos::View. More...

	Map (const global_size_t numGlobalElements, const GlobalOrdinal indexList[], const LocalOrdinal indexListSize, const GlobalOrdinal indexBase, const Teuchos::RCP< const Teuchos::Comm< int > > &comm)
	Constructor with arbitrary (possibly noncontiguous and/or nonuniform and/or overlapping) distribution, taking the input global indices as a raw host pointer. More...

	Map (const global_size_t numGlobalElements, const Teuchos::ArrayView< const GlobalOrdinal > &indexList, const GlobalOrdinal indexBase, const Teuchos::RCP< const Teuchos::Comm< int > > &comm, const Teuchos::RCP< Node > &node=Teuchos::rcp(new Node))
	Constructor with arbitrary (possibly noncontiguous and/or nonuniform and/or overlapping) distribution, taking the input global indices as a Teuchos::ArrayView (for backwards compatibility). More...

	Map ()
	Default constructor (that does nothing). More...

	~Map ()
	Destructor. More...

Boolean tests
bool	isNodeLocalElement (LocalOrdinal localIndex) const
	Whether the given local index is valid for this Map on the calling process. More...

bool	isNodeGlobalElement (GlobalOrdinal globalIndex) const
	Whether the given global index is owned by this Map on the calling process. More...

bool	isUniform () const
	Whether the range of global indices is uniform. More...

bool	isContiguous () const
	True if this Map is distributed contiguously, else false. More...

bool	isDistributed () const
	Whether this Map is globally distributed or locally replicated. More...

bool	isCompatible (const Map< LocalOrdinal, GlobalOrdinal, Node > &map) const
	True if and only if `map` is compatible with this Map. More...

bool	isSameAs (const Map< LocalOrdinal, GlobalOrdinal, Node > &map) const
	True if and only if `map` is identical to this Map. More...

bool	locallySameAs (const Map< LocalOrdinal, GlobalOrdinal, node_type > &map) const
	Is this Map locally the same as the input Map? More...

bool	isLocallyFitted (const Map< LocalOrdinal, GlobalOrdinal, Node > &map) const
	True if and only if `map` is locally fitted to this Map. More...


Teuchos::RCP< const Teuchos::Comm< int > >	getComm () const
	Accessors for the Teuchos::Comm and Kokkos Node objects. More...

Teuchos::RCP< Node >	getNode () const
	Get this Map's Node object. More...


std::string	description () const
	Implementation of `Teuchos::Describable`. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Describe this object in a human-readable way to the given output stream. More...


template<class NodeOut >
Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, NodeOut > >	clone (const Teuchos::RCP< NodeOut > &nodeOut) const
	Advanced methods. More...

Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	removeEmptyProcesses () const
	Return a new Map with processes with zero elements removed. More...

Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	replaceCommWithSubset (const Teuchos::RCP< const Teuchos::Comm< int > > &newComm) const
	Replace this Map's communicator with a subset communicator. More...

Friends
template<class LO , class GO , class N >
class	Map
	Alias for Tpetra::Classes::Map. More...

Attributes
bool	isOneToOne () const
	Whether the Map is one to one. More...

global_size_t	getGlobalNumElements () const
	The number of elements in this Map. More...

size_t	getNodeNumElements () const
	The number of elements belonging to the calling process. More...

GlobalOrdinal	getIndexBase () const
	The index base for this Map. More...

LocalOrdinal	getMinLocalIndex () const
	The minimum local index. More...

LocalOrdinal	getMaxLocalIndex () const
	The maximum local index on the calling process. More...

GlobalOrdinal	getMinGlobalIndex () const
	The minimum global index owned by the calling process. More...

GlobalOrdinal	getMaxGlobalIndex () const
	The maximum global index owned by the calling process. More...

GlobalOrdinal	getMinAllGlobalIndex () const
	The minimum global index over all processes in the communicator. More...

GlobalOrdinal	getMaxAllGlobalIndex () const
	The maximum global index over all processes in the communicator. More...

LocalOrdinal	getLocalElement (GlobalOrdinal globalIndex) const
	The local index corresponding to the given global index. More...

GlobalOrdinal	getGlobalElement (LocalOrdinal localIndex) const
	The global index corresponding to the given local index. More...

local_map_type	getLocalMap () const
	Get the local Map for Kokkos kernels. More...

LookupStatus	getRemoteIndexList (const Teuchos::ArrayView< const GlobalOrdinal > &GIDList, const Teuchos::ArrayView< int > &nodeIDList, const Teuchos::ArrayView< LocalOrdinal > &LIDList) const
	Return the process ranks and corresponding local indices for the given global indices. More...

LookupStatus	getRemoteIndexList (const Teuchos::ArrayView< const GlobalOrdinal > &GIDList, const Teuchos::ArrayView< int > &nodeIDList) const
	Return the process ranks for the given global indices. More...

global_indices_array_type	getMyGlobalIndices () const
	Return a view of the global indices owned by this process. More...

Teuchos::ArrayView< const GlobalOrdinal >	getNodeElementList () const
	Return a NONOWNING view of the global indices owned by this process. More...

Detailed Description

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>
class Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >

A parallel distribution of indices over processes.

Template Parameters

LocalOrdinal	The type of local indices. Currently, this must be `int`. (In Epetra, this is always just `int`.)
GlobalOrdinal	The type of global indices. This must be a built-in integer type. We allow either signed or unsigned types here, but prefer signed types. Also, we require that `GlobalOrdinal` be no smaller than `LocalOrdinal`, that is: sizeof(GlobalOrdinal) >= sizeof(LocalOrdinal); If `LocalOrdinal` is `int`, good models of `GlobalOrdinal` are `int` (if the configure-time option `Tpetra_INST_INT_INT` is set) `long` (if the configure-time option `Tpetra_INST_INT_LONG` is set) `long long` (if the configure-time option `Tpetra_INST_INT_LONG_LONG` is set) If the default `GlobalOrdinal` is `int`, then the global number of rows or columns in the matrix may be no more than `INT_MAX`, which for typical 32-bit `int` is $2^{31} - 1$ (about two billion). If you want to solve larger problems, you must use a 64-bit integer type here.
Node	A class implementing on-node shared-memory parallel operations. The default `Node` type should suffice for most users. The actual default type depends on your Trilinos build options. This must be one of the following: Kokkos::Compat::KokkosCudaWrapperNode Kokkos::Compat::KokkosOpenMPWrapperNode Kokkos::Compat::KokkosThreadsWrapperNode Kokkos::Compat::KokkosSerialWrapperNode All of the above are just typedefs for Kokkos::Compat::KokkosDeviceWrapperNode<ExecutionSpaceType, MemorySpaceType>, where ExecutionSpaceType is a Kokkos execution space type, and MemorySpaceType is a Kokkos memory space type. If you omit MemorySpaceType, Tpetra will use the execution space's default memory space.

This class describes a distribution of data elements over one or more processes in a communicator. Each element has a global index (of type GlobalOrdinal) uniquely associated to it. Each global index in the Map is "owned" by one or more processes in the Map's communicator. The user gets to decide what an "element" means; examples include a row or column of a sparse matrix (as in CrsMatrix), or a row of one or more vectors (as in MultiVector).

Prerequisites

Before reading the rest of this documentation, it helps to know something about the following:

The Kokkos shared-memory parallel programming model
The Teuchos memory management classes, especially Teuchos::RCP, Teuchos::ArrayRCP, and Teuchos::ArrayView
MPI (the Message Passing Interface for distributed-memory parallel programming)

You will not need to use MPI directly to use Map, but it helps to be familiar with the general idea of distributed storage of data over a communicator.

Map concepts

Local and global indices

The distinction between local and global indices and types might confuse new Tpetra users. Global indices represent the elements of a distributed object (such as rows or columns of a CrsMatrix, or rows of a MultiVector) uniquely over the entire object, which may be distributed over multiple processes. Local indices are local to the process that owns them. If global index G is owned by process P, then there is a unique local index L on process P corresponding to G. If the local index L is valid on process P, then there is a unique global index G owned by P corresponding to the pair (L, P). However, multiple processes might own the same global index (an "overlapping Map"), so a global index G might correspond to multiple (L, P) pairs. In summary, local indices on a process correspond to object elements (e.g., sparse matrix rows or columns) owned by that process.

Tpetra differs from Epetra in that local and global indices may have different types. In Epetra, local and global indices both have type int. In Tpetra, you get to pick the type of each. For example, you can use a 64-bit integer GlobalOrdinal type to solve problems with more than $2^{31}$ unknowns, but a 32-bit integer LocalOrdinal type to save bandwidth in sparse matrix-vector multiply.

Contiguous or noncontiguous

A contiguous Map divides an interval of global indices over the processes in its communicator, such that each process gets a contiguous interval of zero or more of those global indices, with the indices owned by a process p strictly greater than those owned by process q if $p > q$ . Formally, we call a Map contiguous when all of the following hold:

the set of global indices (over all processes) forms an interval,
every global index in that interval is owned by exactly one process in the Map's communicator,
the (ordered) list of global indices on each process p in the Map's communicator forms a contiguous interval, and
if process p owns a global index and process q owns a global index , and if , then .

Different processes may own different numbers of global indices. We call a Map uniform if it is contiguous, and if the user let the Map divide a global count of indices evenly over the Map's communicator's processes. The latter happens by calling the version of Map's constructor that takes a global count of indices, rather than a local count or an arbitrary list of indices.

Map optimizes for the contiguous case. For example, noncontiguous Maps always require communication in order to figure out which process owns a particular global index. (This communication happens in getRemoteIndexList().) Contiguous but nonuniform Maps may also require communication in this case, though we may only need to perform that communication once (at Map setup time). Contiguous Maps also can convert between global and local indices more efficiently.

Globally distributed or locally replicated

Globally distributed means that all of the following are true:

The map's communicator has more than one process.
There is at least one process in the map's communicator, whose local number of elements does not equal the number of global elements. (That is, not all the elements are replicated over all the processes.)

If at least one of the above are not true, then the map is locally replicated. (The two are mutually exclusive.)

Globally distributed objects are partitioned across multiple processes in a communicator. Each process owns at least one element in the object's Map that is not owned by another process. For locally replicated objects, each element in the object's Map is owned redundantly by all processes in the object's communicator. Some algorithms use objects that are too small to be distributed across all processes. The upper Hessenberg matrix in a GMRES iterative solve is a good example. In other cases, such as with block iterative methods, block dot product functions produce small dense matrices that are required by all images. Replicated local objects handle these situations.

Definition at line 247 of file Tpetra_Map_decl.hpp.

Member Typedef Documentation

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

typedef LocalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

The type of local indices.

Definition at line 253 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

typedef GlobalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

The type of global indices.

Definition at line 255 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

typedef Node Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::node_type

The type of the Kokkos Node.

Definition at line 257 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

typedef Node::execution_space Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::execution_space

The Kokkos execution space.

Definition at line 260 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

typedef Node::memory_space Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::memory_space

The Kokkos memory space.

Definition at line 262 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

typedef Node::device_type Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::device_type

The Kokkos device type over which to allocate Views and perform work.

A Kokkos::Device is an (execution_space, memory_space) pair. It defines where the Map's data live, and where Map might choose to execute parallel kernels.

Definition at line 270 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

typedef ::Tpetra::Details::LocalMap<LocalOrdinal, GlobalOrdinal, device_type> Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::local_map_type

Type of the "local" Map.

Warning: This object's interface is not yet fixed. We provide this object currently only as a service to advanced users.

The "local" Map is suitable for use in Kokkos parallel operations in the Map's native execution space, which is device_type::execution_space.

By "local," we mean that the object performs no MPI communication, and can only access information that would never need MPI communication, no matter what kind of Map this is.

Definition at line 286 of file Tpetra_Map_decl.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal , class GlobalOrdinal, class Node>

Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::Map	(	global_size_t	numGlobalElements,
		GlobalOrdinal	indexBase,
		const Teuchos::RCP< const Teuchos::Comm< int > > &	comm,
		LocalGlobal	lg = `GloballyDistributed`,
		const Teuchos::RCP< Node > &	node = `Teuchos::rcp (new Node)`
	)

Constructor with contiguous uniform distribution.

Build a Map representing the following contiguous range of numGlobalElements indices:

[indexBase,
 indexBase + 1, ...,
 numGlobalElements + indexBase - 1]

For example, if indexBase is 0 and numGlobalElements is N and positive, the resulting contiguous range is [0, N-1].

The lg argument determines whether the indices will be distributed evenly over all the processes in the given communicator comm, or replicated on all processes in the communicator. "Distributed evenly" (the default) means that each process gets a contiguous range of either numGlobalElements / P or (numGlobalElements / P) + 1 indices. The resulting Map is nonoverlapping. "Replicated" means that every process shares the range [0, N-1]; the resulting Map is an overlapping Map.

This constructor must be called as a collective over the input communicator. It reserves the right to use MPI collectives to check input values in a debug build. If it does check and any check fails, it will throw std::invalid_argument on all processes in the given communicator.

Parameters

numGlobalElements	[in] Global number of indices in the Map (over all processes).
indexBase	[in] The base of the global indices in the Map. This must be the same on every process in the communicator. The index base will also be the smallest global index in the Map. (If you don't know what this should be, use zero.)
lg	[in] Either `GloballyDistributed` or `LocallyReplicated`. If `GloballyDistributed` and the communicator contains P processes, then each process will own either `numGlobalElements/P` or `numGlobalElements/P + 1` nonoverlapping contiguous indices. If `LocallyReplicated`, then all processes will get the same set of indices, namely `indexBase, indexBase + 1, ..., numGlobalElements + indexBase - 1`.
comm	[in] Communicator over which to distribute the indices.
node	[in/out] (OPTIONAL; default usually suffices) Kokkos Node instance.

Definition at line 91 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal, class Node>

Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::Map	(	global_size_t	numGlobalElements,
		size_t	numLocalElements,
		GlobalOrdinal	indexBase,
		const Teuchos::RCP< const Teuchos::Comm< int > > &	comm,
		const Teuchos::RCP< Node > &	node = `Teuchos::rcp (new Node)`
	)

Constructor with contiguous, possibly nonuniform distribution.

If N is the sum of numLocalElements over all processes, then this constructor produces a nonoverlapping Map with N indices in the global contiguous range [0, N-1], distributed over all the processes in the given communicator comm, with a contiguous range of numLocalElements indices on the calling process.

This constructor must be called as a collective over the input communicator. It reserves the right to use MPI collectives to check input values in a debug build. If it does check and any check fails, it will throw std::invalid_argument on all processes in the given communicator.

Parameters

numGlobalElements	[in] If you want Tpetra to compute the global number of indices in the Map, set this to Teuchos::OrdinalTraits<Tpetra::global_size_t>::invalid(). This costs a global all-reduce. Otherwise, this must equal the sum of numLocalElements over all processes in the input communicator `comm`.
numLocalElements	[in] Number of indices that the calling process will own in the Map.
indexBase	[in] The base of the global indices in the Map. This must be the same on every process in the given communicator. For this Map constructor, the index base will also be the smallest global index in the Map. If you don't know what this should be, use zero.
comm	[in] Communicator over which to distribute the elements.
node	[in/out] (OPTIONAL; default usually suffices) Kokkos Node instance.

Definition at line 244 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal, class Node>

Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::Map	(	const global_size_t	numGlobalElements,
		const Kokkos::View< const GlobalOrdinal *, device_type > &	indexList,
		const GlobalOrdinal	indexBase,
		const Teuchos::RCP< const Teuchos::Comm< int > > &	comm
	)

Constructor with arbitrary (possibly noncontiguous and/or nonuniform and/or overlapping) distribution, taking the input global indices as a Kokkos::View.

Call this constructor if you have an arbitrary list of global indices for each process in the given communicator. Those indices need not be contiguous, and the sets of global indices on different processes may overlap. This is one of the constructors to use to make a general, possibly overlapping distribution.

This constructor, like all Map constructors, must be called as a collective over the input communicator. It reserves the right to use MPI collectives to check input values in a debug build. If it does check and any check fails, it will throw std::invalid_argument on all processes in the given communicator.

Parameters

numGlobalElements	[in] If `numGlobalElements == Teuchos::OrdinalTraits<Tpetra::global_size_t>::invalid()`, the number of global elements will be computed (via a global communication) as the sum of the counts of local indices. Otherwise, it must equal the sum of the number of indices on each process, over all processes in the given communicator, and must be the same on all processes in the communicator.
indexList	[in] List of global indices owned by the calling process. (This likely differs on different processes.)
indexBase	[in] The base of the global indices in the Map. This must be the same on every process in the given communicator `comm`. Currently, Map requires that this equal the global minimum index over all processes' `entryList` inputs.
comm	[in] Communicator over which to distribute the indices. This constructor must be called as a collective over this communicator.

Definition at line 756 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::Map	(	const global_size_t	numGlobalElements,
		const GlobalOrdinal	indexList[],
		const LocalOrdinal	indexListSize,
		const GlobalOrdinal	indexBase,
		const Teuchos::RCP< const Teuchos::Comm< int > > &	comm
	)

Constructor with arbitrary (possibly noncontiguous and/or nonuniform and/or overlapping) distribution, taking the input global indices as a raw host pointer.

Call this constructor if you have an arbitrary list of global indices for each process in the given communicator. Those indices need not be contiguous, and the sets of global indices on different processes may overlap. This is one of the constructors to use to make a general, possibly overlapping distribution.

This constructor, like all Map constructors, must be called as a collective over the input communicator. It reserves the right to use MPI collectives to check input values in a debug build. If it does check and any check fails, it will throw std::invalid_argument on all processes in the given communicator.

Parameters

numGlobalElements	[in] If `numGlobalElements == Teuchos::OrdinalTraits<Tpetra::global_size_t>::invalid()`, the number of global elements will be computed (via a global communication) as the sum of the counts of local elements. Otherwise, it must equal the sum of the local elements over all processes. This value must be the same on all processes participating in the call.
indexList	[in] List of global indices owned by the calling process.
indexListSize	[in] Number of valid entries in indexList. This is a LocalOrdinal because the number of indices owned by each process must fit in LocalOrdinal.
indexBase	[in] The base of the global indices in the Map. This must be the same on every process in the given communicator. Currently, Map requires that this equal the global minimum index over all processes' `indexList` inputs.
comm	[in] Communicator over which to distribute the elements.

Definition at line 705 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::Map	(	const global_size_t	numGlobalElements,
		const Teuchos::ArrayView< const GlobalOrdinal > &	indexList,
		const GlobalOrdinal	indexBase,
		const Teuchos::RCP< const Teuchos::Comm< int > > &	comm,
		const Teuchos::RCP< Node > &	node = `Teuchos::rcp (new Node)`
	)

Constructor with arbitrary (possibly noncontiguous and/or nonuniform and/or overlapping) distribution, taking the input global indices as a Teuchos::ArrayView (for backwards compatibility).

Call this constructor if you have an arbitrary list of global indices for each process in the given communicator. Those indices need not be contiguous, and the sets of global indices on different processes may overlap. This is one of the constructors to use to make a general, possibly overlapping distribution.

This constructor, like all Map constructors, must be called as a collective over the input communicator. It reserves the right to use MPI collectives to check input values in a debug build. If it does check and any check fails, it will throw std::invalid_argument on all processes in the given communicator.

Parameters

numGlobalElements	[in] If `numGlobalElements == Teuchos::OrdinalTraits<Tpetra::global_size_t>::invalid()`, the number of global elements will be computed (via a global communication) as the sum of the counts of local elements. Otherwise, it must equal the sum of the number of indices on each process, over all processes in the given communicator, and must be the same on all processes in the communicator.
indexList	[in] List of global indices owned by the calling process. (This likely differs on different processes.)
indexBase	[in] The base of the global indices in the Map. This must be the same on every process in the given communicator. Currently, Map requires that this equal the global minimum index over all processes' `indexList` inputs.
comm	[in] Communicator over which to distribute the indices. This constructor must be called as a collective over this communicator.
node	[in/out] (OPTIONAL; default usually suffices) Kokkos Node instance.

Definition at line 729 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::Map ( )

Default constructor (that does nothing).

This creates an empty Map, with 0 (zero) indices total. The Map's communicator only includes the calling process; in MPI terms, it behaves like MPI_COMM_SELF.

This constructor exists mainly to support view semantics of Map. That is, we can create an empty Map, and then assign a nonempty Map to it using operator=. This constructor is also useful in methods like clone() and removeEmptyProcesses(), where we have the information to initialize the Map more efficiently ourselves, without going through one of the three usual Map construction paths.

Definition at line 70 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::~Map ( )

Destructor.

Definition at line 1023 of file Tpetra_Map_def.hpp.

Member Function Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isOneToOne ( ) const

Whether the Map is one to one.

This must be called collectively over all processes in the Map's communicator.

Definition at line 1075 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

global_size_t Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumElements ( ) const

inline

The number of elements in this Map.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 569 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

size_t Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getNodeNumElements ( ) const

inline

The number of elements belonging to the calling process.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 578 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

GlobalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getIndexBase ( ) const

inline

The index base for this Map.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 587 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

LocalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getMinLocalIndex ( ) const

inline

The minimum local index.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 596 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

LocalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getMaxLocalIndex ( ) const

inline

The maximum local index on the calling process.

If this process owns no elements, that is, if getNodeNumElements() == 0, then this method returns the same value as Teuchos::OrdinalTraits<LocalOrdinal>::invalid().

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 610 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

GlobalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getMinGlobalIndex ( ) const

inline

The minimum global index owned by the calling process.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 623 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

GlobalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getMaxGlobalIndex ( ) const

inline

The maximum global index owned by the calling process.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 632 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

GlobalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getMinAllGlobalIndex ( ) const

inline

The minimum global index over all processes in the communicator.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 641 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

GlobalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getMaxAllGlobalIndex ( ) const

inline

The maximum global index over all processes in the communicator.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 650 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal, class Node >

LocalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getLocalElement ( GlobalOrdinal globalIndex ) const

The local index corresponding to the given global index.

Parameters

globalIndex [in] The global index.

Returns: If the given global index is owned by the calling process, return the corresponding local index, else return the same value as Teuchos::OrdinalTraits<LocalOrdinal>::invalid().

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 1091 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal , class Node >

GlobalOrdinal Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getGlobalElement ( LocalOrdinal localIndex ) const

The global index corresponding to the given local index.

Parameters

localIndex [in] The local index.

Returns: If the given local index is valid on the calling process, return the corresponding global index, else return the same value as Teuchos::OrdinalTraits<GlobalOrdinal>::invalid().

Definition at line 1114 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Map< LocalOrdinal, GlobalOrdinal, Node >::local_map_type Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getLocalMap ( ) const

Get the local Map for Kokkos kernels.

Warning: The interface of the local Map object is SUBJECT TO CHANGE and is for EXPERT USERS ONLY.

Definition at line 1165 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node >

LookupStatus Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getRemoteIndexList	(	const Teuchos::ArrayView< const GlobalOrdinal > &	GIDList,
		const Teuchos::ArrayView< int > &	nodeIDList,
		const Teuchos::ArrayView< LocalOrdinal > &	LIDList
	)		const

Return the process ranks and corresponding local indices for the given global indices.

This operation must always be called as a collective over all processes in the Map's communicator. For a distributed noncontiguous Map, this operation requires communication.

Parameters

GIDList	[in] List of global indices for which to find process ranks and local indices. These global indices need not be owned by the calling process. Indeed, they need not be owned by any process.
nodeIDList	[out] List of process rank corresponding to the given global indices. If a global index does not belong to any process, the resulting process rank is -1.
LIDList	[out] List of local indices (that is, the local index on the process that owns them) corresponding to the given global indices. If a global index does not have a local index, the resulting local index has the same value as Teuchos::OrdinalTraits<LocalOrdinal>::invalid().

Precondition: nodeIDList.size() == GIDList.size(); LIDList.size() == GIDList.size()

Returns: IDNotPresent indicates that for at least one global index, we could not find the corresponding process rank. Otherwise, return AllIDsPresent.

Note: This is crucial technology used in Export, Import, CrsGraph, and CrsMatrix.

Definition at line 1906 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node >

LookupStatus Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getRemoteIndexList	(	const Teuchos::ArrayView< const GlobalOrdinal > &	GIDList,
		const Teuchos::ArrayView< int > &	nodeIDList
	)		const

Return the process ranks for the given global indices.

This method must always be called as a collective over all processes in the Map's communicator. For a distributed noncontiguous Map, this operation requires communication.

Parameters

GIDList	[in] List of global indices for which to find process ranks and local indices. These global indices need not be owned by the calling process. Indeed, they need not be owned by any process.
nodeIDList	[out] List of process ranks corresponding to the given global indices. If a global index does not belong to any process, the resulting process rank is -1.

Precondition: nodeIDList.size() == GIDList.size()

Returns: IDNotPresent indicates that for at least one global index, we could not find the corresponding process rank. Otherwise, return AllIDsPresent.

Note: For a distributed noncontiguous Map, this operation requires communication. This is crucial technology used in Export, Import, CrsGraph, and CrsMatrix.

Definition at line 1943 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Map< LocalOrdinal, GlobalOrdinal, Node >::global_indices_array_type Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getMyGlobalIndices ( ) const

Return a view of the global indices owned by this process.

The returned "view" has some type that looks like

Kokkos::View<const GlobalOrdinal*, ...> or
Teuchos::ArrayView<const GlobalOrdinal>

It implements operator[] and the size() method, and behaves as a one-dimensional array. You may not modify its entries.

Warning: You are NOT allowed to refer to the return value's type by name. That name is private. Use auto instead.

If you call this method on a contiguous Map, it will create and cache the list of global indices for later use. Beware of calling this if the calling process owns a very large number of global indices.

Definition at line 1467 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ArrayView< const GlobalOrdinal > Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getNodeElementList ( ) const

Return a NONOWNING view of the global indices owned by this process.

Warning: This method may be deprecated at some point. Please consider using getMyGlobalIndices() (see above) instead.

If you call this method on a contiguous Map, it will create and cache the list of global indices for later use. Beware of calling this if the calling process owns a very large number of global indices.

Definition at line 1515 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal , class Node >

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isNodeLocalElement ( LocalOrdinal localIndex ) const

Whether the given local index is valid for this Map on the calling process.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 1134 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal, class Node >

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isNodeGlobalElement ( GlobalOrdinal globalIndex ) const

Whether the given global index is owned by this Map on the calling process.

Note: This function should be thread safe and thread scalable, assuming that you refer to the Map by value or reference, not by Teuchos::RCP.

Definition at line 1146 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isUniform ( ) const

Whether the range of global indices is uniform.

This is a conservative quantity. It need only be true if the Map was constructed using the first (uniform contiguous) constructor or a nonmember constructor that calls it. We reserve the right to do more work to check this in the future.

Definition at line 1152 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isContiguous ( ) const

True if this Map is distributed contiguously, else false.

Currently, creating this Map using the constructor for a user-defined arbitrary distribution (that takes a list of global elements owned on each process) means that this method always returns false. We currently make no effort to test whether the user-provided global indices are actually contiguous on all the processes. Many operations may be faster for contiguous Maps. Thus, if you know the indices are contiguous on all processes, you should consider using one of the constructors for contiguous elements.

Definition at line 1157 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isDistributed ( ) const

Whether this Map is globally distributed or locally replicated.

Returns: True if this Map is globally distributed, else false.

"Globally distributed" means that all of the following are true:

The map's communicator has more than one process.
There is at least one process in the map's communicator, whose local number of elements does not equal the number of global elements. (That is, not all the elements are replicated over all the processes.)

If at least one of the above are not true, then the map is "locally replicated." (The two are mutually exclusive.)

Calling this method requires no communication or computation, because the result is precomputed in Map's constructors.

Definition at line 1535 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isCompatible ( const Map< LocalOrdinal, GlobalOrdinal, Node > & map ) const

True if and only if map is compatible with this Map.

Two Maps are "compatible" if all of the following are true:

Their communicators have the same numbers of processes. (This is necessary even to call this method.)
They have the same global number of elements.
They have the same number of local elements on each process.

Determining #3 requires communication (a reduction over this Map's communicator). This method assumes that the input Map is valid on all processes in this Map's communicator.

Compatibility is useful for determining correctness of certain operations, like assigning one MultiVector X to another Y. If X and Y have the same number of columns, and if their Maps are compatible, then it is legal to assign X to Y or to assign Y to X.

The behavior of this method is undefined if the input Map's communicator and this Map's communicator have different numbers of processes. This method must be called collectively over this Map's communicator.

Definition at line 1176 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isSameAs ( const Map< LocalOrdinal, GlobalOrdinal, Node > & map ) const

True if and only if map is identical to this Map.

"Identical" is stronger than "compatible." Two Maps are identical if all of the following are true:

Their communicators are congruent (have the same number of processes, in the same order: this corresponds to the MPI_IDENT or MPI_CONGRUENT return values of MPI_Comm_compare).
They have the same min and max global indices.
They have the same global number of elements.
They are either both distributed, or both not distributed.
Their index bases are the same.
They have the same number of local elements on each process.
They have the same global indices on each process.

"Identical" (isSameAs()) includes and is stronger than "compatible" (isCompatible()).

A Map corresponds to a block permutation over process ranks and global element indices. Two Maps with different numbers of processes in their communicators cannot be compatible, let alone identical. Two identical Maps correspond to the same permutation.

The behavior of this method is undefined if the input Map's communicator and this Map's communicator have different numbers of processes. This method must be called collectively over this Map's communicator.

Definition at line 1374 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node >

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::locallySameAs ( const Map< LocalOrdinal, GlobalOrdinal, node_type > & map ) const

Is this Map locally the same as the input Map?

"Locally the same" means that on the calling process, the two Maps' global indices are the same and occur in the same order.

Definition at line 1242 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node>

bool Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::isLocallyFitted ( const Map< LocalOrdinal, GlobalOrdinal, Node > & map ) const

True if and only if map is locally fitted to this Map.

For two maps, map1 and map2, we say that map1 is locally fitted to map2 (on the calling process), when the indices of map1 (on the calling process) are the same and in the same order as the initial indices of map2. "Fittedness" is entirely a local (per MPI process) property.

The predicate "is map1 fitted to map2 ?" is not symmetric. For example, map2 may have more entries than map1.

Fittedness on a process can let Tpetra avoid deep copies in some Export or Import (communication) operations. Tpetra could use this, for example, in optimizing its sparse matrix-vector multiply.

Definition at line 1329 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const Teuchos::Comm< int > > Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getComm ( ) const

Accessors for the Teuchos::Comm and Kokkos Node objects.

Get this Map's communicator, as a Teuchos::Comm.

Definition at line 1967 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< Node > Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::getNode ( ) const

Get this Map's Node object.

Definition at line 1973 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

std::string Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

Implementation of Teuchos::Describable.

Return a one-line description of this object.

Definition at line 1540 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

Describe this object in a human-readable way to the given output stream.

You must call this method as a collective over all processes in this object's communicator.

Parameters

out	[out] Output stream to which to write. Only Process 0 in this object's communicator may write to the output stream.
verbLevel	[in] Verbosity level. This also controls whether this method does any communication. At verbosity levels higher (greater) than Teuchos::VERB_LOW, this method may behave as a collective over the object's communicator.

Teuchos::FancyOStream wraps std::ostream. It adds features like tab levels. If you just want to wrap std::cout, try this:

auto out = Teuchos::getFancyOStream (Teuchos::rcpFromRef (std::out));

Definition at line 1611 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

template<class NodeOut >

Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, NodeOut > > Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::clone ( const Teuchos::RCP< NodeOut > & nodeOut ) const

Advanced methods.

Create a shallow copy of this Map, with a different Node type.

Definition at line 1557 of file Tpetra_Map_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcesses ( ) const

Return a new Map with processes with zero elements removed.

Warning: This method is only for expert users. Understanding how to use this method correctly requires some familiarity with semantics of MPI communicators.; We make no promises of backwards compatibility for this method. It may go away or change at any time.

This method first computes a new communicator, which contains only those processes in this Map's communicator (the "original communicator") that have a nonzero number of elements in this Map (the "original Map"). It then returns a new Map distributed over the new communicator. The new Map represents the same distribution as the original Map, except that processes containing zero elements are not included in the new Map or its communicator. On processes not included in the new Map or communicator, this method returns Teuchos::null.

The returned Map always has a distinct communicator from this Map's original communicator. The new communicator contains a subset of processes from the original communicator. Even if the number of processes in the new communicator equals the number of processes in the original communicator, the new communicator is distinct. (In an MPI implementation, the new communicator is created using MPI_Comm_split.) Furthermore, a process may have a different rank in the new communicator, so be wary of classes that like to store the rank rather than asking the communicator for it each time.

This method must be called collectively on the original communicator. It leaves the original Map and communicator unchanged.

This method was intended for applications such as algebraic multigrid or other multilevel preconditioners. Construction of each level of the multilevel preconditioner typically requires constructing sparse matrices, which in turn requires all-reduces over all participating processes at that level. Matrix sizes at successively coarser levels shrink geometrically. At the coarsest levels, some processes might be left with zero rows of the matrix, or the multigrid implementation might "rebalance" (redistribute the matrix) and intentionally leave some processes with zero rows. Removing processes with zero rows makes the all-reduces and other communication operations cheaper.

Definition at line 1797 of file Tpetra_Map_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >::replaceCommWithSubset ( const Teuchos::RCP< const Teuchos::Comm< int > > & newComm ) const

Replace this Map's communicator with a subset communicator.

Warning: This method is only for expert users. Understanding how to use this method correctly requires some familiarity with semantics of MPI communicators.; We make no promises of backwards compatibility for this method. It may go away or change at any time.

Precondition: The input communicator's processes are a subset of this Map's current communicator's processes.; On processes which are not included in the input communicator, the input communicator is null.

This method must be called collectively on the original communicator. It leaves the original Map and communicator unchanged.

Note: This method differs from removeEmptyProcesses(), in that it does not assume that excluded processes have zero entries. For example, one might wish to remove empty processes from the row Map of a CrsGraph using removeEmptyProcesses(), and then apply the resulting subset communicator to the column, domain, and range Maps of the same graph. For the latter three Maps, one would in general use this method instead of removeEmptyProcesses(), giving the new row Map's communicator to this method.

Definition at line 1686 of file Tpetra_Map_def.hpp.

Friends And Related Function Documentation

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>

template<class LO , class GO , class N >

friend class Map

friend

Alias for Tpetra::Classes::Map.

Definition at line 1075 of file Tpetra_Map_decl.hpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Friends

Attributes

Detailed Description

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type> class Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >

Prerequisites

Map concepts

Local and global indices

Contiguous or noncontiguous

Globally distributed or locally replicated

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

template<class LocalOrdinal = ::Tpetra::Details::DefaultTypes::local_ordinal_type, class GlobalOrdinal = ::Tpetra::Details::DefaultTypes::global_ordinal_type, class Node = ::Tpetra::Details::DefaultTypes::node_type>
class Tpetra::Classes::Map< LocalOrdinal, GlobalOrdinal, Node >
