Thyra::LinearOpTransformerBase< Scalar > Class Template Reference

Base interface for transforming a LinearOpBase object. More...

#include <Thyra_LinearOpTransformerBase.hpp>

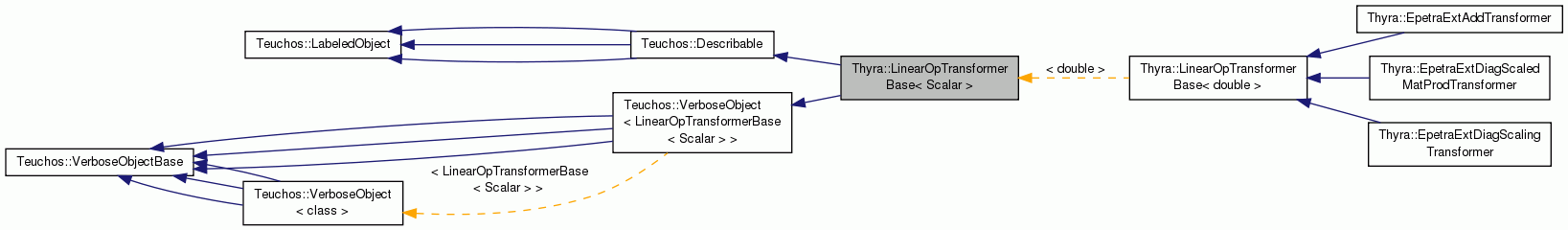

Inheritance diagram for Thyra::LinearOpTransformerBase< Scalar >:

Public Member Functions
virtual bool	isCompatible (const LinearOpBase< Scalar > &op_in) const =0
	Create an uninitialized op. More...
virtual RCP< LinearOpBase < Scalar > >	createOutputOp () const =0
	Create an uninitialized op. More...
virtual void	transform (const LinearOpBase< Scalar > &op_in, const Ptr< LinearOpBase< Scalar > > &op_inout) const =0
	Do the transformation to a pre-created output LinearOpBase object. More...

Detailed Description

template<class Scalar>
class Thyra::LinearOpTransformerBase< Scalar >

Base interface for transforming a LinearOpBase object.

Definition at line 23 of file Thyra_LinearOpTransformerBase.hpp.

Member Function Documentation

template<class Scalar>

virtual bool Thyra::LinearOpTransformerBase< Scalar >::isCompatible ( const LinearOpBase< Scalar > &  op_in ) const

pure virtual

Create an uninitialized op.

Implemented in Thyra::EpetraExtDiagScaledMatProdTransformer, Thyra::EpetraExtDiagScalingTransformer, and Thyra::EpetraExtAddTransformer.

template<class Scalar>

virtual RCP<LinearOpBase<Scalar> > Thyra::LinearOpTransformerBase< Scalar >::createOutputOp ( ) const

pure virtual

Create an uninitialized op.

Implemented in Thyra::EpetraExtDiagScaledMatProdTransformer, Thyra::EpetraExtDiagScalingTransformer, and Thyra::EpetraExtAddTransformer.

template<class Scalar>

virtual void Thyra::LinearOpTransformerBase< Scalar >::transform ( const LinearOpBase< Scalar > &  op_in, const Ptr< LinearOpBase< Scalar > > &  op_inout  ) const

pure virtual

Do the transformation to a pre-created output LinearOpBase object.

Parameters

op_in

[in] The linear operator source that will be transformed in some way. Precondition: this->isCompataible(op_in) == true.

op_inout

[in/out] The transformed linear operator. This object must have been created by this->createOutputOp() and may have already been passed through this function before. This allows for resuse of internal structures on re-transformations. Postcondition: On output, the object op_inout will be some appropriate transformation of op_in. The exact nature of the transformation is not specified in this interface.

Implemented in Thyra::EpetraExtDiagScaledMatProdTransformer, Thyra::EpetraExtDiagScalingTransformer, and Thyra::EpetraExtAddTransformer.

---

The documentation for this class was generated from the following file:

• Thyra_LinearOpTransformerBase.hpp
