Tempus::StepperOperatorSplitAppAction< Scalar > Class Template Reference

StepperOperatorSplitAppAction class for StepperOperatorSplit. More...

#include <Tempus_StepperOperatorSplitAppAction.hpp>

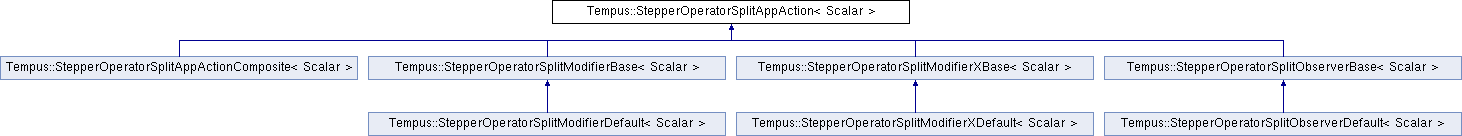

Inheritance diagram for Tempus::StepperOperatorSplitAppAction< Scalar >:

Public Types
enum	ACTION_LOCATION { BEGIN_STEP, BEFORE_STEPPER, AFTER_STEPPER, END_STEP }

Public Member Functions
	StepperOperatorSplitAppAction ()
	Constructor. More...
virtual	~StepperOperatorSplitAppAction ()
	Destructor. More...
virtual void	execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperOperatorSplit< Scalar > > stepper, const typename StepperOperatorSplitAppAction< Scalar >::ACTION_LOCATION actLoc)=0
	Execute application action for OperatorSplit Stepper. More...

Detailed Description

template<class Scalar>
class Tempus::StepperOperatorSplitAppAction< Scalar >

StepperOperatorSplitAppAction class for StepperOperatorSplit.

This class provides a means to apply various actions with the OperatorSplit time step. The data available to this class is solution variables (through SolutionHistory), and stepper data (through the Stepper). It allows the application to just observe this data, i.e., use but not change any of it (USER BEWARE!).

The locations for these AppAction calls (StepperOperatorSplitAppAction::ACTION_LOCATION) are shown in the algorithm documentation of the StepperOperatorSplit.

Design Considerations

• StepperOperatorSplitAppAction is not stateless! Developers may touch the solution state! Developers need to be careful not to break the restart (checkpoint) capability.

Definition at line 40 of file Tempus_StepperOperatorSplitAppAction.hpp.

Member Enumeration Documentation

template<class Scalar>

enum Tempus::StepperOperatorSplitAppAction::ACTION_LOCATION

Enumerator
BEGIN_STEP	At the beginning of the step.
BEFORE_STEPPER	Before a stepper evaluation.
AFTER_STEPPER	After a stepper evaluation.
END_STEP	At the end of the step.

Definition at line 42 of file Tempus_StepperOperatorSplitAppAction.hpp.

Constructor & Destructor Documentation

template<class Scalar>

Tempus::StepperOperatorSplitAppAction< Scalar >::StepperOperatorSplitAppAction ( )

inline

Constructor.

Definition at line 50 of file Tempus_StepperOperatorSplitAppAction.hpp.

template<class Scalar>

virtual Tempus::StepperOperatorSplitAppAction< Scalar >::~StepperOperatorSplitAppAction ( )

inlinevirtual

Destructor.

Definition at line 53 of file Tempus_StepperOperatorSplitAppAction.hpp.

Member Function Documentation

template<class Scalar>

virtual void Tempus::StepperOperatorSplitAppAction< Scalar >::execute ( Teuchos::RCP< SolutionHistory< Scalar > >  sh, Teuchos::RCP< StepperOperatorSplit< Scalar > >  stepper, const typename StepperOperatorSplitAppAction< Scalar >::ACTION_LOCATION  actLoc  )

pure virtual

Execute application action for OperatorSplit Stepper.

Implemented in Tempus::StepperOperatorSplitModifierXBase< Scalar >, Tempus::StepperOperatorSplitModifierXBase< double >, Tempus::StepperOperatorSplitModifierBase< Scalar >, Tempus::StepperOperatorSplitModifierBase< double >, Tempus::StepperOperatorSplitObserverBase< Scalar >, Tempus::StepperOperatorSplitObserverBase< double >, and Tempus::StepperOperatorSplitAppActionComposite< Scalar >.

---

The documentation for this class was generated from the following file:

• Tempus_StepperOperatorSplitAppAction.hpp
