Tempus::StepperNewmarkExplicitAForm< Scalar > Class Template Reference

Newmark Explicit time stepper. More...

#include <Tempus_StepperNewmarkExplicitAForm_decl.hpp>

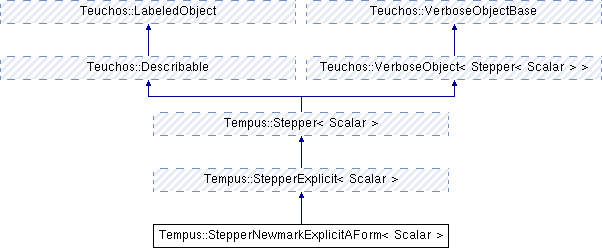

Inheritance diagram for Tempus::StepperNewmarkExplicitAForm< Scalar >:
Tempus::StepperExplicit< Scalar > Tempus::Stepper< Scalar > Teuchos::Describable Teuchos::VerboseObject< Stepper< Scalar > > Teuchos::LabeledObject Teuchos::VerboseObjectBase

Public Member Functions

 StepperNewmarkExplicitAForm ()
 Default constructor. More...

 StepperNewmarkExplicitAForm (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, Scalar gamma, const Teuchos::RCP< StepperNewmarkExplicitAFormAppAction< Scalar > > &stepperAppAction)
 Constructor. More...

virtual Teuchos::RCP
< StepperNewmarkExplicitAFormAppAction
< Scalar > >
getAppAction () const

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual void setUseFSAL (bool a)

virtual OrderODE getOrderODE () const

Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

void predictVelocity (Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void predictDisplacement (Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctVelocity (Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void setGamma (Scalar gamma)

virtual void setAppAction (Teuchos::RCP< StepperNewmarkExplicitAFormAppAction< Scalar > > appAction)

- Public Member Functions inherited from Tempus::StepperExplicit< Scalar >
void setStepperExplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperExplicit member data from the ParameterList. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)
 Set model. More...

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel () const
 Return the application ModelEvaluator. More...

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const
 Get solver. More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > >)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDot = f(x,t). More...

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xDot, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDotDot = f(x, xDot, t). More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
 Set Stepper member data from ParameterList. More...

Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasic () const
 Add basic parameters to Steppers ParameterList. More...

virtual void initialize ()
 Initialize after construction and changing input parameters. More...

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

void setStepperName (std::string s)
 Set the stepper name. More...

std::string getStepperName () const
 Get the stepper name. More...

std::string getStepperType () const
 Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class. More...

void setUseFSALTrueOnly (bool a)

void setUseFSALFalseOnly (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperX ()
 Get Stepper x. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot ()
 Get Stepper xDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot ()
 Get Stepper xDotDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const


Protected Attributes

Scalar gammaDefault_

Scalar gamma_

Teuchos::RCP
< StepperNewmarkExplicitAFormAppAction
< Scalar > >
stepperNewmarkExpAppAction_

- Protected Attributes inherited from Tempus::StepperExplicit< Scalar >
Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
appModel_
 Explicit ODE ModelEvaluator. More...

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
inArgs_

Thyra::ModelEvaluatorBase::OutArgs
< Scalar >
outArgs_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool useFSAL_ = false
 Use First-Same-As-Last (FSAL) principle. More...

bool isInitialized_
 True if stepper's member data is initialized. More...


Overridden from Teuchos::Describable

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const


Additional Inherited Members

- Static Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...

void setStepperType (std::string s)
 Set the stepper type. More...

- Protected Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

template<class Scalar>
class Tempus::StepperNewmarkExplicitAForm< Scalar >

Newmark Explicit time stepper.

This is the specific case of the more general Newmark time stepper where this stepper is explicit ( $\beta = 0$) (i.e., no solver used).

The governing equation is solved by this stepper is

\[ \mathbf{M}\, \ddot{\mathbf{x}} + \mathbf{C}\, \dot{\mathbf{x}} + \mathbf{K}\, \mathbf{x} = \mathbf{F}(t) \]

For the A-form (i.e., solving for the acceleration, $\mathbf{a} = \ddot{\mathbf{x}}$), we have the following explicit ODE

\[ \mathbf{a} = -\mathbf{M}^{-1}\left[ \mathbf{C}\, \mathbf{v} + \mathbf{K}\, \mathbf{d} - \mathbf{F}(t) \right] = \bar{\mathbf{f}}(\mathbf{d}, \mathbf{v}, t) \]

where $\mathbf{v} = \dot{\mathbf{x}}$ and $\mathbf{d} = \mathbf{x}$.

Algorithm The algorithm for the Newmark Explicit A-form is

\begin{center} \parbox{5in}{ \rule{5in}{0.4pt} \\ {\bf Algorithm} Newmark Explicit A-form \\ \rule{5in}{0.4pt} \vspace{-15pt} \begin{enumerate} \setlength{\itemsep}{0pt} \setlength{\parskip}{0pt} \setlength{\parsep}{0pt} \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \item {\bf if (Not ``Use FSAL'' or (previous step failed)) then} \item \quad {\it appAction.execute(solutionHistory, stepper, BEFORE\_EXPLICIT\_EVAL)} \item \quad $\mathbf{a}^{n-1} = \bar{\mathbf{f}}(\mathbf{d}^{n-1}, \mathbf{v}^{n-1}, t^{n-1})$ \item {\bf endif} \item $\mathbf{d}^{\ast} = \mathbf{d}^{n-1} + \Delta t \mathbf{v}^{n-1} + \Delta t^2 \mathbf{a}^{n-1} / 2$ \item $\mathbf{v}^{\ast} = \mathbf{v}^{n-1} + \Delta t (1-\gamma) \mathbf{a}^{n-1}$ \item $\mathbf{a}^{\ast} = \bar{\mathbf{f}}(\mathbf{d}^{\ast}, \mathbf{v}^{\ast}, t^{n-1})$ \item $\mathbf{d}^n = \mathbf{d}^{\ast}$ \item $\mathbf{v}^n = \mathbf{v}^{\ast} + \Delta t \gamma \mathbf{a}^{\ast}$ \item {\bf if (``Use FSAL'') then} \item \quad {\it appAction.execute(solutionHistory, stepper, BEFORE\_EXPLICIT\_EVAL)} \item \quad $\mathbf{a}^n = \bar{\mathbf{f}}(\mathbf{d}^n, \mathbf{v}^n, t^n)$ \item {\bf endif} \item {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{enumerate} \vspace{-10pt} \rule{5in}{0.4pt} } \end{center}

Note that with useFSAL=false $x_n$ and $\dot{x}_{n-1}$ are not at the same time level at the end of the time step (i.e., they are not sync'ed).

To have them at the same time level, we can use the First-Same-As-Last (FSAL) principle where the function evaulation from the last time step can be used as the first function evalulation of the current step.

The default is to use FSAL (useFSAL=true), but will also work with useFSAL=false. Using useFSAL=true does assume that the solution, $x$, its time derivative, $\dot{x}$, and its second time derivative, $\ddot{x}$, are consistent at the initial conditions (ICs), i.e., $\ddot{x}_{0} = \bar{f}(x_{0},\dot{x}_{0},t_{0})$. This can be ensured by setting setICConsistency("Consistent"), and checked with setICConsistencyCheck(true).

Definition at line 93 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperNewmarkExplicitAForm< Scalar >::StepperNewmarkExplicitAForm ( )

Default constructor.

Definition at line 55 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
Tempus::StepperNewmarkExplicitAForm< Scalar >::StepperNewmarkExplicitAForm ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
Scalar  gamma,
const Teuchos::RCP< StepperNewmarkExplicitAFormAppAction< Scalar > > &  stepperAppAction
)

Constructor.

Definition at line 67 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

Member Function Documentation

template<class Scalar >
virtual Teuchos::RCP<StepperNewmarkExplicitAFormAppAction<Scalar> > Tempus::StepperNewmarkExplicitAForm< Scalar >::getAppAction ( ) const
inlinevirtual

Definition at line 112 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 91 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 243 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperNewmarkExplicitAForm< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 351 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrder ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrderMin ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrderMax ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isExplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isImplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isExplicitImplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isOneStepMethod ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isMultiStepMethod ( ) const
inlinevirtual
template<class Scalar >
virtual void Tempus::StepperNewmarkExplicitAForm< Scalar >::setUseFSAL ( bool  a)
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 150 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrderODE ( ) const
inlinevirtual
template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperNewmarkExplicitAForm< Scalar >::getValidParameters ( ) const
virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 387 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual
template<class Scalar >
bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isValidSetup ( Teuchos::FancyOStream out) const
virtual
template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::predictVelocity ( Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 22 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::predictDisplacement ( Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 31 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::correctVelocity ( Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 46 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::setGamma ( Scalar  gamma)
inline

Definition at line 184 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::setAppAction ( Teuchos::RCP< StepperNewmarkExplicitAFormAppAction< Scalar > >  appAction)
virtual

Definition at line 397 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

Member Data Documentation

template<class Scalar >
Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::gammaDefault_
protected

Definition at line 200 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::gamma_
protected

Definition at line 201 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperNewmarkExplicitAFormAppAction<Scalar> > Tempus::StepperNewmarkExplicitAForm< Scalar >::stepperNewmarkExpAppAction_
protected

Definition at line 203 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.


The documentation for this class was generated from the following files:
