Tempus::StepperLeapfrog< Scalar > Class Template Reference

Leapfrog time stepper. More...

#include <Tempus_StepperLeapfrog_decl.hpp>

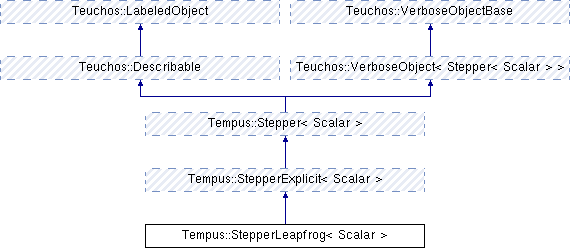

Inheritance diagram for Tempus::StepperLeapfrog< Scalar >:
Tempus::StepperExplicit< Scalar > Tempus::Stepper< Scalar > Teuchos::Describable Teuchos::VerboseObject< Stepper< Scalar > > Teuchos::LabeledObject Teuchos::VerboseObjectBase

Public Member Functions

 StepperLeapfrog ()
 Default constructor. More...

 StepperLeapfrog (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, const Teuchos::RCP< StepperLeapfrogAppAction< Scalar > > &stepperLFAppAction)
 Constructor. More...

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

- Public Member Functions inherited from Tempus::StepperExplicit< Scalar >
void setStepperExplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperExplicit member data from the ParameterList. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)
 Set model. More...

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel () const
 Return the application ModelEvaluator. More...

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const
 Get solver. More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > >)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDot = f(x,t). More...

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xDot, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDotDot = f(x, xDot, t). More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
 Set Stepper member data from ParameterList. More...

virtual Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const

Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasic () const
 Add basic parameters to Steppers ParameterList. More...

virtual void initialize ()
 Initialize after construction and changing input parameters. More...

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

void setStepperName (std::string s)
 Set the stepper name. More...

std::string getStepperName () const
 Get the stepper name. More...

std::string getStepperType () const
 Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class. More...

virtual void setUseFSAL (bool a)

void setUseFSALTrueOnly (bool a)

void setUseFSALFalseOnly (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperX ()
 Get Stepper x. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot ()
 Get Stepper xDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot ()
 Get Stepper xDotDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const


Protected Attributes

Teuchos::RCP
< StepperLeapfrogAppAction
< Scalar > >
stepperLFAppAction_

- Protected Attributes inherited from Tempus::StepperExplicit< Scalar >
Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
appModel_
 Explicit ODE ModelEvaluator. More...

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
inArgs_

Thyra::ModelEvaluatorBase::OutArgs
< Scalar >
outArgs_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool useFSAL_ = false
 Use First-Same-As-Last (FSAL) principle. More...

bool isInitialized_ = false
 True if stepper's member data is initialized. More...


Basic stepper methods

virtual void setAppAction (Teuchos::RCP< StepperLeapfrogAppAction< Scalar > > appAction)

virtual Teuchos::RCP
< StepperLeapfrogAppAction
< Scalar > >
getAppAction () const

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const


Overridden from Teuchos::Describable

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const


Additional Inherited Members

- Static Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...

void setStepperType (std::string s)
 Set the stepper type. More...

- Protected Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

template<class Scalar>
class Tempus::StepperLeapfrog< Scalar >

Leapfrog time stepper.

For the governing equation,

\[ M(t) \ddot{x} + K(t) x = F(t), \]

one can write the explicit ODE system,

\[ \ddot{x} = f(x,t), \]

where

\[ f(x,t) = \left(M(t)\right)^{-1} \left( F(t) - K(t) x \right). \]

The Leapfrog stepper can be written as

\begin{eqnarray*} x_{n+1} & = & x_{n} + \Delta t\, \dot{x}_{n+1/2} \\ \ddot{x}_{n+1} & = & f(x_{n+1},t_{n+1}) \\ \dot{x}_{n+3/2} & = & \dot{x}_{n+1/2} + \Delta t\, \ddot{x}_{n+1} \end{eqnarray*}

where the position and velocity are leapfrogged over each other. On startup the velocity half-step can be obtained with

\begin{eqnarray*} \dot{x}_{n+1/2} & = & \dot{x}_{n} + \frac{1}{2} \Delta t\, \ddot{x}_{n} \\ \dot{x}_{n+1/2} & = & \dot{x}_{n} + \frac{1}{2} \Delta t\, f(x_{n},t_{n}) \end{eqnarray*}

and to complete the time step, the final velocity half-step is obtained with

\begin{eqnarray*} \dot{x}_{n+1}&=&\dot{x}_{n+1/2} +\frac{1}{2} \Delta t\, \ddot{x}_{n+1} \\ \dot{x}_{n+1}&=&\dot{x}_{n+1/2} +\frac{1}{2} \Delta t\, f(x_{n+1},t_{n+1}) \end{eqnarray*}

Algorithm The single-timestep algorithm for Leapfrog is

\begin{center} \parbox{5in}{ \rule{5in}{0.4pt} \\ {\bf Algorithm} Leapfrog \\ \rule{5in}{0.4pt} \vspace{-15pt} \begin{enumerate} \setlength{\itemsep}{0pt} \setlength{\parskip}{0pt} \setlength{\parsep}{0pt} \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \item {\bf if (``Startup") then} \hfill {\it * Take half-step startup.} \item \quad $\dot{x}_{n+1/2} = \dot{x}_n + \frac{1}{2}\Delta t \ddot{x}_n$ \item {\bf endif} \item {\it appAction.execute(solutionHistory, stepper, BEFORE\_X\_UPDATE)} \item $x_{n+1} = x_n + \Delta t \dot{x}_{n+1/2}$ \item {\it appAction.execute(solutionHistory, stepper, BEFORE\_EXPLICIT\_EVAL)} \item $\ddot{x}_{n+1} = f(x_{n+1},t_{n+1})$ \item {\it appAction.execute(solutionHistory, stepper, BEFORE\_XDOT\_UPDATE)} \item {\bf if (``Ending") then} \hfill {\it * Take half-step to get solution at the same time level.} \item \quad $\dot{x}_{n+1} \leftarrow \dot{x}_{n+1/2} +\frac{1}{2} \Delta t\, \ddot{x}_{n+1}$ \item {\bf else} \item \quad $\dot{x}_{n+3/2} \leftarrow \dot{x}_{n+1/2} + \Delta t\, \ddot{x}_{n+1}$ \item {\bf endif} \item {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{enumerate} \vspace{-10pt} \rule{5in}{0.4pt} } \end{center}

where one can begin with $(x_n,\dot{x}_{n+1/2})$ or $(x_n,\dot{x}_{n})$ and/or end with $(x_{n+1},\dot{x}_{n+3/2})$ or $(x_{n+1},\dot{x}_{n+1})$.

The First-Same-As-Last (FSAL) principle is not used with Leapfrog because of the algorithm's prescribed order of solution update. The default is to set useFSAL=false, and useFSAL=true will issue a warning that it will have no affect.

Definition at line 96 of file Tempus_StepperLeapfrog_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperLeapfrog< Scalar >::StepperLeapfrog ( )

Default constructor.

Definition at line 21 of file Tempus_StepperLeapfrog_impl.hpp.

template<class Scalar >
Tempus::StepperLeapfrog< Scalar >::StepperLeapfrog ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
const Teuchos::RCP< StepperLeapfrogAppAction< Scalar > > &  stepperLFAppAction
)

Constructor.

Definition at line 33 of file Tempus_StepperLeapfrog_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperLeapfrog< Scalar >::setAppAction ( Teuchos::RCP< StepperLeapfrogAppAction< Scalar > >  appAction)
virtual

Definition at line 55 of file Tempus_StepperLeapfrog_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperLeapfrogAppAction<Scalar> > Tempus::StepperLeapfrog< Scalar >::getAppAction ( ) const
inlinevirtual

Definition at line 120 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
void Tempus::StepperLeapfrog< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 70 of file Tempus_StepperLeapfrog_impl.hpp.

template<class Scalar >
void Tempus::StepperLeapfrog< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 97 of file Tempus_StepperLeapfrog_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperLeapfrog< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 179 of file Tempus_StepperLeapfrog_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperLeapfrog< Scalar >::getOrder ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 133 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperLeapfrog< Scalar >::getOrderMin ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 134 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperLeapfrog< Scalar >::getOrderMax ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 135 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperLeapfrog< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 136 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperLeapfrog< Scalar >::isExplicit ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 140 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperLeapfrog< Scalar >::isImplicit ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 141 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperLeapfrog< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 142 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperLeapfrog< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 144 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperLeapfrog< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 145 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperLeapfrog< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 146 of file Tempus_StepperLeapfrog_decl.hpp.

template<class Scalar >
void Tempus::StepperLeapfrog< Scalar >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 188 of file Tempus_StepperLeapfrog_impl.hpp.

template<class Scalar >
bool Tempus::StepperLeapfrog< Scalar >::isValidSetup ( Teuchos::FancyOStream out) const
virtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 205 of file Tempus_StepperLeapfrog_impl.hpp.

Member Data Documentation

template<class Scalar >
Teuchos::RCP<StepperLeapfrogAppAction<Scalar> > Tempus::StepperLeapfrog< Scalar >::stepperLFAppAction_
protected

Definition at line 159 of file Tempus_StepperLeapfrog_decl.hpp.


The documentation for this class was generated from the following files:
