Tempus::StepperIMEX_RK< Scalar > Class Template Reference

Implicit-Explicit Runge-Kutta (IMEX-RK) time stepper. More...

#include <Tempus_StepperIMEX_RK_decl.hpp>

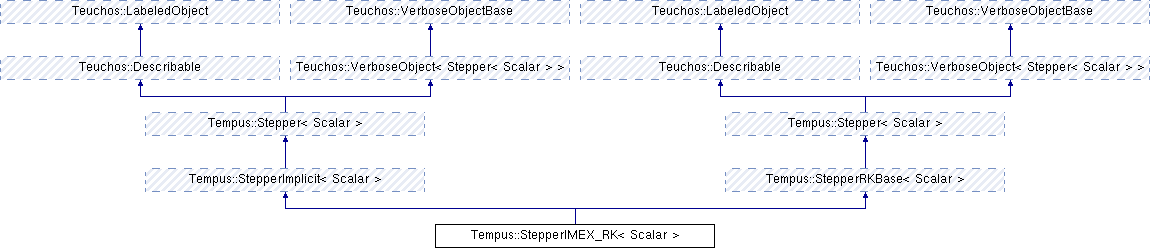

Inheritance diagram for Tempus::StepperIMEX_RK< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::StepperRKBase< Scalar > Tempus::Stepper< Scalar > Tempus::Stepper< Scalar > Teuchos::Describable Teuchos::VerboseObject< Stepper< Scalar > > Teuchos::Describable Teuchos::VerboseObject< Stepper< Scalar > > Teuchos::LabeledObject Teuchos::VerboseObjectBase Teuchos::LabeledObject Teuchos::VerboseObjectBase

Public Member Functions

 StepperIMEX_RK (std::string stepperType="IMEX RK SSP2")
 Default constructor. More...

 StepperIMEX_RK (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess, const Teuchos::RCP< StepperRKAppAction< Scalar > > &stepperRKAppAction, std::string stepperType, Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau, Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau, Scalar order)
 Constructor for all member data. More...

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > &
getStageF ()

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > &
getStageG ()

Teuchos::RCP
< Thyra::VectorBase< Scalar > > &
getXTilde ()

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

void evalImplicitModelExplicitly (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &X, Scalar time, Scalar stepSize, Scalar stageNumber, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &G) const

void evalExplicitModel (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &X, Scalar time, Scalar stepSize, Scalar stageNumber, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &F) const

void setOrder (Scalar order)

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasicImplicit () const

void setStepperImplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperImplicit member data from the ParameterList. More...

void setStepperSolverValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set solver from ParameterList. More...

void setSolverName (std::string i)
 Set the Solver Name. More...

std::string getSolverName () const
 Get the Solver Name. More...

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > >
getWrapperModel ()

virtual void setDefaultSolver ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver) override
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const override
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &y=Teuchos::null, const int index=-1)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess) override
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const override

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
 Set Stepper member data from ParameterList. More...

Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasic () const
 Add basic parameters to Steppers ParameterList. More...

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

void setStepperName (std::string s)
 Set the stepper name. More...

std::string getStepperName () const
 Get the stepper name. More...

std::string getStepperType () const
 Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class. More...

virtual void setUseFSAL (bool a)

void setUseFSALTrueOnly (bool a)

void setUseFSALFalseOnly (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperX ()
 Get Stepper x. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot ()
 Get Stepper xDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot ()
 Get Stepper xDotDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from Tempus::StepperRKBase< Scalar >
virtual int getNumberOfStages () const

virtual int getStageNumber () const

virtual void setStageNumber (int s)

virtual void setUseEmbedded (bool a)

virtual bool getUseEmbedded () const

virtual void setErrorNorm (const Teuchos::RCP< Stepper_ErrorNorm< Scalar >> &errCalculator=Teuchos::null)

virtual void setAppAction (Teuchos::RCP< StepperRKAppAction< Scalar >> appAction)

virtual Teuchos::RCP
< StepperRKAppAction< Scalar > >
getAppAction () const

virtual void setStepperRKValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperRK member data from the ParameterList. More...

virtual Teuchos::RCP
< RKButcherTableau< Scalar > >
createTableau (Teuchos::RCP< Teuchos::ParameterList > pl)


Protected Attributes

Teuchos::RCP< const
RKButcherTableau< Scalar > >
explicitTableau_

Teuchos::RCP< const
RKButcherTableau< Scalar > >
implicitTableau_

Scalar order_

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > >
stageF_

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > >
stageG_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
xTilde_

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > >
wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
initialGuess_

bool zeroInitialGuess_

std::string solverName_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool useFSAL_ = false
 Use First-Same-As-Last (FSAL) principle. More...

bool isInitialized_
 True if stepper's member data is initialized. More...

- Protected Attributes inherited from Tempus::StepperRKBase< Scalar >
Teuchos::RCP< RKButcherTableau
< Scalar > >
tableau_

bool useEmbedded_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
ee_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
abs_u0

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
abs_u

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
sc

Teuchos::RCP
< Stepper_ErrorNorm< Scalar > >
stepperErrorNormCalculator_

int stageNumber_

Teuchos::RCP
< StepperRKAppAction< Scalar > >
stepperRKAppAction_


Basic stepper methods

virtual Teuchos::RCP< const
RKButcherTableau< Scalar > >
getTableau () const
 Returns the explicit tableau! More...

virtual void setTableaus (std::string stepperType="", Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau=Teuchos::null, Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau=Teuchos::null)
 Set both the explicit and implicit tableau from ParameterList. More...

virtual void setTableaus (Teuchos::RCP< Teuchos::ParameterList > stepperPL, std::string stepperType)

virtual Teuchos::RCP< const
RKButcherTableau< Scalar > >
getExplicitTableau () const
 Return explicit tableau. More...

virtual void setExplicitTableau (Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau)
 Set the explicit tableau from tableau. More...

virtual Teuchos::RCP< const
RKButcherTableau< Scalar > >
getImplicitTableau () const
 Return implicit tableau. More...

virtual void setImplicitTableau (Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau)
 Set the implicit tableau from tableau. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)
 Set the model. More...

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel () const

virtual void setModelPair (const Teuchos::RCP< WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &mePair)
 Create WrapperModelPairIMEX from user-supplied ModelEvaluator pair. More...

virtual void setModelPair (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &explicitModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &implicitModel)
 Create WrapperModelPairIMEX from explicit/implicit ModelEvaluators. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const


Overridden from Teuchos::Describable

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const


Additional Inherited Members

- Static Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...

void setStepperType (std::string s)
 Set the stepper type. More...

- Protected Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Member Functions inherited from Tempus::StepperRKBase< Scalar >
virtual void setEmbeddedMemory ()


Detailed Description

template<class Scalar>
class Tempus::StepperIMEX_RK< Scalar >

Implicit-Explicit Runge-Kutta (IMEX-RK) time stepper.

For the implicit ODE system, $ \mathcal{F}(\dot{x},x,t) = 0 $, we need to specialize this in order to separate the explicit, implicit, and temporal terms for the IMEX-RK time stepper,

\[ M(x,t)\, \dot{x}(x,t) + G(x,t) + F(x,t) = 0 \]

or

\[ \mathcal{G}(\dot{x},x,t) + F(x,t) = 0, \]

where $\mathcal{G}(\dot{x},x,t) = M(x,t)\, \dot{x} + G(x,t)$, $M(x,t)$ is the mass matrix, $F(x,t)$ is the operator representing the "slow" physics (and is evolved explicitly), and $G(x,t)$ is the operator representing the "fast" physics (and is evolved implicitly). Additionally, we assume that the mass matrix is invertible, so that

\[ \dot{x}(x,t) + g(x,t) + f(x,t) = 0 \]

where $f(x,t) = M(x,t)^{-1}\, F(x,t)$, and $g(x,t) = M(x,t)^{-1}\, G(x,t)$. Using Butcher tableaus for the explicit and implicit terms,

\[ \begin{array}{c|c} \hat{c} & \hat{a} \\ \hline & \hat{b}^T \end{array} \;\;\;\; \mbox{ and } \;\;\;\; \begin{array}{c|c} c & a \\ \hline & b^T \end{array}, \]

respectively, the basic IMEX-RK method for $s$-stages can be written as

\[ \begin{array}{rcll} X_i & = & x_{n-1} - \Delta t \sum_{j=1}^{i-1} \hat{a}_{ij}\, f(X_j,\hat{t}_j) - \Delta t \sum_{j=1}^i a_{ij}\, g(X_j,t_j) & \mbox{for } i=1\ldots s, \\ x_n & = & x_{n-1} - \Delta t \sum_{i=1}^s \hat{b}_{i}\, f(X_i,\hat{t}_i) - \Delta t \sum_{i=1}^s b_{i}\, g(X_i,t_i) & \end{array} \]

where $\hat{t}_i = t_{n-1}+\hat{c}_i\Delta t$ and $t_i = t_{n-1}+c_i\Delta t$. Note that the "slow" explicit physics, $f(X_j,\hat{t}_j)$, is evaluated at the explicit stage time, $\hat{t}_j$, and the "fast" implicit physics, $g(X_j,t_j)$, is evaluated at the implicit stage time, $t_j$. We can write the stage solution, $X_i$, as

\[ X_i = \tilde{X} - a_{ii} \Delta t\, g(X_i,t_i) \]

where

\[ \tilde{X} = x_{n-1} - \Delta t \sum_{j=1}^{i-1} \left(\hat{a}_{ij}\, f(X_j,\hat{t}_j) + a_{ij}\, g(X_j,t_j)\right) \]

Rewriting this in a form for Newton-type solvers, the implicit ODE is

\[ \mathcal{G}(\tilde{\dot{X}},X_i,t_i) = \tilde{\dot{X}} + g(X_i,t_i) = 0 \]

where we have defined a pseudo time derivative, $\tilde{\dot{X}}$,

\[ \tilde{\dot{X}} \equiv \frac{X_i - \tilde{X}}{a_{ii} \Delta t} \quad \quad \left[ = -g(X_i,t_i)\right] \]

that can be used with the implicit solve but is not the stage time derivative, $\dot{X}_i$. (Note that $\tilde{\dot{X}}$ can be interpreted as the rate of change of the solution due to the implicit "fast" physics, and the "mass" version of the implicit ODE, $\mathcal{G}(\tilde{\dot{X}},X_i,t) = M(X_i,t_i)\, \tilde{\dot{X}} + G(X_i,t_i) = 0$, can also be used to solve for $\tilde{\dot{X}}$).

To obtain the stage time derivative, $\dot{X}_i$, we can evaluate the governing equation at the implicit stage time, $t_i$,

\[ \dot{X}_i(X_i,t_i) + g(X_i,t_i) + f(X_i,t_i) = 0 \]

Note that even the explicit term, $f(X_i,t_i)$, is evaluated at the implicit stage time, $t_i$. Solving for $\dot{X}_i$, we find

\begin{eqnarray*} \dot{X}(X_i,t_i) & = & - g(X_i,t_i) - f(X_i,t_i) \\ \dot{X}(X_i,t_i) & = & \tilde{\dot{X}} - f(X_i,t_i) \end{eqnarray*}

Iteration Matrix, $W$. Recalling that the definition of the iteration matrix, $W$, is

\[ W = \alpha \frac{\partial \mathcal{F}_n}{\partial \dot{x}_n} + \beta \frac{\partial \mathcal{F}_n}{\partial x_n}, \]

where $ \alpha \equiv \frac{\partial \dot{x}_n(x_n) }{\partial x_n}, $ and $ \beta \equiv \frac{\partial x_n}{\partial x_n} = 1$. For the stage solutions, we are solving

\[ \mathcal{G} = \tilde{\dot{X}} + g(X_i,t_i) = 0. \]

where $\mathcal{F}_n \rightarrow \mathcal{G}$, $x_n \rightarrow X_{i}$, and $\dot{x}_n(x_n) \rightarrow \tilde{\dot{X}}(X_{i})$. The time derivative for the implicit solves is

\[ \tilde{\dot{X}} \equiv \frac{X_i - \tilde{X}}{a_{ii} \Delta t} \]

and we can determine that $ \alpha = \frac{1}{a_{ii} \Delta t} $ and $ \beta = 1 $, and therefore write

\[ W = \frac{1}{a_{ii} \Delta t} \frac{\partial \mathcal{G}}{\partial \tilde{\dot{X}}} + \frac{\partial \mathcal{G}}{\partial X_i}. \]

Explicit Stage in the Implicit Tableau. For the special case of an explicit stage in the implicit tableau, $a_{ii}=0$, we find that the stage solution, $X_i$, is

\[ X_i = x_{n-1} - \Delta t\,\sum_{j=1}^{i-1} \left( \hat{a}_{ij}\,f(X_j,\hat{t}_j) + a_{ij}\,g(X_j,t_j) \right) = \tilde{X} \]

and the time derivative of the stage solution, $\dot{X}(X_i,t_i)$, is

\[ \dot{X}_i(X_i,t_i) = - g(X_i,t_i) - f(X_i,t_i) \]

and again note that the explicit term, $f(X_i,t_i)$, is evaluated at the implicit stage time, $t_i$.

IMEX-RK Algorithm

The single-timestep algorithm for IMEX-RK is

\begin{center} \parbox{5in}{ \rule{5in}{0.4pt} \\ {\bf Algorithm} IMEX-RK \\ \rule{5in}{0.4pt} \vspace{-15pt} \begin{enumerate} \setlength{\itemsep}{0pt} \setlength{\parskip}{0pt} \setlength{\parsep}{0pt} \item $X \leftarrow x_{n-1}$ \hfill {\it * Reset initial guess to last timestep.} \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \item {\bf for {$i = 0 \ldots s-1$}} \item \quad $\tilde{X} \leftarrow x_{n-1} - \Delta t\,\sum_{j=1}^{i-1} \left( \hat{a}_{ij}\, f_j + a_{ij}\, g_j \right)$ \item \quad {\it appAction.execute(solutionHistory, stepper, BEGIN\_STAGE)} \item \quad \hfill {\bf Implicit Tableau} \item \quad {\bf if ($a_{ii} = 0$) then} \item \qquad $X \leftarrow \tilde{X}$ \item \qquad {\bf if ($a_{k,i} = 0 \;\forall k = (i+1,\ldots, s-1)$, $b(i) = 0$, $b^\ast(i) = 0$) then} \item \qquad \quad $g_i \leftarrow 0$ \hfill {\it * Not needed for later calculations.} \item \qquad {\bf else} \item \qquad \quad $g_i \leftarrow M(X, t_i)^{-1}\, G(X, t_i)$ \item \qquad {\bf endif} \item \quad {\bf else} \item \qquad {\it appAction.execute(solutionHistory, stepper, BEFORE\_SOLVE)} \item \qquad {\bf if (``Zero initial guess.'') then} \item \qquad \quad $X \leftarrow 0$ \hfill {\it * Else use previous stage value as initial guess.} \item \qquad {\bf endif} \item \qquad {\bf Solve $\mathcal{G}\left(\tilde{\dot{X}} = \frac{X-\tilde{X}}{a_{ii} \Delta t},X,t_i\right) = 0$ for $X$} \item \qquad {\it appAction.execute(solutionHistory, stepper, AFTER\_SOLVE)} \item \qquad $\tilde{\dot{X}} \leftarrow \frac{X - \tilde{X}}{a_{ii} \Delta t}$ \item \qquad $g_i \leftarrow - \tilde{\dot{X}}$ \item \quad {\bf endif} \item \quad \hfill {\bf Explicit Tableau} \item \quad {\it appAction.execute(solutionHistory, stepper, BEFORE\_EXPLICIT\_EVAL)} \item \quad $f_i \leftarrow M(X,\hat{t}_i)^{-1}\, F(X,\hat{t}_i)$ \item \quad $\dot{X} \leftarrow - g_i - f_i$ [Optionally] \item \quad {\it appAction.execute(solutionHistory, stepper, END\_STAGE)} \item {\bf end for} \item $x_n \leftarrow x_{n-1} - \Delta t\,\sum_{i=1}^{s}\hat{b}_i\,f_i - \Delta t\,\sum_{i=1}^{s} b_i \,g_i$ \item {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{enumerate} \vspace{-10pt} \rule{5in}{0.4pt} } \end{center}

The following table contains the pre-coded IMEX-RK tableaus.

IMEX-RK Tableaus
Name Order Implicit Tableau Explicit Tableau
IMEX RK 1st order 1st

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 0 & 1 \\ \hline & 0 & 1 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1 & 0 \end{array} \]

SSP1_111 1st

\[ \begin{array}{c|c} 1 & 1 \\ \hline & 1 \end{array} \]

\[ \begin{array}{c|c} 0 & 0 \\ \hline & 1 \end{array} \]

IMEX RK SSP2
SSP2_222_L
$\gamma = 1-1/\sqrt{2}$
2nd

\[ \begin{array}{c|cc} \gamma & \gamma & 0 \\ 1-\gamma & 1-2\gamma & \gamma \\ \hline & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1/2 & 1/2 \end{array} \]

SSP2_222
SSP2_222_A
$\gamma = 1/2$
2nd

\[ \begin{array}{c|cc} \gamma & \gamma & 0 \\ 1-\gamma & 1-2\gamma & \gamma \\ \hline & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1/2 & 1/2 \end{array} \]

IMEX RK SSP3
SSP3_332
$\gamma = 1/ (2 + \sqrt{2})$
3rd

\[ \begin{array}{c|ccc} 0 & 0 & & \\ 1 & 1 & 0 & \\ 1/2 & 1/4 & 1/4 & 0 \\ \hline & 1/6 & 1/6 & 4/6 \end{array} \]

\[ \begin{array}{c|ccc} \gamma & \gamma & & \\ 1-\gamma & 1-2\gamma & \gamma & \\ 1-2 & 1/2 -\gamma & 0 & \gamma \\ \hline & 1/6 & 1/6 & 2/3 \end{array} \]

IMEX RK ARS 233
ARS 233
$\gamma = (3+\sqrt{3})/6$
3rd

\[ \begin{array}{c|ccc} 0 & 0 & 0 & 0 \\ \gamma & 0 & \gamma & 0 \\ 1-\gamma & 0 & 1-2\gamma & \gamma \\ \hline & 0 & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|ccc} 0 & 0 & 0 & 0 \\ \gamma & \gamma & 0 & 0 \\ 1-\gamma & \gamma-1 & 2-2\gamma & 0 \\ \hline & 0 & 1/2 & 1/2 \end{array} \]

The First-Same-As-Last (FSAL) principle is not valid for IMEX RK. The default is to set useFSAL=false, and useFSAL=true will result in a warning.

References

  1. Ascher, Ruuth, Spiteri, "Implicit-explicit Runge-Kutta methods for time-dependent partial differential equations", Applied Numerical Mathematics 25 (1997) 151-167.
  2. Cyr, "IMEX Lagrangian Methods", SAND2015-3745C.
  3. Shadid, Cyr, Pawlowski, Widley, Scovazzi, Zeng, Phillips, Conde, Chuadhry, Hensinger, Fischer, Robinson, Rider, Niederhaus, Sanchez, "Towards an IMEX Monolithic ALE Method with Integrated UQ for Multiphysics Shock-hydro", SAND2016-11353, 2016, pp. 21-28.

Definition at line 284 of file Tempus_StepperIMEX_RK_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperIMEX_RK< Scalar >::StepperIMEX_RK ( std::string  stepperType = "IMEX RK SSP2")

Default constructor.

Requires subsequent setModel(), setSolver() and initialize() calls before calling takeStep().

Definition at line 21 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
Tempus::StepperIMEX_RK< Scalar >::StepperIMEX_RK ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess,
const Teuchos::RCP< StepperRKAppAction< Scalar > > &  stepperRKAppAction,
std::string  stepperType,
Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau,
Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau,
Scalar  order
)

Constructor for all member data.

Definition at line 62 of file Tempus_StepperIMEX_RK_impl.hpp.

Member Function Documentation

template<class Scalar >
virtual Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getTableau ( ) const
inlinevirtual

Returns the explicit tableau!

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 309 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setTableaus ( std::string  stepperType = "",
Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau = Teuchos::null,
Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau = Teuchos::null
)
virtual

Set both the explicit and implicit tableau from ParameterList.

Definition at line 123 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setTableaus ( Teuchos::RCP< Teuchos::ParameterList stepperPL,
std::string  stepperType
)
virtual

Definition at line 438 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getExplicitTableau ( ) const
inlinevirtual

Return explicit tableau.

Definition at line 326 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setExplicitTableau ( Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau)
virtual

Set the explicit tableau from tableau.

Definition at line 501 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getImplicitTableau ( ) const
inlinevirtual

Return implicit tableau.

Definition at line 337 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setImplicitTableau ( Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau)
virtual

Set the implicit tableau from tableau.

Definition at line 514 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel)
virtual

Set the model.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 527 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getModel ( ) const
inlinevirtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 350 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModelPair ( const Teuchos::RCP< WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &  modelPairIMEX)
virtual

Create WrapperModelPairIMEX from user-supplied ModelEvaluator pair.

The user-supplied ME pair can contain any user-specific IMEX interactions between explicit and implicit MEs.

Definition at line 560 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModelPair ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  explicitModel,
const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  implicitModel
)
virtual

Create WrapperModelPairIMEX from explicit/implicit ModelEvaluators.

Use the supplied explicit/implicit MEs to create a WrapperModelPairIMEX with basic IMEX interactions between explicit and implicit MEs.

Definition at line 591 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 605 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 630 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 748 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperIMEX_RK< Scalar >::getDefaultStepperState ( )
virtual

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 899 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrder ( ) const
inlinevirtual

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 374 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrderMin ( ) const
inlinevirtual

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 375 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrderMax ( ) const
inlinevirtual

Reimplemented from Tempus::StepperRKBase< Scalar >.

Definition at line 376 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 378 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 379 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 380 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 384 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 385 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperIMEX_RK< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 386 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > >& Tempus::StepperIMEX_RK< Scalar >::getStageF ( )
inline

Definition at line 389 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > >& Tempus::StepperIMEX_RK< Scalar >::getStageG ( )
inline

Definition at line 393 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<Thyra::VectorBase<Scalar> >& Tempus::StepperIMEX_RK< Scalar >::getXTilde ( )
inline

Definition at line 397 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 400 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 406 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperIMEX_RK< Scalar >::getValidParameters ( ) const
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 984 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 907 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
bool Tempus::StepperIMEX_RK< Scalar >::isValidSetup ( Teuchos::FancyOStream out) const
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 938 of file Tempus_StepperIMEX_RK_impl.hpp.

template<typename Scalar >
void Tempus::StepperIMEX_RK< Scalar >::evalImplicitModelExplicitly ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &  X,
Scalar  time,
Scalar  stepSize,
Scalar  stageNumber,
const Teuchos::RCP< Thyra::VectorBase< Scalar > > &  G
) const

Definition at line 683 of file Tempus_StepperIMEX_RK_impl.hpp.

template<typename Scalar >
void Tempus::StepperIMEX_RK< Scalar >::evalExplicitModel ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &  X,
Scalar  time,
Scalar  stepSize,
Scalar  stageNumber,
const Teuchos::RCP< Thyra::VectorBase< Scalar > > &  F
) const

Definition at line 714 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setOrder ( Scalar  order)
inline

Definition at line 428 of file Tempus_StepperIMEX_RK_decl.hpp.

Member Data Documentation

template<class Scalar >
Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::explicitTableau_
protected

Definition at line 431 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::implicitTableau_
protected

Definition at line 432 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperIMEX_RK< Scalar >::order_
protected

Definition at line 434 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > > Tempus::StepperIMEX_RK< Scalar >::stageF_
protected

Definition at line 436 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > > Tempus::StepperIMEX_RK< Scalar >::stageG_
protected

Definition at line 437 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::StepperIMEX_RK< Scalar >::xTilde_
protected

Definition at line 439 of file Tempus_StepperIMEX_RK_decl.hpp.


The documentation for this class was generated from the following files:
