Base ModifierX for StepperHHTAlpha. More...

#include <Tempus_StepperHHTAlphaModifierXBase.hpp>

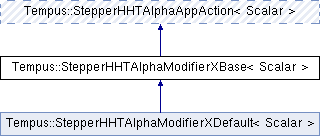

Inheritance diagram for Tempus::StepperHHTAlphaModifierXBase< Scalar >:

Public Types
enum	MODIFIER_TYPE { X_BEGIN_STEP, X_BEFORE_SOLVE, X_AFTER_SOLVE, X_END_STEP }
	Indicates the location of application action (see algorithm). More...

Public Types inherited from Tempus::StepperHHTAlphaAppAction< Scalar >
enum	ACTION_LOCATION { BEGIN_STEP, BEFORE_SOLVE, AFTER_SOLVE, END_STEP }
	Indicates the location of application action (see algorithm). More...

Public Member Functions
virtual void	modify (Teuchos::RCP< Thyra::VectorBase< Scalar > >, const Scalar, const Scalar, const MODIFIER_TYPE modType)=0
	Modify solution based on the MODIFIER_TYPE. More...

Public Member Functions inherited from Tempus::StepperHHTAlphaAppAction< Scalar >
	StepperHHTAlphaAppAction ()
	Constructor. More...

virtual	~StepperHHTAlphaAppAction ()
	Destructor. More...

Private Member Functions
void	execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperHHTAlpha< Scalar > > stepper, const typename StepperHHTAlphaAppAction< Scalar >::ACTION_LOCATION actLoc)
	Execute application action for HHTAlpha Stepper. More...

Detailed Description

template<class Scalar>
class Tempus::StepperHHTAlphaModifierXBase< Scalar >

Base ModifierX for StepperHHTAlpha.

This class provides a means to modify just the solution values (i.e., $x$ and $dot{x}$ ), and nothing else, but time and timestep are also provided.

Users deriving from this class can access and change the solution during the timestep (e.g., limiting the solution for monoticity). It is expected that the user knows what changes are allowable without affecting the Stepper correctness, performance, accuracy and stability (i.e., USER BEWARE!!).

Definition at line 32 of file Tempus_StepperHHTAlphaModifierXBase.hpp.

Member Enumeration Documentation

template<class Scalar>

enum Tempus::StepperHHTAlphaModifierXBase::MODIFIER_TYPE

Indicates the location of application action (see algorithm).

Enumerator
X_BEGIN_STEP	Modify at the beginning of the step.
X_BEFORE_SOLVE	Modify before the implicit solve.
X_AFTER_SOLVE	Modify after the implicit solve.
X_END_STEP	Modify at the end of the step.

Definition at line 95 of file Tempus_StepperHHTAlphaModifierXBase.hpp.

Member Function Documentation

template<class Scalar>

void Tempus::StepperHHTAlphaModifierXBase< Scalar >::execute	(	Teuchos::RCP< SolutionHistory< Scalar > >	sh,
		Teuchos::RCP< StepperHHTAlpha< Scalar > >	stepper,
		const typename StepperHHTAlphaAppAction< Scalar >::ACTION_LOCATION	actLoc
	)

inlineprivatevirtual

Execute application action for HHTAlpha Stepper.

Implements Tempus::StepperHHTAlphaAppAction< Scalar >.

Definition at line 48 of file Tempus_StepperHHTAlphaModifierXBase.hpp.

template<class Scalar>

virtual void Tempus::StepperHHTAlphaModifierXBase< Scalar >::modify	(	Teuchos::RCP< Thyra::VectorBase< Scalar > >	,
		const Scalar	,
		const Scalar	,
		const MODIFIER_TYPE	modType
	)

pure virtual

Modify solution based on the MODIFIER_TYPE.

The documentation for this class was generated from the following file:

Tempus_StepperHHTAlphaModifierXBase.hpp
