Tempus::StepperForwardEulerAppAction< Scalar > Class Template Referenceabstract

Application Action for StepperForwardEuler. More...

#include <Tempus_StepperForwardEulerAppAction.hpp>

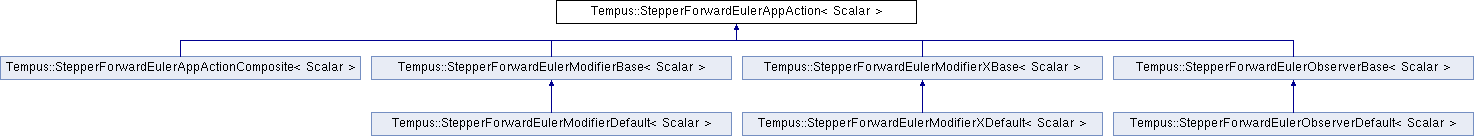

Inheritance diagram for Tempus::StepperForwardEulerAppAction< Scalar >:
Tempus::StepperForwardEulerAppActionComposite< Scalar > Tempus::StepperForwardEulerModifierBase< Scalar > Tempus::StepperForwardEulerModifierXBase< Scalar > Tempus::StepperForwardEulerObserverBase< Scalar > Tempus::StepperForwardEulerModifierDefault< Scalar > Tempus::StepperForwardEulerModifierXDefault< Scalar > Tempus::StepperForwardEulerObserverDefault< Scalar >

Public Types

enum  ACTION_LOCATION { BEGIN_STEP, BEFORE_EXPLICIT_EVAL, END_STEP }
 Indicates the location of application action (see algorithm). More...


Public Member Functions

 StepperForwardEulerAppAction ()
 Constructor. More...

virtual ~StepperForwardEulerAppAction ()
 Destructor. More...

virtual void execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperForwardEuler< Scalar > > stepper, const typename StepperForwardEulerAppAction< Scalar >::ACTION_LOCATION actLoc)=0
 Execute application action for ForwardEuler Stepper. More...


Detailed Description

template<class Scalar>
class Tempus::StepperForwardEulerAppAction< Scalar >

Application Action for StepperForwardEuler.

This class provides a means to apply various actions with the ForwardEuler time step. The data available to this class is solution variables (through SolutionHistory), and stepper data (through the Stepper). It allows the application to just observe this data, i.e., use but not change any of it (USER BEWARE!).

The locations for these AppAction calls (StepperForwardEulerAppAction::ACTION_LOCATION) are shown in the algorithm documentation of the StepperForwardEuler.

Definition at line 35 of file Tempus_StepperForwardEulerAppAction.hpp.

Member Enumeration Documentation

Indicates the location of application action (see algorithm).

Enumerator
BEGIN_STEP

At the beginning of the step.

BEFORE_EXPLICIT_EVAL

Before the explicit evaluation.

END_STEP

At the end of the step.

Definition at line 38 of file Tempus_StepperForwardEulerAppAction.hpp.

Constructor & Destructor Documentation

template<class Scalar>
Tempus::StepperForwardEulerAppAction< Scalar >::StepperForwardEulerAppAction ( )
inline

Constructor.

Definition at line 45 of file Tempus_StepperForwardEulerAppAction.hpp.

template<class Scalar>
virtual Tempus::StepperForwardEulerAppAction< Scalar >::~StepperForwardEulerAppAction ( )
inlinevirtual

Destructor.

Definition at line 48 of file Tempus_StepperForwardEulerAppAction.hpp.

Member Function Documentation

template<class Scalar>
virtual void Tempus::StepperForwardEulerAppAction< Scalar >::execute ( Teuchos::RCP< SolutionHistory< Scalar > >  sh,
Teuchos::RCP< StepperForwardEuler< Scalar > >  stepper,
const typename StepperForwardEulerAppAction< Scalar >::ACTION_LOCATION  actLoc
)
pure virtual

The documentation for this class was generated from the following file:
