Tempus::StepperBackwardEuler< Scalar > Class Template Reference

Backward Euler time stepper. More...

#include <Tempus_StepperBackwardEuler_decl.hpp>

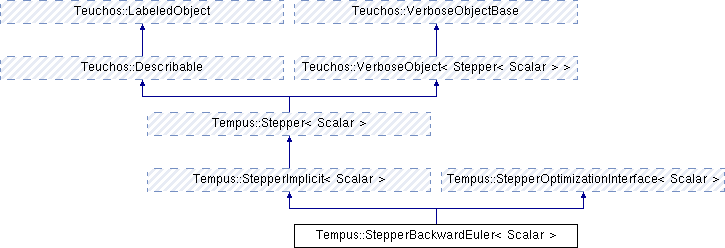

Inheritance diagram for Tempus::StepperBackwardEuler< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::StepperOptimizationInterface< Scalar > Tempus::Stepper< Scalar > Teuchos::Describable Teuchos::VerboseObject< Stepper< Scalar > > Teuchos::LabeledObject Teuchos::VerboseObjectBase

Public Member Functions

 StepperBackwardEuler ()
 Default constructor. More...

 StepperBackwardEuler (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, const Teuchos::RCP< Stepper< Scalar > > &predictorStepper, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess, const Teuchos::RCP< StepperBackwardEulerAppAction< Scalar > > &stepperBEAppAction)
 Constructor. More...

virtual Scalar getAlpha (const Scalar dt) const override
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const override
 Return beta = d(x)/dx. More...

virtual void computePredictor (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Compute predictor given the supplied stepper. More...

Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const override
 Return a valid ParameterList with current settings. More...

virtual bool isValidSetup (Teuchos::FancyOStream &out) const override

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasicImplicit () const

void setStepperImplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperImplicit member data from the ParameterList. More...

void setStepperSolverValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set solver from ParameterList. More...

void setSolverName (std::string i)
 Set the Solver Name. More...

std::string getSolverName () const
 Get the Solver Name. More...

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel () const override

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > >
getWrapperModel ()

virtual void setDefaultSolver ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver) override
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const override
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &y=Teuchos::null, const int index=-1)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initialGuess) override
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const override

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
 Set Stepper member data from ParameterList. More...

Teuchos::RCP
< Teuchos::ParameterList
getValidParametersBasic () const
 Add basic parameters to Steppers ParameterList. More...

virtual void initialize ()
 Initialize after construction and changing input parameters. More...

virtual bool isInitialized ()
 True if stepper's member data is initialized. More...

virtual void checkInitialized ()
 Check initialization, and error out on failure. More...

void setStepperName (std::string s)
 Set the stepper name. More...

std::string getStepperName () const
 Get the stepper name. More...

std::string getStepperType () const
 Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class. More...

virtual void setUseFSAL (bool a)

void setUseFSALTrueOnly (bool a)

void setUseFSALFalseOnly (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperX ()
 Get Stepper x. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot ()
 Get Stepper xDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot ()
 Get Stepper xDotDot. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual std::string description () const

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from Tempus::StepperOptimizationInterface< Scalar >
 StepperOptimizationInterface ()

virtual ~StepperOptimizationInterface ()


Private Member Functions

void computeStepResidDerivImpl (const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index, const int deriv_index=0) const
 Implementation of computeStep*() methods. More...


Private Attributes

Teuchos::RCP< Stepper< Scalar > > predictorStepper_

Teuchos::RCP
< StepperBackwardEulerAppAction
< Scalar > >
stepperBEAppAction_


Basic stepper methods

virtual void setAppAction (Teuchos::RCP< StepperBackwardEulerAppAction< Scalar > > appAction)

virtual Teuchos::RCP
< StepperBackwardEulerAppAction
< Scalar > >
getAppAction () const

void setPredictor (std::string predictorType="None")
 Set the predictor. More...

void setPredictor (Teuchos::RCP< Stepper< Scalar > > predictorStepper)
 Set the predictor. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel) override
 Set the model. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory) override
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory) override
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState () override
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const override

virtual Scalar getOrderMin () const override

virtual Scalar getOrderMax () const override

virtual bool isExplicit () const override

virtual bool isImplicit () const override

virtual bool isExplicitImplicit () const override

virtual bool isOneStepMethod () const override

virtual bool isMultiStepMethod () const override

virtual OrderODE getOrderODE () const override


Overridden from Teuchos::Describable

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const override


Implementation of StepperOptimizationInterface

virtual int stencilLength () const override
 Return the number of solution vectors in the time step stencil. More...

virtual void computeStepResidual (Thyra::VectorBase< Scalar > &residual, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index) const override
 Compute time step residual. More...

virtual void computeStepJacobian (Thyra::LinearOpBase< Scalar > &jacobian, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index, const int deriv_index) const override
 Compute time step Jacobian. More...

virtual void computeStepParamDeriv (Thyra::LinearOpBase< Scalar > &deriv, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index) const override
 Compute time step derivative w.r.t. model parameters. More...

virtual void computeStepSolver (Thyra::LinearOpWithSolveBase< Scalar > &jacobian_solver, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index) const override
 Compute time step Jacobian solver. More...


Additional Inherited Members

- Static Public Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...

void setStepperType (std::string s)
 Set the stepper type. More...

- Protected Member Functions inherited from Teuchos::VerboseObject< Stepper< Scalar > >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > >
wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
initialGuess_

bool zeroInitialGuess_

std::string solverName_

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool useFSAL_ = false
 Use First-Same-As-Last (FSAL) principle. More...

bool isInitialized_
 True if stepper's member data is initialized. More...


Detailed Description

template<class Scalar>
class Tempus::StepperBackwardEuler< Scalar >

Backward Euler time stepper.

For the implicit ODE system, $\mathcal{F}(\dot{x},x,t) = 0$, the solution, $\dot{x}$ and $x$, is determined using a solver (e.g., a non-linear solver, like NOX).

Algorithm The single-timestep algorithm for Backward Euler is

\begin{center} \parbox{5in}{ \rule{5in}{0.4pt} \\ {\bf Algorithm} Backward Euler \\ \rule{5in}{0.4pt} \vspace{-15pt} \begin{enumerate} \setlength{\itemsep}{0pt} \setlength{\parskip}{0pt} \setlength{\parsep}{0pt} \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_STEP)} \item {\bf Compute the predictor} (e.g., apply stepper to $x_n$). \item {\it appAction.execute(solutionHistory, stepper, BEGIN\_SOLVE)} \item {\bf Solve $\mathcal{F}_n(\dot{x}=(x_n-x_{n-1})/\Delta t_n, x_n, t_n)=0$ for $x_n$} \item {\it appAction.execute(solutionHistory, stepper, AFTER\_SOLVE)} \item $\dot{x}_n \leftarrow (x_n-x_{n-1})/\Delta t_n$ \item {\it appAction.execute(solutionHistory, stepper, END\_STEP)} \end{enumerate} \vspace{-10pt} \rule{5in}{0.4pt} } \end{center}

The First-Same-As-Last (FSAL) principle is not needed with Backward Euler. The default is to set useFSAL=false, however useFSAL=true will also work but have no affect (i.e., no-op).

Iteration Matrix, $W$. Recalling that the definition of the iteration matrix, $W$, is

\[ W = \alpha \frac{\partial \mathcal{F}_n}{\partial \dot{x}_n} + \beta \frac{\partial \mathcal{F}_n}{\partial x_n}, \]

where $ \alpha \equiv \frac{\partial \dot{x}_n(x_n) }{\partial x_n}, $ and $ \beta \equiv \frac{\partial x_n}{\partial x_n} = 1$, and the time derivative for Backward Euler is

\[ \dot{x}_n(x_n) = \frac{x_n - x_{n-1}}{\Delta t}, \]

we can determine that $ \alpha = \frac{1}{\Delta t} $ and $ \beta = 1 $, and therefore write

\[ W = \frac{1}{\Delta t} \frac{\partial \mathcal{F}_n}{\partial \dot{x}_n} + \frac{\partial \mathcal{F}_n}{\partial x_n}. \]

Definition at line 75 of file Tempus_StepperBackwardEuler_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperBackwardEuler< Scalar >::StepperBackwardEuler ( )

Default constructor.

Requires subsequent setModel(), setSolver() and initialize() calls before calling takeStep().

Definition at line 20 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
Tempus::StepperBackwardEuler< Scalar >::StepperBackwardEuler ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
const Teuchos::RCP< Stepper< Scalar > > &  predictorStepper,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess,
const Teuchos::RCP< StepperBackwardEulerAppAction< Scalar > > &  stepperBEAppAction
)

Constructor.

Definition at line 35 of file Tempus_StepperBackwardEuler_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setAppAction ( Teuchos::RCP< StepperBackwardEulerAppAction< Scalar > >  appAction)
virtual

Definition at line 104 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperBackwardEulerAppAction<Scalar> > Tempus::StepperBackwardEuler< Scalar >::getAppAction ( ) const
inlinevirtual

Definition at line 100 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setPredictor ( std::string  predictorType = "None")

Set the predictor.

Definition at line 61 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setPredictor ( Teuchos::RCP< Stepper< Scalar > >  predictorStepper)

Set the predictor.

Definition at line 83 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel)
overridevirtual

Set the model.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 119 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
overridevirtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 136 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
overridevirtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 153 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperBackwardEuler< Scalar >::getDefaultStepperState ( )
overridevirtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 252 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getOrder ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 126 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getOrderMin ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 127 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getOrderMax ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 128 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isExplicit ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 130 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isImplicit ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 131 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isExplicitImplicit ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 132 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isOneStepMethod ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 136 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isMultiStepMethod ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 137 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperBackwardEuler< Scalar >::getOrderODE ( ) const
inlineoverridevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 138 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getAlpha ( const Scalar  dt) const
inlineoverridevirtual

Return alpha = d(xDot)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 142 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getBeta ( const Scalar  ) const
inlineoverridevirtual

Return beta = d(x)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 147 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computePredictor ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Compute predictor given the supplied stepper.

Definition at line 226 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperBackwardEuler< Scalar >::getValidParameters ( ) const
overridevirtual

Return a valid ParameterList with current settings.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 309 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel
) const
overridevirtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 260 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
bool Tempus::StepperBackwardEuler< Scalar >::isValidSetup ( Teuchos::FancyOStream out) const
overridevirtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 283 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
int Tempus::StepperBackwardEuler< Scalar >::stencilLength ( ) const
overridevirtual

Return the number of solution vectors in the time step stencil.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 320 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepResidual ( Thyra::VectorBase< Scalar > &  residual,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index
) const
overridevirtual

Compute time step residual.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 326 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepJacobian ( Thyra::LinearOpBase< Scalar > &  jacobian,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index,
const int  deriv_index
) const
overridevirtual

Compute time step Jacobian.

deriv_index determines which component of x the derivative should be computed with respect to.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 339 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepParamDeriv ( Thyra::LinearOpBase< Scalar > &  deriv,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index
) const
overridevirtual

Compute time step derivative w.r.t. model parameters.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 353 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepSolver ( Thyra::LinearOpWithSolveBase< Scalar > &  jacobian_solver,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index
) const
overridevirtual

Compute time step Jacobian solver.

Derivative is always w.r.t. the most current solution vector

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 369 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepResidDerivImpl ( const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &  outArgs,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index,
const int  deriv_index = 0
) const
private

Implementation of computeStep*() methods.

Definition at line 383 of file Tempus_StepperBackwardEuler_impl.hpp.

Member Data Documentation

template<class Scalar >
Teuchos::RCP<Stepper<Scalar> > Tempus::StepperBackwardEuler< Scalar >::predictorStepper_
private

Definition at line 200 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperBackwardEulerAppAction<Scalar> > Tempus::StepperBackwardEuler< Scalar >::stepperBEAppAction_
private

Definition at line 201 of file Tempus_StepperBackwardEuler_decl.hpp.


The documentation for this class was generated from the following files:
