The member functions in the StepControlStrategyBase move you between these states in the following fashion: More...

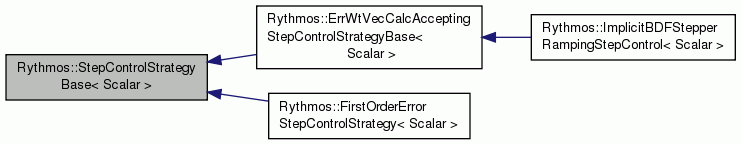

Inheritance diagram for Rythmos::StepControlStrategyBase< Scalar >:

Public Member Functions
virtual void	initialize (const StepperBase< Scalar > &stepper)=0

virtual void	setRequestedStepSize (const StepperBase< Scalar > &stepper, const Scalar &stepSize, const StepSizeType &stepSizeType)=0

virtual void	nextStepSize (const StepperBase< Scalar > &stepper, Scalar stepSize, StepSizeType stepSizeType, int *order)=0

virtual void	setCorrection (const StepperBase< Scalar > &stepper, const RCP< const Thyra::VectorBase< Scalar > > &soln, const RCP< const Thyra::VectorBase< Scalar > > &ee, int solveStatus)=0

virtual bool	acceptStep (const StepperBase< Scalar > &stepper, Scalar *LETValue)=0

virtual void	completeStep (const StepperBase< Scalar > &stepper)=0

virtual AttemptedStepStatusFlag	rejectStep (const StepperBase< Scalar > &stepper)=0

virtual StepControlStrategyState	getCurrentState ()=0

virtual int	getMaxOrder () const =0

virtual void	setStepControlData (const StepperBase< Scalar > &stepper)=0

virtual bool	supportsCloning () const

virtual RCP < StepControlStrategyBase < Scalar > >	cloneStepControlStrategyAlgorithm () const

Detailed Description

The member functions in the StepControlStrategyBase move you between these states in the following fashion:

setRequestedStepSize: valid in UNINITIALIZED and BEFORE_FIRST_STEP and READY_FOR_NEXT_STEP changes state: UNINITIALIZED -> BEFORE_FIRST_STEP

nextStepSize: valid in BEFORE_FIRST_STEP and READY_FOR_NEXT_STEP changes state: BEFORE_FIRST_STEP -> MID_STEP READY_FOR_NEXT_STEP -> MID_STEP

setCorrection: valid in MID_STEP changes state: MID_STEP -> AFTER_CORRECTION

acceptStep: valid in AFTER_CORRECTION

completeStep: valid in AFTER_CORRECTION changes state: AFTER_CORRECTION -> READY_FOR_NEXT_STEP

rejectStep: valid in AFTER_CORRECTION changes state: AFTER_CORRECTION -> READY_FOR_NEXT_STEP

Member Function Documentation

template<class Scalar >

virtual void Rythmos::StepControlStrategyBase< Scalar >::initialize ( const StepperBase< Scalar > & stepper )

pure virtual

template<class Scalar >

virtual void Rythmos::StepControlStrategyBase< Scalar >::setRequestedStepSize	(	const StepperBase< Scalar > &	stepper,
		const Scalar &	stepSize,
		const StepSizeType &	stepSizeType
	)

pure virtual

template<class Scalar >

virtual void Rythmos::StepControlStrategyBase< Scalar >::nextStepSize	(	const StepperBase< Scalar > &	stepper,
		Scalar *	stepSize,
		StepSizeType *	stepSizeType,
		int *	order
	)

pure virtual

template<class Scalar >

virtual void Rythmos::StepControlStrategyBase< Scalar >::setCorrection	(	const StepperBase< Scalar > &	stepper,
		const RCP< const Thyra::VectorBase< Scalar > > &	soln,
		const RCP< const Thyra::VectorBase< Scalar > > &	ee,
		int	solveStatus
	)
