Mix-in interface for stepper objects that accept a step control strategy object to be used for evaluating steps and picking step-sizes & orders. More...

#include <Rythmos_StepControlStrategyAcceptingStepperBase.hpp>

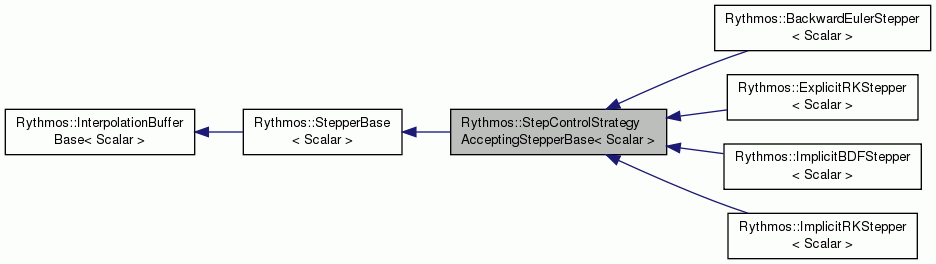

Inheritance diagram for Rythmos::StepControlStrategyAcceptingStepperBase< Scalar >:

[legend]

Public Member Functions
virtual void	setStepControlStrategy (const Teuchos::RCP< StepControlStrategyBase< Scalar > > &stepControlStrategy)=0

virtual Teuchos::RCP < StepControlStrategyBase < Scalar > >	getNonconstStepControlStrategy ()=0

virtual Teuchos::RCP< const StepControlStrategyBase < Scalar > >	getStepControlStrategy () const =0

Public Member Functions inherited from Rythmos::StepperBase< Scalar >
virtual bool	supportsCloning () const
	Return if this stepper supports cloning or not. More...

virtual RCP< StepperBase < Scalar > >	cloneStepperAlgorithm () const
	Clone the stepper object if supported. More...

virtual bool	isImplicit () const
	Return if this stepper is an implicit stepper. More...

virtual bool	acceptsModel () const
	Return if this stepper accepts a model. More...

virtual void	setModel (const RCP< const Thyra::ModelEvaluator< Scalar > > &model)=0
	Specify the model problem to integrate. More...

virtual void	setNonconstModel (const RCP< Thyra::ModelEvaluator< Scalar > > &model)=0
	Accept a nonconst model. More...

virtual bool	modelIsConst () const
	Return of the model is only const or can be returned as a non-const object. More...

virtual RCP< const Thyra::ModelEvaluator< Scalar > >	getModel () const =0
	Get the model. More...

virtual RCP < Thyra::ModelEvaluator < Scalar > >	getNonconstModel ()=0
	Get the model nonconst. More...

virtual void	setInitialCondition (const Thyra::ModelEvaluatorBase::InArgs< Scalar > &initialCondition)=0
	Specify initial condition and re-initialize. More...

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	getInitialCondition () const =0
	Get the currently set initial condtion. More...

virtual Scalar	takeStep (Scalar dt, StepSizeType stepType)=0
	Take a step. More...

virtual const StepStatus< Scalar >	getStepStatus () const =0
	Get current stepper status after a step has been taken. More...

virtual void	setStepControlData (const StepperBase &stepper)
	Set step control data from another stepper. More...

Public Member Functions inherited from Rythmos::InterpolationBufferBase< Scalar >
virtual RCP< const Thyra::VectorSpaceBase< Scalar > >	get_x_space () const =0
	Return the space for `x` and `x_dot`. More...

virtual void	addPoints (const Array< Scalar > &time_vec, const Array< RCP< const Thyra::VectorBase< Scalar > > > &x_vec, const Array< RCP< const Thyra::VectorBase< Scalar > > > &xdot_vec)=0
	Add points to the buffer. More...

virtual TimeRange< Scalar >	getTimeRange () const =0
	Return the range of time values where interpolation calls can be performed. More...

virtual void	getPoints (const Array< Scalar > &time_vec, Array< RCP< const Thyra::VectorBase< Scalar > > > x_vec, Array< RCP< const Thyra::VectorBase< Scalar > > > xdot_vec, Array< ScalarMag > *accuracy_vec) const =0
	Get values from the buffer at different time points. More...

virtual void	getNodes (Array< Scalar > *time_vec) const =0
	Get interpolation nodes. More...

virtual void	removeNodes (Array< Scalar > &time_vec)=0
	Remove nodes from the interpolation buffer. More...

virtual int	getOrder () const =0
	Get order of interpolation. More...

Additional Inherited Members
Public Types inherited from Rythmos::InterpolationBufferBase< Scalar >
typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag

Related Functions inherited from Rythmos::StepperBase< Scalar >
template<class Scalar >
bool	isInitialized (const StepperBase< Scalar > &stepper)

template<class Scalar >
bool	isInitialized (const StepperBase< Scalar > &stepper)

Related Functions inherited from Rythmos::InterpolationBufferBase< Scalar >
template<class Scalar >
RCP< const Thyra::VectorBase < Scalar > >	get_x (const InterpolationBufferBase< Scalar > &interpBuffer, const Scalar &t)
	Get a single point `x(t)` from an interpolation buffer. More...

template<class Scalar >
RCP< const Thyra::VectorBase < Scalar > >	get_xdot (const InterpolationBufferBase< Scalar > &interpBuffer, const Scalar &t)
	Get a single point `xdot(t)` from an interpolation buffer. More...

template<class Scalar >
void	get_x_and_x_dot (const InterpolationBufferBase< Scalar > &interpBuffer, const Scalar t, const Ptr< RCP< const Thyra::VectorBase< Scalar > > > &x, const Ptr< RCP< const Thyra::VectorBase< Scalar > > > &x_dot)
	Nonmember helper function to get x and x_dot at t. More...

template<class Scalar >
void	assertTimePointsAreSorted (const Array< Scalar > &time_vec)
	Assert that a time point vector is sorted. More...

template<class Scalar >
void	assertNoTimePointsBeforeCurrentTimeRange (const InterpolationBufferBase< Scalar > &interpBuffer, const Array< Scalar > &time_vec, const int &startingTimePointIndex=0)
	Assert that none of the time points fall before the current time range for an interpolation buffer object. More...

template<class Scalar >
void	assertNoTimePointsInsideCurrentTimeRange (const InterpolationBufferBase< Scalar > &interpBuffer, const Array< Scalar > &time_vec)
	Assert that none of the time points fall inside the current time range for an interpolation buffer object. More...

template<class TimeType >
void	selectPointsInTimeRange (const Array< TimeType > &points_in, const TimeRange< TimeType > &range, const Ptr< Array< TimeType > > &points_out)
	Select points from an Array that sit in a TimeRange. More...

template<class TimeType >
void	removePointsInTimeRange (Array< TimeType > *points_in, const TimeRange< TimeType > &range)
	Remove points from an Array that sit in a TimeRange. More...

template<class Scalar >
bool	getCurrentPoints (const InterpolationBufferBase< Scalar > &interpBuffer, const Array< Scalar > &time_vec, Array< RCP< const Thyra::VectorBase< Scalar > > > x_vec, Array< RCP< const Thyra::VectorBase< Scalar > > > xdot_vec, int *nextTimePointIndex)
	Get time points in the current range of an interpolation buffer object. More...

Detailed Description

template<class Scalar>
class Rythmos::StepControlStrategyAcceptingStepperBase< Scalar >

Mix-in interface for stepper objects that accept a step control strategy object to be used for evaluating steps and picking step-sizes & orders.

ToDo: Finish documentation!

Definition at line 48 of file Rythmos_StepControlStrategyAcceptingStepperBase.hpp.

Member Function Documentation

template<class Scalar >

virtual void Rythmos::StepControlStrategyAcceptingStepperBase< Scalar >::setStepControlStrategy ( const Teuchos::RCP< StepControlStrategyBase< Scalar > > & stepControlStrategy )

pure virtual

template<class Scalar >

virtual Teuchos::RCP<StepControlStrategyBase<Scalar> > Rythmos::StepControlStrategyAcceptingStepperBase< Scalar >::getNonconstStepControlStrategy ( )

pure virtual

Implemented in Rythmos::BackwardEulerStepper< Scalar >, Rythmos::ExplicitRKStepper< Scalar >, Rythmos::ImplicitRKStepper< Scalar >, and Rythmos::ImplicitBDFStepper< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const StepControlStrategyBase<Scalar> > Rythmos::StepControlStrategyAcceptingStepperBase< Scalar >::getStepControlStrategy ( ) const

pure virtual

Implemented in Rythmos::BackwardEulerStepper< Scalar >, Rythmos::ExplicitRKStepper< Scalar >, Rythmos::ImplicitRKStepper< Scalar >, and Rythmos::ImplicitBDFStepper< Scalar >.

The documentation for this class was generated from the following file:

Rythmos_StepControlStrategyAcceptingStepperBase.hpp
