#include <Panzer_STK_SquareTriMeshFactory.hpp>

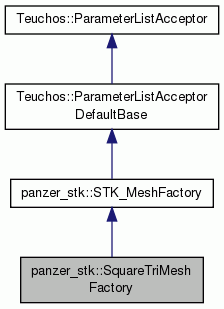

Inheritance diagram for panzer_stk::SquareTriMeshFactory:

Public Member Functions
	SquareTriMeshFactory ()
	Constructor. More...

	~SquareTriMeshFactory ()
	Destructor. More...

Teuchos::RCP< STK_Interface >	buildMesh (stk::ParallelMachine parallelMach) const
	Build the mesh object. More...

virtual Teuchos::RCP < STK_Interface >	buildUncommitedMesh (stk::ParallelMachine parallelMach) const

virtual void	completeMeshConstruction (STK_Interface &mesh, stk::ParallelMachine parallelMach) const

void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)
	From ParameterListAcceptor. More...

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const
	From ParameterListAcceptor. More...

Teuchos::Tuple< std::size_t, 2 >	procRankToProcTuple (std::size_t procRank) const
	what is the 2D tuple describe this processor distribution More...

Public Member Functions inherited from panzer_stk::STK_MeshFactory
	STK_MeshFactory ()

void	enableRebalance (bool enable, const Teuchos::RCP< const Teuchos::ParameterList > &rebalanceList=Teuchos::null)

void	rebalance (STK_Interface &mesh) const

double	getMeshCoord (const int nx, const double deltaX, const double x0) const

Public Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
RCP< ParameterList >	getNonconstParameterList ()

RCP< ParameterList >	unsetParameterList ()

RCP< const ParameterList >	getParameterList () const

Protected Member Functions
void	initializeWithDefaults ()

void	buildMetaData (stk::ParallelMachine parallelMach, STK_Interface &mesh) const

void	buildElements (stk::ParallelMachine parallelMach, STK_Interface &mesh) const

void	buildBlock (stk::ParallelMachine machRank, int xBlock, int yBlock, STK_Interface &mesh) const

std::pair< int, int >	determineXElemSizeAndStart (int xBlock, unsigned int size, unsigned int rank) const

std::pair< int, int >	determineYElemSizeAndStart (int yBlock, unsigned int size, unsigned int rank) const

void	addSideSets (STK_Interface &mesh) const

void	addNodeSets (STK_Interface &mesh) const

void	addEdgeBlocks (STK_Interface &mesh) const

Protected Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
void	setMyParamList (const RCP< ParameterList > &paramList)

RCP< ParameterList >	getMyNonconstParamList ()

RCP< const ParameterList >	getMyParamList () const

Protected Attributes
double	x0_

double	y0_

double	xf_

double	yf_

int	xBlocks_

int	yBlocks_

int	nXElems_

int	nYElems_

int	xProcs_

int	yProcs_

unsigned int	machRank_

unsigned int	machSize_

Teuchos::Tuple< std::size_t, 2 >	procTuple_

bool	createEdgeBlocks_

std::string	edgeBlockName_

Protected Attributes inherited from panzer_stk::STK_MeshFactory
std::vector< Teuchos::RCP < const PeriodicBC_MatcherBase > >	periodicBCVec_

bool	useBBoxSearch_

bool	enableRebalance_

Teuchos::RCP< const Teuchos::ParameterList >	rebalanceList_

Additional Inherited Members
Static Public Member Functions inherited from panzer_stk::STK_MeshFactory
static void	parsePeriodicBCList (const Teuchos::RCP< Teuchos::ParameterList > &pl, std::vector< Teuchos::RCP< const PeriodicBC_MatcherBase > > &periodicBC, bool &useBBoxSearch)

Detailed Description

This builds a parallel mesh object. Note that the local IDs are ordered by going up the y axis and across the X-axis (in that order). For a mesh with two X blocks and one Y-block, with each block composed of 3x2 (x2) elements the numbering looks like:

 8  9 10 11
 4  5  6  7
 0  1  2  3

Definition at line 64 of file Panzer_STK_SquareTriMeshFactory.hpp.

Constructor & Destructor Documentation

panzer_stk::SquareTriMeshFactory::SquareTriMeshFactory ( )

Constructor.

Definition at line 52 of file Panzer_STK_SquareTriMeshFactory.cpp.

panzer_stk::SquareTriMeshFactory::~SquareTriMeshFactory ( )

Destructor.

Definition at line 58 of file Panzer_STK_SquareTriMeshFactory.cpp.

Member Function Documentation

Teuchos::RCP< STK_Interface > panzer_stk::SquareTriMeshFactory::buildMesh ( stk::ParallelMachine parallelMach ) const

virtual

Build the mesh object.

Implements panzer_stk::STK_MeshFactory.

Definition at line 63 of file Panzer_STK_SquareTriMeshFactory.cpp.

Teuchos::RCP< STK_Interface > panzer_stk::SquareTriMeshFactory::buildUncommitedMesh ( stk::ParallelMachine parallelMach ) const

virtual

This builds all the meta data of the mesh. Does not call metaData->commit. Allows user to add solution fields and other pieces. The mesh can be "completed" by calling completeMeshConstruction.

Implements panzer_stk::STK_MeshFactory.

Definition at line 79 of file Panzer_STK_SquareTriMeshFactory.cpp.
