Panzer  Version of the Day
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Public Member Functions | Static Public Member Functions | Protected Attributes | List of all members
panzer_stk::STK_MeshFactory Class Referenceabstract

#include <Panzer_STK_MeshFactory.hpp>

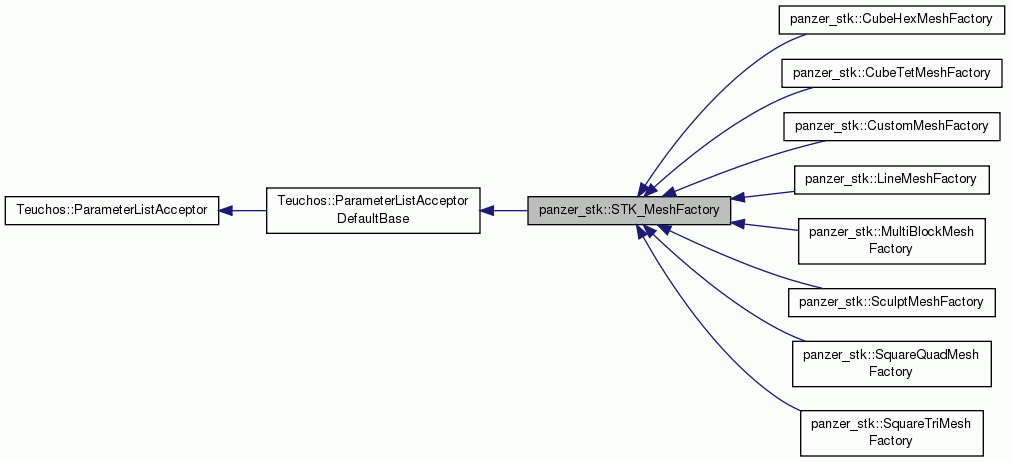

Inheritance diagram for panzer_stk::STK_MeshFactory:
Inheritance graph
[legend]

Public Member Functions

 STK_MeshFactory ()

virtual Teuchos::RCP
< STK_Interface
buildMesh (stk::ParallelMachine parallelMach) const =0

virtual Teuchos::RCP
< STK_Interface
buildUncommitedMesh (stk::ParallelMachine parallelMach) const =0

virtual void completeMeshConstruction (STK_Interface &mesh, stk::ParallelMachine parallelMach) const =0

void enableRebalance (bool enable, const Teuchos::RCP< const Teuchos::ParameterList > &rebalanceList=Teuchos::null)

void rebalance (STK_Interface &mesh) const

double getMeshCoord (const int nx, const double deltaX, const double x0) const

- Public Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
RCP< ParameterListgetNonconstParameterList ()

RCP< ParameterListunsetParameterList ()

RCP< const ParameterListgetParameterList () const

- Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual void setParameterList (const RCP< ParameterList > &paramList)=0

virtual RCP< const ParameterListgetValidParameters () const


Static Public Member Functions

static void parsePeriodicBCList (const Teuchos::RCP< Teuchos::ParameterList > &pl, std::vector< Teuchos::RCP< const PeriodicBC_MatcherBase > > &periodicBC, bool &useBBoxSearch)


Protected Attributes

std::vector< Teuchos::RCP
< const PeriodicBC_MatcherBase > >
periodicBCVec_

bool useBBoxSearch_

bool enableRebalance_

Teuchos::RCP< const
Teuchos::ParameterList
rebalanceList_


Additional Inherited Members

- Protected Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
void setMyParamList (const RCP< ParameterList > &paramList)

RCP< ParameterListgetMyNonconstParamList ()

RCP< const ParameterListgetMyParamList () const


Detailed Description

Pure virtual interface that constructs a STK_Mesh interface object.

Definition at line 60 of file Panzer_STK_MeshFactory.hpp.

Constructor & Destructor Documentation

panzer_stk::STK_MeshFactory::STK_MeshFactory ( )
inline

Definition at line 62 of file Panzer_STK_MeshFactory.hpp.

Member Function Documentation

virtual Teuchos::RCP<STK_Interface> panzer_stk::STK_MeshFactory::buildMesh ( stk::ParallelMachine  parallelMach) const
pure virtual

Construct a STK_Inteface object described by this factory.

Parameters
[in]parallelMachDescriptor for machine to build this mesh on.
Returns
Pointer to STK_Interface object with isModifiable()==false.

Implemented in panzer_stk::SquareQuadMeshFactory, panzer_stk::SquareTriMeshFactory, panzer_stk::Quad8ToQuad4MeshFactory, panzer_stk::QuadraticToLinearMeshFactory, panzer_stk::SculptMeshFactory, panzer_stk::CubeHexMeshFactory, panzer_stk::CubeTetMeshFactory, panzer_stk::CustomMeshFactory, panzer_stk::LineMeshFactory, and panzer_stk::MultiBlockMeshFactory.

virtual Teuchos::RCP<STK_Interface> panzer_stk::STK_MeshFactory::buildUncommitedMesh ( stk::ParallelMachine  parallelMach) const
pure virtual

This builds all the meta data of the mesh. Does not call metaData->commit. Allows user to add solution fields and other pieces. The mesh can be "completed" by calling completeMeshConstruction.

Implemented in panzer_stk::SquareQuadMeshFactory, panzer_stk::SquareTriMeshFactory, panzer_stk::Quad8ToQuad4MeshFactory, panzer_stk::CubeHexMeshFactory, panzer_stk::QuadraticToLinearMeshFactory, panzer_stk::SculptMeshFactory, panzer_stk::CubeTetMeshFactory, panzer_stk::CustomMeshFactory, panzer_stk::LineMeshFactory, and panzer_stk::MultiBlockMeshFactory.

virtual void panzer_stk::STK_MeshFactory::completeMeshConstruction ( STK_Interface mesh,
stk::ParallelMachine  parallelMach
) const
pure virtual
static void panzer_stk::STK_MeshFactory::parsePeriodicBCList ( const Teuchos::RCP< Teuchos::ParameterList > &  pl,
std::vector< Teuchos::RCP< const PeriodicBC_MatcherBase > > &  periodicBC,
bool &  useBBoxSearch
)
inlinestatic

Parse the periodic boundary condition parameter list and build a vector of periodic boundary conditions (a convenience function)

Definition at line 87 of file Panzer_STK_MeshFactory.hpp.

void panzer_stk::STK_MeshFactory::enableRebalance ( bool  enable,
const Teuchos::RCP< const Teuchos::ParameterList > &  rebalanceList = Teuchos::null
)
inline

Definition at line 97 of file Panzer_STK_MeshFactory.hpp.

void panzer_stk::STK_MeshFactory::rebalance ( STK_Interface mesh) const
inline

Definition at line 101 of file Panzer_STK_MeshFactory.hpp.

double panzer_stk::STK_MeshFactory::getMeshCoord ( const int  nx,
const double  deltaX,
const double  x0
) const
inline

Definition at line 129 of file Panzer_STK_MeshFactory.hpp.

Member Data Documentation

std::vector<Teuchos::RCP<const PeriodicBC_MatcherBase> > panzer_stk::STK_MeshFactory::periodicBCVec_
protected

Definition at line 140 of file Panzer_STK_MeshFactory.hpp.

bool panzer_stk::STK_MeshFactory::useBBoxSearch_
protected

Definition at line 142 of file Panzer_STK_MeshFactory.hpp.

bool panzer_stk::STK_MeshFactory::enableRebalance_
protected

Definition at line 145 of file Panzer_STK_MeshFactory.hpp.

Teuchos::RCP<const Teuchos::ParameterList> panzer_stk::STK_MeshFactory::rebalanceList_
protected

Definition at line 146 of file Panzer_STK_MeshFactory.hpp.


The documentation for this class was generated from the following file:
