A widget for editing Arrays of type short. More...

#include <Optika_ArrayWidget.hpp>

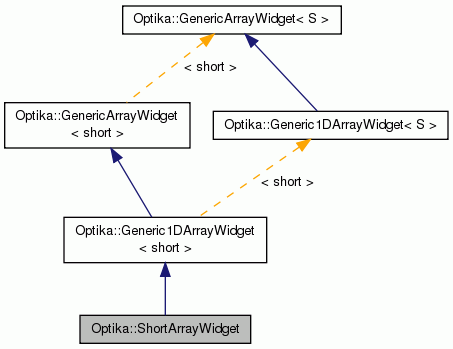

Inheritance diagram for Optika::ShortArrayWidget:

Constructors
	ShortArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a ShortArrayWidget. More...

Overridden from Generic1DArrayWidget
Array< short >	getArrayFromWidgets ()

QWidget *	getEditorWidget (int index)

Overridden from GenericArrayWidget
void	accept ()

Additional Inherited Members
Public Member Functions inherited from Optika::Generic1DArrayWidget< short >
	Generic1DArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a Generic1DArrayWidget. More...

const Array< short >	getData () const

void	initData (Array< short > array)
	Initializes all of the data in the array widget so when it pops up, the individual widgets are populate with their current values in the array. Also, sets the `baseArray` to `array`. More...

Public Member Functions inherited from Optika::GenericArrayWidget< short >
const QString	getType () const
	Gets the type of array being edited. More...

const QString	getName () const
	Returns the name of the parameter being edits. More...

const RCP< const ParameterEntryValidator >	getEntryValidator () const
	Returns the validator being used on the array. More...

virtual void	accept ()=0
	called when the user is done entering data into the widget. MUST BE IMPLEMENTED AS A SLOT IN CONCRETE SUBCLASSES! More...

	GenericArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a GenericArrayWidget. More...

Protected Types inherited from Optika::Generic1DArrayWidget< short >
typedef std::vector< QWidget * >	WVector
	Convienece typedef. Represents an array of QWidgets. More...

Protected Member Functions inherited from Optika::Generic1DArrayWidget< short >
void	doAcceptWork ()

Protected Member Functions inherited from Optika::GenericArrayWidget< short >
virtual void	setupArrayLayout ()
	Sets up the layout for the arrayContainer, including adding what ever editing widget should be used for the particual type of array. More...

Protected Attributes inherited from Optika::Generic1DArrayWidget< short >
WVector	widgetVector
	Conatins the editing widgets (e.g. QLineEdits and QSpinBoxes) comprising the array editor. More...

Array< short >	baseArray
	The array to be edited. More...

Protected Attributes inherited from Optika::GenericArrayWidget< short >
QWidget *	arrayContainer
	The widget containing all of the editing widgets (e.g. QLineEdits, and QSpinBoxes) that comprise the array editor. More...

Detailed Description

A widget for editing Arrays of type short.

Definition at line 987 of file Optika_ArrayWidget.hpp.

Constructor & Destructor Documentation

Optika::ShortArrayWidget::ShortArrayWidget	(	QString	name,
		QString	type,
		const RCP< const ParameterEntryValidator >	validator,
		QWidget *	parent = `0`
	)

inline

Constructs a ShortArrayWidget.

Parameters

name	The name of the parmaeter being edited.
type	The array's template type.
validator	The validator on the array (null if there is none).
parent	The parent widget.

Definition at line 1003 of file Optika_ArrayWidget.hpp.
