Optika::Generic1DArrayWidget< S > Class Template Referenceabstract

A templated abstract base class for all 1D array editing widgets. More...

#include <Optika_ArrayWidget.hpp>

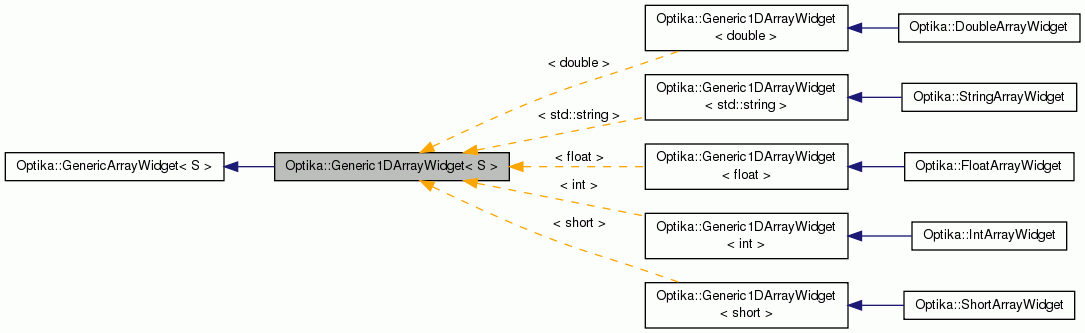

Inheritance diagram for Optika::Generic1DArrayWidget< S >:
Inheritance graph
[legend]

Constructor

 Generic1DArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
 Constructs a Generic1DArrayWidget. More...


Attribute/Query Methods

const Array< S > getData () const


Miscellaneous

void initData (Array< S > array)
 Initializes all of the data in the array widget so when it pops up, the individual widgets are populate with their current values in the array. Also, sets the baseArray to array. More...

virtual QWidget * getEditorWidget (int index)=0
 Gets the widget to be used as an editor for each entry in the array. More...

virtual Array< S > getArrayFromWidgets ()=0
 Get a new array reflecting the current values entered in the widgets. More...


Protected types

typedef std::vector< QWidget * > WVector
 Convienece typedef. Represents an array of QWidgets. More...


Protected members

WVector widgetVector
 Conatins the editing widgets (e.g. QLineEdits and QSpinBoxes) comprising the array editor. More...

Array< S > baseArray
 The array to be edited. More...


Overriden from GenericArrayWidget

void doAcceptWork ()


Private Functions

QLayout * getArrayLayout ()
 Get's the layout to be used for the array container in the widget. More...


Additional Inherited Members

- Public Member Functions inherited from Optika::GenericArrayWidget< S >
const QString getType () const
 Gets the type of array being edited. More...

const QString getName () const
 Returns the name of the parameter being edits. More...

const RCP< const
ParameterEntryValidator
getEntryValidator () const
 Returns the validator being used on the array. More...

virtual void accept ()=0
 called when the user is done entering data into the widget. MUST BE IMPLEMENTED AS A SLOT IN CONCRETE SUBCLASSES! More...

 GenericArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
 Constructs a GenericArrayWidget. More...

- Protected Member Functions inherited from Optika::GenericArrayWidget< S >
virtual void setupArrayLayout ()
 Sets up the layout for the arrayContainer, including adding what ever editing widget should be used for the particual type of array. More...

- Protected Attributes inherited from Optika::GenericArrayWidget< S >
QWidget * arrayContainer
 The widget containing all of the editing widgets (e.g. QLineEdits, and QSpinBoxes) that comprise the array editor. More...


Detailed Description

template<class S>
class Optika::Generic1DArrayWidget< S >

A templated abstract base class for all 1D array editing widgets.

Array

Definition at line 766 of file Optika_ArrayWidget.hpp.

Member Typedef Documentation

template<class S>
typedef std::vector<QWidget*> Optika::Generic1DArrayWidget< S >::WVector
protected

Convienece typedef. Represents an array of QWidgets.

Definition at line 844 of file Optika_ArrayWidget.hpp.

Constructor & Destructor Documentation

template<class S >
Optika::Generic1DArrayWidget< S >::Generic1DArrayWidget ( QString  name,
QString  type,
const RCP< const ParameterEntryValidator validator,
QWidget *  parent = 0
)

Constructs a Generic1DArrayWidget.

Parameters
nameThe name of the parmaeter being edited.
typeThe array's template type.
validatorThe validator on the array (null if there is none).
parentThe parent widget.

Definition at line 882 of file Optika_ArrayWidget.hpp.

Member Function Documentation

template<class S>
const Array<S> Optika::Generic1DArrayWidget< S >::getData ( ) const
inline

Return the array backing this widget.

Parameters
Thearray backing this widget.

Definition at line 797 of file Optika_ArrayWidget.hpp.

template<class S>
void Optika::Generic1DArrayWidget< S >::initData ( Array< S >  array)
inline

Initializes all of the data in the array widget so when it pops up, the individual widgets are populate with their current values in the array. Also, sets the baseArray to array.

Parameters
arrayThe array that should be used to populate the individual widgets making up the ArrayWidget.

Definition at line 816 of file Optika_ArrayWidget.hpp.

template<class S>
virtual QWidget* Optika::Generic1DArrayWidget< S >::getEditorWidget ( int  index)
pure virtual

Gets the widget to be used as an editor for each entry in the array.

Implemented in Optika::StringArrayWidget, Optika::FloatArrayWidget, Optika::DoubleArrayWidget, Optika::ShortArrayWidget, and Optika::IntArrayWidget.

template<class S>
virtual Array<S> Optika::Generic1DArrayWidget< S >::getArrayFromWidgets ( )
pure virtual

Get a new array reflecting the current values entered in the widgets.

Returns
A new array reflecting the currecnt values entered in the widgets.

Implemented in Optika::StringArrayWidget, Optika::FloatArrayWidget, Optika::DoubleArrayWidget, Optika::ShortArrayWidget, and Optika::IntArrayWidget.

template<class S >
void Optika::Generic1DArrayWidget< S >::doAcceptWork ( )
protectedvirtual

Implements Optika::GenericArrayWidget< S >.

Definition at line 904 of file Optika_ArrayWidget.hpp.

template<class S >
QLayout * Optika::Generic1DArrayWidget< S >::getArrayLayout ( )
privatevirtual

Get's the layout to be used for the array container in the widget.

Returns
The layout to be used for the array container in the widget.

Implements Optika::GenericArrayWidget< S >.

Definition at line 892 of file Optika_ArrayWidget.hpp.

Member Data Documentation

template<class S>
WVector Optika::Generic1DArrayWidget< S >::widgetVector
protected

Conatins the editing widgets (e.g. QLineEdits and QSpinBoxes) comprising the array editor.

Definition at line 854 of file Optika_ArrayWidget.hpp.

template<class S>
Array<S> Optika::Generic1DArrayWidget< S >::baseArray
protected

The array to be edited.

Definition at line 859 of file Optika_ArrayWidget.hpp.


The documentation for this class was generated from the following file:
