Optika::GenericArrayWidget< S > Class Template Reference

An Abstract base class for both 2D and 1D ArrayWidgets. More...

#include <Optika_ArrayWidget.hpp>

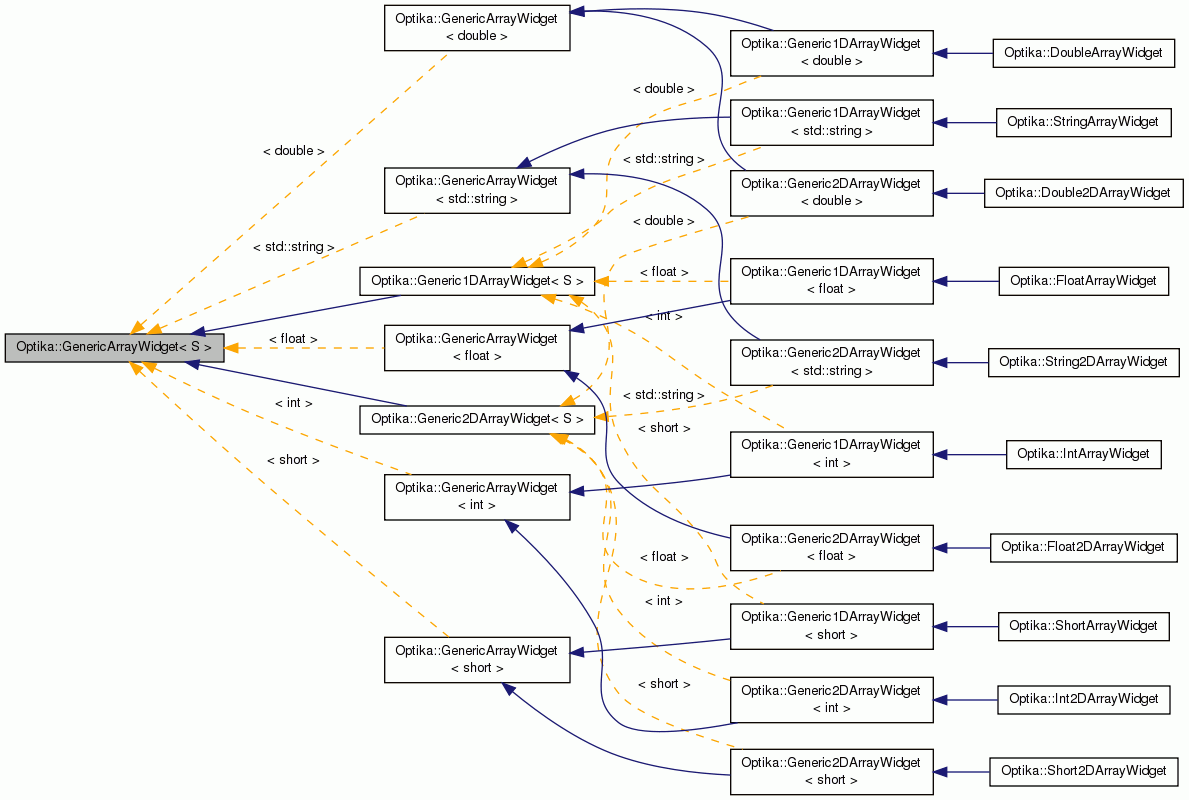

Inheritance diagram for Optika::GenericArrayWidget< S >:

Public Member Functions
const QString	getType () const
	Gets the type of array being edited. More...
const QString	getName () const
	Returns the name of the parameter being edits. More...
const RCP< const ParameterEntryValidator >	getEntryValidator () const
	Returns the validator being used on the array. More...
virtual void	accept ()=0
	called when the user is done entering data into the widget. MUST BE IMPLEMENTED AS A SLOT IN CONCRETE SUBCLASSES! More...

Constructors
	GenericArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a GenericArrayWidget. More...

Protected Functions
virtual void	setupArrayLayout ()
	Sets up the layout for the arrayContainer, including adding what ever editing widget should be used for the particual type of array. More...
virtual QLayout *	getArrayLayout ()=0
	Get's the layout to be used for the array container in the widget. More...
virtual void	doAcceptWork ()=0
	Gathers all the user inputed data and closes the dialog. More...

Protected Members
QWidget *	arrayContainer
	The widget containing all of the editing widgets (e.g. QLineEdits, and QSpinBoxes) that comprise the array editor. More...

Private Members
QString	type
	The type of array. More...
QString	name
RCP< const ParameterEntryValidator >	entryValidator
	The validator being used on the array. More...

Detailed Description

template<class S>
class Optika::GenericArrayWidget< S >

An Abstract base class for both 2D and 1D ArrayWidgets.

Note the absence of the Q_OBJECT macro. This is becuase classes using the Q_OBJECT macro can't be templated (bummer). The macro is therfore present in the subclasses.

Definition at line 74 of file Optika_ArrayWidget.hpp.

Constructor & Destructor Documentation

template<class S >

Optika::GenericArrayWidget< S >::GenericArrayWidget	(	QString	name,
		QString	type,
		const RCP< const ParameterEntryValidator >	validator,
		QWidget *	parent = 0
	)

Constructs a GenericArrayWidget.

Parameters

name	The name of the parameter beting edited.
type	The arrays template type.
validator	The validator to be used on the Array.
parent	The parent widget.

Definition at line 197 of file Optika_ArrayWidget.hpp.

Member Function Documentation

template<class S>

const QString Optika::GenericArrayWidget< S >::getType ( ) const

inline

Gets the type of array being edited.

Returns

The type of array being edited.

Definition at line 102 of file Optika_ArrayWidget.hpp.

template<class S>

const QString Optika::GenericArrayWidget< S >::getName ( ) const

inline

Returns the name of the parameter being edits.

Definition at line 109 of file Optika_ArrayWidget.hpp.

template<class S>

const RCP<const ParameterEntryValidator> Optika::GenericArrayWidget< S >::getEntryValidator ( ) const

inline

Returns the validator being used on the array.

Definition at line 116 of file Optika_ArrayWidget.hpp.

template<class S>

virtual void Optika::GenericArrayWidget< S >::accept ( )

pure virtual

called when the user is done entering data into the widget. MUST BE IMPLEMENTED AS A SLOT IN CONCRETE SUBCLASSES!

template<class S>

virtual void Optika::GenericArrayWidget< S >::setupArrayLayout ( )

inlineprotectedvirtual

Sets up the layout for the arrayContainer, including adding what ever editing widget should be used for the particual type of array.

Definition at line 138 of file Optika_ArrayWidget.hpp.

template<class S>

virtual QLayout* Optika::GenericArrayWidget< S >::getArrayLayout ( )

protectedpure virtual

Get's the layout to be used for the array container in the widget.

Returns

The layout to be used for the array container in the widget.

Implemented in Optika::Generic1DArrayWidget< S >, Optika::Generic1DArrayWidget< double >, Optika::Generic1DArrayWidget< std::string >, Optika::Generic1DArrayWidget< float >, Optika::Generic1DArrayWidget< int >, Optika::Generic1DArrayWidget< short >, Optika::Generic2DArrayWidget< S >, Optika::Generic2DArrayWidget< double >, Optika::Generic2DArrayWidget< std::string >, Optika::Generic2DArrayWidget< float >, Optika::Generic2DArrayWidget< int >, and Optika::Generic2DArrayWidget< short >.

template<class S>

virtual void Optika::GenericArrayWidget< S >::doAcceptWork ( )

protectedpure virtual

Gathers all the user inputed data and closes the dialog.

Implemented in Optika::Generic1DArrayWidget< S >, Optika::Generic1DArrayWidget< double >, Optika::Generic1DArrayWidget< std::string >, Optika::Generic1DArrayWidget< float >, Optika::Generic1DArrayWidget< int >, Optika::Generic1DArrayWidget< short >, Optika::Generic2DArrayWidget< S >, Optika::Generic2DArrayWidget< double >, Optika::Generic2DArrayWidget< std::string >, Optika::Generic2DArrayWidget< float >, Optika::Generic2DArrayWidget< int >, and Optika::Generic2DArrayWidget< short >.

Member Data Documentation

template<class S>

QWidget* Optika::GenericArrayWidget< S >::arrayContainer

protected

The widget containing all of the editing widgets (e.g. QLineEdits, and QSpinBoxes) that comprise the array editor.

Definition at line 168 of file Optika_ArrayWidget.hpp.

template<class S>

QString Optika::GenericArrayWidget< S >::type

private

The type of array.

Definition at line 181 of file Optika_ArrayWidget.hpp.

template<class S>

QString Optika::GenericArrayWidget< S >::name

private

The name of the Parameter being edited.

Definition at line 186 of file Optika_ArrayWidget.hpp.

template<class S>

RCP<const ParameterEntryValidator> Optika::GenericArrayWidget< S >::entryValidator

private

The validator being used on the array.

Definition at line 191 of file Optika_ArrayWidget.hpp.

---

The documentation for this class was generated from the following file:

• Optika_ArrayWidget.hpp
