Interface to underlying groups for pitchfork calculations using the minimally augmented formulation. More...

#include <LOCA_Pitchfork_MinimallyAugmented_AbstractGroup.H>

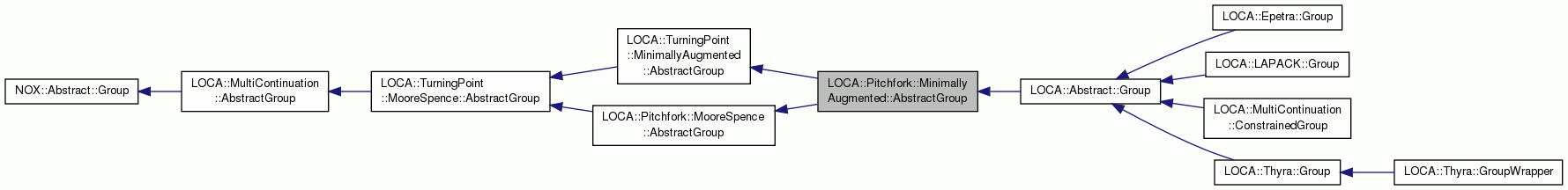

Inheritance diagram for LOCA::Pitchfork::MinimallyAugmented::AbstractGroup:

Collaboration diagram for LOCA::Pitchfork::MinimallyAugmented::AbstractGroup:

Public Member Functions
	AbstractGroup ()
	Default constructor.

virtual	~AbstractGroup ()
	Destructor.

Public Member Functions inherited from LOCA::TurningPoint::MinimallyAugmented::AbstractGroup
	AbstractGroup ()
	Default constructor.

virtual NOX::Abstract::Group::ReturnType	computeDwtJnDp (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &w, const NOX::Abstract::Vector &nullVector, NOX::Abstract::MultiVector::DenseMatrix &result, bool isValid)=0
	Computes the derivative $\partial w^TJn/\partial p$ .

virtual NOX::Abstract::Group::ReturnType	computeDwtJDp (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &w, NOX::Abstract::MultiVector &result, bool isValid)=0
	Computes the derivative $\partial w^TJ/\partial p$ .

virtual NOX::Abstract::Group::ReturnType	computeDwtJnDx (const NOX::Abstract::Vector &w, const NOX::Abstract::Vector &nullVector, NOX::Abstract::Vector &result)=0
	Computes the derivative $\frac{\partial w^TJn}{\partial x}$ .

Public Member Functions inherited from LOCA::TurningPoint::MooreSpence::AbstractGroup
	AbstractGroup ()
	Default constructor.

virtual NOX::Abstract::Group::ReturnType	computeDJnDpMulti (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &nullVector, NOX::Abstract::MultiVector &result, bool isValid)=0
	Computes the derivative $\partial Jn/\partial p$ .

virtual NOX::Abstract::Group::ReturnType	computeDJnDxaMulti (const NOX::Abstract::Vector &nullVector, const NOX::Abstract::MultiVector &aVector, NOX::Abstract::MultiVector &result)=0
	Computes the directional derivative $\frac{\partial Jn}{\partial x} a$ for the given direction .

virtual NOX::Abstract::Group::ReturnType	computeDJnDxaMulti (const NOX::Abstract::Vector &nullVector, const NOX::Abstract::Vector &JnVector, const NOX::Abstract::MultiVector &aVector, NOX::Abstract::MultiVector &result)=0
	Computes the directional derivative $\frac{\partial Jn}{\partial x} a$ for the given direction .

virtual NOX::Abstract::Group::ReturnType	computeDwtJnDxMulti (const NOX::Abstract::MultiVector &w, const NOX::Abstract::Vector &nullVector, NOX::Abstract::MultiVector &result)=0
	Computes the derivative $\frac{\partial w^TJn}{\partial x}$ .

Public Member Functions inherited from LOCA::MultiContinuation::AbstractGroup
	AbstractGroup ()
	Default constructor.

virtual void	copy (const NOX::Abstract::Group &source)=0
	Copy the group (replaces operator = )

virtual void	setParamsMulti (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)=0
	Set parameters indexed by (integer) paramIDs.

virtual void	setParams (const LOCA::ParameterVector &p)=0
	Set the parameter vector in the group to p (pVector = p).

virtual void	setParam (int paramID, double val)=0
	Set parameter indexed by (integer) paramID.

virtual void	setParam (std::string paramID, double val)=0
	Set parameter indexed by (std::string) paramID.

virtual const LOCA::ParameterVector &	getParams () const =0
	Return a const reference to the ParameterVector owned by the group.

virtual double	getParam (int paramID) const =0
	Return copy of parameter indexed by (integer) paramID.

virtual double	getParam (std::string paramID) const =0
	Return copy of parameter indexed by (std::string) paramID.

virtual NOX::Abstract::Group::ReturnType	computeDfDpMulti (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector &dfdp, bool isValidF)=0

virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any preprocessing before a continuation step starts. More...

virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any postprocessing after a continuation step finishes. More...

virtual void	projectToDraw (const NOX::Abstract::Vector &x, double *px) const
	Projects solution to a few scalars for multiparameter continuation. More...

virtual int	projectToDrawDimension () const
	Returns the dimension of the project to draw array. More...

virtual double	computeScaledDotProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
	Compute a scaled dot product. More...

virtual void	printSolution (const double) const
	Function to print out solution and parameter after successful step. More...

virtual void	printSolution (const NOX::Abstract::Vector &, const double) const
	Function to print out a vector and parameter after successful step. More...

virtual void	scaleVector (NOX::Abstract::Vector &x) const
	Scales a vector using scaling vector. More...

Public Member Functions inherited from NOX::Abstract::Group
	Group ()
	Constructor. More...

virtual	~Group ()
	Destructor.

virtual NOX::Abstract::Group &	operator= (const NOX::Abstract::Group &source)=0
	Copies the source group into this group. More...

virtual Teuchos::RCP < NOX::Abstract::Group >	getNestedGroup ()
	Return an internally stored group from this group. More...

virtual Teuchos::RCP< const NOX::Abstract::Group >	getNestedGroup () const
	Return an internally stored group from this group. More...

virtual void	setX (const NOX::Abstract::Vector &y)=0
	Set the solution vector x to y. More...

virtual void	computeX (const NOX::Abstract::Group &grp, const NOX::Abstract::Vector &d, double step)=0
	Compute x = grp.x + step * d. More...

virtual NOX::Abstract::Group::ReturnType	computeF ()=0
	Compute and store F(x). More...

virtual NOX::Abstract::Group::ReturnType	computeJacobian ()
	Compute and store Jacobian. More...

virtual NOX::Abstract::Group::ReturnType	computeGradient ()
	Compute and store gradient. More...

virtual NOX::Abstract::Group::ReturnType	computeNewton (Teuchos::ParameterList &params)
	Compute the Newton direction, using parameters for the linear solve. More...

virtual NOX::Abstract::Group::ReturnType	applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies Jacobian to the given input vector and puts the answer in the result. More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies Jacobian-Transpose to the given input vector and puts the answer in the result. More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result. More...

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Apply right preconditiong to the given input vector. More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyJacobian for multiple right-hand sides More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyJacobianTranspose for multiple right-hand sides More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyJacobianInverse for multiple right-hand sides More...

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyRightPreconditioning for multiple right-hand sides More...

virtual bool	isF () const =0
	Return true if F is valid.

virtual bool	isJacobian () const
	Return true if the Jacobian is valid. More...

virtual bool	isGradient () const
	Return true if the gradient is valid. More...

virtual bool	isNewton () const
	Return true if the Newton direction is valid. More...

virtual const NOX::Abstract::Vector &	getX () const =0
	Return solution vector.

virtual const NOX::Abstract::Vector &	getScaledX () const

virtual const NOX::Abstract::Vector &	getF () const =0
	Return F(x)

virtual double	getNormF () const =0
	Return 2-norm of F(x). More...

virtual const NOX::Abstract::Vector &	getGradient () const =0
	Return gradient.

virtual const NOX::Abstract::Vector &	getNewton () const =0
	Return Newton direction.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getXPtr () const =0
	Return RCP to solution vector.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getFPtr () const =0
	Return RCP to F(x)

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getGradientPtr () const =0
	Return RCP to gradient.

virtual Teuchos::RCP< const NOX::Abstract::Vector >	getNewtonPtr () const =0
	Return RCP to Newton direction.

virtual void	logLastLinearSolveStats (NOX::SolverStats &stats) const
	Adds statistics from last linear solve to the SovlerStats object.

virtual NOX::Abstract::Group::ReturnType	getNormLastLinearSolveResidual (double &residual) const
	Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

virtual Teuchos::RCP < NOX::Abstract::Group >	clone (NOX::CopyType type=NOX::DeepCopy) const =0
	Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group. More...

Public Member Functions inherited from LOCA::Pitchfork::MooreSpence::AbstractGroup
	AbstractGroup ()
	Default constructor.

virtual double	innerProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
	Compute the inner product of `a` and `b`. More...

virtual void	innerProduct (const NOX::Abstract::MultiVector &a, const NOX::Abstract::MultiVector &b, NOX::Abstract::MultiVector::DenseMatrix &c) const
	Compute the inner product of `a` and `b`. More...

Additional Inherited Members
Public Types inherited from NOX::Abstract::Group
enum	ReturnType { Ok, NotDefined, BadDependency, NotConverged, Failed }
	The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...

Detailed Description

Interface to underlying groups for pitchfork calculations using the minimally augmented formulation.

This abstract class provides the required interface for underlying groups to locate pitchforks using the minimally augmented pitchfork formulation (see LOCA::Pitchfork::MinimallyAugmented::ExtendedGroup for a description of the governing equations).

This class is derived from the LOCA::Pitchfork::MooreSpence::AbstractGroup and LOCA::TurningPoint::MinimallyAugmented::AbstractGroup and does not declare any new virtual methods.

The documentation for this class was generated from the following file:

LOCA_Pitchfork_MinimallyAugmented_AbstractGroup.H
