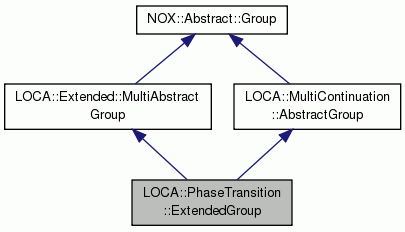

Inheritance diagram for LOCA::PhaseTransition::ExtendedGroup:

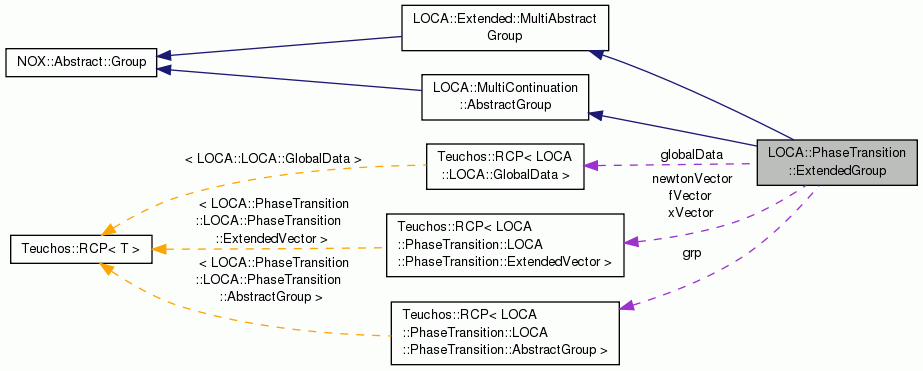

Collaboration diagram for LOCA::PhaseTransition::ExtendedGroup:

Public Member Functions
	ExtendedGroup (const Teuchos::RCP< LOCA::GlobalData > gD, const Teuchos::RCP< Teuchos::ParameterList > &bifurcationparams_, const Teuchos::RCP< LOCA::PhaseTransition::AbstractGroup > &grp_)
	Constructor.

	ExtendedGroup (const LOCA::PhaseTransition::ExtendedGroup &source, NOX::CopyType type=NOX::DeepCopy)
	Copy constructor.

	~ExtendedGroup ()
	Destructor.

NOX::Abstract::Group &	operator= (const NOX::Abstract::Group &source)
	Copies the source group into this group. More...

NOX::Abstract::Group &	operator= (const LOCA::PhaseTransition::ExtendedGroup &source)
	See above.

virtual Teuchos::RCP < NOX::Abstract::Group >	clone (NOX::CopyType type=NOX::DeepCopy) const
	Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group. More...

void	print () const
	Print out the group.

virtual Teuchos::RCP< const LOCA::MultiContinuation::AbstractGroup >	getUnderlyingGroup () const
	Return underlying group.

virtual Teuchos::RCP < LOCA::MultiContinuation::AbstractGroup >	getUnderlyingGroup ()
	Return underlying group.

virtual void	setParamsMulti (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)
	Set parameters indexed by (integer) paramIDs.

virtual NOX::Abstract::Group::ReturnType	computeDfDpMulti (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector &dfdp, bool isValid_F)

"Compute" functions.
void	setX (const NOX::Abstract::Vector &y)
	Set the solution vector x to y. More...

void	setX (const LOCA::PhaseTransition::ExtendedVector &y)
	See above.

void	computeX (const NOX::Abstract::Group &grp, const NOX::Abstract::Vector &d, double step)
	Compute x = grp.x + step * d. More...

void	computeX (const LOCA::PhaseTransition::ExtendedGroup &grp, const LOCA::PhaseTransition::ExtendedVector &d, double step)
	See above.

NOX::Abstract::Group::ReturnType	computeF ()
	Compute and store F(x). More...

NOX::Abstract::Group::ReturnType	computeJacobian ()
	Compute and store Jacobian. More...

NOX::Abstract::Group::ReturnType	computeNewton (Teuchos::ParameterList &params)
	Compute the Newton direction, using parameters for the linear solve. More...

Jacobian operations.
Operations using the Jacobian matrix. These may not be defined in matrix-free scenarios.
NOX::Abstract::Group::ReturnType	applyJacobian (const LOCA::PhaseTransition::ExtendedVector &input, LOCA::PhaseTransition::ExtendedVector &result) const

NOX::Abstract::Group::ReturnType	applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	See above.

NOX::Abstract::Group::ReturnType	applyJacobianInverse (Teuchos::ParameterList &params, const LOCA::PhaseTransition::ExtendedVector &input, LOCA::PhaseTransition::ExtendedVector &result) const

NOX::Abstract::Group::ReturnType	applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result. More...

"Is" functions
Checks to see if various objects have been computed. Returns true if the corresponding "compute" function has been called since the last update to the solution vector (via instantiation or computeX).
bool	isF () const
	Return true if F is valid.

bool	isJacobian () const
	Return true if the Jacobian is valid. More...

bool	isNewton () const
	Return true if the Newton direction is valid. More...

"Get" functions
Note that these function do not check whether or not the vectors are valid. Must use the "Is" functions for that purpose.
const NOX::Abstract::Vector &	getX () const
	Return solution vector.

const NOX::Abstract::Vector &	getF () const
	Return F(x)

double	getNormF () const
	Return 2-norm of F(x). More...

const NOX::Abstract::Vector &	getNewton () const
	Return Newton direction.

const NOX::Abstract::Vector &	getGradient () const
	Return gradient.

Teuchos::RCP< const NOX::Abstract::Vector >	getXPtr () const
	Return RCP to solution vector.

Teuchos::RCP< const NOX::Abstract::Vector >	getFPtr () const
	Return RCP to F(x)

Teuchos::RCP< const NOX::Abstract::Vector >	getNewtonPtr () const
	Return RCP to Newton direction.

Teuchos::RCP< const NOX::Abstract::Vector >	getGradientPtr () const
	Return RCP to gradient.


void	copy (const NOX::Abstract::Group &source)
	Start methods for LOCA::Abstract::Group.

void	setParams (const LOCA::ParameterVector &p)
	Set the parameter vector in the group to p (pVector = p).

void	setParam (int paramID, double val)
	Set parameter indexed by (integer) paramID.

void	setParam (std::string paramID, double val)
	Set parameter indexed by (std::string) paramID.

const LOCA::ParameterVector &	getParams () const
	Return a const reference to the ParameterVector owned by the group.

double	getParam (int paramID) const
	Return copy of parameter indexed by (integer) paramID.

double	getParam (std::string paramID) const
	Return copy of parameter indexed by (std::string) paramID.

void	printSolution (const NOX::Abstract::Vector &solution, const double param) const
	Set parameter indexed by (std::string) paramID.

void	printSolution (const double param) const
	Function to print out solution and parameter after successful step. More...

Public Member Functions inherited from LOCA::Extended::MultiAbstractGroup
	MultiAbstractGroup ()
	Default constructor.

virtual	~MultiAbstractGroup ()
	Destructor.

virtual Teuchos::RCP < NOX::Abstract::Group >	getNestedGroup ()
	Override from NOX::Abstract::Group base class. Calls getUnderlyingGroup() from this class.

virtual Teuchos::RCP< const NOX::Abstract::Group >	getNestedGroup () const
	Override from NOX::Abstract::Group base class. Calls getUnderlyingGroup() from this class.

virtual Teuchos::RCP< const LOCA::MultiContinuation::AbstractGroup >	getBaseLevelUnderlyingGroup () const
	Return base-level underlying group. More...

virtual Teuchos::RCP < LOCA::MultiContinuation::AbstractGroup >	getBaseLevelUnderlyingGroup ()
	Return base-level underlying group. More...

Public Member Functions inherited from NOX::Abstract::Group
	Group ()
	Constructor. More...

virtual	~Group ()
	Destructor.

virtual NOX::Abstract::Group::ReturnType	computeGradient ()
	Compute and store gradient. More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Applies Jacobian-Transpose to the given input vector and puts the answer in the result. More...

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
	Apply right preconditiong to the given input vector. More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyJacobian for multiple right-hand sides More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyJacobianTranspose for multiple right-hand sides More...

virtual NOX::Abstract::Group::ReturnType	applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyJacobianInverse for multiple right-hand sides More...

virtual NOX::Abstract::Group::ReturnType	applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
	applyRightPreconditioning for multiple right-hand sides More...

virtual bool	isGradient () const
	Return true if the gradient is valid. More...

virtual const NOX::Abstract::Vector &	getScaledX () const

virtual void	logLastLinearSolveStats (NOX::SolverStats &stats) const
	Adds statistics from last linear solve to the SovlerStats object.

virtual NOX::Abstract::Group::ReturnType	getNormLastLinearSolveResidual (double &residual) const
	Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

Public Member Functions inherited from LOCA::MultiContinuation::AbstractGroup
	AbstractGroup ()
	Default constructor.

virtual	~AbstractGroup ()
	Destructor.

virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any preprocessing before a continuation step starts. More...

virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
	Perform any postprocessing after a continuation step finishes. More...

virtual void	projectToDraw (const NOX::Abstract::Vector &x, double *px) const
	Projects solution to a few scalars for multiparameter continuation. More...

virtual int	projectToDrawDimension () const
	Returns the dimension of the project to draw array. More...

virtual double	computeScaledDotProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
	Compute a scaled dot product. More...

virtual void	scaleVector (NOX::Abstract::Vector &x) const
	Scales a vector using scaling vector. More...

Protected Member Functions
void	resetIsValid ()
	resets the isValid flags to false

Protected Attributes
Teuchos::RCP < LOCA::PhaseTransition::AbstractGroup >	grp
	Solution vector.

double	normF

const Teuchos::RCP < LOCA::GlobalData >	globalData

int	bifParamID

Vectors
Teuchos::RCP < LOCA::PhaseTransition::ExtendedVector >	xVector
	Solution vector.

Teuchos::RCP < LOCA::PhaseTransition::ExtendedVector >	fVector
	Right-hand-side vector (function evaluation).

Teuchos::RCP < LOCA::PhaseTransition::ExtendedVector >	newtonVector
	Newton direction vector.

IsValid flags
True if the current solution is up-to-date with respect to the currect xVector.
bool	isValidF

bool	isValidJacobian

bool	isValidNewton

Additional Inherited Members
Public Types inherited from NOX::Abstract::Group
enum	ReturnType { Ok, NotDefined, BadDependency, NotConverged, Failed }
	The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...

Member Function Documentation

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::applyJacobianInverse	(	Teuchos::ParameterList &	params,
		const NOX::Abstract::Vector &	input,
		NOX::Abstract::Vector &	result
	)		const

virtual

Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result.

Computes

$v = J^{-1} u,$

where $ J$ is the Jacobian, $ u$ is the input vector, and $ v$ is the result vector.

The "Tolerance" parameter specifies that the solution should be such that

$\frac{\| J v - u \|_2}{\max \{ 1, \|u\|_2\} } < \mbox{Tolerance}$

Returns

NOX::Abstract::Group::NotDefined - Returned by default implementation in NOX::Abstract::Group
NOX::Abstract::Group::BadDependency - If has not been computed
NOX::Abstract::Group::NotConverged - If the linear solve fails to satisfy the "Tolerance" specified in params
NOX::Abstract::Group::Failed - If the computation fails
NOX::Abstract::Group::Ok - Otherwise

The parameter "Tolerance" may be added/modified in the list of parameters - this is the ideal solution tolerance for an iterative linear solve.

Reimplemented from NOX::Abstract::Group.

Teuchos::RCP< NOX::Abstract::Group > LOCA::PhaseTransition::ExtendedGroup::clone ( NOX::CopyType type = NOX::DeepCopy ) const

virtual

Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group.

If type is NOX::DeepCopy, then we need to create an exact replica of "this". Otherwise, if type is NOX::ShapeCopy, we need only replicate the shape of "this" (only the memory is allocated, the values are not copied into the vectors and Jacobian). Returns NULL if clone is not supported.

Note: Any shared data should have its ownership transfered to this group from the source for a NOX::DeepCopy.

Implements NOX::Abstract::Group.

References Teuchos::rcp().

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeDfDpMulti	(	const std::vector< int > &	paramIDs,
		NOX::Abstract::MultiVector &	dfdp,
		bool	isValidF
	)

virtual

Compute $\partial F/\partial p$ for each parameter $ p$ indexed by paramIDs. The first column of dfdp holds F, which is valid if isValidF is true. Otherwise F must be computed.

Implements LOCA::MultiContinuation::AbstractGroup.

References NOX::Abstract::Group::BadDependency.

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeF ( )

virtual

Compute and store F(x).

Note: It's generally useful to also compute and store the 2-norm of F(x) at this point for later access by the getNormF() function.

Returns

NOX::Abstract::Group::Failed - If the computation fails in any way
NOX::Abstract::Group::Ok - Otherwise

Implements NOX::Abstract::Group.

References NOX::Abstract::Group::Ok.

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeJacobian ( )

virtual

Compute and store Jacobian.

Recall that

$F(x) = \left[ \begin{array}{c} F_1(x) \\ F_2(x) \\ \vdots \\ F_n(x) \\ \end{array} \right].$

The Jacobian is denoted by $ J$ and defined by

$J_{ij} = \frac{\partial F_i}{\partial x_j} (x).$

Note: If this is a shared object, this group should take ownership of the Jacobian before it computes it.

Returns

NOX::Abstract::Group::NotDefined - Returned by default implementation in NOX::Abstract::Group
NOX::Abstract::Group::Failed - If the computation fails in any other way
NOX::Abstract::Group::Ok - Otherwise

Reimplemented from NOX::Abstract::Group.

References NOX::Abstract::Group::Ok.

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeNewton ( Teuchos::ParameterList & params )

virtual

Compute the Newton direction, using parameters for the linear solve.

The Newton direction is the solution, s, of

$J s = -F.$

The parameters are from the "Linear %Solver" sublist of the "Direction" sublist that is passed to solver during construction.

The "Tolerance" parameter may be added/modified in the sublist of "Linear Solver" parameters that is passed into this function. The solution should be such that

$\frac{\| J s - (-F) \|_2}{\max \{ 1, \|F\|_2\} } < \mbox{Tolerance}$

Returns

NOX::Abstract::Group::NotDefined - Returned by default implementation in NOX::Abstract::Group
NOX::Abstract::Group::BadDependency - If either or has not been computed
NOX::Abstract::Group::NotConverged - If the linear solve fails to satisfy the "Tolerance" specified in params
NOX::Abstract::Group::Failed - If the computation fails in any other way
NOX::Abstract::Group::Ok - Otherwise

Reimplemented from NOX::Abstract::Group.

References NOX::Abstract::Group::Ok.

void LOCA::PhaseTransition::ExtendedGroup::computeX	(	const NOX::Abstract::Group &	grp,
		const NOX::Abstract::Vector &	d,
		double	step
	)

virtual

Compute x = grp.x + step * d.

Let $ x$ denote this group's solution vector. Let $\hat x$ denote the result of grp.getX(). Then set

$x = \hat x + \mbox{step} \; d.$

Note: This should invalidate the function value, Jacobian, gradient, and Newton direction.; Throw an error if the copy fails.

Returns: Reference to this object

Implements NOX::Abstract::Group.

double LOCA::PhaseTransition::ExtendedGroup::getNormF ( ) const

virtual

Return 2-norm of F(x).

In other words,

$\sqrt{\sum_{i=1}^n F_i^2}$

Implements NOX::Abstract::Group.

bool LOCA::PhaseTransition::ExtendedGroup::isJacobian ( ) const

virtual

Return true if the Jacobian is valid.

Note: Default implementation in NOX::Abstract::Group returns false.

Reimplemented from NOX::Abstract::Group.

bool LOCA::PhaseTransition::ExtendedGroup::isNewton ( ) const

virtual

Return true if the Newton direction is valid.

Note: Default implementation in NOX::Abstract::Group returns false.

Reimplemented from NOX::Abstract::Group.

NOX::Abstract::Group & LOCA::PhaseTransition::ExtendedGroup::operator= ( const NOX::Abstract::Group & source )

virtual

Copies the source group into this group.

Note: Any shared data owned by the source should have its ownership transfered to this group. This may result in a secret modification to the source object.

Implements NOX::Abstract::Group.

void LOCA::PhaseTransition::ExtendedGroup::printSolution ( const double ) const

virtual

Function to print out solution and parameter after successful step.

Empty default definition.

Reimplemented from LOCA::MultiContinuation::AbstractGroup.

void LOCA::PhaseTransition::ExtendedGroup::setX ( const NOX::Abstract::Vector & y )

virtual

Set the solution vector x to y.
