Preconditioner (wrapped as a Xpetra::Operator) for Maxwell's equations in curl-curl form. More...

#include <MueLu_Maxwell1_decl.hpp>

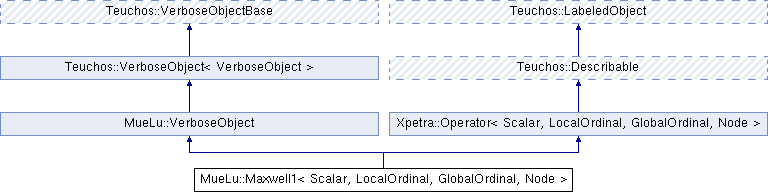

Inheritance diagram for MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Types
using	magnitudeType = typename Teuchos::ScalarTraits< Scalar >::magnitudeType

using	coordinateType = typename Teuchos::ScalarTraits< Scalar >::coordinateType

using	RealValuedMultiVector = typename Xpetra::MultiVector< coordinateType, LO, GO, NO >

Public Member Functions
	Maxwell1 ()
	Constructor. More...

	Maxwell1 (Teuchos::RCP< Hierarchy > H11, Teuchos::RCP< Hierarchy > H22)
	Constructor with Hierarchies. More...

	Maxwell1 (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< MultiVector > &Nullspace, const Teuchos::RCP< RealValuedMultiVector > &Coords, Teuchos::ParameterList &List, bool ComputePrec=true)

	Maxwell1 (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &Kn_Matrix, const Teuchos::RCP< MultiVector > &Nullspace, const Teuchos::RCP< RealValuedMultiVector > &Coords, Teuchos::ParameterList &List, bool ComputePrec=true)

	Maxwell1 (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &Kn_Matrix, const Teuchos::RCP< MultiVector > &Nullspace, const Teuchos::RCP< RealValuedMultiVector > &Coords, const Teuchos::RCP< MultiVector > &Material, Teuchos::ParameterList &List, bool ComputePrec=true)

	Maxwell1 (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &Kn_Matrix, const Teuchos::RCP< MultiVector > &Nullspace, const Teuchos::RCP< RealValuedMultiVector > &Coords, Teuchos::ParameterList &List, const Teuchos::RCP< Matrix > &GmhdA_Matrix, bool ComputePrec=true)

	Maxwell1 (const Teuchos::RCP< Matrix > &SM_Matrix, Teuchos::ParameterList &List, bool ComputePrec=true)

virtual	~Maxwell1 ()=default
	Destructor. More...

const Teuchos::RCP< const Map >	getDomainMap () const
	Returns the Xpetra::Map object associated with the domain of this operator. More...

const Teuchos::RCP< const Map >	getRangeMap () const
	Returns the Xpetra::Map object associated with the range of this operator. More...

const Teuchos::RCP< Matrix > &	getJacobian () const
	Returns Jacobian matrix SM. More...

void	setParameters (Teuchos::ParameterList &list)
	Set parameters. More...

void	compute (bool reuse=false)
	Setup the preconditioner. More...

void	resetMatrix (Teuchos::RCP< Matrix > SM_Matrix_new, bool ComputePrec=true)
	Reset system matrix. More...

void	apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const

bool	hasTransposeApply () const
	Indicates whether this operator supports applying the adjoint operator. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::VERB_HIGH) const

void	residual (const MultiVector &X, const MultiVector &B, MultiVector &R) const
	Compute a residual R = B - (this) X. More...

Public Member Functions inherited from MueLu::VerboseObject
VerbLevel	GetVerbLevel () const
	Get the verbosity level. More...

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object. More...

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose. More...

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing. More...

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type. More...

Teuchos::FancyOStream &	GetBlackHole () const

	VerboseObject ()

virtual	~VerboseObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< ObjectType > verboseObject)

Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()

	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream >	getOStream () const

virtual RCP< FancyOStream >	getOverridingOStream () const

virtual std::string	getLinePrefix () const

virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const

Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void	removeEmptyProcessesInPlace (const RCP< const Map > &)

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Private Types
enum	mode_type { MODE_STANDARD = 0, MODE_REFMAXWELL, MODE_EDGE_ONLY, MODE_GMHD_STANDARD }
	Execution modes. More...

Private Member Functions
Teuchos::RCP< Matrix >	generate_kn () const
	Generates the Kn matrix. More...

void	GMHDSetupHierarchy (Teuchos::ParameterList &List) const
	Sets up hiearchy for GMHD matrices that include generalized Ohms law equations. More...

void	initialize (const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &Kn_Matrix, const Teuchos::RCP< MultiVector > &Nullspace, const Teuchos::RCP< RealValuedMultiVector > &Coords, const Teuchos::RCP< MultiVector > &Material, Teuchos::ParameterList &List)

void	applyInverseRefMaxwellAdditive (const MultiVector &RHS, MultiVector &X) const
	apply RefMaxwell additive 2x2 style cycle More...

void	applyInverseStandard (const MultiVector &RHS, MultiVector &X) const
	apply standard Maxwell1 cycle More...

void	allocateMemory (int numVectors) const
	allocate multivectors for solve More...

void	dump (const Matrix &A, std::string name) const
	dump out matrix More...

void	dump (const MultiVector &X, std::string name) const
	dump out multivector More...

void	dumpCoords (const RealValuedMultiVector &X, std::string name) const
	dump out real-valued multivector More...

void	dump (const Teuchos::ArrayRCP< bool > &v, std::string name) const
	dump out boolean ArrayView More...

void	dump (const Kokkos::View< bool *, typename Node::device_type > &v, std::string name) const
	dump out boolean Kokkos::View More...

Teuchos::RCP < Teuchos::TimeMonitor >	getTimer (std::string name, RCP< const Teuchos::Comm< int > > comm=Teuchos::null) const
	get a (synced) timer More...

Private Attributes
Teuchos::ParameterList	parameterList_
	ParameterLists. More...

Teuchos::ParameterList	precList11_

Teuchos::ParameterList	precList22_

Teuchos::RCP< Hierarchy >	Hierarchy11_
	Two hierarchies: one for the (1,1)-block, another for the (2,2)-block. More...

Teuchos::RCP< Hierarchy >	Hierarchy22_

Teuchos::RCP< Hierarchy >	HierarchyGmhd_

Teuchos::RCP< Matrix >	SM_Matrix_
	Various matrices. More...

Teuchos::RCP< Matrix >	D0_Matrix_

Teuchos::RCP< Matrix >	Kn_Matrix_

Teuchos::RCP< Matrix >	GmhdA_Matrix_

Kokkos::View< bool *, typename Node::device_type::memory_space >	BCrowsKokkos_
	Vectors for BCs. More...

Kokkos::View< bool *, typename Node::device_type::memory_space >	BCcolsKokkos_

Kokkos::View< bool *, typename Node::device_type::memory_space >	BCdomainKokkos_

int	BCedges_

int	BCnodes_

Teuchos::ArrayRCP< bool >	BCrows_

Teuchos::ArrayRCP< bool >	BCcols_

Teuchos::ArrayRCP< bool >	BCdomain_

Teuchos::RCP< MultiVector >	Nullspace_
	Nullspace. More...

Teuchos::RCP < RealValuedMultiVector >	Coords_
	Coordinates. More...

Teuchos::RCP< MultiVector >	Material_
	Material. More...

bool	useKokkos_
	Some options. More...

bool	allEdgesBoundary_

bool	allNodesBoundary_

bool	dump_matrices_

bool	enable_reuse_

bool	syncTimers_

bool	applyBCsTo22_

mode_type	mode_

RCP< Matrix >	P11_
	Temporary memory (cached vectors for RefMaxwell-style) More...

Teuchos::RCP< MultiVector >	residualFine_

Teuchos::RCP< MultiVector >	residual11c_

Teuchos::RCP< MultiVector >	residual22_

Teuchos::RCP< MultiVector >	update11c_

Teuchos::RCP< MultiVector >	update22_

Additional Inherited Members
Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP < Teuchos::FancyOStream >	GetMueLuOStream ()

static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level. More...

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level. More...

Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream >	getDefaultOStream ()

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void	informUpdatedVerbosityState () const

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
class MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Preconditioner (wrapped as a Xpetra::Operator) for Maxwell's equations in curl-curl form.

Definition at line 46 of file MueLu_Maxwell1_decl.hpp.

Member Typedef Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

using MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::magnitudeType = typename Teuchos::ScalarTraits<Scalar>::magnitudeType

Definition at line 51 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

using MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coordinateType = typename Teuchos::ScalarTraits<Scalar>::coordinateType

Definition at line 52 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

using MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RealValuedMultiVector = typename Xpetra::MultiVector<coordinateType, LO, GO, NO>

Definition at line 53 of file MueLu_Maxwell1_decl.hpp.

Member Enumeration Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

enum MueLu::Maxwell1::mode_type

private

Execution modes.

Enumerator
MODE_STANDARD
MODE_REFMAXWELL
MODE_EDGE_ONLY
MODE_GMHD_STANDARD

Definition at line 302 of file MueLu_Maxwell1_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Maxwell1 ( )

inline

Constructor.

Definition at line 56 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Maxwell1	(	Teuchos::RCP< Hierarchy >	H11,
		Teuchos::RCP< Hierarchy >	H22
	)

inline

Constructor with Hierarchies.

Definition at line 64 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Maxwell1	(	const Teuchos::RCP< Matrix > &	SM_Matrix,
		const Teuchos::RCP< Matrix > &	D0_Matrix,
		const Teuchos::RCP< MultiVector > &	Nullspace,
		const Teuchos::RCP< RealValuedMultiVector > &	Coords,
		Teuchos::ParameterList &	List,
		bool	ComputePrec = `true`
	)

inline

Constructor with Jacobian

Parameters

[in]	SM_Matrix	Jacobian
[in]	D0_Matrix	Discrete Gradient
[in]	Nullspace	Null space (needed for periodic)
[in]	Coords	Nodal coordinates
[in]	List	Parameter list
[in]	ComputePrec	If true, compute the preconditioner immediately

Definition at line 80 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Maxwell1	(	const Teuchos::RCP< Matrix > &	SM_Matrix,
		const Teuchos::RCP< Matrix > &	D0_Matrix,
		const Teuchos::RCP< Matrix > &	Kn_Matrix,
		const Teuchos::RCP< MultiVector > &	Nullspace,
		const Teuchos::RCP< RealValuedMultiVector > &	Coords,
		Teuchos::ParameterList &	List,
		bool	ComputePrec = `true`
	)

inline

Constructor with Jacobian and nodal matrix

Parameters

[in]	SM_Matrix	Jacobian
[in]	D0_Matrix	Discrete Gradient
[in]	Kn_Matrix	Nodal Laplacian
[in]	Coords	Nodal coordinates
[in]	List	Parameter list
[in]	ComputePrec	If true, compute the preconditioner immediately

Definition at line 101 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Maxwell1	(	const Teuchos::RCP< Matrix > &	SM_Matrix,
		const Teuchos::RCP< Matrix > &	D0_Matrix,
		const Teuchos::RCP< Matrix > &	Kn_Matrix,
		const Teuchos::RCP< MultiVector > &	Nullspace,
		const Teuchos::RCP< RealValuedMultiVector > &	Coords,
		const Teuchos::RCP< MultiVector > &	Material,
		Teuchos::ParameterList &	List,
		bool	ComputePrec = `true`
	)

inline

Constructor with Jacobian and nodal matrix

Parameters

[in]	SM_Matrix	Jacobian
[in]	D0_Matrix	Discrete Gradient
[in]	Kn_Matrix	Nodal Laplacian
[in]	Coords	Nodal coordinates
[in]	List	Parameter list
[in]	ComputePrec	If true, compute the preconditioner immediately

Definition at line 122 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Maxwell1	(	const Teuchos::RCP< Matrix > &	SM_Matrix,
		const Teuchos::RCP< Matrix > &	D0_Matrix,
		const Teuchos::RCP< Matrix > &	Kn_Matrix,
		const Teuchos::RCP< MultiVector > &	Nullspace,
		const Teuchos::RCP< RealValuedMultiVector > &	Coords,
		Teuchos::ParameterList &	List,
		const Teuchos::RCP< Matrix > &	GmhdA_Matrix,
		bool	ComputePrec = `true`
	)

inline

Gmhd GMHD Constructor with Jacobian and nodal matrix AND Gmhd matrix

Parameters

[in]	SM_Matrix	Jacobian
[in]	D0_Matrix	Discrete Gradient
[in]	Kn_Matrix	Nodal Laplacian
[in]	Coords	Nodal coordinates
[in]	List	Parameter list
[in]	GmhdA_Matrix	Gmhd matrix including generalized Ohms law equations
[in]	ComputePrec	If true, compute the preconditioner immediately

Definition at line 145 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Maxwell1	(	const Teuchos::RCP< Matrix > &	SM_Matrix,
		Teuchos::ParameterList &	List,
		bool	ComputePrec = `true`
	)

inline

Constructor with parameter list

Parameters

[in]	SM_Matrix	Jacobian
[in]	List	Parameter list
[in]	ComputePrec	If true, compute the preconditioner immediately

Definition at line 166 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

virtual MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~Maxwell1 ( )

virtualdefault

Destructor.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

virtual

Returns the Xpetra::Map object associated with the domain of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 49 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

virtual

Returns the Xpetra::Map object associated with the range of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 54 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const Teuchos::RCP<Matrix>& MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getJacobian ( ) const

inline

Returns Jacobian matrix SM.

Definition at line 193 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setParameters ( Teuchos::ParameterList & list )

Set parameters.

Definition at line 59 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::compute ( bool reuse = false )

Setup the preconditioner.

Definition at line 226 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::resetMatrix	(	Teuchos::RCP< Matrix >	SM_Matrix_new,
		bool	ComputePrec = `true`
	)

Reset system matrix.

Definition at line 678 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector &	X,
		MultiVector &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits<Scalar>::one()`,
		Scalar	beta = `Teuchos::ScalarTraits<Scalar>::zero()`
	)		const

virtual

Returns in Y the result of a Xpetra::Operator applied to a Xpetra::MultiVector X.

Parameters

[in]	X	- MultiVector of dimension NumVectors to multiply with matrix.
[out]	Y	- MultiVector of dimension NumVectors containing result.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 746 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

Indicates whether this operator supports applying the adjoint operator.

Definition at line 762 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::VERB_HIGH`
	)		const

virtual

Reimplemented from Teuchos::Describable.

Definition at line 844 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual	(	const MultiVector &	X,
		const MultiVector &	B,
		MultiVector &	R
	)		const

inline

Compute a residual R = B - (*this) * X.

Definition at line 220 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::generate_kn ( ) const

private

Generates the Kn matrix.

Definition at line 585 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GMHDSetupHierarchy ( Teuchos::ParameterList & List ) const

private

Sets up hiearchy for GMHD matrices that include generalized Ohms law equations.

Definition at line 207 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::initialize	(	const Teuchos::RCP< Matrix > &	D0_Matrix,
		const Teuchos::RCP< Matrix > &	Kn_Matrix,
		const Teuchos::RCP< MultiVector > &	Nullspace,
		const Teuchos::RCP< RealValuedMultiVector > &	Coords,
		const Teuchos::RCP< MultiVector > &	Material,
		Teuchos::ParameterList &	List
	)

private

Initialize with matrices except the Jacobian (don't compute the preconditioner)

Parameters

[in]	D0_Matrix	Discrete Gradient
[in]	Kn_Matrix	Kn nodal matrix
[in]	Nullspace	Null space (needed for periodic)
[in]	Coords	Nodal coordinates
[in]	Material	material multivector
[in]	List	Parameter list

Definition at line 768 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::applyInverseRefMaxwellAdditive	(	const MultiVector &	RHS,
		MultiVector &	X
	)		const

private

apply RefMaxwell additive 2x2 style cycle

Definition at line 687 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::applyInverseStandard	(	const MultiVector &	RHS,
		MultiVector &	X
	)		const

private

apply standard Maxwell1 cycle

Definition at line 741 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::allocateMemory ( int numVectors ) const

private

allocate multivectors for solve

Definition at line 596 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump	(	const Matrix &	A,
		std::string	name
	)		const

private

dump out matrix

Definition at line 617 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump	(	const MultiVector &	X,
		std::string	name
	)		const

private

dump out multivector

Definition at line 625 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dumpCoords	(	const RealValuedMultiVector &	X,
		std::string	name
	)		const

private

dump out real-valued multivector

Definition at line 633 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump	(	const Teuchos::ArrayRCP< bool > &	v,
		std::string	name
	)		const

private

dump out boolean ArrayView

Definition at line 641 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump	(	const Kokkos::View< bool *, typename Node::device_type > &	v,
		std::string	name
	)		const

private

dump out boolean Kokkos::View

Definition at line 651 of file MueLu_Maxwell1_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< Teuchos::TimeMonitor > MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getTimer	(	std::string	name,
		RCP< const Teuchos::Comm< int > >	comm = `Teuchos::null`
	)		const

private

get a (synced) timer

Definition at line 663 of file MueLu_Maxwell1_def.hpp.

Member Data Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ParameterList MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::parameterList_

mutableprivate

ParameterLists.

Definition at line 279 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ParameterList MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::precList11_

mutableprivate

Definition at line 279 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ParameterList MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::precList22_

mutableprivate

Definition at line 279 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<Hierarchy> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy11_

private

Two hierarchies: one for the (1,1)-block, another for the (2,2)-block.

Definition at line 282 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<Hierarchy> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy22_

private

Definition at line 282 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<Hierarchy> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::HierarchyGmhd_

private

Definition at line 282 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<Matrix> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SM_Matrix_

private

Various matrices.

Definition at line 285 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<Matrix> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::D0_Matrix_

private

Definition at line 285 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<Matrix> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Kn_Matrix_

private

Definition at line 285 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<Matrix> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GmhdA_Matrix_

private

Definition at line 285 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Kokkos::View<bool*, typename Node::device_type::memory_space> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCrowsKokkos_

private

Vectors for BCs.

Definition at line 288 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Kokkos::View<bool*, typename Node::device_type::memory_space> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCcolsKokkos_

private

Definition at line 288 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Kokkos::View<bool*, typename Node::device_type::memory_space> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCdomainKokkos_

private

Definition at line 288 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

int MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCedges_

private

Definition at line 289 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

int MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCnodes_

private

Definition at line 289 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ArrayRCP<bool> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCrows_

private

Definition at line 290 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ArrayRCP<bool> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCcols_

private

Definition at line 290 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ArrayRCP<bool> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCdomain_

private

Definition at line 290 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<MultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Nullspace_

private

Nullspace.

Definition at line 292 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<RealValuedMultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Coords_

private

Coordinates.

Definition at line 294 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<MultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Material_

private

Material.

Definition at line 296 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::useKokkos_

private

Some options.

Definition at line 298 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::allEdgesBoundary_

private

Definition at line 298 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::allNodesBoundary_

private

Definition at line 298 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump_matrices_

private

Definition at line 298 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::enable_reuse_

private

Definition at line 298 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::syncTimers_

private

Definition at line 298 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::applyBCsTo22_

private

Definition at line 299 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

mode_type MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::mode_

private

Definition at line 306 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP<Matrix> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P11_

private

Temporary memory (cached vectors for RefMaxwell-style)

Definition at line 309 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<MultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residualFine_

mutableprivate

Definition at line 310 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<MultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual11c_

mutableprivate

Definition at line 310 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<MultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual22_

mutableprivate

Definition at line 310 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<MultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::update11c_

mutableprivate

Definition at line 310 of file MueLu_Maxwell1_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP<MultiVector> MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >::update22_

mutableprivate

Definition at line 310 of file MueLu_Maxwell1_decl.hpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node> class MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
class MueLu::Maxwell1< Scalar, LocalOrdinal, GlobalOrdinal, Node >
