MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Preconditioner (wrapped as a Xpetra::Operator) for Maxwell's equations in curl-curl form. More...

#include <MueLu_RefMaxwell_decl.hpp>

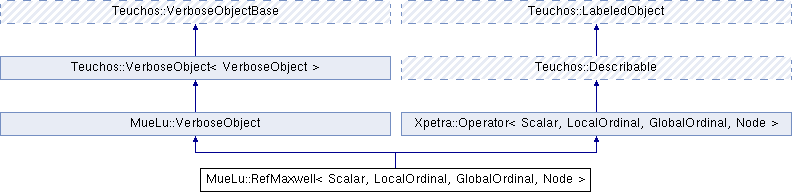

Inheritance diagram for MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::VerboseObject Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Public Types

typedef Teuchos::ScalarTraits
< Scalar >::magnitudeType
magnitudeType

typedef Teuchos::ScalarTraits
< Scalar >::coordinateType
coordinateType

typedef Xpetra::MultiVector
< coordinateType, LO, GO, NO
RealValuedMultiVector


Public Member Functions

 RefMaxwell ()
 Constructor. More...

 RefMaxwell (Teuchos::RCP< Hierarchy > HH, Teuchos::RCP< Hierarchy > H22)
 Constructor with Hierarchies. More...

 RefMaxwell (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &Dk_1, const Teuchos::RCP< Matrix > &Dk_2, const Teuchos::RCP< Matrix > &D0, const Teuchos::RCP< Matrix > &M1_beta, const Teuchos::RCP< Matrix > &M1_alpha, const Teuchos::RCP< Matrix > &Mk_one, const Teuchos::RCP< Matrix > &Mk_1_one, const Teuchos::RCP< Matrix > &invMk_1_invBeta, const Teuchos::RCP< Matrix > &invMk_2_invAlpha, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< MultiVector > &Nullspace22, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List, bool ComputePrec=true)

 RefMaxwell (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &Ms_Matrix, const Teuchos::RCP< Matrix > &M0inv_Matrix, const Teuchos::RCP< Matrix > &M1_Matrix, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List, bool ComputePrec=true)

 RefMaxwell (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &M0inv_Matrix, const Teuchos::RCP< Matrix > &M1_Matrix, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List, bool ComputePrec=true)

 RefMaxwell (const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &M0inv_Matrix, const Teuchos::RCP< Matrix > &M1_Matrix, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List)

 RefMaxwell (const Teuchos::RCP< Matrix > &SM_Matrix, const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &M1_Matrix, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List, bool ComputePrec)

 RefMaxwell (const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &M1_Matrix, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List)

 RefMaxwell (const Teuchos::RCP< Matrix > &SM_Matrix, Teuchos::ParameterList &List, bool ComputePrec=true)

virtual ~RefMaxwell ()
 Destructor. More...

const Teuchos::RCP< const MapgetDomainMap () const
 Returns the Xpetra::Map object associated with the domain of this operator. More...

const Teuchos::RCP< const MapgetRangeMap () const
 Returns the Xpetra::Map object associated with the range of this operator. More...

const Teuchos::RCP< Matrix > & getJacobian () const
 Returns Jacobian matrix SM. More...

void setParameters (Teuchos::ParameterList &list)
 Set parameters. More...

void compute (bool reuse=false)
 Setup the preconditioner. More...

void resetMatrix (Teuchos::RCP< Matrix > SM_Matrix_new, bool ComputePrec=true)
 Reset system matrix. More...

void apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const

bool hasTransposeApply () const
 Indicates whether this operator supports applying the adjoint operator. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::VERB_HIGH) const

void residual (const MultiVector &X, const MultiVector &B, MultiVector &R) const
 Compute a residual R = B - (*this) * X. More...

RCP< MultiVectorbuildNullspace (const int spaceNumber, const Kokkos::View< bool *, typename Node::device_type > &bcs, const bool applyBCs)
 Builds a nullspace. More...

Teuchos::RCP< Matrix > buildProjection (const int spaceNumber, const RCP< MultiVector > &EdgeNullspace) const
 Builds a projection from a vector values space into a vector valued nodal space. More...

void buildNodalProlongator (const Teuchos::RCP< Matrix > &A_nodal, Teuchos::RCP< Matrix > &P_nodal, Teuchos::RCP< MultiVector > &Nullspace_nodal, Teuchos::RCP< RealValuedMultiVector > &Coords_nodal) const

RCP< Matrix > buildVectorNodalProlongator (const Teuchos::RCP< Matrix > &P_nodal) const

void buildProlongator (const int spaceNumber, const Teuchos::RCP< Matrix > &A_nodal_Matrix, const RCP< MultiVector > &EdgeNullspace, Teuchos::RCP< Matrix > &edgeProlongator, Teuchos::RCP< MultiVector > &coarseEdgeNullspace, Teuchos::RCP< RealValuedMultiVector > &coarseNodalCoords) const

RCP< Matrix > buildAddon (const int spaceNumber)

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void removeEmptyProcessesInPlace (const RCP< const Map > &)

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)


Private Member Functions

Teuchos::RCP
< Teuchos::ParameterList
getValidParamterList ()

void initialize (const Teuchos::RCP< Matrix > &D0_Matrix, const Teuchos::RCP< Matrix > &Ms_Matrix, const Teuchos::RCP< Matrix > &M0inv_Matrix, const Teuchos::RCP< Matrix > &M1_Matrix, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List)

void initialize (const int k, const Teuchos::RCP< Matrix > &Dk_1, const Teuchos::RCP< Matrix > &Dk_2, const Teuchos::RCP< Matrix > &D0, const Teuchos::RCP< Matrix > &M1_beta, const Teuchos::RCP< Matrix > &M1_alpha, const Teuchos::RCP< Matrix > &Mk_one, const Teuchos::RCP< Matrix > &Mk_1_one, const Teuchos::RCP< Matrix > &invMk_1_invBeta, const Teuchos::RCP< Matrix > &invMk_2_invAlpha, const Teuchos::RCP< MultiVector > &Nullspace11, const Teuchos::RCP< MultiVector > &Nullspace22, const Teuchos::RCP< RealValuedMultiVector > &NodalCoords, Teuchos::ParameterList &List)

void determineSubHierarchyCommSizes (bool &doRebalancing, int &rebalanceStriding, int &numProcsCoarseA11, int &numProcsA22)
 Determine how large the sub-communicators for the two hierarchies should be. More...

void buildCoarse11Matrix ()
 Compute coarseA11 = P11^{T}*SM*P11 + addon efficiently. More...

void rebalanceCoarse11Matrix (const int rebalanceStriding, const int numProcsCoarseA11)
 rebalance the coarse A11 matrix, as well as P11, CoordsCoarse11 and Addon11 More...

void build22Matrix (const bool reuse, const bool doRebalancing, const int rebalanceStriding, const int numProcsA22)
 Setup A22 = D0^T SM D0 and rebalance it, as well as D0 and Coords_. More...

void setupSubSolve (Teuchos::RCP< Hierarchy > &hierarchy, Teuchos::RCP< Operator > &thyraPrecOp, const Teuchos::RCP< Matrix > &A, const Teuchos::RCP< MultiVector > &Nullspace, const Teuchos::RCP< RealValuedMultiVector > &Coords, Teuchos::ParameterList &params, std::string &label, const bool reuse, const bool isSingular=false)
 Setup a subsolve. More...

void setFineLevelSmoother11 ()
 Set the fine level smoother. More...

void applyInverseAdditive (const MultiVector &RHS, MultiVector &X) const
 apply additive algorithm for 2x2 solve More...

void solveH (const MultiVector &RHS, MultiVector &X) const
 apply solve to 1-1 block only More...

void solve22 (const MultiVector &RHS, MultiVector &X) const
 apply solve to 2-2 block only More...

void allocateMemory (int numVectors) const
 allocate multivectors for solve More...

void dump (const RCP< Matrix > &A, std::string name) const
 dump out matrix More...

void dump (const RCP< MultiVector > &X, std::string name) const
 dump out multivector More...

void dumpCoords (const RCP< RealValuedMultiVector > &X, std::string name) const
 dump out real-valued multivector More...

void dump (const Teuchos::ArrayRCP< bool > &v, std::string name) const
 dump out boolean ArrayView More...

void dump (const Kokkos::View< bool *, typename Node::device_type > &v, std::string name) const
 dump out boolean Kokkos::View More...

Teuchos::RCP
< Teuchos::TimeMonitor
getTimer (std::string name, RCP< const Teuchos::Comm< int > > comm=Teuchos::null) const
 get a (synced) timer More...


Private Attributes

Teuchos::RCP< HierarchyHierarchyCoarse11_
 Two hierarchies: one for the coarse (1,1)-block, another for the (2,2)-block. More...

Teuchos::RCP< HierarchyHierarchy22_

Teuchos::RCP< SmootherBasePreSmoother11_

Teuchos::RCP< SmootherBasePostSmoother11_

Teuchos::RCP< SmootherPrototypePreSmootherData11_

Teuchos::RCP< SmootherPrototypePostSmootherData11_

RCP< Operator > thyraPrecOpH_

RCP< Operator > thyraPrecOp22_

int spaceNumber_
 The number of the space in the deRham complex. More...

std::string solverName_
 The name of the solver. More...

size_t dim_
 The spatial dimension. More...

Teuchos::RCP< Matrix > SM_Matrix_
 The system that is getting preconditioned. More...

Teuchos::RCP< Matrix > Dk_1_
 D_{k-1} matrix and its transpose. More...

Teuchos::RCP< Matrix > Dk_1_T_

Teuchos::RCP< Matrix > Dk_2_
 D_{k-2} matrix. More...

Teuchos::RCP< Matrix > D0_
 D_0 matrix. More...

Teuchos::RCP< Matrix > invMk_1_invBeta_
 inverse of mass matrices on (k-1)-th and (k-2)-th space with weights 1/beta and 1/alpha respectively More...

Teuchos::RCP< Matrix > invMk_2_invAlpha_

Teuchos::RCP< Matrix > Mk_one_
 mass matrices with unit weight on k-th and (k-1)-th spaces More...

Teuchos::RCP< Matrix > Mk_1_one_

Teuchos::RCP< Matrix > M1_beta_
 mass matrices on first space with weights beta and alpha respectively More...

Teuchos::RCP< Matrix > M1_alpha_

Teuchos::RCP< Matrix > P11_
 special prolongator for 11 block and its transpose More...

Teuchos::RCP< Matrix > R11_

Teuchos::RCP< Matrix > P22_
 special prolongator for 22 block and its transpose More...

Teuchos::RCP< Matrix > R22_

Teuchos::RCP< Matrix > coarseA11_
 coarse 11, 22 and coarse 22 blocks More...

Teuchos::RCP< Matrix > A22_

Teuchos::RCP< Matrix > coarseA22_

Teuchos::RCP< Matrix > Addon11_
 the addon for the 11 block More...

Teuchos::RCP< Matrix > Addon22_
 the addon for the 22 block More...

Teuchos::RCP< const MapDorigDomainMap_

Teuchos::RCP< const Import > DorigImporter_

Kokkos::View< bool *, typename
Node::device_type::memory_space >
BCrows11_
 Vectors for BCs. More...

Kokkos::View< bool *, typename
Node::device_type::memory_space >
BCcols22_

Kokkos::View< bool *, typename
Node::device_type::memory_space >
BCdomain22_

int globalNumberBoundaryUnknowns11_

int globalNumberBoundaryUnknowns22_

Teuchos::RCP< MultiVectorNullspace11_
 Nullspace for (1.1) block. More...

Teuchos::RCP< MultiVectorNullspace22_

Teuchos::RCP
< RealValuedMultiVector
NodalCoords_
 Coordinates. More...

Teuchos::RCP
< RealValuedMultiVector
CoordsCoarse11_

Teuchos::RCP
< RealValuedMultiVector
Coords22_

Teuchos::RCP< MultiVectorNullspaceCoarse11_
 Nullspace for coarse (1,1) problem. More...

Teuchos::RCP< MultiVectorCoarseNullspace22_
 Nullspace for coarse (2,2) problem. More...

Teuchos::RCP< const Import > ImporterCoarse11_
 Importer to coarse (1,1) hierarchy. More...

Teuchos::RCP< const Import > Importer22_

bool Dk_1_T_R11_colMapsMatch_

bool onlyBoundary11_

bool onlyBoundary22_

Teuchos::ParameterList parameterList_
 Parameter lists. More...

Teuchos::ParameterList precList11_

Teuchos::ParameterList precList22_

Teuchos::RCP
< Teuchos::ParameterList
coarseA11_AP_reuse_data_

Teuchos::RCP
< Teuchos::ParameterList
coarseA11_RAP_reuse_data_

Teuchos::RCP
< Teuchos::ParameterList
A22_AP_reuse_data_

Teuchos::RCP
< Teuchos::ParameterList
A22_RAP_reuse_data_

bool disable_addon_
 Some options. More...

bool disable_addon_22_

bool dump_matrices_

bool useKokkos_

bool use_as_preconditioner_

bool implicitTranspose_

bool fuseProlongationAndUpdate_

bool syncTimers_

bool enable_reuse_

bool skipFirst11Level_

bool skipFirst22Level_

bool applyBCsToAnodal_

bool applyBCsToCoarse11_

bool applyBCsTo22_

int numItersCoarse11_

int numIters22_

std::string mode_

Teuchos::RCP< MultiVectorP11res_
 Temporary memory. More...

Teuchos::RCP< MultiVectorP11x_

Teuchos::RCP< MultiVectorP11resSubComm_

Teuchos::RCP< MultiVectorP11xSubComm_

Teuchos::RCP< MultiVectorDresIntermediate_

Teuchos::RCP< MultiVectorDres_

Teuchos::RCP< MultiVectorDxIntermediate_

Teuchos::RCP< MultiVectorDx_

Teuchos::RCP< MultiVectorDresSubComm_

Teuchos::RCP< MultiVectorDxSubComm_

Teuchos::RCP< MultiVectorresidual_

Teuchos::RCP< MultiVectorP11resTmp_

Teuchos::RCP< MultiVectorDresTmp_

Teuchos::RCP< MultiVectorDTR11Tmp_


Additional Inherited Members

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
class MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Preconditioner (wrapped as a Xpetra::Operator) for Maxwell's equations in curl-curl form.

Let

M_k(gamma)

be the mass matrix with a weight coefficient gamma on the k-th space in the deRham complex

k=0 —> k=1 -—> k=2 -—> k=3

H(grad) —> H(curl) -—> H(div) -—> L^2

    D_0          D_1          D_2

    grad         curl         div

and let

D_k

be the discretized derivative from the k-th to the (k+1)-th space.

For example, in 3D, D_0 = grad, D_1 = curl and D_2 = div.

We want to solve the system

S e_k = b

where

S = M_k(alpha) + D_k^T * M_{k+1}(beta) * D_k.

In 3D and for k=1, S corresponds to a discretization of

alpha * identity + beta * curl curl.

In 3D and for k=2, S corresponds to

alpha * identity + beta * grad div.

We precondition S by constructing a block diagonal preconditioner for the equivalent 2x2 block system

e_k = a_k + D_{k-1}*p_{k-1}

( A11 M_k(alpha) * D_{k-1} ) ( a_k ) ( b ) ( } ( ) = ( ) ( D_{k-1}^T * M_k(alpha) A22 ) ( p_{k-1} ) ( D_{k-1}^T * b )

where

A11 = S + addon11 A22 = D_{k-1} ^T * S * D_{k-1} + addon22 addon11 = M_k(1) * D_{k-1} * M_{k-1}(1/beta)^-1 * D_{k-1}^T * M_k(1) addon22 = M_{k-1}(1) * D_{k-2} * M_{k-2}(1/alpha)^-1 * D_{k-2}^T * M_{k-1}(1)

We note that due to D_k * D_{k-1} = 0 we have that

A22 = D_{k-1} ^T * M_k(alpha) * D_{k-1} + addon22

The addon terms mimic the term that would be needed to augment to a Hodge Laplacian. In practice it seems that the addon terms are rarely strictly required. For k=1 (Maxwell) the addon22 term (in H(grad)) is always zero.

We cannot directly apply AMG to A11 and A22 in case they are not expressed in terms of nodal bases. Let Pi_k be the projection from the first order vectorial nodal finite element space into the k-th space. We will apply AMG to

Pi_k^T * A11 * Pi_k Pi_{k-1}^T * A22 * Pi_{k-1}

respectively. For k=1 A22 is already given in a nodal discretization and this step is omitted.

It can be beneficial to directly coarsen the projected diagonal blocks and skip any smoothing on them.

To obtain prolongators for the vectorial nodal problems, we construct the auxiliary operators

A11_nodal = D_{0}^T * M_1(beta) * D_{0} A22_nodal = D_{0}^T * M_1(alpha) * D_{0}

then construct typical nodal scalar HGrad prolongators.

We then replicate them into prolongators for vectorial H(grad) problem. Finally, we multiply from the left with the projection Pi_k onto the k-th FE space.

When k=1 this only needs to be done for the A11 block, as the A22 block is already given wrt a scalar nodal discretization.

The following input matrices need to be supplied by the user:

  • S
  • D_{k-1}

If addon11 is used we need:

  • M_{k-1}(1/beta)^-1 - typically, this is the inverse of the lumped M_{k-1}(1/beta), not the actual inverse
  • M_k(1)

If addon22 is used we need:

  • M_{k-2}(1/alpha)^-1 - typically, this is the inverse of the lumped M_{k-2}(1/alpha), not the actual inverse
  • M_{k-1}(1)

To construct the special prolongators we need

  • D_{0}
  • M_1(beta)
  • M_1(alpha) If these mass matrices are not given, but M_1(1) is, then that matrix can be used instead. Alternatively, A11_nodal and A22_nodal can be passed directly.

We are using the following variable names:

| variable | matrix | note |-------------------------------—|--------------------—|-------------------— | SM | S | | Dk_1 | D_{k-1} | same as D0 for k=1 | Dk_2 | D_{k-2} | | D0 | D_0 | same as Dk_1 for k=1 | Mk_one | M_k(1) | | Mk_1_one | M_{k-1}(1) | | M1_beta | M_1(beta) | | M1_alpha | M_1(alpha) | | invMk_1_invBeta | M_{k-1}(1/beta)^{-1} | | invMk_2_invAlpha | M_{k-2}(1/alpha)^{-1} |

For backwards compatibility the interfaces also allow

variable matrix note
Ms M_1(beta) alias for M1_beta
M1 M_1(1) alias for Mk_one when k=1
M0inv M_0(1/beta) alias for Mk_1_invBeta when k=1

Reference: P. Bochev, J. Hu, C. Siefert, and R. Tuminaro. "An algebraic multigrid approach based on a compatible gauge reformulation of Maxwell's equations." SIAM Journal on Scientific Computing, 31(1), 557-583.

Parameter list options:

  • refmaxwell: mode - a string specifying the order of solve of the block system. Allowed values are: "additive" (default), "121", "212", "1", "2"
  • refmaxwell: disable addon - bool specifying whether the addon should be built for stabilization. Default: "true"
  • refmaxwell: use as preconditioner - bool specifying whether RefMaxwell is used as a preconditioner or as a solver.
  • refmaxwell: dump matrices - bool specifying whether the matrices should be dumped. Default: "false"
  • refmaxwell: 11list and refmaxwell: 22list - parameter list for the multigrid hierarchies on 11 and 22 blocks
  • refmaxwell: subsolves on subcommunicators - bool redistribute the two subsolves to disjoint sub-communicators (so that the additive solve can occur in parallel) Default: "false"

Definition at line 256 of file MueLu_RefMaxwell_decl.hpp.

Member Typedef Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
typedef Teuchos::ScalarTraits<Scalar>::magnitudeType MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::magnitudeType

Definition at line 261 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
typedef Teuchos::ScalarTraits<Scalar>::coordinateType MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coordinateType

Definition at line 262 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
typedef Xpetra::MultiVector<coordinateType, LO, GO, NO> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RealValuedMultiVector

Definition at line 263 of file MueLu_RefMaxwell_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( )
inline

Constructor.

Definition at line 266 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( Teuchos::RCP< Hierarchy HH,
Teuchos::RCP< Hierarchy H22
)
inline

Constructor with Hierarchies.

Definition at line 274 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( const Teuchos::RCP< Matrix > &  SM_Matrix,
const Teuchos::RCP< Matrix > &  Dk_1,
const Teuchos::RCP< Matrix > &  Dk_2,
const Teuchos::RCP< Matrix > &  D0,
const Teuchos::RCP< Matrix > &  M1_beta,
const Teuchos::RCP< Matrix > &  M1_alpha,
const Teuchos::RCP< Matrix > &  Mk_one,
const Teuchos::RCP< Matrix > &  Mk_1_one,
const Teuchos::RCP< Matrix > &  invMk_1_invBeta,
const Teuchos::RCP< Matrix > &  invMk_2_invAlpha,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< MultiVector > &  Nullspace22,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List,
bool  ComputePrec = true
)
inline

Definition at line 281 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( const Teuchos::RCP< Matrix > &  SM_Matrix,
const Teuchos::RCP< Matrix > &  D0_Matrix,
const Teuchos::RCP< Matrix > &  Ms_Matrix,
const Teuchos::RCP< Matrix > &  M0inv_Matrix,
const Teuchos::RCP< Matrix > &  M1_Matrix,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List,
bool  ComputePrec = true
)
inline

Constructor with Jacobian (with add on)

Parameters
[in]SM_MatrixJacobian
[in]D0_MatrixDiscrete Gradient
[in]Ms_MatrixEdge mass matrix for the nodal aggregates
[in]M0inv_MatrixInverse of lumped nodal mass matrix (add on only)
[in]M1_MatrixEdge mass matrix for the add on
[in]Nullspace11Null space (needed for periodic)
[in]NodalCoordsNodal coordinates
[in]ListParameter list
[in]ComputePrecIf true, compute the preconditioner immediately

Definition at line 319 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( const Teuchos::RCP< Matrix > &  SM_Matrix,
const Teuchos::RCP< Matrix > &  D0_Matrix,
const Teuchos::RCP< Matrix > &  M0inv_Matrix,
const Teuchos::RCP< Matrix > &  M1_Matrix,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List,
bool  ComputePrec = true
)
inline

Constructor with Jacobian (with add on)

Parameters
[in]SM_MatrixJacobian
[in]D0_MatrixDiscrete Gradient
[in]M0inv_MatrixInverse of lumped nodal mass matrix (add on only)
[in]M1_MatrixEdge mass matrix for the
[in]NullspaceNull space (needed for periodic)
[in]CoordsNodal coordinates
[in]ListParameter list
[in]ComputePrecIf true, compute the preconditioner immediately

Definition at line 343 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( const Teuchos::RCP< Matrix > &  D0_Matrix,
const Teuchos::RCP< Matrix > &  M0inv_Matrix,
const Teuchos::RCP< Matrix > &  M1_Matrix,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List
)
inline

Constructor without Jacobian (with add on)

Parameters
[in]D0_MatrixDiscrete Gradient
[in]M0inv_MatrixInverse of lumped nodal mass matrix (add on only)
[in]M1_MatrixEdge mass matrix for the
[in]NullspaceNull space (needed for periodic)
[in]CoordsNodal coordinates
[in]ListParameter list

Definition at line 364 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( const Teuchos::RCP< Matrix > &  SM_Matrix,
const Teuchos::RCP< Matrix > &  D0_Matrix,
const Teuchos::RCP< Matrix > &  M1_Matrix,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List,
bool  ComputePrec
)
inline

Constructor with Jacobian (no add on)

Parameters
[in]SM_MatrixJacobian
[in]D0_MatrixDiscrete Gradient
[in]M1_MatrixEdge mass matrix for the
[in]NullspaceNull space (needed for periodic)
[in]CoordsNodal coordinates
[in]ListParameter list
[in]ComputePrecIf true, compute the preconditioner immediately

Definition at line 384 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( const Teuchos::RCP< Matrix > &  D0_Matrix,
const Teuchos::RCP< Matrix > &  M1_Matrix,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List
)
inline

Constructor without Jacobian (no add on)

Parameters
[in]D0_MatrixDiscrete Gradient
[in]M1_MatrixEdge mass matrix for the
[in]NullspaceNull space (needed for periodic)
[in]CoordsNodal coordinates
[in]ListParameter list

Definition at line 403 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RefMaxwell ( const Teuchos::RCP< Matrix > &  SM_Matrix,
Teuchos::ParameterList List,
bool  ComputePrec = true
)

Constructor with parameter list

Parameters
[in]SM_MatrixJacobian
[in]ListParameter list
[in]ComputePrecIf true, compute the preconditioner immediately

Definition at line 2398 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
virtual MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~RefMaxwell ( )
inlinevirtual

Destructor.

Definition at line 423 of file MueLu_RefMaxwell_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const
virtual

Returns the Xpetra::Map object associated with the domain of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 124 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const
virtual

Returns the Xpetra::Map object associated with the range of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 129 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
const Teuchos::RCP<Matrix>& MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getJacobian ( ) const
inline

Returns Jacobian matrix SM.

Definition at line 432 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setParameters ( Teuchos::ParameterList list)

Set parameters.

Definition at line 230 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::compute ( bool  reuse = false)

Setup the preconditioner.

Definition at line 333 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::resetMatrix ( Teuchos::RCP< Matrix >  SM_Matrix_new,
bool  ComputePrec = true
)

Reset system matrix.

Definition at line 2094 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply ( const MultiVector X,
MultiVector Y,
Teuchos::ETransp  mode = Teuchos::NO_TRANS,
Scalar  alpha = Teuchos::ScalarTraits<Scalar>::one(),
Scalar  beta = Teuchos::ScalarTraits<Scalar>::zero()
) const
virtual

Returns in Y the result of a Xpetra::Operator applied to a Xpetra::MultiVector X.

Parameters
[in]X- MultiVector of dimension NumVectors to multiply with matrix.
[out]Y- MultiVector of dimension NumVectors containing result.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 2330 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

Indicates whether this operator supports applying the adjoint operator.

Definition at line 2392 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::VERB_HIGH
) const
virtual

Reimplemented from Teuchos::Describable.

Definition at line 2706 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual ( const MultiVector X,
const MultiVector B,
MultiVector R
) const
inline

Compute a residual R = B - (*this) * X.

Definition at line 459 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< Teuchos::ParameterList > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getValidParamterList ( )
private

Definition at line 136 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::initialize ( const Teuchos::RCP< Matrix > &  D0_Matrix,
const Teuchos::RCP< Matrix > &  Ms_Matrix,
const Teuchos::RCP< Matrix > &  M0inv_Matrix,
const Teuchos::RCP< Matrix > &  M1_Matrix,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List
)
private

Initialize with matrices except the Jacobian (don't compute the preconditioner)

Note: This uses old notation that only makes sense for curl-curl problems.

Parameters
[in]D0_MatrixDiscrete Gradient
[in]Ms_MatrixEdge mass matrix for nodal aggregates
[in]M0inv_MatrixInverse of lumped nodal mass matrix (add on only)
[in]M1_MatrixEdge mass matrix for add on
[in]NullspaceNull space (needed for periodic)
[in]CoordsNodal coordinates
[in]ListParameter list

Definition at line 2482 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::initialize ( const int  k,
const Teuchos::RCP< Matrix > &  Dk_1,
const Teuchos::RCP< Matrix > &  Dk_2,
const Teuchos::RCP< Matrix > &  D0,
const Teuchos::RCP< Matrix > &  M1_beta,
const Teuchos::RCP< Matrix > &  M1_alpha,
const Teuchos::RCP< Matrix > &  Mk_one,
const Teuchos::RCP< Matrix > &  Mk_1_one,
const Teuchos::RCP< Matrix > &  invMk_1_invBeta,
const Teuchos::RCP< Matrix > &  invMk_2_invAlpha,
const Teuchos::RCP< MultiVector > &  Nullspace11,
const Teuchos::RCP< MultiVector > &  Nullspace22,
const Teuchos::RCP< RealValuedMultiVector > &  NodalCoords,
Teuchos::ParameterList List
)
private

Initialize with matrices except the Jacobian (don't compute the preconditioner)

Parameters
[in]knumber of the space in the deRham sequence of the problem to be solved
[in]Dk_1Discrete derivative from (k-1)-th to k-th space
[in]Dk_2Discrete derivative from (k-2)-th to (k-1)-th space
[in]D0Discrete Gradient
[in]M1_betaMass matrix on 1-st space with weight beta for nodal aggregates
[in]M1_alphaMass matrix on 1-st space with weight alpha for nodal aggregates
[in]Mk_oneMass matrix on k-th space with unit weight for addon11
[in]Mk_1_oneMass matrix on (k-1)-th space with unit weight for addon22
[in]invMk_1_invBetaApproximate inverse of mass matrix on (k-1)-th space with weight 1/beta (addon11 only)
[in]invMk_2_invAlphaApproximate inverse of mass matrix on (k-2)-th space with weight 1/alpha (addon22 only)
[in]Nullspace11Null space (needed for periodic)
[in]Nullspace22Null space (needed for periodic)
[in]NodalCoordsNodal coordinates
[in]ListParameter list

Definition at line 2501 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::determineSubHierarchyCommSizes ( bool &  doRebalancing,
int &  rebalanceStriding,
int &  numProcsCoarseA11,
int &  numProcsA22
)
private

Determine how large the sub-communicators for the two hierarchies should be.

Definition at line 650 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::buildCoarse11Matrix ( )
private

Compute coarseA11 = P11^{T}*SM*P11 + addon efficiently.

Definition at line 831 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rebalanceCoarse11Matrix ( const int  rebalanceStriding,
const int  numProcsCoarseA11
)
private

rebalance the coarse A11 matrix, as well as P11, CoordsCoarse11 and Addon11

Definition at line 918 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::build22Matrix ( const bool  reuse,
const bool  doRebalancing,
const int  rebalanceStriding,
const int  numProcsA22
)
private

Setup A22 = D0^T SM D0 and rebalance it, as well as D0 and Coords_.

Definition at line 1037 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::buildNullspace ( const int  spaceNumber,
const Kokkos::View< bool *, typename Node::device_type > &  bcs,
const bool  applyBCs
)

Builds a nullspace.

Definition at line 1435 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::buildProjection ( const int  spaceNumber,
const RCP< MultiVector > &  EdgeNullspace
) const

Builds a projection from a vector values space into a vector valued nodal space.

Definition at line 1587 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::buildNodalProlongator ( const Teuchos::RCP< Matrix > &  A_nodal,
Teuchos::RCP< Matrix > &  P_nodal,
Teuchos::RCP< MultiVector > &  Nullspace_nodal,
Teuchos::RCP< RealValuedMultiVector > &  Coords_nodal
) const

Setup an auxiliary nodal prolongator

Parameters
[in]A_nodal
[out]P_nodal
[out]Nullspace_nodal

Definition at line 1712 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::buildVectorNodalProlongator ( const Teuchos::RCP< Matrix > &  P_nodal) const

Setup a vectorial nodal prolongator

Parameters
[in]P_nodal_scalar
[out]P_nodal_vector

Definition at line 1828 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::buildProlongator ( const int  spaceNumber,
const Teuchos::RCP< Matrix > &  A_nodal_Matrix,
const RCP< MultiVector > &  EdgeNullspace,
Teuchos::RCP< Matrix > &  edgeProlongator,
Teuchos::RCP< MultiVector > &  coarseEdgeNullspace,
Teuchos::RCP< RealValuedMultiVector > &  coarseNodalCoords
) const

Setup a special prolongator from vectorial nodal to edge or face discretization

Parameters
[in]spaceNumberthe type of target discretization
[in]A_nodal_Matrixused for the nodal aggregation
[in]EdgeNullspaceedge nullspace
[out]edgeProlongatoredge prolongator
[out]coarseEdgeNullspacecoarse edge nullspace
[out]coarseNodalCoordscoarse nodal coordinates

Definition at line 1894 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::buildAddon ( const int  spaceNumber)

Construct an addon matrix

Parameters
[in]spaceNumberthe type of target discretization

Definition at line 745 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setupSubSolve ( Teuchos::RCP< Hierarchy > &  hierarchy,
Teuchos::RCP< Operator > &  thyraPrecOp,
const Teuchos::RCP< Matrix > &  A,
const Teuchos::RCP< MultiVector > &  Nullspace,
const Teuchos::RCP< RealValuedMultiVector > &  Coords,
Teuchos::ParameterList params,
std::string &  label,
const bool  reuse,
const bool  isSingular = false
)
private

Setup a subsolve.

Definition at line 2028 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setFineLevelSmoother11 ( )
private

Set the fine level smoother.

Definition at line 1229 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::applyInverseAdditive ( const MultiVector RHS,
MultiVector X
) const
private

apply additive algorithm for 2x2 solve

Definition at line 2103 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::solveH ( const MultiVector RHS,
MultiVector X
) const
private

apply solve to 1-1 block only

Definition at line 2265 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::solve22 ( const MultiVector RHS,
MultiVector X
) const
private

apply solve to 2-2 block only

Definition at line 2296 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::allocateMemory ( int  numVectors) const
private

allocate multivectors for solve

Definition at line 1302 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump ( const RCP< Matrix > &  A,
std::string  name
) const
private

dump out matrix

Definition at line 1371 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump ( const RCP< MultiVector > &  X,
std::string  name
) const
private

dump out multivector

Definition at line 1379 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dumpCoords ( const RCP< RealValuedMultiVector > &  X,
std::string  name
) const
private

dump out real-valued multivector

Definition at line 1387 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump ( const Teuchos::ArrayRCP< bool > &  v,
std::string  name
) const
private

dump out boolean ArrayView

Definition at line 1395 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump ( const Kokkos::View< bool *, typename Node::device_type > &  v,
std::string  name
) const
private

dump out boolean Kokkos::View

Definition at line 1405 of file MueLu_RefMaxwell_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< Teuchos::TimeMonitor > MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getTimer ( std::string  name,
RCP< const Teuchos::Comm< int > >  comm = Teuchos::null
) const
private

get a (synced) timer

Definition at line 1419 of file MueLu_RefMaxwell_def.hpp.

Member Data Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Hierarchy> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::HierarchyCoarse11_
private

Two hierarchies: one for the coarse (1,1)-block, another for the (2,2)-block.

Definition at line 627 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Hierarchy> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy22_
private

Definition at line 627 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<SmootherBase> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::PreSmoother11_
private

Definition at line 628 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<SmootherBase> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::PostSmoother11_
private

Definition at line 628 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<SmootherPrototype> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::PreSmootherData11_
private

Definition at line 629 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<SmootherPrototype> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::PostSmootherData11_
private

Definition at line 629 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP<Operator> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::thyraPrecOpH_
private

Definition at line 630 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP<Operator> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::thyraPrecOp22_
private

Definition at line 630 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
int MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::spaceNumber_
private

The number of the space in the deRham complex.

Definition at line 632 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
std::string MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::solverName_
private

The name of the solver.

Definition at line 634 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
size_t MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dim_
private

The spatial dimension.

Definition at line 636 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SM_Matrix_
private

The system that is getting preconditioned.

Definition at line 638 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Dk_1_
private

D_{k-1} matrix and its transpose.

Definition at line 640 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Dk_1_T_
private

Definition at line 640 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Dk_2_
private

D_{k-2} matrix.

Definition at line 642 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::D0_
private

D_0 matrix.

Definition at line 644 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::invMk_1_invBeta_
private

inverse of mass matrices on (k-1)-th and (k-2)-th space with weights 1/beta and 1/alpha respectively

Definition at line 646 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::invMk_2_invAlpha_
private

Definition at line 646 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Mk_one_
private

mass matrices with unit weight on k-th and (k-1)-th spaces

Definition at line 648 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Mk_1_one_
private

Definition at line 648 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::M1_beta_
private

mass matrices on first space with weights beta and alpha respectively

Definition at line 650 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::M1_alpha_
private

Definition at line 650 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P11_
private

special prolongator for 11 block and its transpose

Definition at line 652 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::R11_
private

Definition at line 652 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P22_
private

special prolongator for 22 block and its transpose

Definition at line 654 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::R22_
private

Definition at line 654 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseA11_
private

coarse 11, 22 and coarse 22 blocks

Definition at line 656 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::A22_
private

Definition at line 656 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseA22_
private

Definition at line 656 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Addon11_
private

the addon for the 11 block

Definition at line 658 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Matrix> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Addon22_
private

the addon for the 22 block

Definition at line 660 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<const Map> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DorigDomainMap_
private

Definition at line 661 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<const Import> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DorigImporter_
private

Definition at line 662 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Kokkos::View<bool *, typename Node::device_type::memory_space> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCrows11_
private

Vectors for BCs.

Definition at line 664 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Kokkos::View<bool *, typename Node::device_type::memory_space> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCcols22_
private

Definition at line 664 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Kokkos::View<bool *, typename Node::device_type::memory_space> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BCdomain22_
private

Definition at line 664 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
int MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::globalNumberBoundaryUnknowns11_
private

Definition at line 665 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
int MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::globalNumberBoundaryUnknowns22_
private

Definition at line 665 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Nullspace11_
private

Nullspace for (1.1) block.

Definition at line 667 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Nullspace22_
private

Definition at line 667 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<RealValuedMultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::NodalCoords_
private

Coordinates.

Definition at line 669 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<RealValuedMultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CoordsCoarse11_
private

Definition at line 669 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<RealValuedMultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Coords22_
private

Definition at line 669 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::NullspaceCoarse11_
private

Nullspace for coarse (1,1) problem.

Definition at line 671 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CoarseNullspace22_
private

Nullspace for coarse (2,2) problem.

Definition at line 673 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<const Import> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ImporterCoarse11_
private

Importer to coarse (1,1) hierarchy.

Definition at line 675 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<const Import> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Importer22_
private

Definition at line 675 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Dk_1_T_R11_colMapsMatch_
private

Definition at line 676 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::onlyBoundary11_
private

Definition at line 677 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::onlyBoundary22_
private

Definition at line 677 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::ParameterList MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::parameterList_
private

Parameter lists.

Definition at line 679 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::ParameterList MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::precList11_
private

Definition at line 679 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::ParameterList MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::precList22_
private

Definition at line 679 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Teuchos::ParameterList> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseA11_AP_reuse_data_
private

Definition at line 680 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Teuchos::ParameterList> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseA11_RAP_reuse_data_
private

Definition at line 680 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Teuchos::ParameterList> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::A22_AP_reuse_data_
private

Definition at line 681 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<Teuchos::ParameterList> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::A22_RAP_reuse_data_
private

Definition at line 681 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::disable_addon_
private

Some options.

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::disable_addon_22_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dump_matrices_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::useKokkos_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::use_as_preconditioner_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::implicitTranspose_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fuseProlongationAndUpdate_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::syncTimers_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::enable_reuse_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::skipFirst11Level_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::skipFirst22Level_
private

Definition at line 683 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::applyBCsToAnodal_
private

Definition at line 684 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::applyBCsToCoarse11_
private

Definition at line 684 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::applyBCsTo22_
private

Definition at line 684 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
int MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::numItersCoarse11_
private

Definition at line 685 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
int MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::numIters22_
private

Definition at line 685 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
std::string MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::mode_
private

Definition at line 686 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P11res_
mutableprivate

Temporary memory.

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P11x_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P11resSubComm_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P11xSubComm_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DresIntermediate_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Dres_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DxIntermediate_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Dx_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DresSubComm_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DxSubComm_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::P11resTmp_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DresTmp_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP<MultiVector> MueLu::RefMaxwell< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DTR11Tmp_
mutableprivate

Definition at line 689 of file MueLu_RefMaxwell_decl.hpp.


The documentation for this class was generated from the following files:
