Defines tensor-product cubature (integration) rules in Intrepid. More...

#include <Intrepid2_CubatureTensorPyr.hpp>

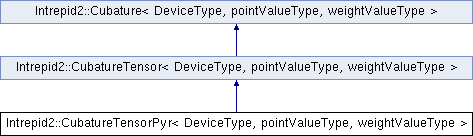

Inheritance diagram for Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >:

Classes
struct	Functor

Public Types
using	TensorPointDataType = typename CubatureTensor< DeviceType, pointValueType, weightValueType >::TensorPointDataType

using	TensorWeightDataType = typename CubatureTensor< DeviceType, pointValueType, weightValueType >::TensorWeightDataType

using	PointViewTypeAllocatable = typename CubatureTensor< DeviceType, pointValueType, weightValueType >::PointViewTypeAllocatable

using	WeightViewTypeAllocatable = typename CubatureTensor< DeviceType, pointValueType, weightValueType >::WeightViewTypeAllocatable

Public Types inherited from Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >
using	PointViewType = typename Cubature< DeviceType, pointValueType, weightValueType >::PointViewType

using	weightViewType = typename Cubature< DeviceType, pointValueType, weightValueType >::weightViewType

using	PointViewTypeAllocatable = typename Cubature< DeviceType, pointValueType, weightValueType >::PointViewTypeAllocatable
	KK: following should be updated with nate's tensor work.

using	WeightViewTypeAllocatable = typename Cubature< DeviceType, pointValueType, weightValueType >::WeightViewTypeAllocatable

using	TensorPointDataType = typename Cubature< DeviceType, pointValueType, weightValueType >::TensorPointDataType

using	TensorWeightDataType = typename Cubature< DeviceType, pointValueType, weightValueType >::TensorWeightDataType

Public Types inherited from Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >
using	ExecSpaceType = typename DeviceType::execution_space

using	PointViewType = Kokkos::DynRankView< pointValueType, Kokkos::LayoutStride, DeviceType >

using	weightViewType = Kokkos::DynRankView< weightValueType, Kokkos::LayoutStride, DeviceType >

using	PointViewTypeAllocatable = Kokkos::DynRankView< pointValueType, DeviceType >

using	WeightViewTypeAllocatable = Kokkos::DynRankView< weightValueType, DeviceType >

using	TensorPointDataType = TensorPoints< pointValueType, DeviceType >

using	TensorWeightDataType = TensorData< weightValueType, DeviceType >

Public Member Functions
template<typename cubPointValueType , class... cubPointProperties, typename cubWeightValueType , class... cubWeightProperties>
void	getCubatureImpl (Kokkos::DynRankView< cubPointValueType, cubPointProperties...> cubPoints, Kokkos::DynRankView< cubWeightValueType, cubWeightProperties...> cubWeights) const

virtual void	getCubature (PointViewType cubPoints, weightViewType cubWeights) const override
	Returns cubature points and weights (return arrays must be pre-sized/pre-allocated). More...

	CubatureTensorPyr (const CubatureTensorPyr &b)

template<typename CubatureLineType >
	CubatureTensorPyr (const CubatureLineType line)

template<typename CubatureLineType0 , typename CubatureLineType1 , typename CubatureLineType2 >
	CubatureTensorPyr (const CubatureLineType0 line0, const CubatureLineType1 line1, const CubatureLineType2 line2)

virtual TensorPointDataType	allocateCubaturePoints () const override
	Returns a points container appropriate for passing to getCubature(). More...

virtual TensorWeightDataType	allocateCubatureWeights () const override
	Returns a weight container appropriate for passing to getCubature(). More...

virtual void	getCubature (const TensorPointDataType &tensorCubPoints, const TensorWeightDataType &tensorCubWeights) const override
	Returns tensor cubature points and weights. For non-tensor cubatures, the tensor structures are trivial, thin wrappers around the data returned by getCubature(). The provided containers should be pre-allocated through calls to allocateCubaturePoints() and allocateCubatureWeights(). More...

Public Member Functions inherited from Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >
template<typename cubPointValueType , class... cubPointProperties, typename cubWeightValueType , class... cubWeightProperties>
void	getCubatureImpl (Kokkos::DynRankView< cubPointValueType, cubPointProperties...> cubPoints, Kokkos::DynRankView< cubWeightValueType, cubWeightProperties...> cubWeights) const

virtual ordinal_type	getNumPoints () const override
	Returns the number of cubature points.

virtual ordinal_type	getDimension () const override
	Returns dimension of integration domain.

virtual const char *	getName () const override
	Returns cubature name.

virtual ordinal_type	getAccuracy () const override
	Returns dimension of the integration domain.

ordinal_type	getNumCubatures () const
	Return the number of cubatures.

CubatureDirect< DeviceType, pointValueType, weightValueType >	getCubatureComponent (ordinal_type i) const
	Return the number of cubatures.

void	getAccuracy (ordinal_type *accuracy) const
	Returns max. degree of polynomials that are integrated exactly.

	CubatureTensor (const CubatureTensor &b)

template<typename CubatureType0 , typename CubatureType1 >
	CubatureTensor (const CubatureType0 cubature0, const CubatureType1 cubature1)
	Constructor. More...

template<typename CubatureType0 , typename CubatureType1 , typename CubatureType2 >
	CubatureTensor (const CubatureType0 cubature0, const CubatureType1 cubature1, const CubatureType2 cubature2)
	Constructor. More...

template<typename DirectCubature >
	CubatureTensor (const CubatureTensor cubatureTensor, const DirectCubature cubatureExtension)
	Constructor for extending an existing CubatureTensor object with an additional direct cubature rule. More...

Public Member Functions inherited from Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >
virtual void	getCubature (PointViewType, weightViewType, PointViewType) const
	Returns cubature points and weights on physical cells (return arrays must be pre-sized/pre-allocated). More...

Detailed Description

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>
class Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >

Defines tensor-product cubature (integration) rules in Intrepid.

Definition at line 29 of file Intrepid2_CubatureTensorPyr.hpp.

Member Function Documentation

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual TensorPointDataType Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >::allocateCubaturePoints ( ) const

inlineoverridevirtual

Returns a points container appropriate for passing to getCubature().

Returns: cubPoints - Data structure sized for the cubature points.

Reimplemented from Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 103 of file Intrepid2_CubatureTensorPyr.hpp.

References Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >::getCubatureComponent(), and Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >::getNumCubatures().

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual TensorWeightDataType Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >::allocateCubatureWeights ( ) const

inlineoverridevirtual

Returns a weight container appropriate for passing to getCubature().

Returns: cubWeights - Data structure sized for the cubature weights.

Reimplemented from Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 124 of file Intrepid2_CubatureTensorPyr.hpp.

References Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >::getCubatureComponent(), and Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >::getNumCubatures().

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual void Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >::getCubature	(	PointViewType	,
		weightViewType
	)		const

inlineoverridevirtual

Returns cubature points and weights (return arrays must be pre-sized/pre-allocated).

Parameters

cubPoints	[out] - Array containing the cubature points.
cubWeights	[out] - Array of corresponding cubature weights.

Reimplemented from Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 74 of file Intrepid2_CubatureTensorPyr.hpp.

Referenced by Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >::getCubature().

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual void Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >::getCubature	(	const TensorPointDataType &	tensorCubPoints,
		const TensorWeightDataType &	tensorCubWeights
	)		const

inlineoverridevirtual

Returns tensor cubature points and weights. For non-tensor cubatures, the tensor structures are trivial, thin wrappers around the data returned by getCubature(). The provided containers should be pre-allocated through calls to allocateCubaturePoints() and allocateCubatureWeights().

Parameters

cubPoints	[out] - TensorPoints structure containing the cubature points.
cubWeights	[out] - TensorData structure containing cubature weights.

Reimplemented from Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 148 of file Intrepid2_CubatureTensorPyr.hpp.

References Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >::getCubature(), Intrepid2::TensorData< Scalar, DeviceType >::getTensorComponent(), Intrepid2::TensorPoints< PointScalar, DeviceType >::getTensorComponent(), and Intrepid2::Data< DataScalar, DeviceType >::getUnderlyingView().

The documentation for this class was generated from the following files:

http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Integration/Intrepid2_CubatureTensorPyr.hpp
http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Integration/Intrepid2_CubatureTensorPyrDef.hpp
