Defines the base class for cubature (integration) rules in Intrepid. More...

#include <Intrepid2_Cubature.hpp>

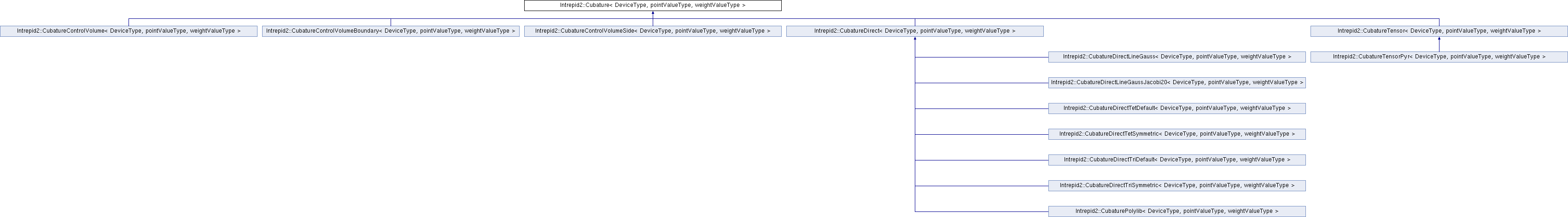

Inheritance diagram for Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >:

Public Types
using	ExecSpaceType = typename DeviceType::execution_space

using	PointViewType = Kokkos::DynRankView< pointValueType, Kokkos::LayoutStride, DeviceType >

using	weightViewType = Kokkos::DynRankView< weightValueType, Kokkos::LayoutStride, DeviceType >

using	PointViewTypeAllocatable = Kokkos::DynRankView< pointValueType, DeviceType >

using	WeightViewTypeAllocatable = Kokkos::DynRankView< weightValueType, DeviceType >

using	TensorPointDataType = TensorPoints< pointValueType, DeviceType >

using	TensorWeightDataType = TensorData< weightValueType, DeviceType >

Public Member Functions
virtual TensorPointDataType	allocateCubaturePoints () const
	Returns a points container appropriate for passing to getCubature(). More...

virtual TensorWeightDataType	allocateCubatureWeights () const
	Returns a weight container appropriate for passing to getCubature(). More...

virtual void	getCubature (PointViewType, weightViewType) const
	Returns cubature points and weights (return arrays must be pre-sized/pre-allocated). More...

virtual void	getCubature (PointViewType, weightViewType, PointViewType) const
	Returns cubature points and weights on physical cells (return arrays must be pre-sized/pre-allocated). More...

virtual void	getCubature (const TensorPointDataType &tensorCubPoints, const TensorWeightDataType &tensorCubWeights) const
	Returns tensor cubature points and weights. For non-tensor cubatures, the tensor structures are trivial, thin wrappers around the data returned by getCubature(). The provided containers should be pre-allocated through calls to allocateCubaturePoints() and allocateCubatureWeights(). More...

virtual ordinal_type	getNumPoints () const
	Returns the number of cubature points.

virtual ordinal_type	getDimension () const
	Returns dimension of the integration domain.

virtual ordinal_type	getAccuracy () const
	Returns dimension of the integration domain.

virtual const char *	getName () const
	Returns cubature name.

Detailed Description

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>
class Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >

Defines the base class for cubature (integration) rules in Intrepid.

Cubature template (rule) consists of cubature points and cubature weights. Intrepid provides a small collection of frequently used cubature rule templates for FEM reconstructions on simplices (edge, tri, tet) and the pyramid cell, defined in the derived classes of CubatureDirect.

For quad, hex, and triprism cells cubature templates are tensor products of CubatureDirect templates. The tensor-product cubatures are defined in the derived class CubatureTensor.

Definition at line 91 of file Intrepid2_Cubature.hpp.

Member Function Documentation

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual TensorPointDataType Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::allocateCubaturePoints ( ) const

inlinevirtual

Returns a points container appropriate for passing to getCubature().

Returns: cubPoints - Data structure sized for the cubature points.

Reimplemented in Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >, and Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 106 of file Intrepid2_Cubature.hpp.

References Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getDimension(), and Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getNumPoints().

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual TensorWeightDataType Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::allocateCubatureWeights ( ) const

inlinevirtual

Returns a weight container appropriate for passing to getCubature().

Returns: cubWeights - Data structure sized for the cubature weights.

Reimplemented in Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >, and Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 119 of file Intrepid2_Cubature.hpp.

References Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getNumPoints().

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual void Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getCubature	(	PointViewType	,
		weightViewType
	)		const

inlinevirtual

Returns cubature points and weights (return arrays must be pre-sized/pre-allocated).

Parameters

cubPoints	[out] - Array containing the cubature points.
cubWeights	[out] - Array of corresponding cubature weights.

Reimplemented in Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType >, Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >, and Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 137 of file Intrepid2_Cubature.hpp.

Referenced by Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getCubature().

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual void Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getCubature	(	PointViewType	,
		weightViewType	,
		PointViewType
	)		const

inlinevirtual

Returns cubature points and weights on physical cells (return arrays must be pre-sized/pre-allocated).

Parameters

cubPoints	[out] - Array containing the cubature points.
cubWeights	[out] - Array of corresponding cubature weights.
cellVertices	[in] - Array containing the cell vertices.

Reimplemented in Intrepid2::CubatureControlVolumeSide< DeviceType, pointValueType, weightValueType >, Intrepid2::CubatureControlVolume< DeviceType, pointValueType, weightValueType >, and Intrepid2::CubatureControlVolumeBoundary< DeviceType, pointValueType, weightValueType >.

Definition at line 152 of file Intrepid2_Cubature.hpp.

template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>

virtual void Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getCubature	(	const TensorPointDataType &	tensorCubPoints,
		const TensorWeightDataType &	tensorCubWeights
	)		const

inlinevirtual

Returns tensor cubature points and weights. For non-tensor cubatures, the tensor structures are trivial, thin wrappers around the data returned by getCubature(). The provided containers should be pre-allocated through calls to allocateCubaturePoints() and allocateCubatureWeights().

Parameters

cubPoints	[out] - TensorPoints structure containing the cubature points.
cubWeights	[out] - TensorData structure containing cubature weights.

Reimplemented in Intrepid2::CubatureTensorPyr< DeviceType, pointValueType, weightValueType >, and Intrepid2::CubatureTensor< DeviceType, pointValueType, weightValueType >.

Definition at line 166 of file Intrepid2_Cubature.hpp.

References Intrepid2::Cubature< DeviceType, pointValueType, weightValueType >::getCubature(), Intrepid2::TensorData< Scalar, DeviceType >::getTensorComponent(), Intrepid2::TensorPoints< PointScalar, DeviceType >::getTensorComponent(), Intrepid2::Data< DataScalar, DeviceType >::getUnderlyingView(), Intrepid2::TensorPoints< PointScalar, DeviceType >::numTensorComponents(), and Intrepid2::TensorData< Scalar, DeviceType >::numTensorComponents().

The documentation for this class was generated from the following file:

http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Integration/Intrepid2_Cubature.hpp
