Defines Gauss integration rules on a line. More...
#include <Intrepid2_CubatureDirectLineGauss.hpp>

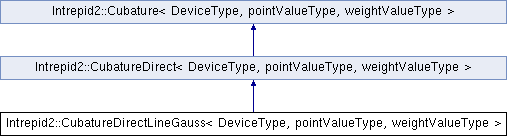

Inheritance diagram for Intrepid2::CubatureDirectLineGauss< DeviceType, pointValueType, weightValueType >:
Public Types | |
|
typedef CubatureDirect < DeviceType, pointValueType, weightValueType > ::CubatureDataStatic | CubatureDataStatic |
|
typedef CubatureDirect < DeviceType, pointValueType, weightValueType > ::CubatureData | CubatureData |
|
typedef CubatureDirect < DeviceType, pointValueType, weightValueType > ::PointViewType | PointViewType |
|
typedef CubatureDirect < DeviceType, pointValueType, weightValueType > ::weightViewType | weightViewType |
 Public Types inherited from Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType > | |
|
typedef Cubature< DeviceType, pointValueType, weightValueType > ::PointViewType | PointViewType |
|
typedef Cubature< DeviceType, pointValueType, weightValueType > ::weightViewType | weightViewType |
| Public Types inherited from Intrepid2::Cubature< DeviceType, pointValueType, weightValueType > | |
| using | ExecSpaceType = typename DeviceType::execution_space |
| using | PointViewType = Kokkos::DynRankView< pointValueType, Kokkos::LayoutStride, DeviceType > |
| using | weightViewType = Kokkos::DynRankView< weightValueType, Kokkos::LayoutStride, DeviceType > |
| using | PointViewTypeAllocatable = Kokkos::DynRankView< pointValueType, DeviceType > |
| using | WeightViewTypeAllocatable = Kokkos::DynRankView< weightValueType, DeviceType > |
| using | TensorPointDataType = TensorPoints< pointValueType, DeviceType > |
| using | TensorWeightDataType = TensorData< weightValueType, DeviceType > |
Public Member Functions | |
| CubatureDirectLineGauss (const ordinal_type degree=0) | |
| Constructor. More... | |
| virtual const char * | getName () const override |
| Returns cubature name. | |
| Public Member Functions inherited from Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType > | |
| virtual void | getCubature (PointViewType cubPoints, weightViewType cubWeights) const override |
| Returns cubature points and weights (return arrays must be pre-sized/pre-allocated). More... | |
| virtual ordinal_type | getNumPoints () const override |
| Returns the number of cubature points. | |
| virtual ordinal_type | getDimension () const override |
| Returns dimension of integration domain. | |
| virtual ordinal_type | getAccuracy () const override |
| Returns max. degree of polynomials that are integrated exactly. The return vector has size 1. | |
| CubatureDirect (const CubatureDirect &b) | |
| CubatureDirect & | operator= (const CubatureDirect &b) |
| CubatureDirect (const ordinal_type degree, const ordinal_type dimension) | |
| Public Member Functions inherited from Intrepid2::Cubature< DeviceType, pointValueType, weightValueType > | |
| virtual TensorPointDataType | allocateCubaturePoints () const |
| Returns a points container appropriate for passing to getCubature(). More... | |
| virtual TensorWeightDataType | allocateCubatureWeights () const |
| Returns a weight container appropriate for passing to getCubature(). More... | |
| virtual void | getCubature (PointViewType, weightViewType, PointViewType) const |
| Returns cubature points and weights on physical cells (return arrays must be pre-sized/pre-allocated). More... | |
| virtual void | getCubature (const TensorPointDataType &tensorCubPoints, const TensorWeightDataType &tensorCubWeights) const |
| Returns tensor cubature points and weights. For non-tensor cubatures, the tensor structures are trivial, thin wrappers around the data returned by getCubature(). The provided containers should be pre-allocated through calls to allocateCubaturePoints() and allocateCubatureWeights(). More... | |
Static Private Attributes | |
| static constexpr ordinal_type | cubatureDataStaticSize =62 |
| static const CubatureDataStatic | cubatureDataStatic_ [cubatureDataStaticSize] |
| Complete set of data defining line Gauss(-Legendre) rules. | |
Additional Inherited Members | |
| Protected Member Functions inherited from Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType > | |
| template<typename cubPointValueType , class... cubPointProperties, typename cubWeightValueType , class... cubWeightProperties> | |
| void | getCubatureFromData (Kokkos::DynRankView< cubPointValueType, cubPointProperties...> cubPoints, Kokkos::DynRankView< cubWeightValueType, cubWeightProperties...> cubWeights, const CubatureData cubData) const |
| Returns cubature points and weights. More... | |
| Protected Attributes inherited from Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType > | |
| ordinal_type | degree_ |
| The degree of polynomials that are integrated exactly by this cubature rule. | |
| ordinal_type | dimension_ |
| Dimension of integration domain. | |
| CubatureData | cubatureData_ |
| Cubature data on device. | |
Detailed Description
template<typename DeviceType = void, typename pointValueType = double, typename weightValueType = double>
class Intrepid2::CubatureDirectLineGauss< DeviceType, pointValueType, weightValueType >
Defines Gauss integration rules on a line.
Definition at line 30 of file Intrepid2_CubatureDirectLineGauss.hpp.
Constructor & Destructor Documentation
template<typename DT , typename PT , typename WT >
| Intrepid2::CubatureDirectLineGauss< DT, PT, WT >::CubatureDirectLineGauss | ( | const ordinal_type | degree = 0 | ) |
Constructor.
- Parameters
-
degree [in] - The degree of polynomials that are integrated exactly by this cubature rule. Default: 0.
Definition at line 20 of file Intrepid2_CubatureDirectLineGaussDef.hpp.
References Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType >::cubatureData_, Intrepid2::CubatureDirectLineGauss< DeviceType, pointValueType, weightValueType >::cubatureDataStatic_, Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType >::degree_, Intrepid2::Parameters::MaxCubatureDegreeEdge, Intrepid2::Parameters::MaxDimension, Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType >::CubatureDataStatic::numPoints_, Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType >::CubatureData::numPoints_, Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType >::CubatureData::points_, and Intrepid2::CubatureDirect< DeviceType, pointValueType, weightValueType >::CubatureData::weights_.
The documentation for this class was generated from the following files:
- http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Integration/Intrepid2_CubatureDirectLineGauss.hpp
- http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Integration/Intrepid2_CubatureDirectLineGaussDef.hpp
