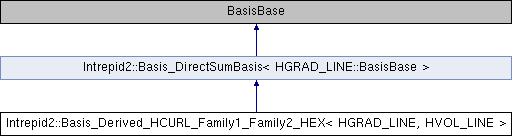

Inheritance diagram for Intrepid2::Basis_Derived_HCURL_Family1_Family2_HEX< HGRAD_LINE, HVOL_LINE >:
Public Member Functions | |
| Basis_Derived_HCURL_Family1_Family2_HEX (int polyOrder_x, int polyOrder_y, int polyOrder_z, const EPointType pointType) | |
| Constructor. More... | |
 Public Member Functions inherited from Intrepid2::Basis_DirectSumBasis< HGRAD_LINE::BasisBase > | |
| Basis_DirectSumBasis (BasisPtr basis1, BasisPtr basis2) | |
| Constructor. More... | |
| virtual BasisValues < OutputValueType, DeviceType > | allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override |
| Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More... | |
| virtual void | getDofCoords (ScalarViewType dofCoords) const override |
| Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More... | |
| virtual void | getDofCoeffs (ScalarViewType dofCoeffs) const override |
| Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell. More... | |
| virtual const char * | getName () const override |
| Returns basis name. More... | |
| virtual void | getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More... | |
| virtual void | getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell. More... | |
| virtual int | getNumTensorialExtrusions () const override |
Private Types | |
| using | Family1 = Basis_Derived_HCURL_Family1_HEX< HGRAD_LINE, HVOL_LINE > |
| using | Family2 = Basis_Derived_HCURL_Family2_HEX< HGRAD_LINE, HVOL_LINE > |
| using | DirectSumBasis = Basis_DirectSumBasis< typename HGRAD_LINE::BasisBase > |
Additional Inherited Members | |
| Public Types inherited from Intrepid2::Basis_DirectSumBasis< HGRAD_LINE::BasisBase > | |
| using | BasisBase = HGRAD_LINE::BasisBase |
| using | BasisPtr = Teuchos::RCP< BasisBase > |
| using | DeviceType = typename BasisBase::DeviceType |
| using | ExecutionSpace = typename BasisBase::ExecutionSpace |
| using | OutputValueType = typename BasisBase::OutputValueType |
| using | PointValueType = typename BasisBase::PointValueType |
| using | OrdinalTypeArray1DHost = typename BasisBase::OrdinalTypeArray1DHost |
| using | OrdinalTypeArray2DHost = typename BasisBase::OrdinalTypeArray2DHost |
| using | OutputViewType = typename BasisBase::OutputViewType |
| using | PointViewType = typename BasisBase::PointViewType |
| using | ScalarViewType = typename BasisBase::ScalarViewType |
| Protected Attributes inherited from Intrepid2::Basis_DirectSumBasis< HGRAD_LINE::BasisBase > | |
| BasisPtr | basis1_ |
| BasisPtr | basis2_ |
| std::string | name_ |
Detailed Description
template<class HGRAD_LINE, class HVOL_LINE>
class Intrepid2::Basis_Derived_HCURL_Family1_Family2_HEX< HGRAD_LINE, HVOL_LINE >
Definition at line 540 of file Intrepid2_DerivedBasis_HCURL_HEX.hpp.
Constructor & Destructor Documentation
template<class HGRAD_LINE , class HVOL_LINE >
|
inline |
Constructor.
- Parameters
-
[in] polyOrder_x - the polynomial order in the x dimension. [in] polyOrder_y - the polynomial order in the y dimension. [in] polyOrder_z - the polynomial order in the z dimension. [in] pointType - type of lattice used for creating the DoF coordinates.
Definition at line 553 of file Intrepid2_DerivedBasis_HCURL_HEX.hpp.
The documentation for this class was generated from the following file:
- http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_DerivedBasis_HCURL_HEX.hpp
