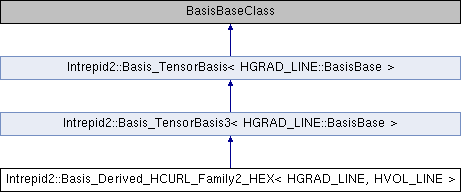

Inheritance diagram for Intrepid2::Basis_Derived_HCURL_Family2_HEX< HGRAD_LINE, HVOL_LINE >:
Public Types | |
| using | OutputViewType = typename HGRAD_LINE::OutputViewType |
| using | PointViewType = typename HGRAD_LINE::PointViewType |
| using | ScalarViewType = typename HGRAD_LINE::ScalarViewType |
| using | LineGradBasis = HGRAD_LINE |
| using | LineVolBasis = HVOL_LINE |
| using | TensorBasis3 = Basis_TensorBasis3< typename HGRAD_LINE::BasisBase > |
 Public Types inherited from Intrepid2::Basis_TensorBasis3< HGRAD_LINE::BasisBase > | |
| using | BasisPtr = Teuchos::RCP< BasisBase > |
| Public Types inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase > | |
| using | BasisBase = BasisBaseClass |
| using | BasisPtr = Teuchos::RCP< HGRAD_LINE::BasisBase > |
| using | DeviceType = typename HGRAD_LINE::BasisBase::DeviceType |
| using | ExecutionSpace = typename HGRAD_LINE::BasisBase::ExecutionSpace |
| using | OutputValueType = typename HGRAD_LINE::BasisBase::OutputValueType |
| using | PointValueType = typename HGRAD_LINE::BasisBase::PointValueType |
| using | OrdinalTypeArray1DHost = typename HGRAD_LINE::BasisBase::OrdinalTypeArray1DHost |
| using | OrdinalTypeArray2DHost = typename HGRAD_LINE::BasisBase::OrdinalTypeArray2DHost |
| using | OutputViewType = typename HGRAD_LINE::BasisBase::OutputViewType |
| using | PointViewType = typename HGRAD_LINE::BasisBase::PointViewType |
| using | TensorBasis = Basis_TensorBasis< BasisBaseClass > |
Public Member Functions | |
| Basis_Derived_HCURL_Family2_HEX (int polyOrder_x, int polyOrder_y, int polyOrder_z, const EPointType pointType=POINTTYPE_DEFAULT) | |
| Constructor. More... | |
| virtual OperatorTensorDecomposition | getSimpleOperatorDecomposition (const EOperator &operatorType) const override |
| Returns a simple decomposition of the specified operator: what operator(s) should be applied to basis1, basis2, and basis3. A one-element vector corresponds to a single TensorData entry; a multiple-element vector corresponds to a VectorData object with axialComponents = false. | |
| virtual void | getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, const PointViewType inputPoints3, bool tensorPoints) const override |
| multi-component getValues() method (required/called by TensorBasis3) More... | |
| virtual void | getDofCoeffs (ScalarViewType dofCoeffs) const override |
| Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell. More... | |
| Public Member Functions inherited from Intrepid2::Basis_TensorBasis3< HGRAD_LINE::BasisBase > | |
| Basis_TensorBasis3 (BasisPtr basis1, BasisPtr basis2, BasisPtr basis3, const bool useShardsCellTopologyAndTags=false) | |
| virtual OperatorTensorDecomposition | getOperatorDecomposition (const EOperator operatorType) const override |
| Returns a full decomposition of the specified operator. (Full meaning that all TensorBasis components are expanded into their non-TensorBasis components.) More... | |
| virtual void | getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints12, const PointViewType inputPoints3, bool tensorPoints) const override |
| Evaluation of a tensor FEM basis on a reference cell. More... | |
| virtual void | getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, const PointViewType inputPoints3, bool tensorPoints) const =0 |
| Evaluation of a tensor FEM basis on a reference cell; subclasses should override this. More... | |
| void | getValues (OutputViewType outputValues, const PointViewType inputPoints1, const EOperator operatorType1, const PointViewType inputPoints2, const EOperator operatorType2, const PointViewType inputPoints3, const EOperator operatorType3, bool tensorPoints, double weight=1.0) const |
| Evaluation of a tensor FEM basis on a reference cell; subclasses should override this. More... | |
| virtual void | getDofCoeffs (typename BasisBase::ScalarViewType dofCoeffs) const override |
| Fills in coefficients of degrees of freedom on the reference cell. More... | |
| virtual HostBasisPtr < OutputValueType, PointValueType > | getHostBasis () const override |
| Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More... | |
| Public Member Functions inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase > | |
| Basis_TensorBasis (BasisPtr basis1, BasisPtr basis2, EFunctionSpace functionSpace=FUNCTION_SPACE_MAX, const bool useShardsCellTopologyAndTags=false) | |
| Constructor. More... | |
| void | setShardsTopologyAndTags () |
| virtual int | getNumTensorialExtrusions () const override |
| ordinal_type | getTensorDkEnumeration (ordinal_type dkEnum1, ordinal_type operatorOrder1, ordinal_type dkEnum2, ordinal_type operatorOrder2) const |
| Given "Dk" enumeration indices for the component bases, returns a Dk enumeration index for the composite basis. More... | |
| virtual BasisValues < OutputValueType, DeviceType > | allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override |
| Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More... | |
| void | getComponentPoints (const PointViewType inputPoints, const bool attemptTensorDecomposition, PointViewType &inputPoints1, PointViewType &inputPoints2, bool &tensorDecompositionSucceeded) const |
| Method to extract component points from composite points. More... | |
| virtual void | getDofCoords (typename HGRAD_LINE::BasisBase::ScalarViewType dofCoords) const override |
| Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More... | |
| virtual void | getDofCoeffs (typename HGRAD_LINE::BasisBase::ScalarViewType dofCoeffs) const override |
| Fills in coefficients of degrees of freedom on the reference cell. More... | |
| virtual const char * | getName () const override |
| Returns basis name. More... | |
| std::vector< BasisPtr > | getTensorBasisComponents () const |
| virtual void | getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More... | |
| void | getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell. More... | |
| void | getValues (OutputViewType outputValues, const PointViewType inputPoints1, const EOperator operatorType1, const PointViewType inputPoints2, const EOperator operatorType2, bool tensorPoints, double weight=1.0) const |
| Evaluation of a tensor FEM basis on a reference cell. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from Intrepid2::Basis_TensorBasis3< HGRAD_LINE::BasisBase > | |
| BasisPtr | basis1_ |
| BasisPtr | basis2_ |
| BasisPtr | basis3_ |
| Protected Attributes inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase > | |
| BasisPtr | basis1_ |
| BasisPtr | basis2_ |
| std::vector< BasisPtr > | tensorComponents_ |
| std::string | name_ |
| int | numTensorialExtrusions_ |
Detailed Description
template<class HGRAD_LINE, class HVOL_LINE>
class Intrepid2::Basis_Derived_HCURL_Family2_HEX< HGRAD_LINE, HVOL_LINE >
Definition at line 190 of file Intrepid2_DerivedBasis_HCURL_HEX.hpp.
Constructor & Destructor Documentation
template<class HGRAD_LINE , class HVOL_LINE >
|
inline |
Constructor.
- Parameters
-
[in] polyOrder_x - the polynomial order in the x dimension. [in] polyOrder_y - the polynomial order in the y dimension. [in] polyOrder_z - the polynomial order in the z dimension. [in] pointType - type of lattice used for creating the DoF coordinates.
Definition at line 209 of file Intrepid2_DerivedBasis_HCURL_HEX.hpp.
Member Function Documentation
template<class HGRAD_LINE , class HVOL_LINE >
|
inlineoverridevirtual |
Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell.
- Parameters
-
[out] dofCoeffs - the container into which to place the degrees of freedom.
dofCoeffs have shape (F,D), field dimension matches the cardinality of the basis, and D is the basis dimension.
Degrees of freedom coefficients are such that (dofCoords_(j)) dofCoeffs_(j) = , where are the basis and the Kronecker delta. Note that getDofCoeffs() is supported only for Lagrangian bases.
Definition at line 340 of file Intrepid2_DerivedBasis_HCURL_HEX.hpp.
References Intrepid2::Basis_TensorBasis3< BasisBaseClass >::getDofCoeffs().
template<class HGRAD_LINE , class HVOL_LINE >
|
inlineoverridevirtual |
multi-component getValues() method (required/called by TensorBasis3)
- Parameters
-
[out] outputValues - the view into which to place the output values [in] operatorType - the operator on the basis [in] inputPoints1 - input points in the x dimension [in] inputPoints2 - input points in the y dimension [in] inputPoints3 - input points in the z dimension [in] tensorPoints - if true, inputPoints1, inputPoints2, and inputPoints3 should be understood as tensorial components of the points in outputValues (i.e., the evaluation points are the tensor product of the three inputPoints containers). If false, each inputPoints container should correspond elementwise to the evaluation points.
Definition at line 266 of file Intrepid2_DerivedBasis_HCURL_HEX.hpp.
References Intrepid2::Basis_TensorBasis3< BasisBaseClass >::getValues().
The documentation for this class was generated from the following file:
- http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_DerivedBasis_HCURL_HEX.hpp
