Interfaces for quadrature over elements. More...

`#include <Galeri_AbstractQuadrature.h>`

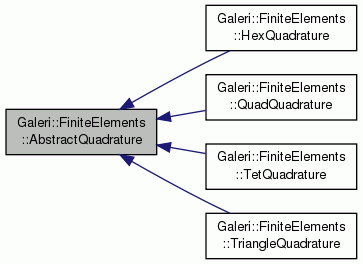

[legend]

## Public Member Functions

Destructor.

virtual int NumQuadrNodes () const =0
Returns the number of quadrature node per element.

virtual int NumPhiFunctions () const =0
Returns the number of basis function on the reference element.

virtual int NumPsiFunctions () const =0
Returns the number of test function on the reference element.

virtual void ComputeJacobian (const int QuadrNode, const double *x, const double *y, const double *z) const =0
Computes the Jacobian at the specified quadrature node.

virtual void ComputeQuadrNodes (const int QuadrNode, const double *x, const double *y, const double *z, double &xq, double &yq, double &zq) const =0
Maps the quadrature nodes from the reference element to the actual one.

virtual void ComputeDerivatives (const int QuadrNode) const =0
Computes the derivatives at the specified quadrature node.

Computes the weight at the specified quadrature node.

virtual double DetJacobian (const int QuadrNode) const =0
Computes the determinant of the Jacobian matrix at the quadrature node.

virtual double Phi (const int i) const =0
Returns the value of the i-th basis function on the reference element.

virtual double PhiX (const int i) const =0
Returns the value of the x-derivative i-th basis function on the reference element.

virtual double PhiY (const int i) const =0
Returns the value of the y-derivative i-th basis function on the reference element.

virtual double PhiZ (const int i) const =0
Returns the value of the z-derivative i-th basis function on the reference element.

virtual double Psi (const int i) const =0
Returns the value of the i-th test function on the reference element.

virtual double PsiX (const int i) const =0
Returns the value of the z-derivative i-th test function on the reference element.

virtual double PsiY (const int i) const =0
Returns the value of the y-derivative i-th test function on the reference element.

virtual double PsiZ (const int i) const =0
Returns the value of the z-derivative i-th test function on the reference element.
