Abstract interface to access finite element grids. More...

#include <Galeri_AbstractGrid.h>

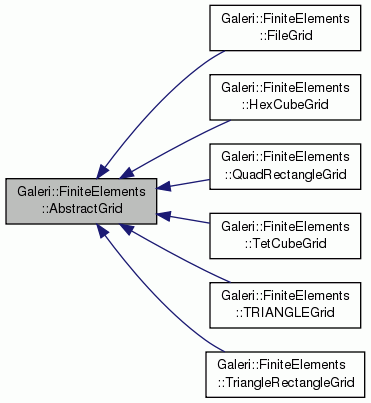

Inheritance diagram for Galeri::FiniteElements::AbstractGrid:

Public Member Functions

virtual	~AbstractGrid ()
	Destructor.


virtual int	NumDimensions () const =0
	Returns the number of dimensions of the grid.

virtual int	NumVerticesPerElement () const =0
	Returns the number of vertices contained in each element.

virtual int	NumFacesPerElement () const =0
	Returns the number of faces contained in each element.

virtual int	NumVerticesPerFace () const =0
	Returns the number of vertices contained in each face.

virtual std::string	ElementType () const =0
	Returns a string containing the element type. More...

virtual int	NumNeighborsPerElement () const =0
	Returns the number of neighboring elements.

virtual int	NumMyElements () const =0
	Returns the number of finite elements on the calling process.

virtual int	NumGlobalElements () const =0
	Returns the global number of finite elements.

virtual int	NumMyVertices () const =0
	Returns the number of vertices on the calling process.

virtual int	NumGlobalVertices () const =0
	Returns the global number of vertices.

virtual int	NumMyBoundaryFaces () const =0
	Returns the number of boundary faces on the calling process.

virtual int	NumGlobalBoundaryFaces () const =0
	Returns the global number of boundary faces.

virtual double	MyVolume () const =0
	Returns the volume of all local elements.

virtual double	GlobalVolume () const =0
	Returns the global volume of the grid.

virtual void	VertexCoord (const int LocalVertex, double *coord) const =0
	Returns the coordinates of local vertex `LocalVertex` in vector `coord`. More...

virtual void	VertexCoord (const int Length, const int IDs, double x, double y, double z) const =0
	Returns the coordinates of specified local vertices. More...

virtual void	ElementVertices (const int LocalElement, int *elements) const =0
	Returns the local vertex IDs of the specified local finite element. More...

virtual void	ElementNeighbors (const int LocalElement, int *elements) const =0
	Returns the local IDs of neighboring elements.

virtual void	FaceVertices (const int LocalFace, int &tag, int *IDs) const =0
	Returns the local vertex IDs of vertices contained in the specified boundary face.

virtual int	FacePatch (const int LocalFace) const =0
	Returns the patch ID of the specified face. More...

virtual double	ElementMinLength (const int LocalElement) const =0
	Returns the volume of the specified local finite element.

virtual double	ElementMaxLength (const int LocalElement) const =0
	Returns the volume of the specified local finite element.

virtual double	ElementVolume (const int LocalElement) const =0
	Returns the volume of the specified local finite element. More...

virtual double	FaceArea (const int LocalFace) const =0
	Returns the area of the specified local face. More...


virtual const Epetra_Map &	VertexMap () const =0
	Returns a reference to the map representing the vertex distribution.

virtual const Epetra_Map &	RowMap () const =0
	Returns a reference to the map representing the distribution of rows.

virtual void	ExportToVertexMap (const Epetra_DistObject &RowObject, Epetra_DistObject &VertexObject) const =0
	Exports distributed object from RowMap() to VertexMap().

virtual void	ExportToRowMap (const Epetra_DistObject &RowObject, Epetra_DistObject &VertexObject) const =0
	Exports distributed object from VertexMap() to RowMap().

virtual const Epetra_Comm &	Comm () const =0
	Returns a reference to the communicator object.

Detailed Description

Abstract interface to access finite element grids.

AbstractGrid is a pure virtual function, that specifies the interface methods that a grid class must implement. Following an approach similar to getrow() for matrices, there is no grid format; instead, the user must implement a set of getelement() and similar methods. Therefore, it is possible to define grids that are built on-the-fly, a feature that is particularly convenient in testing phase.

This format is based on the following assumptions:

All grid elements are of the same type (for examples, all triangles). It is not possible to have mixed grids (i.e., with some triangles and some quadrilateral).
All grid elements are 3D. For 2D problems, the user must specify a z-coordinate, for example 0.0.
Elements, vertices and faces are numbered locally. The local-to-global mapping is required for vertices only, and must be defined using Epetra_Map's.

Two Epetra_Map's must be created:

The VertexMap() locally contains all the vertices that belong to the local finite elements. A global vertex can be replicated over more than one process.
The RowMap() globally contains all the global vertices. A global vertex is assigned to exactly one process.

We require two maps for the following reason: In parallel runs, vertices corresponding to internal boundary faces can are replicated over processors. This makes the contruction of the finite element matrix easier, since it is possible to work on local quantities only. However, such a distribution is not compatible with AztecOO and ML (and several other Trilinos packages), since these libraries require each row to belong to exactly one processor. Methods ExportToVertexMap() and ExportToRowMap() export objects from one map to the other. Typically, ExportToRowMap() is used in the assembly phase, whese local stiffness matrix and right-hand side are built using VertexMap(), then exported to RowMap(). ExportToVertexMap(), instead, is used after the solution of the linear system is computed, to update the values of the solution on the local vertices, so that norms can be computed, and the solution visualized. These methods are trivial in the serial case.

Author: Marzio Sala, SNL 9214

Date: Last updated on 12-Apr-05.

Member Function Documentation

virtual std::string Galeri::FiniteElements::AbstractGrid::ElementType ( ) const

pure virtual

Returns a string containing the element type.

Returns a string containing the type of element. This string is used in the quadrature class. Currently supported options are:

"GALERI_TRIANGLE"
"GALERI_QUAD"
"GALERI_HEX"
"GALERI_TET"

Implemented in Galeri::FiniteElements::FileGrid, Galeri::FiniteElements::TRIANGLEGrid, Galeri::FiniteElements::HexCubeGrid, Galeri::FiniteElements::TetCubeGrid, Galeri::FiniteElements::TriangleRectangleGrid, and Galeri::FiniteElements::QuadRectangleGrid.

Referenced by Galeri::FiniteElements::MEDITInterface::Write().

virtual void Galeri::FiniteElements::AbstractGrid::ElementVertices	(	const int	LocalElement,
		int *	elements
	)		const

pure virtual

Returns the local vertex IDs of the specified local finite element.

Parameters

LocalElement	- (In) ID of the required local element.
elements	- (Out) array of length NumElementVertices(), in output will contain the local ID of the vertices of the specified element.

Implemented in Galeri::FiniteElements::FileGrid, Galeri::FiniteElements::TRIANGLEGrid, Galeri::FiniteElements::HexCubeGrid, Galeri::FiniteElements::TetCubeGrid, Galeri::FiniteElements::TriangleRectangleGrid, and Galeri::FiniteElements::QuadRectangleGrid.

Referenced by Galeri::FiniteElements::LinearProblem::Compute(), Galeri::FiniteElements::LinearProblem::ComputeNorms(), and Galeri::FiniteElements::MEDITInterface::Write().

virtual double Galeri::FiniteElements::AbstractGrid::ElementVolume ( const int LocalElement ) const

pure virtual

Returns the volume of the specified local finite element.

Returns the area (in 2D) or the volume (in 3D) of the specified local element

Implemented in Galeri::FiniteElements::FileGrid, Galeri::FiniteElements::HexCubeGrid, Galeri::FiniteElements::TetCubeGrid, Galeri::FiniteElements::QuadRectangleGrid, Galeri::FiniteElements::TriangleRectangleGrid, and Galeri::FiniteElements::TRIANGLEGrid.

virtual double Galeri::FiniteElements::AbstractGrid::FaceArea ( const int LocalFace ) const

pure virtual

Returns the area of the specified local face.

Returns the length (in 2D) or the area (in 3D) of the specified boundary face

Implemented in Galeri::FiniteElements::FileGrid, Galeri::FiniteElements::HexCubeGrid, Galeri::FiniteElements::TetCubeGrid, Galeri::FiniteElements::QuadRectangleGrid, Galeri::FiniteElements::TriangleRectangleGrid, and Galeri::FiniteElements::TRIANGLEGrid.

virtual int Galeri::FiniteElements::AbstractGrid::FacePatch ( const int LocalFace ) const

pure virtual

Returns the patch ID of the specified face.

Returns an integer ID that identifies the given boundary face as belonging to a given part of the domain. It can be used by the user to specify the value and the type of the boundary condition.

Implemented in Galeri::FiniteElements::FileGrid, Galeri::FiniteElements::QuadRectangleGrid, Galeri::FiniteElements::HexCubeGrid, Galeri::FiniteElements::TetCubeGrid, Galeri::FiniteElements::TriangleRectangleGrid, and Galeri::FiniteElements::TRIANGLEGrid.

Referenced by Galeri::FiniteElements::LinearProblem::Compute().

virtual void Galeri::FiniteElements::AbstractGrid::VertexCoord	(	const int	LocalVertex,
		double *	coord
	)		const

pure virtual

Returns the coordinates of local vertex LocalVertex in vector coord.

Parameters

LocalVertex	- (In) Local ID of the vertex for whic coordinates are required. Must be contained in the interval [0, NumMyVertices())
coord	- (Out) double array of size 3. In output, contains the x-, y- and z-coordinate of the specified vertex.

Note: Parameter coord must be allocated of size 3 for both 2D and 3D problems.

Implemented in Galeri::FiniteElements::FileGrid, Galeri::FiniteElements::TRIANGLEGrid, Galeri::FiniteElements::HexCubeGrid, Galeri::FiniteElements::TetCubeGrid, Galeri::FiniteElements::TriangleRectangleGrid, and Galeri::FiniteElements::QuadRectangleGrid.

Referenced by Galeri::FiniteElements::LinearProblem::Compute(), Galeri::FiniteElements::LinearProblem::ComputeNorms(), and Galeri::FiniteElements::MEDITInterface::Write().

virtual void Galeri::FiniteElements::AbstractGrid::VertexCoord	(	const int	Length,
		const int *	IDs,
		double *	x,
		double *	y,
		double *	z
	)		const

pure virtual

Returns the coordinates of specified local vertices.

Parameters

Length	- (In) Length of array `IDs`.
IDs	- (In) Contains the list of vertices of which coordinates are required.
x	- (Out) double array of size `Length`. In output, contains the x-coordinates of the specified vertices.
y	- (Out) double array of size `Length`. In output, contains the y-coordinates of the specified vertices.
z	- (Out) double array of size `Length`. In output, contains the z-coordinates of the specified vertices.

Note: The z array must be allocated for both 2D and 3D problems.

Implemented in Galeri::FiniteElements::FileGrid, Galeri::FiniteElements::TRIANGLEGrid, Galeri::FiniteElements::HexCubeGrid, Galeri::FiniteElements::TetCubeGrid, Galeri::FiniteElements::TriangleRectangleGrid, and Galeri::FiniteElements::QuadRectangleGrid.

The documentation for this class was generated from the following file:

Galeri_AbstractGrid.h
