#include <fei_Matrix.hpp>

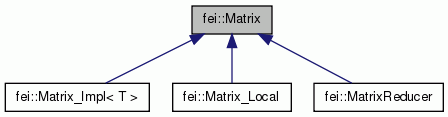

Inheritance diagram for fei::Matrix:

Classes
class	Factory

Public Member Functions
virtual	~Matrix ()

virtual const char *	typeName ()=0

virtual int	parameters (const fei::ParameterSet &paramset)=0

virtual fei::SharedPtr < fei::MatrixGraph >	getMatrixGraph () const =0

virtual void	setMatrixGraph (fei::SharedPtr< fei::MatrixGraph > matrixGraph)=0

virtual int	getGlobalNumRows () const =0

virtual int	getLocalNumRows () const =0

virtual int	getRowLength (int row, int &length) const =0

virtual int	putScalar (double scalar)=0

virtual int	copyOutRow (int row, int len, double coefs, int indices) const =0

virtual int	sumIn (int numRows, const int rows, int numCols, const int cols, const double const values, int format=0)=0

virtual int	copyIn (int numRows, const int rows, int numCols, const int cols, const double const values, int format=0)=0

virtual int	sumInFieldData (int fieldID, int idType, int rowID, int colID, const double const data, int format=0)=0

virtual int	sumInFieldData (int fieldID, int idType, int rowID, int colID, const double *data, int format=0)=0

virtual int	sumIn (int blockID, int connectivityID, const double const values, int format=0)=0

virtual int	globalAssemble ()=0

virtual int	multiply (fei::Vector x, fei::Vector y)=0

virtual void	setCommSizes ()=0

virtual int	gatherFromOverlap (bool accumulate=true)=0

virtual int	writeToFile (const char *filename, bool matrixMarketFormat=true)=0

virtual int	writeToStream (FEI_OSTREAM &ostrm, bool matrixMarketFormat=true)=0

virtual bool	usingBlockEntryStorage ()=0

virtual void	markState ()=0

virtual bool	changedSinceMark ()=0

virtual double *	getBeginPointer ()

virtual int	getOffset (int row, int col)

Detailed Description

Abstract representation of an algebraic matrix. This representation does not require that data be accessed only on the 'owning' processor. In other words, this representation may be used with an overlapping data decomposition. In most cases the underlying library-specific matrix will have a non-overlapping data decomposition (each equation uniquely owned by a single processor). Overlapping data may be assembled into this abstract matrix locally, and will be funneled into the underlying non- overlapping matrix on the correct processor when the gatherFromOverlap() method is called. Conversely, if the user wants to retrieve overlapping data from the matrix locally, that data is not guaranteed to be available until the scatterToOverlap() method is called.

Definition at line 30 of file fei_Matrix.hpp.

Constructor & Destructor Documentation

virtual fei::Matrix::~Matrix ( )

inlinevirtual

Virtual destructor.

Definition at line 44 of file fei_Matrix.hpp.

Member Function Documentation

virtual const char* fei::Matrix::typeName ( )

pure virtual

Return an implementation-dependent name describing the run-time type of this object.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by snl_fei_tester::dumpMatrixFiles(), test_Matrix::matrix_test1(), and fei::MatrixReducer::typeName().

virtual int fei::Matrix::parameters ( const fei::ParameterSet & paramset )

pure virtual

Method for supplying parameters

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::MatrixReducer::parameters(), snl_fei_tester::setParameter(), and snl_fei_tester::testLoading().

virtual fei::SharedPtr<fei::MatrixGraph> fei::Matrix::getMatrixGraph ( ) const

pure virtual

Obtain the fei::MatrixGraph associated with this matrix

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei_test_utils::copy_feiMatrix_to_FillableMat(), fei::DirichletBCManager::finalizeBCEqns(), fei::MatrixReducer::getGlobalNumRows(), fei::MatrixReducer::getLocalNumRows(), fei::MatrixReducer::getMatrixGraph(), HexBeam_Functions::load_elem_data(), test_Matrix::matrix_test1(), fei::MatrixReducer::MatrixReducer(), and fei::MatrixReducer::sumInFieldData().

virtual void fei::Matrix::setMatrixGraph ( fei::SharedPtr< fei::MatrixGraph > matrixGraph )

pure virtual

Set the fei::MatrixGraph associated with this matrix

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::MatrixReducer::setMatrixGraph().

virtual int fei::Matrix::getGlobalNumRows ( ) const

pure virtual

Get the global number of rows in the matrix.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by test_Matrix::matrix_test1().

virtual int fei::Matrix::getLocalNumRows ( ) const

pure virtual

Get the local number of rows in the matrix.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by test_Matrix::matrix_test1().

virtual int fei::Matrix::getRowLength	(	int	row,
		int &	length
	)		const

pure virtual

Get the length of a row of the matrix.

Parameters

row	Global 0-based equation number
length	Output. Length of the row.

Returns: error-code non-zero if any error occurs.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei_test_utils::copy_feiMatrix_to_FillableMat(), snl_fei::LinearSystem_General::getMatrixRow(), fei::MatrixReducer::getRowLength(), test_Matrix::matrix_test1(), and fei::MatrixReducer::writeToFile().

virtual int fei::Matrix::putScalar ( double scalar )

pure virtual

Set a specified scalar throughout the matrix.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::MatrixReducer::putScalar(), and snl_fei_tester::testLoading().

virtual int fei::Matrix::copyOutRow	(	int	row,
		int	len,
		double *	coefs,
		int *	indices
	)		const

pure virtual

Obtain a copy of the coefficients and indices for a row of the matrix.

Parameters

row	Global 0-based equation number
coefs	Caller-allocated array, length 'len', to be filled with coefficients
indices	Caller-allocated array, length 'len', to be filled with indices. (These indices will be global 0-based equation numbers.)
len	Length of the caller-allocated coefs and indices arrays

Returns: error-code non-zero if any error occurs.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei_test_utils::copy_feiMatrix_to_FillableMat(), fei::MatrixReducer::copyOutRow(), snl_fei::LinearSystem_General::getMatrixRow(), and fei::MatrixReducer::writeToFile().

virtual int fei::Matrix::sumIn	(	int	numRows,
		const int *	rows,
		int	numCols,
		const int *	cols,
		const double const	values,
		int	format = `0`
	)

pure virtual

Sum coefficients into the matrix, adding them to any coefficients that may already exist at the specified row/column locations.

Parameters

numRows
rows
numCols
cols
values
format	For compatibility with old FEI elemFormat... 0 means row-wise or row-major, 3 means column-major. Others not recognized

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::impl_utils::add_to_matrix(), fei::Reducer::addMatrixValues(), load_elem_data(), HexBeam_Functions::load_elem_data(), snl_fei_tester::loadElemBlocks(), test_Matrix::serialtest1(), test_Matrix::serialtest2(), test_Matrix::serialtest3(), test_LinearSystem::test2(), test_LinearSystem::test3(), test_Matrix::test3(), test_LinearSystem::test4(), test_Matrix_unit2(), and test_Matrix_unit4().

virtual int fei::Matrix::copyIn	(	int	numRows,
		const int *	rows,
		int	numCols,
		const int *	cols,
		const double const	values,
		int	format = `0`
	)

pure virtual

Copy coefficients into the matrix, overwriting any coefficients that may already exist at the specified row/column locations.

Parameters

numRows
rows
numCols
cols
values
format	For compatibility with old FEI elemFormat... 0 means row-wise or row-major, 3 means column-major. Others not recognized

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::impl_utils::add_to_matrix(), fei::Reducer::addMatrixValues(), fei::DirichletBCManager::finalizeBCEqns(), snl_fei::gatherRemoteEssBCs(), and snl_fei::resolveConflictingCRs().

virtual int fei::Matrix::sumInFieldData	(	int	fieldID,
		int	idType,
		int	rowID,
		int	colID,
		const double const	data,
		int	format = `0`
	)

pure virtual

Sum coefficients into the matrix, specifying row/column locations by identifier/fieldID pairs.

Parameters

fieldID	Input. field-identifier for which data is being input.
idType	Input. The identifier-type of the identifiers.
rowID	Input. Identifier in row-space, for which data is being input.
colID	Input. Identifier in column-space, for which data is being input.
data	Input. C-style table of data. num-rows is the field-size (i.e., number of scalar components that make up the field) of 'fieldID', as is num-columns.
format	For compatibility with old FEI elemFormat... 0 means row-wise or row-major, 3 means column-major. Others not recognized

Returns: error-code 0 if successful

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

virtual int fei::Matrix::sumInFieldData	(	int	fieldID,
		int	idType,
		int	rowID,
		int	colID,
		const double *	data,
		int	format = `0`
	)

pure virtual

Sum coefficients into the matrix, specifying row/column locations by identifier/fieldID pairs.

Parameters

fieldID	Input. field-identifier for which data is being input.
idType	Input. The identifier-type of the identifiers.
rowID	Input. Identifier in row-space, for which data is being input.
colID	Input. Identifier in column-space, for which data is being input.
data	Input. 1-D list representing a packed table of data. Data may be backed in row-major or column-major order and this may be specified with the 'format' argument. The "table" of data is of size num-rows X num-columns and num-rows is the field-size (i.e., number of scalar components that make up the field) of 'fieldID', as is num-columns.
format	For compatibility with old FEI elemFormat... 0 means row-wise or row-major, 3 means column-major. Others not recognized

Returns: error-code 0 if successful

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

virtual int fei::Matrix::sumIn	(	int	blockID,
		int	connectivityID,
		const double const	values,
		int	format = `0`
	)

pure virtual

Sum coefficients, associated with a connectivity-block that was initialized on the MatrixGraph object, into this matrix.

Parameters

blockID
connectivityID
values
format	For compatibility with old FEI elemFormat... 0 means row-wise or row-major, 3 means column-major. Others not recognized

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

virtual int fei::Matrix::globalAssemble ( )

pure virtual

Perform any necessary internal communications/synchronizations or other operations appropriate at end of data input. For some implementations this will be a no-op.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::MatrixReducer::globalAssemble(), test_Matrix_unit2(), and test_Matrix_unit4().

virtual int fei::Matrix::multiply	(	fei::Vector *	x,
		fei::Vector *	y
	)

pure virtual

Form a matrix-vector product y = 'this' * x

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::MatrixReducer::multiply().

virtual void fei::Matrix::setCommSizes ( )

pure virtual

perform initial communication to establish message sizes that will be needed for exchanging shared-node data. Called from within gatherFromOverlap usually, doesn't usually need to be explicitly called by client code. (Power users only...)

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::MatrixReducer::gatherFromOverlap(), and fei::MatrixReducer::setCommSizes().

virtual int fei::Matrix::gatherFromOverlap ( bool accumulate = true )

pure virtual

After local overlapping data has been input, (e.g., element-data for a finite-element application) call this method to have data that corresponds to shared identifiers be communicated from sharing-but-not- owning processors, to owning processors.

Implemented in fei::Matrix_Impl< T >, fei::MatrixReducer, and fei::Matrix_Local.

Referenced by fei::MatrixReducer::gatherFromOverlap(), snl_fei::gatherRemoteEssBCs(), test_LinearSystem::test2(), test_LinearSystem::test3(), test_Matrix::test3(), and test_LinearSystem::test4().

virtual int fei::Matrix::writeToFile	(	const char *	filename,
		bool	matrixMarketFormat = `true`
	)

pure virtual

Write the matrix contents into the specified file.

Parameters

filename Text name of the file to be created or overwritten. If in a parallel environment, each processor will take turns writing into the file.

matrixMarketFormat Optional argument, defaults to true. If true the contents of the file will be MatrixMarket real array format. If not true, the contents of the file will contain the matrix global dimensions on the first line, and all following lines will contain a space-separated triple with global row index first, global column index second and coefficient value third. Note also that if matrixMarketFormat is true, indices will be output in 1-based form, but if not true, indices will be 0-based.

Returns: error-code 0 if successful, -1 if some error occurs such as failure to open file.

Implemented in fei::Matrix_Impl< T >, fei::Matrix_Local, and fei::MatrixReducer.

Referenced by snl_fei_tester::dumpMatrixFiles(), test_Matrix_unit2(), and test_Matrix_unit4().

virtual int fei::Matrix::writeToStream	(	FEI_OSTREAM &	ostrm,
		bool	matrixMarketFormat = `true`
	)

pure virtual

Write the matrix contents into the specified ostream.

Parameters

ostrm ostream to be written to.

matrixMarketFormat Optional argument, defaults to true. If true the data will be written in MatrixMarket real array format. If not true, the stream will receive the matrix global dimensions on the first line, and all following lines will contain a space-separated triple with global row index first, global column index second and coefficient value third. Note also that if matrixMarketFormat is true, indices will be output in 1-based form, but if not true, indices will be 0-based.

Returns: error-code 0 if successful, -1 if some error occurs.

Implemented in fei::Matrix_Impl< T >, fei::Matrix_Local, and fei::MatrixReducer.

Referenced by operator<<(), and fei::MatrixReducer::writeToStream().

virtual bool fei::Matrix::usingBlockEntryStorage ( )

pure virtual

Query whether the underlying matrix object is a block-entry matrix.

Implemented in fei::Matrix_Impl< T >, fei::Matrix_Local, and fei::MatrixReducer.

Referenced by HexBeam_Functions::load_elem_data(), and fei::MatrixReducer::usingBlockEntryStorage().

virtual void fei::Matrix::markState ( )

pure virtual

Set a "mark" point on the current state of the matrix, so that later a query can be made to see if the matrix has changed since this mark was set.

Implemented in fei::Matrix_Impl< T >, fei::Matrix_Local, and fei::MatrixReducer.

Referenced by fei::MatrixReducer::markState().

virtual bool fei::Matrix::changedSinceMark ( )

pure virtual

Query whether the matrix has changed since markState() was called. If markState() hasn't been called since the matrix was constructed, then this query will return true.

Implemented in fei::Matrix_Impl< T >, fei::Matrix_Local, and fei::MatrixReducer.

Referenced by fei::MatrixReducer::changedSinceMark().

virtual double* fei::Matrix::getBeginPointer ( )

inlinevirtual

Reimplemented in fei::Matrix_Impl< T >.

Definition at line 257 of file fei_Matrix.hpp.

virtual int fei::Matrix::getOffset	(	int	row,
		int	col
	)

inlinevirtual

Reimplemented in fei::Matrix_Impl< T >.

Definition at line 258 of file fei_Matrix.hpp.

The documentation for this class was generated from the following file:

fei_Matrix.hpp
