#include <fei_Vector.hpp>

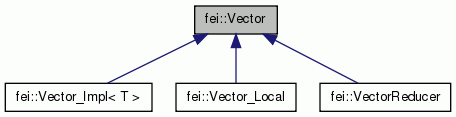

Inheritance diagram for fei::Vector:

Classes
class	Factory

Public Member Functions
virtual	~Vector ()

virtual const char *	typeName () const =0

virtual int	putScalar (double scalar)=0

virtual int	sumIn (int numValues, const int indices, const double values, int vectorIndex=0)=0

virtual int	copyIn (int numValues, const int indices, const double values, int vectorIndex=0)=0

virtual int	copyOut (int numValues, const int indices, double values, int vectorIndex=0) const =0

virtual int	update (double a, const fei::Vector *x, double b)=0

virtual int	scatterToOverlap ()=0

virtual void	setCommSizes ()=0

virtual int	gatherFromOverlap (bool accumulate=true)=0

virtual fei::SharedPtr < fei::VectorSpace >	getVectorSpace () const =0

virtual void	setVectorSpace (fei::SharedPtr< fei::VectorSpace > vecSpace)=0

virtual int	sumInFieldData (int fieldID, int idType, int numIDs, const int IDs, const double data, int vectorIndex=0)=0

virtual int	copyInFieldData (int fieldID, int idType, int numIDs, const int IDs, const double data, int vectorIndex=0)=0

virtual int	copyInFieldDataLocalIDs (int fieldID, int idType, int numIDs, const int localIDs, const double data, int vectorIndex=0)=0

virtual int	copyOutFieldData (int fieldID, int idType, int numIDs, const int IDs, double data, int vectorIndex=0)=0

virtual int	writeToFile (const char *filename, bool matrixMarketFormat=true)=0

virtual int	writeToStream (FEI_OSTREAM &ostrm, bool matrixMarketFormat=true)=0

Detailed Description

Abstract representation of an algebraic multi-vector. This representation may be used with an overlapping data decomposition. The data distribution is defined by the fei::VectorSpace object returned by the method getVectorSpace(). This representation does not require that data be accessed only on the 'owning' processor. Data for any indices that are either shared or owned by the local processor may be passed to, or accessed from, the vector on the local processor. In most cases the underlying library-specific vector will have a non-overlapping data decomposition (each equation uniquely owned by a single processor). Overlapping data (shared by local processor but the equation is owned by another processor) may be assembled into this abstract vector locally, and will be moved into the underlying non-overlapping vector on the correct processor when the gatherFromOverlap() method is called. Conversely, if the user wants to retrieve overlapping data from the vector locally for an equation that resides on another processor, that data is not guaranteed to be available until the scatterToOverlap() method is called. The scatterToOverlap() method does communication necessary to populate shared-but-not-owned data in the fei::Vector from data in the underlying algebraic vector.

From the point of view of fei::Vector, there are two types of data: owned and shared-but-not-owned.

Data Input (passing user data into the vector):
When locally-owned data is input, fei::Vector relays it immediately to the underlying algebraic vector. When shared-but-not-owned data is input, fei::Vector holds it in temporary storage. When gatherToOverlap() is called, fei::Vector moves it to the owning processor and then relays it to the underlying algebraic vector. At that point the temporary storage is deleted.

Data Access (retrieving data from the vector):
When locally-owned data is accessed, fei::Vector retrieves it from the underlying algebraic vector directly. In order to access shared-but-not-owned data (overlapped data), it is necessary first to call the method scatterToOverlap(). This method does the communication necessary to re-create and populate temporary storage with the shared data by retrieving that data from the underlying algebraic vector on the owning processor and sending it to the sharing processors.

Definition at line 57 of file fei_Vector.hpp.

Constructor & Destructor Documentation

virtual fei::Vector::~Vector ( )

inlinevirtual

Virtual destructor.

Definition at line 89 of file fei_Vector.hpp.

Member Function Documentation

virtual const char* fei::Vector::typeName ( ) const

pure virtual

  Return an implementation-dependent name describing the run-time type

of this object.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::VectorReducer::typeName(), and test_Vector::vector_test1().

virtual int fei::Vector::putScalar ( double scalar )

pure virtual

Set a specified scalar throughout the vector.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::VectorReducer::putScalar(), snl_fei_tester::testLoading(), and test_Vector::vector_test1().

virtual int fei::Vector::sumIn	(	int	numValues,
		const int *	indices,
		const double *	values,
		int	vectorIndex = `0`
	)

pure virtual

  Accumulate values into the vector, adding them to any values that

already exist for the specified indices.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::Reducer::addVectorValues(), fei::Reducer::assembleReducedVector(), load_elem_data(), HexBeam_Functions::load_elem_data(), and snl_fei_tester::loadElemBlocks().

virtual int fei::Vector::copyIn	(	int	numValues,
		const int *	indices,
		const double *	values,
		int	vectorIndex = `0`
	)

pure virtual

  Copy values into the vector overwriting any values that already exist

for the specified indices.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::Reducer::addVectorValues(), snl_fei::LinearSystem_General::setBCValuesOnVector(), and test_Vector::vector_test1().

virtual int fei::Vector::copyOut	(	int	numValues,
		const int *	indices,
		double *	values,
		int	vectorIndex = `0`
	)		const

pure virtual

  Retrieve a copy of values from the vector for the specified indices.

Note that if the specified indices are not local in the underlying non-overlapping data decomposition, these values are not guaranteed to be correct until after the scatterToOverlap() method has been called.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::Reducer::copyOutVectorValues(), fei::FEI_Impl::residualNorm(), snl_fei_tester::save_multiplier_soln(), and test_Vector::vector_test1().

virtual int fei::Vector::update	(	double	a,
		const fei::Vector *	x,
		double	b
	)

pure virtual

Update 'this' = b*'this' + a*x

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::FEI_Impl::residualNorm(), and fei::VectorReducer::update().

virtual int fei::Vector::scatterToOverlap ( )

pure virtual

  Scatter data from the underlying non-overlapping data decomposition to

the overlapping data decomposition. In other words, update values for shared indices from underlying uniquely owned data.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by beam_main(), main(), poisson3_main(), fei::VectorReducer::scatterToOverlap(), and snl_fei_tester::testSolve().

virtual void fei::Vector::setCommSizes ( )

pure virtual

perform initial communication to establish message sizes that will be needed for exchanging shared-node data. Called from within gatherFromOverlap usually, doesn't usually need to be explicitly called by client code. (Power users only...)

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::VectorReducer::gatherFromOverlap(), and fei::VectorReducer::setCommSizes().

virtual int fei::Vector::gatherFromOverlap ( bool accumulate = true )

pure virtual

  Gather data from the overlapping data decomposition into the underlying

non-overlapping data decomposition.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::VectorReducer::gatherFromOverlap().

virtual fei::SharedPtr<fei::VectorSpace> fei::Vector::getVectorSpace ( ) const

pure virtual

Query for the VectorSpace object associated with this vector.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::VectorReducer::copyInFieldData(), fei::VectorReducer::copyInFieldDataLocalIDs(), fei::VectorReducer::copyOutFieldData(), fei::VectorReducer::getVectorSpace(), fei::VectorReducer::sumInFieldData(), test_Vector::vector_test1(), and fei::VectorReducer::VectorReducer().

virtual void fei::Vector::setVectorSpace ( fei::SharedPtr< fei::VectorSpace > vecSpace )

pure virtual

Set the VectorSpace object associated with this vector.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::VectorReducer::setVectorSpace().

virtual int fei::Vector::sumInFieldData	(	int	fieldID,
		int	idType,
		int	numIDs,
		const int *	IDs,
		const double *	data,
		int	vectorIndex = `0`
	)

pure virtual

Sum field data into the vector, adding it to any data that may already be present at the specified locations. If the specified fieldID doesn't exist at one or more of the specified IDs, then the corresponding positions in the data array will simply not be used.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

virtual int fei::Vector::copyInFieldData	(	int	fieldID,
		int	idType,
		int	numIDs,
		const int *	IDs,
		const double *	data,
		int	vectorIndex = `0`
	)

pure virtual

Copy field data into the vector, overwriting any data that may already be present at the specified locations. If the specified fieldID doesn't exist at one or more of the specified IDs, then the corresponding positions in the data array will simply not be used.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::FEI_Impl::putNodalFieldData().

virtual int fei::Vector::copyInFieldDataLocalIDs	(	int	fieldID,
		int	idType,
		int	numIDs,
		const int *	localIDs,
		const double *	data,
		int	vectorIndex = `0`
	)

pure virtual

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

virtual int fei::Vector::copyOutFieldData	(	int	fieldID,
		int	idType,
		int	numIDs,
		const int *	IDs,
		double *	data,
		int	vectorIndex = `0`
	)

pure virtual

Copy field data out of the vector into the user-allocated data array. If the specified fieldID doesn't exist at one or more of the specified IDs, then the corresponding positions in the data array will simply not be referenced.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by main(), poisson3_main(), snl_fei_tester::save_block_elem_soln(), and snl_fei_tester::save_block_node_soln().

virtual int fei::Vector::writeToFile	(	const char *	filename,
		bool	matrixMarketFormat = `true`
	)

pure virtual

  Write the vector's contents into the specified file.

Parameters

filename	Text name of the file to be created or overwritten. If in a parallel environment, each processor will take turns writing into the file.
matrixMarketFormat	Optional argument, defaults to true. If true the contents of the file will be MatrixMarket real array format. If not true, the contents of the file will contain the vector's global dimension on the first line, and all following lines will contain a space-separated pair with global index first and coefficient value second.

Returns: error-code 0 if successful, -1 if some error occurs such as failure to open file.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by fei::VectorReducer::writeToFile().

virtual int fei::Vector::writeToStream	(	FEI_OSTREAM &	ostrm,
		bool	matrixMarketFormat = `true`
	)

pure virtual

  Write the vector's contents to the specified ostream.

Parameters

ostrm	ostream to be written to.
matrixMarketFormat	Optional argument, defaults to true. If true the contents of the vector will be written in MatrixMarket real array format. If not true, the stream will be given the vector's global dimension on the first line, and all following lines will contain a space-separated pair with global index first and coefficient value second.

Returns: error-code 0 if successful, -1 if some error occurs such as failure to open file.

Implemented in fei::Vector_Impl< T >, fei::VectorReducer, and fei::Vector_Local.

Referenced by operator<<(), and fei::VectorReducer::writeToStream().

The documentation for this class was generated from the following file:

fei_Vector.hpp
