#include <fei_LinearSystem.hpp>

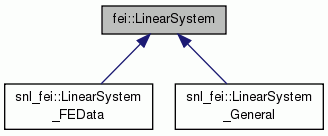

Inheritance diagram for fei::LinearSystem:

Classes
class	Factory

Public Member Functions
	LinearSystem (fei::SharedPtr< fei::MatrixGraph > &matrixGraph)

virtual	~LinearSystem ()

virtual int	parameters (int numParams, const char const paramStrings)=0

virtual int	parameters (const fei::ParameterSet &params)=0

virtual void	setMatrix (fei::SharedPtr< fei::Matrix > &matrix)

virtual fei::SharedPtr < fei::Matrix >	getMatrix ()

virtual fei::SharedPtr< const fei::Matrix >	getMatrix () const

virtual void	setRHS (fei::SharedPtr< fei::Vector > &rhs)

virtual fei::SharedPtr < fei::Vector >	getRHS ()

virtual fei::SharedPtr< const fei::Vector >	getRHS () const

virtual void	setSolutionVector (fei::SharedPtr< fei::Vector > &soln)

virtual fei::SharedPtr < fei::Vector >	getSolutionVector ()

virtual fei::SharedPtr< const fei::Vector >	getSolutionVector () const

virtual int	putAttribute (const char name, void attribute)

virtual int	getAttribute (const char name, void &attribute)

virtual int	loadEssentialBCs (int numIDs, const int IDs, int idType, int fieldID, int offsetIntoField, const double prescribedValues)

virtual int	loadEssentialBCs (int numIDs, const int IDs, int idType, int fieldID, const int offsetsIntoField, const double *prescribedValues)

virtual int	loadLagrangeConstraint (int constraintID, const double *weights, double rhsValue)=0

virtual int	loadPenaltyConstraint (int constraintID, const double *weights, double penaltyValue, double rhsValue)=0

virtual int	loadComplete (bool applyBCs=true, bool globalAssemble=true)=0

virtual int	setBCValuesOnVector (fei::Vector *vector)=0

virtual bool	eqnIsEssentialBC (int globalEqnIndex) const =0

virtual void	getEssentialBCs (std::vector< int > &bcEqns, std::vector< double > &bcVals) const =0

virtual void	getConstrainedEqns (std::vector< int > &crEqns) const =0

Protected Attributes
fei::SharedPtr< fei::Matrix >	matrix_

fei::SharedPtr< fei::Vector >	soln_

fei::SharedPtr< fei::Vector >	rhs_

fei::SharedPtr< fei::MatrixGraph >	matrixGraph_

fei::DirichletBCManager *	dbcManager_

std::vector< char * >	attributeNames_

std::vector< void * >	attributes_

Detailed Description

A simple container to bind a matrix and two vectors together as the matrix, rhs and solution of a linear system.

Definition at line 26 of file fei_LinearSystem.hpp.

Constructor & Destructor Documentation

fei::LinearSystem::LinearSystem ( fei::SharedPtr< fei::MatrixGraph > & matrixGraph )

Constructor

Definition at line 17 of file fei_LinearSystem.cpp.

fei::LinearSystem::~LinearSystem ( )

virtual

Destructor

Definition at line 27 of file fei_LinearSystem.cpp.

Member Function Documentation

virtual int fei::LinearSystem::parameters	(	int	numParams,
		const char const	paramStrings
	)

pure virtual

  Set parameters on this object. Currently two parameters are recognized:

"debugOutput 'path'" where 'path' is the path to the location where debug-log files will be produced.
"name 'string'" where 'string' is an identifier that will be used in debug-log file-names.

Implemented in snl_fei::LinearSystem_General, and snl_fei::LinearSystem_FEData.

Referenced by beam_main(), main(), poisson3_main(), snl_fei_tester::setParameter(), test_LinearSystem::test3(), and snl_fei_tester::testLoading().

virtual int fei::LinearSystem::parameters ( const fei::ParameterSet & params )

pure virtual

Set parameters on this object.

Implemented in snl_fei::LinearSystem_General, and snl_fei::LinearSystem_FEData.

void fei::LinearSystem::setMatrix ( fei::SharedPtr< fei::Matrix > & matrix )

virtual

Set the matrix for this linear system.

Definition at line 47 of file fei_LinearSystem.cpp.

Referenced by beam_main(), main(), poisson3_main(), test_LinearSystem::test2(), test_LinearSystem::test3(), test_LinearSystem::test4(), and snl_fei_tester::testLoading().

virtual fei::SharedPtr<fei::Matrix> fei::LinearSystem::getMatrix ( )

inlinevirtual

Get the matrix for this linear system.

Definition at line 62 of file fei_LinearSystem.hpp.

References matrix_.

Referenced by fei_Solver_solve().

virtual fei::SharedPtr<const fei::Matrix> fei::LinearSystem::getMatrix ( ) const

inlinevirtual

Get the matrix for this linear system.

Definition at line 66 of file fei_LinearSystem.hpp.

References matrix_.

virtual void fei::LinearSystem::setRHS ( fei::SharedPtr< fei::Vector > & rhs )

inlinevirtual

Set the right-hand-side for this linear system.

Definition at line 71 of file fei_LinearSystem.hpp.

References rhs_.

Referenced by beam_main(), main(), poisson3_main(), test_LinearSystem::test2(), test_LinearSystem::test3(), test_LinearSystem::test4(), and snl_fei_tester::testLoading().

virtual fei::SharedPtr<fei::Vector> fei::LinearSystem::getRHS ( )

inlinevirtual

Get the right-hand-side for this linear system.

Definition at line 75 of file fei_LinearSystem.hpp.

References rhs_.

virtual fei::SharedPtr<const fei::Vector> fei::LinearSystem::getRHS ( ) const

inlinevirtual

Get the right-hand-side for this linear system.

Definition at line 79 of file fei_LinearSystem.hpp.

References rhs_.

virtual void fei::LinearSystem::setSolutionVector ( fei::SharedPtr< fei::Vector > & soln )

inlinevirtual

Set the solution for this linear system.

Definition at line 84 of file fei_LinearSystem.hpp.

References soln_.

Referenced by beam_main(), main(), poisson3_main(), test_LinearSystem::test2(), test_LinearSystem::test3(), test_LinearSystem::test4(), and snl_fei_tester::testLoading().

virtual fei::SharedPtr<fei::Vector> fei::LinearSystem::getSolutionVector ( )

inlinevirtual

Get the solution for this linear system.

Definition at line 88 of file fei_LinearSystem.hpp.

References soln_.

virtual fei::SharedPtr<const fei::Vector> fei::LinearSystem::getSolutionVector ( ) const

inlinevirtual

Get the solution for this linear system.

Definition at line 92 of file fei_LinearSystem.hpp.

References soln_.

int fei::LinearSystem::putAttribute	(	const char *	name,
		void *	attribute
	)

virtual

Store an attribute on this LinearSystem which can be retrieved later by name.

Definition at line 53 of file fei_LinearSystem.cpp.

References snl_fei::storeNamedAttribute().

int fei::LinearSystem::getAttribute	(	const char *	name,
		void *&	attribute
	)

virtual

Retrieve an attribute which was previously stored.

Definition at line 62 of file fei_LinearSystem.cpp.

References snl_fei::retrieveNamedAttribute().

int fei::LinearSystem::loadEssentialBCs	(	int	numIDs,
		const int *	IDs,
		int	idType,
		int	fieldID,
		int	offsetIntoField,
		const double *	prescribedValues
	)

virtual

Essential boundary-condition function that simply accepts a list of prescribed values, rather than the 'old' FEI's confusing approach of accepting arrays of alpha, beta and gamma values that nobody every really understood.

For each specified ID, a value is being prescribed for a specified fieldID and a specified offset into that field.

Parameters

numIDs
IDs
idType
fieldID
offsetIntoField
prescribedValues	Input. List of values. Has length numIDs.

Reimplemented in snl_fei::LinearSystem_General.

Definition at line 70 of file fei_LinearSystem.cpp.

References fei::DirichletBCManager::addBCRecords(), fei::console_out(), and FEI_ENDL.

Referenced by load_BC_data(), HexBeam_Functions::load_BC_data(), snl_fei::LinearSystem_General::loadEssentialBCs(), and snl_fei_tester::testLoading().

int fei::LinearSystem::loadEssentialBCs	(	int	numIDs,
		const int *	IDs,
		int	idType,
		int	fieldID,
		const int *	offsetsIntoField,
		const double *	prescribedValues
	)

virtual

Essential boundary-condition function that simply accepts a list of prescribed values, rather than the 'old' FEI's confusing approach of accepting arrays of alpha, beta and gamma values that nobody every really understood.

For each specified ID, a value is being prescribed for a specified fieldID and a specified offset into that field. The offset into the field can be different for each prescribed value.

Parameters

numIDs
IDs
idType
fieldID
offsetsIntoField	Input. List of values, length numIDs.
prescribedValues	Input. List of values. Has length numIDs.

Reimplemented in snl_fei::LinearSystem_General.

Definition at line 94 of file fei_LinearSystem.cpp.

References fei::DirichletBCManager::addBCRecords(), fei::console_out(), and FEI_ENDL.

virtual int fei::LinearSystem::loadLagrangeConstraint	(	int	constraintID,
		const double *	weights,
		double	rhsValue
	)

pure virtual

  Lagrange constraint coefficient loading function.

Parameters

constraintID	Input. Must be an identifier of a lagrange constraint that was initialized on the fei::MatrixGraph object which was used to construct the matrix for this linear system.
weights	Input. List, with length given by the sum of the sizes of the constrained fields.
rhsValue

Implemented in snl_fei::LinearSystem_General, and snl_fei::LinearSystem_FEData.

Referenced by HexBeam_Functions::load_constraints(), snl_fei_tester::loadConstraints(), test_LinearSystem::test2(), and test_LinearSystem::test4().

virtual int fei::LinearSystem::loadPenaltyConstraint	(	int	constraintID,
		const double *	weights,
		double	penaltyValue,
		double	rhsValue
	)

pure virtual

  Penalty constraint coefficient loading function.

Parameters

constraintID	Input. Must be an identifier of a lagrange constraint that was initialized on the fei::MatrixGraph object which was used to construct the matrix for this linear system.
weights	Input. List, with length given by the sum of the sizes of the constrained fields.
penaltyValue
rhsValue

Implemented in snl_fei::LinearSystem_General, and snl_fei::LinearSystem_FEData.

Referenced by snl_fei_tester::loadConstraints(), and test_LinearSystem::test3().

virtual int fei::LinearSystem::loadComplete	(	bool	applyBCs = `true`,
		bool	globalAssemble = `true`
	)

pure virtual

  Signal that all boundary-conditions and constraint coefficients have been

loaded, and they may now be applied to the linear system.

Implemented in snl_fei::LinearSystem_General, and snl_fei::LinearSystem_FEData.

Referenced by beam_main(), main(), poisson3_main(), test_LinearSystem::test2(), test_LinearSystem::test3(), test_LinearSystem::test4(), and snl_fei_tester::testLoading().

virtual int fei::LinearSystem::setBCValuesOnVector ( fei::Vector * vector )

pure virtual

  Request that any boundary-condition values that have been provided via

loadEssentialBCs() be set in the specified vector.

Implemented in snl_fei::LinearSystem_General, and snl_fei::LinearSystem_FEData.

virtual bool fei::LinearSystem::eqnIsEssentialBC ( int globalEqnIndex ) const

pure virtual

  Query whether a specified equation-index has a prescribed

essential boundary-condition.

Implemented in snl_fei::LinearSystem_FEData, and snl_fei::LinearSystem_General.

virtual void fei::LinearSystem::getEssentialBCs	(	std::vector< int > &	bcEqns,
		std::vector< double > &	bcVals
	)		const

pure virtual

  Fill caller-supplied vectors with the global equation-indices (which

reside on the local processor) that have essential boundary-conditions prescribed, and fill a second vector with the prescribed values.

Implemented in snl_fei::LinearSystem_FEData, and snl_fei::LinearSystem_General.

virtual void fei::LinearSystem::getConstrainedEqns ( std::vector< int > & crEqns ) const

pure virtual

Fill a caller-supplied vector with the global equation-indices (which reside on the local processor) that are involved in constraint-relations.

Implemented in snl_fei::LinearSystem_FEData, and snl_fei::LinearSystem_General.

Referenced by test_LinearSystem::test2().

Member Data Documentation

fei::SharedPtr<fei::Matrix> fei::LinearSystem::matrix_

protected

Definition at line 205 of file fei_LinearSystem.hpp.

Referenced by getMatrix().

fei::SharedPtr<fei::Vector> fei::LinearSystem::soln_

protected

Definition at line 206 of file fei_LinearSystem.hpp.

Referenced by getSolutionVector(), and setSolutionVector().

fei::SharedPtr<fei::Vector> fei::LinearSystem::rhs_

protected

Definition at line 207 of file fei_LinearSystem.hpp.

Referenced by getRHS(), and setRHS().

fei::SharedPtr<fei::MatrixGraph> fei::LinearSystem::matrixGraph_

protected

Definition at line 209 of file fei_LinearSystem.hpp.

fei::DirichletBCManager* fei::LinearSystem::dbcManager_

protected

Definition at line 210 of file fei_LinearSystem.hpp.

std::vector<char*> fei::LinearSystem::attributeNames_

protected

Definition at line 212 of file fei_LinearSystem.hpp.

std::vector<void*> fei::LinearSystem::attributes_

protected

Definition at line 213 of file fei_LinearSystem.hpp.

The documentation for this class was generated from the following files:
