EpetraExt::TCrsGraph_MapColoringIndex< int_type > Class Template Reference

Generates a std::vector of Epetra_IntVector's to be used to map perturbation contributions to a CrsGraph/CrsMatrix from a perturbed vector. More...

#include <EpetraExt_TCrsGraph_MapColoringIndex.h>

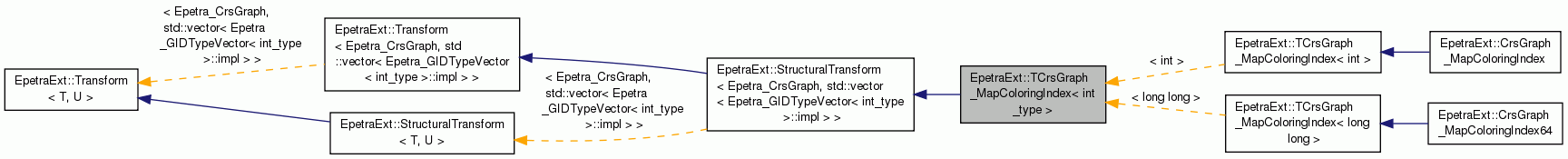

Inheritance diagram for EpetraExt::TCrsGraph_MapColoringIndex< int_type >:

Public Types
typedef StructuralTransform < Epetra_CrsGraph, std::vector < typename Epetra_GIDTypeVector< int_type > ::impl > >	Base
typedef Base::NewTypeRef	NewTypeRef
	Generates a std::vector<Epetra_IntVector> from the input Epetra_CrsGraph. More...
typedef Base::OriginalTypeRef	OriginalTypeRef
Public Types inherited from EpetraExt::Transform< T, U >
typedef T	OriginalType
typedef T *	OriginalTypePtr
typedef Teuchos::RCP< T >	OriginalTypeRCP
typedef T &	OriginalTypeRef
typedef U	NewType
typedef U *	NewTypePtr
typedef Teuchos::RCP< U >	NewTypeRCP
typedef U &	NewTypeRef

Public Member Functions
NewTypeRef	operator() (OriginalTypeRef orig)
	Analysis of transform operation on original object and construction of new object. More...
Public Member Functions inherited from EpetraExt::StructuralTransform< Epetra_CrsGraph, std::vector< Epetra_GIDTypeVector< int_type >::impl > >
bool	fwd ()
	Forward transfer of data from orig object input in the operator() method call to the new object created in this same call. More...
bool	rvs ()
	Reverse transfer of data from new object created in the operator() method call to the orig object input to this same method. More...
virtual	~StructuralTransform ()
Public Member Functions inherited from EpetraExt::Transform< T, U >
virtual	~Transform ()
virtual bool	analyze (OriginalTypeRef orig)
	Initial analysis phase of transform. More...
virtual NewTypeRef	construct ()
	Construction of new object as a result of the transform. More...
virtual bool	isConstructed ()
	Check for whether transformed object has been constructed. More...

Protected Member Functions
	~TCrsGraph_MapColoringIndex ()
	Destructor. More...
	TCrsGraph_MapColoringIndex (const Epetra_MapColoring &ColorMap)
	Constructor input param ColorMap defines the perturbation coloring. More...
Protected Member Functions inherited from EpetraExt::Transform< T, U >
	Transform ()
	Default constructor, protected to allow only derived classes to use. More...

Additional Inherited Members
Protected Attributes inherited from EpetraExt::Transform< T, U >
OriginalTypePtr	origObj_
NewTypePtr	newObj_

Detailed Description

template<typename int_type>
class EpetraExt::TCrsGraph_MapColoringIndex< int_type >

Generates a std::vector of Epetra_IntVector's to be used to map perturbation contributions to a CrsGraph/CrsMatrix from a perturbed vector.

Definition at line 69 of file EpetraExt_TCrsGraph_MapColoringIndex.h.

Member Typedef Documentation

template<typename int_type>

typedef StructuralTransform< Epetra_CrsGraph,std::vector<typename Epetra_GIDTypeVector<int_type>::impl> > EpetraExt::TCrsGraph_MapColoringIndex< int_type >::Base

Definition at line 89 of file EpetraExt_TCrsGraph_MapColoringIndex.h.

template<typename int_type>

typedef Base::NewTypeRef EpetraExt::TCrsGraph_MapColoringIndex< int_type >::NewTypeRef

Generates a std::vector<Epetra_IntVector> from the input Epetra_CrsGraph.

Definition at line 93 of file EpetraExt_TCrsGraph_MapColoringIndex.h.

template<typename int_type>

typedef Base::OriginalTypeRef EpetraExt::TCrsGraph_MapColoringIndex< int_type >::OriginalTypeRef

Definition at line 94 of file EpetraExt_TCrsGraph_MapColoringIndex.h.

Constructor & Destructor Documentation

template<typename int_type>

EpetraExt::TCrsGraph_MapColoringIndex< int_type >::~TCrsGraph_MapColoringIndex ( )

inlineprotected

Destructor.

Definition at line 79 of file EpetraExt_TCrsGraph_MapColoringIndex.h.

template<typename int_type>

EpetraExt::TCrsGraph_MapColoringIndex< int_type >::TCrsGraph_MapColoringIndex ( const Epetra_MapColoring &  ColorMap )

inlineprotected

Constructor input param ColorMap defines the perturbation coloring.

Definition at line 85 of file EpetraExt_TCrsGraph_MapColoringIndex.h.

Member Function Documentation

template<typename int_type >

TCrsGraph_MapColoringIndex< int_type >::NewTypeRef EpetraExt::TCrsGraph_MapColoringIndex< int_type >::operator() ( OriginalTypeRef  orig )

virtual

Analysis of transform operation on original object and construction of new object.

Preconditions:

Invariants:

Postconditions:

Returns

Returns a pointer to the newly created object of type NewTypeRef. The Transform object maintains ownership of this new object and deletes as a part of it's destruction.

Implements EpetraExt::Transform< T, U >.

Definition at line 103 of file EpetraExt_TCrsGraph_MapColoringIndex.h.

---

The documentation for this class was generated from the following file:

• EpetraExt_TCrsGraph_MapColoringIndex.h
