Amesos2 interface to the distributed memory version of SuperLU. More...

#include <Amesos2_Superludist_decl.hpp>

Inheritance diagram for Amesos2::Superludist< Matrix, Vector >:

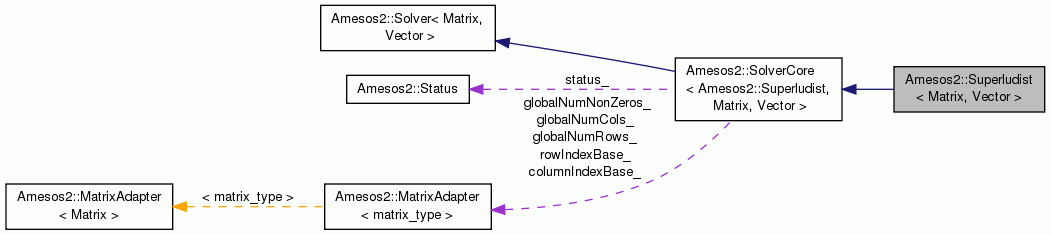

Collaboration diagram for Amesos2::Superludist< Matrix, Vector >:

Public Types
typedef Superludist< Matrix, Vector >	type

typedef SolverCore < Amesos2::Superludist, Matrix, Vector >	super_type

typedef Matrix	matrix_type

typedef Vector	vector_type

typedef super_type::scalar_type	scalar_type

typedef super_type::local_ordinal_type	local_ordinal_type

typedef super_type::global_ordinal_type	global_ordinal_type

typedef super_type::global_size_type	global_size_type

typedef super_type::node_type	node_type

typedef TypeMap < Amesos2::Superludist, scalar_type >	type_map

typedef type_map::type	slu_type

typedef type_map::magnitude_type	magnitude_type

typedef FunctionMap < Amesos2::Superludist, slu_type >	function_map

typedef Kokkos::DefaultHostExecutionSpace	HostExecSpaceType

typedef Kokkos::View < SLUD::int_t *, HostExecSpaceType >	host_size_type_array

typedef Kokkos::View < SLUD::int_t *, HostExecSpaceType >	host_ordinal_type_array

typedef Kokkos::View< slu_type *, HostExecSpaceType >	host_value_type_array

typedef ConcreteSolver< Matrix, Vector >	solver_type

Public Member Functions
bool	matrixShapeOK () override
	Returns `true` if the solver can handle this matrix shape. More...

void	setA (const Teuchos::RCP< const Matrix > a, EPhase keep_phase=CLEAN) override
	Sets the matrix A of this solver. More...

void	setA (const Matrix *a, EPhase keep_phase=CLEAN) override
	Sets the matrix A of this solver. More...

void	setX (const Teuchos::RCP< Vector > x) override
	Sets the LHS vector X.

void	setX (Vector *x) override
	Sets the LHS vector X using a raw pointer.

const Teuchos::RCP< Vector >	getX () override
	Returns the vector that is the LHS of the linear system.

Vector *	getXRaw () override
	Returns a raw pointer to the LHS of the linear system.

void	setB (const Teuchos::RCP< const Vector > b) override
	Sets the RHS vector B.

void	setB (const Vector *b) override
	Sets the RHS vector B using a raw pointer.

const Teuchos::RCP< const Vector >	getB () override
	Returns the vector that is the RHS of the linear system.

const Vector *	getBRaw () override
	Returns a raw pointer to the RHS of the linear system.

std::string	description () const override
	Returns a short description of this Solver.

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const override

void	printTiming (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const override
	Prints timing information about the current solver. More...

void	getTiming (Teuchos::ParameterList &timingParameterList) const override
	Extracts timing information from the current solver. More...

std::string	name () const override
	Return the name of this solver. More...

Constructor/Destructor methods
	Superludist (Teuchos::RCP< const Matrix > A, Teuchos::RCP< Vector > X, Teuchos::RCP< const Vector > B)
	Initialize from Teuchos::RCP. More...

	~Superludist ()
	Destructor. More...

Mathematical functions
super_type &	preOrdering () override
	Pre-orders the matrix A for minimal fill-in. More...

super_type &	symbolicFactorization () override
	Performs symbolic factorization on the matrix A. More...

super_type &	numericFactorization () override
	Performs numeric factorization on the matrix A. More...

void	solve () override
	Solves (or ) More...

void	solve (const Teuchos::Ptr< Vector > X, const Teuchos::Ptr< const Vector > B) const override
	Solve using the given X and B vectors. More...

void	solve (Vector X, const Vector B) const override
	Solve using the given X and B vectors. More...

int	solve_ir (const Teuchos::Ptr< Vector > X, const Teuchos::Ptr< const Vector > B, const int maxNumIters, const bool verbose) const

int	solve_ir (Vector X, const Vector B, const int maxNumIters, const bool verbose) const

int	solve_ir (const int maxNumIters, const bool verbose)

Parameter methods
super_type &	setParameters (const Teuchos::RCP< Teuchos::ParameterList > &parameterList) override
	Set/update internal variables and solver options. More...

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override
	Return a const parameter list of all of the valid parameters that this->setParameterList(...) will accept. More...

void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &parameterList)
	Set or update internal variables and solver options. More...

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	This is a empty stub. More...

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	This is an empty stub. More...

Accessor methods
Teuchos::RCP< const Teuchos::Comm< int > >	getComm () const override
	Returns a pointer to the Teuchos::Comm communicator with this operator.

Status &	getStatus () const override
	Returns a reference to this solver's internal status object.

Static Public Attributes
static const char *	name = "SuperLU_DIST"
	Name of this solver interface.

Protected Member Functions
void	setNnzLU (size_t nnz)
	Set the number of non-zero values in the and factors. More...

Protected Attributes
Teuchos::RCP< const MatrixAdapter< Matrix > >	matrixA_
	The LHS operator.

bool	matrix_loaded_

Teuchos::RCP< Vector >	multiVecX_
	The LHS vector/multi-vector.

Teuchos::RCP< const Vector >	multiVecB_
	The RHS vector/multi-vector. More...

global_size_type	globalNumRows_
	Number of global rows in `matrixA_`.

global_size_type	globalNumCols_
	Number of global columns in `matrixA_`.

global_size_type	globalNumNonZeros_
	Number of global non-zero values in `matrixA_`.

global_size_type	rowIndexBase_
	Index base of rowmap of `matrixA_`.

global_size_type	columnIndexBase_
	Index base of column map of `matrixA_`.

Status	status_
	Holds status information about a solver.

Control	control_
	Parameters for solving.

Timers	timers_
	Various timing statistics.

int	rank_
	The MPI rank of this image.

bool	root_
	If `true`, then this is the root processor.

int	nprocs_
	Number of process images in the matrix communicator.

Private Member Functions
void	computeRowPermutationLargeDiagMC64 (SLUD::SuperMatrix &GA)
	Compute the row permutation for option LargeDiag-MC64. More...

int	preOrdering_impl ()
	Performs pre-ordering on the matrix to increase efficiency. More...

int	symbolicFactorization_impl ()
	Perform symbolic factorization of the matrix using SuperLU_DIST. More...

int	numericFactorization_impl ()
	SuperLU_DIST specific numeric factorization. More...

int	solve_impl (const Teuchos::Ptr< MultiVecAdapter< Vector > > X, const Teuchos::Ptr< const MultiVecAdapter< Vector > > B) const
	SuperLU_DIST specific solve. More...

bool	matrixShapeOK_impl () const
	Determines whether the shape of the matrix is OK for this solver. More...

void	setParameters_impl (const Teuchos::RCP< Teuchos::ParameterList > &parameterList)

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters_impl () const

void	get_default_grid_size (int nprocs, SLUD::int_t &nprow, SLUD::int_t &npcol) const

bool	loadA_impl (EPhase current_phase)
	Reads matrix data into internal solver structures. More...

Private Attributes
struct Amesos2::Superludist::SLUData	data_

host_value_type_array	nzvals_view_
	Stores the values of the nonzero entries for SuperLU_DIST.

host_ordinal_type_array	colind_view_
	Stores the row indices of the nonzero entries.

host_size_type_array	rowptr_view_
	Stores the location in `Ai_` and Aval_ that starts row j.

Teuchos::Array< slu_type >	bvals_
	1D store for B values

Teuchos::Array< slu_type >	xvals_
	1D store for X values

bool	in_grid_
	`true` if this processor is in SuperLU_DISTS's 2D process grid

bool	same_symbolic_

bool	force_symbfact_

bool	same_solve_struct_

Teuchos::RCP< const Tpetra::Map < local_ordinal_type, global_ordinal_type, node_type > >	superlu_rowmap_
	Maps rows of the matrix to processors in the SuperLU_DIST processor grid.

bool	is_contiguous_

Friends
class	SolverCore< Amesos2::Superludist, Matrix, Vector >

Detailed Description

template<class Matrix, class Vector>
class Amesos2::Superludist< Matrix, Vector >

Amesos2 interface to the distributed memory version of SuperLU.

The distributed memory version of SuperLU, SuperLU_DIST, is supported by this Amesos2 interface. Currently support is for the SuperLU_DIST 2.5 version.

This interface to SuperLU_DIST currently does not support row permutations due to a sequential bottleneck present in SuperLU_DIST when calculating such a row permutation (i.e. the matrix must be brought to the root processor, which then finds the row permutation and broadcasts this permutation to the other processors). In the future we may support row permutations through Zoltan. By not supporting this option, we make use of the entirely distributed interface to SuperLU_DIST. On the other hand, if you absolutely need row permutations and your matrix will fit on a single node, then you may consider using Amesos2's SuperLU_MT interface instead.

SuperLU_DIST does not provide a means to directly get the number of non-zeros in the L and U factors.

Warning: After creation, the size of the matrix should not change (i.e. when using setA())

Constructor & Destructor Documentation

template<class Matrix , class Vector >

Amesos2::Superludist< Matrix, Vector >::Superludist	(	Teuchos::RCP< const Matrix >	A,
		Teuchos::RCP< Vector >	X,
		Teuchos::RCP< const Vector >	B
	)

Initialize from Teuchos::RCP.

Warning: Should not be called directly! Use instead Amesos2::create() to initialize a SuperLU_DIST interface.

References Amesos2::Superludist< Matrix, Vector >::get_default_grid_size(), Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::getComm(), Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::getValidParameters(), Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::globalNumCols_, Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::globalNumRows_, Amesos2::Superludist< Matrix, Vector >::in_grid_, Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::matrixA_, Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::setParameters(), and Amesos2::Superludist< Matrix, Vector >::superlu_rowmap_.

template<class Matrix , class Vector >

Amesos2::Superludist< Matrix, Vector >::~Superludist ( )

Destructor.

These are created by superlu malloc and should be deallocated by superlu free

Member Function Documentation

template<class Matrix , class Vector >

void Amesos2::Superludist< Matrix, Vector >::computeRowPermutationLargeDiagMC64 ( SLUD::SuperMatrix & GA )

private

Compute the row permutation for option LargeDiag-MC64.

SuperLU_DIST supports several forms of row permutations. Refer to slu_mt_options for the available RowPerm options.

template<class Matrix , class Vector >

int Amesos2::Superludist< Matrix, Vector >::preOrdering_impl ( )

private

Performs pre-ordering on the matrix to increase efficiency.

SuperLU_DIST supports several forms of column permutations. Refer to slu_mt_options for the available ColPerm options.

template<class Matrix , class Vector >

int Amesos2::Superludist< Matrix, Vector >::symbolicFactorization_impl ( )

private

Perform symbolic factorization of the matrix using SuperLU_DIST.

Called second in the sequence before numericFactorization.

Exceptions

std::runtime_error SuperLU_DIST is not able to factor the matrix.

template<class Matrix , class Vector >

int Amesos2::Superludist< Matrix, Vector >::numericFactorization_impl ( )

private

SuperLU_DIST specific numeric factorization.

SuperLU_DIST factors the matrix in a shared memory environment using nprocs threads, where nprocs defaults to 1 if it is not changed through setParameters().

Exceptions

std::runtime_error SuperLU_DIST is not able to factor the matrix

template<class Matrix , class Vector >

int Amesos2::Superludist< Matrix, Vector >::solve_impl	(	const Teuchos::Ptr< MultiVecAdapter< Vector > >	X,
		const Teuchos::Ptr< const MultiVecAdapter< Vector > >	B
	)		const

private

SuperLU_DIST specific solve.

Uses the symbolic and numeric factorizations, along with the RHS vector B to solve the sparse system of equations. The solution is placed in X.

Exceptions

std::runtime_error SuperLU_DIST is not able to solve the system.

template<class Matrix , class Vector >

bool Amesos2::Superludist< Matrix, Vector >::matrixShapeOK_impl ( ) const

private

Determines whether the shape of the matrix is OK for this solver.

SuperLU_DIST supports square matrices.

template<class Matrix , class Vector >

void Amesos2::Superludist< Matrix, Vector >::setParameters_impl ( const Teuchos::RCP< Teuchos::ParameterList > & parameterList )

private

Currently, the following SuperLU_DIST parameters/options are recognized:

"npcol"(int) and "nprow"(int) : Specified together, these parameters set the size of the SuperLU_DIST processor grid to nprow rows by npcol columns. If these parameters are not set, the SuperLU_DIST interface uses a heuristic to pick the grid dimensions based on the number of processors in the matrix' communicator.
"ColPerm" which takes one of the following:
- "NATURAL" : natural column ordering.
- "PARMETIS" : use the ParMETIS TPL to order the columns. (default)
"ReplaceTinyPivot" : { true | false }. Specifies whether to replace tiny diagonals with $\sqrt{\epsilon}\cdot\| A \|$ during LU factorization. (default: true)

template<class Matrix , class Vector >

Teuchos::RCP< const Teuchos::ParameterList > Amesos2::Superludist< Matrix, Vector >::getValidParameters_impl ( ) const

private

Hooked in by Amesos2::Solver parent class.

Returns: a const Teuchos::ParameterList of all valid parameters for this solver.

template<class Matrix , class Vector >

void Amesos2::Superludist< Matrix, Vector >::get_default_grid_size	(	int	nprocs,
		SLUD::int_t &	nprow,
		SLUD::int_t &	npcol
	)		const

private

Calculates a SuperLU_DIST grid size of nprow by npcol processes which will try to utilize all nprocs available processes, but in case of failure, will return a square grid that may not use all nprocs processes.

If you're ever not pleased with how the algorithm's heuristics treat prime numbers, don't give a prime for nprocs.

Note: the nprocs , nprow and npcol parameters may be set together directly with setParameters()

Referenced by Amesos2::Superludist< Matrix, Vector >::Superludist().

template<class Matrix , class Vector >

bool Amesos2::Superludist< Matrix, Vector >::loadA_impl ( EPhase current_phase )

private

Reads matrix data into internal solver structures.

Loads data from the matrix A into the internal SuperLU_DIST matrix structure. This function requires communication accross all processors as the matrix is redistributed as necessary to the processors in the SuperLU_DIST process grid.

Postcondition

nzvals_, colind_, and rowptr_ arrays are sized to match the portion of the matrix on this processor.

Returns: true if the matrix was loaded, false if not

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

Solver< Matrix, Vector > & Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::preOrdering ( void )

overridevirtualinherited

Pre-orders the matrix A for minimal fill-in.

Rearranges the rows and columns of the matrix A to minimize the amount of fill-in of the non-zero entries of the matrix. Pre-ordering may or may not be supported by the underlying solver. If not supported, a call to this method simply does nothing.

Returns: a reference to this .

See Also: symbolicFactorization(), numericFactorization(), and solve()

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

Solver< Matrix, Vector > & Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::symbolicFactorization ( void )

overridevirtualinherited

Performs symbolic factorization on the matrix A.

In addition to performing symbolic factorization on the matrix A, the call to symbolicFactorization() implies that no change will be made to the non-zero structure of the underlying matrix without a subsequent call to symbolicFactorization().

Precondition

Postcondition

Symbolic factorization will be performed (or marked to be performed) allowing numericFactorization() and solve() to be called.

Returns: a reference to this .

See Also: preOrdering(), numericFactorization(), and solve()

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

Solver< Matrix, Vector > & Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::numericFactorization ( void )

overridevirtualinherited

Performs numeric factorization on the matrix A.

In addition to performing numeric factorization on the matrix A, the call to numericFactorization() implies that no change will be made to the underlying matrix values without a subsequent call to numericFactorization().

Precondition

The non-zero structure of the matrix should not have changed since the last call to symbolicFactorization(). Other changes can have arbitrary consequences.
The distribution of the matrix should not have changed since the last call to symbolicFactorization().

Postcondition: Numeric factorization will be performed (or marked to be performed) allowing solve() to be performed correctly despite a potential change in the matrix values (though not in the non-zero structure).

Returns: a reference to this

See Also: preOrdering(), symbolicFactorization(), and solve()

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::solve ( void )

overridevirtualinherited

Solves $ A X = B$ (or $ A^T X = B$ )

Precondition

The non-zero structure of the matrix should not have changed since the last call to symbolicFactorization().
The distribution of the matrix should not have changed since the last call to symbolicFactorization().
The matrix should not have changed since the last call to numericFactorization().

Postcondition: X will be set such that (or ), within the limits of the accuracy of the underlying solver.

Returns: void

See Also: preOrdering(), symbolicFactorization(), and numericFactorization()

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix , class Vector>

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::solve	(	const Teuchos::Ptr< Vector >	X,
		const Teuchos::Ptr< const Vector >	B
	)		const

overridevirtualinherited

Solve $ A X = B$ using the given X and B vectors.

This overload of solve uses the given X and B vectors when solving. This X and B are used in place of any X and B that were given upon construction of the Amesos2 solver instance and are used only for this solve.

If a permanent change of X and B are required, see the setX() and setB() methods.

Postcondition

The (multi)vector X contains the solution to the system
The X and B given at construction time (if any) are unchanged.

Implements Amesos2::Solver< Matrix, Vector >.

References Amesos2::Solver< Matrix, Vector >::numericFactorization().

template<template< class, class > class ConcreteSolver, class Matrix , class Vector>

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::solve	(	Vector *	X,
		const Vector *	B
	)		const

overridevirtualinherited

Solve $ A X = B$ using the given X and B vectors.

This overload of solve uses the given X and B vectors when solving. This X and B are used in place of any X and B that were given upon construction of the Amesos2 solver instance and are used only for this solve.

If a permanent change of X and B are required, see the setX() and setB() methods.

Postcondition

The (multi)vector X contains the solution to the system
The X and B given at construction time (if any) are unchanged.

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

bool Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::matrixShapeOK ( void )

overridevirtualinherited

Returns true if the solver can handle this matrix shape.

Returns true if the matrix shape is one that the underlying concrete sparse direct solver can handle. Classes that work only on square matrices should return false for rectangular matrices. Classes that work only on symmetric matrices would return false for non-symmetric matrices. etc.

Implements Amesos2::Solver< Matrix, Vector >.

Referenced by Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::SolverCore().

template<template< class, class > class ConcreteSolver, class Matrix, class Vector >

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::setA	(	const Teuchos::RCP< const Matrix >	a,
		EPhase	keep_phase = `CLEAN`
	)

overridevirtualinherited

Sets the matrix A of this solver.

Parameters

[in]	a	An RCP to a matrix will will be used for future computation steps
[in]	keep_phase	This parameter tells the solver what state it should keep. For example, you may want to replace the matrix but keep the symbolic factorization because you know the structure of the new matrix is the same as the structure of the old matrix. In this case you would pass Amesos2::SYMBFACT as this parameter.

The default value for the second parameter is Amesos2::CLEAN, which means that the internal state of the solver will be completely reset. It will be as if no previous computational steps were performed.

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix, class Vector>

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::setA	(	const Matrix *	a,
		EPhase	keep_phase = `CLEAN`
	)

inlineoverridevirtualinherited

Sets the matrix A of this solver.

Parameters

[in]	a	An raw C pointer to a matrix will will be used for future computation steps.
[in]	keep_phase	This parameter tells the solver what state it should keep. For example, you may want to replace the matrix but keep the symbolic factorization because you know the structure of the new matrix is the same as the structure of the old matrix. In this case you would pass Amesos2::SYMBFACT as this parameter.

The default value for the second parameter is Amesos2::CLEAN, which means that the internal state of the solver will be completely reset. It will be as if no previous computational steps were performed.

Implements Amesos2::Solver< Matrix, Vector >.

Referenced by Amesos2::SolverCore< Amesos2::Umfpack, Matrix, Vector >::setA().

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

Solver< Matrix, Vector > & Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > & parameterList )

overridevirtualinherited

Set/update internal variables and solver options.

The setParameters method is consistent over all concrete solvers. It accepts general status and control parameters, as well as parameters specific to a given solver. If the solver does not recognize the parameter, then it will simply be ignored

Note: The ParameterList must be named "Amesos2". A list with any other name will be ignored.

Postcondition

Internal variables controlling the factorization and solve will be updated and take effect on all subsequent calls to numericFactorization() and solve().
All parameters whose value is to differ from the default values must be included in parameterList. Parameters not specified in parameterList revert to their default values.

Returns: a reference to this

Implements Amesos2::Solver< Matrix, Vector >.

Referenced by Amesos2::Lapack< Matrix, Vector >::Lapack(), Amesos2::SolverCore< Amesos2::Umfpack, Matrix, Vector >::setParameterList(), Amesos2::STRUMPACK< Matrix, Vector >::STRUMPACK(), Amesos2::Superludist< Matrix, Vector >::Superludist(), and Amesos2::Superlumt< Matrix, Vector >::Superlumt().

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

Teuchos::RCP< const Teuchos::ParameterList > Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::getValidParameters ( void ) const

overridevirtualinherited

Return a const parameter list of all of the valid parameters that this->setParameterList(...) will accept.

Note: Check the documentation for your concrete solver to see a complete list of the values that each parameter may take. A solver may also recognize multiple data types as arguments for a particular parameters (eg. recognizing "YES" and "NO" as well as true and false ).

Implements Amesos2::Solver< Matrix, Vector >.

Referenced by Amesos2::Lapack< Matrix, Vector >::Lapack(), Amesos2::STRUMPACK< Matrix, Vector >::STRUMPACK(), Amesos2::Superludist< Matrix, Vector >::Superludist(), and Amesos2::Superlumt< Matrix, Vector >::Superlumt().

template<template< class, class > class ConcreteSolver, class Matrix, class Vector>

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > & parameterList )

inlineinherited

Set or update internal variables and solver options.

Redefined from Teuchos::ParameterListAcceptor

Note: Alias for setParameters()

Parameters

[in] parameterList

template<template< class, class > class ConcreteSolver, class Matrix, class Vector>

Teuchos::RCP<Teuchos::ParameterList> Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::getNonconstParameterList ( )

inlineinherited

This is a empty stub.

Returns

template<template< class, class > class ConcreteSolver, class Matrix, class Vector>

Teuchos::RCP<Teuchos::ParameterList> Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::unsetParameterList ( )

inlineinherited

This is an empty stub.

Returns

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

overridevirtualinherited

Prints the status information about the current solver with some level of verbosity

Implements Amesos2::Solver< Matrix, Vector >.

References Amesos2::Util::printLine().

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::printTiming	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

overridevirtualinherited

Prints timing information about the current solver.

The Amesos2::SolverCore base class takes care of tracking total time spent in the Amesos2 interface. Concrete solver interface class are responsible for reporting other timing statistics, which include time spent in:

Redistribution of matrix objects,
Conversion of matrix objects to solver-specific formats,
Redistribution of multi-vector objects,
Conversion of multi-vector objects to solver formats,
TPL symbolic factorizations,
TPL numeric factorizations, and
TPL solves

Implements Amesos2::Solver< Matrix, Vector >.

References Amesos2::Util::printLine().

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::getTiming ( Teuchos::ParameterList & timingParameterList ) const

overridevirtualinherited

Extracts timing information from the current solver.

Results are placed into the parameter list timingParameterList.

Parameters

[out] timingParameterList Accepts timing information from the current solver

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix , class Vector >

std::string Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::name ( void ) const

overridevirtualinherited

Return the name of this solver.

The name is given by the underlying concrete solver instance

Returns: A std::string which is the name of this solver

Implements Amesos2::Solver< Matrix, Vector >.

template<template< class, class > class ConcreteSolver, class Matrix, class Vector>

void Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::setNnzLU ( size_t nnz )

inlineprotectedinherited

Set the number of non-zero values in the $L$ and $U$ factors.

Concrete solver classes may call this method if they wish to (or are able to) report the number of conbined non-zero count for the $L$ and $U$ factors.

Member Data Documentation

template<template< class, class > class ConcreteSolver, class Matrix, class Vector>

bool Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::matrix_loaded_

protectedinherited

If true indicates that the current matrix A has been loaded into internal solver structures.

template<template< class, class > class ConcreteSolver, class Matrix, class Vector>

Teuchos::RCP<const Vector> Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::multiVecB_

protectedinherited

The RHS vector/multi-vector.

We point to a const Vector because Amesos2 should never directly modify B.

Referenced by Amesos2::SolverCore< Amesos2::Umfpack, Matrix, Vector >::getB(), Amesos2::SolverCore< Amesos2::Umfpack, Matrix, Vector >::getBRaw(), and Amesos2::SolverCore< Amesos2::Umfpack, Matrix, Vector >::setB().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

template<class Matrix, class Vector> class Amesos2::Superludist< Matrix, Vector >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Matrix, class Vector>
class Amesos2::Superludist< Matrix, Vector >
