Interface to Amesos2 solver objects. More...

#include <Amesos2_Solver_decl.hpp>

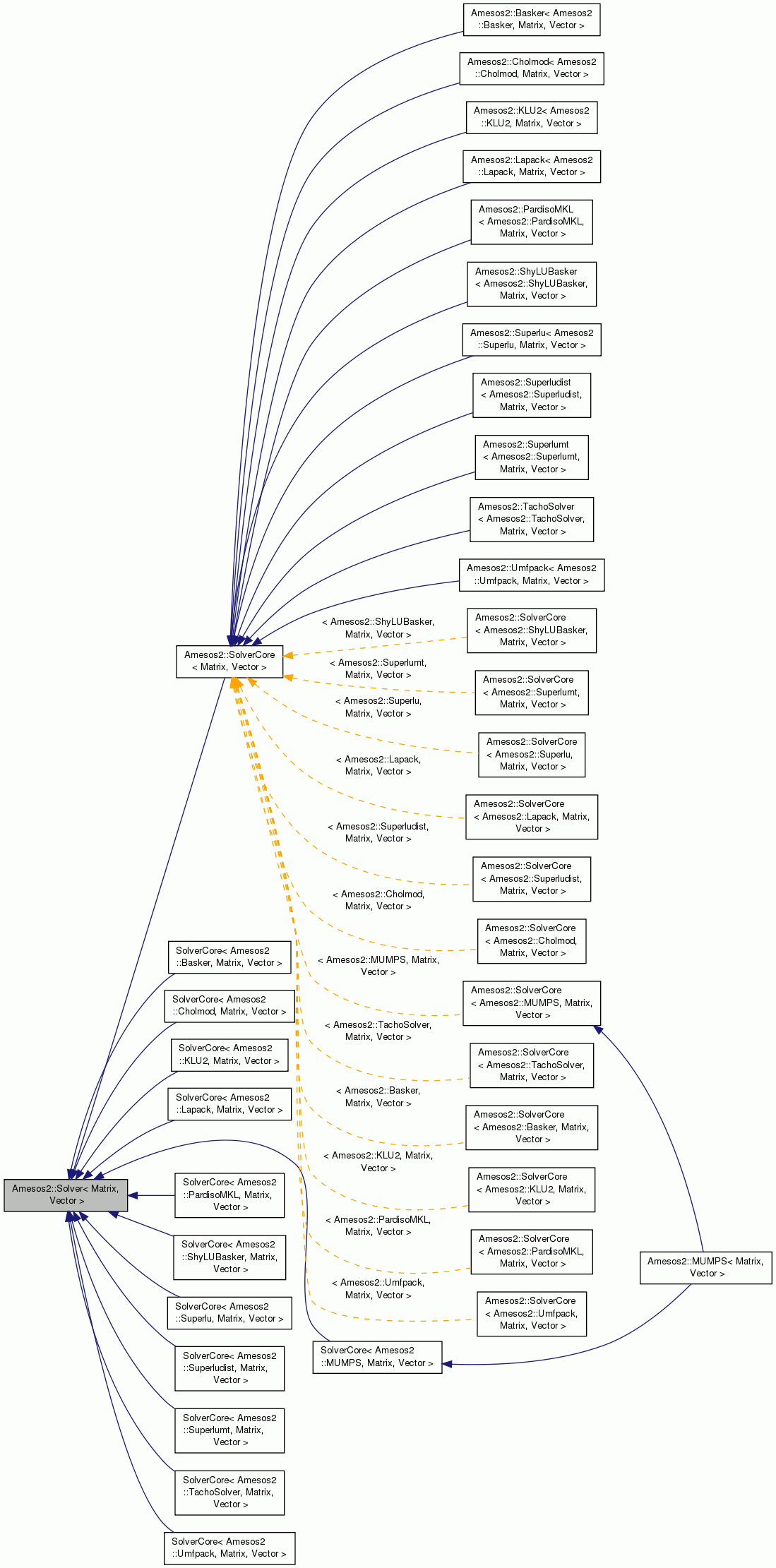

Inheritance diagram for Amesos2::Solver< Matrix, Vector >:

Public Types
typedef Solver< Matrix, Vector >	type

Public Member Functions
Mathematical Functions
virtual type &	preOrdering (void)=0
	Pre-orders the matrix. More...

virtual type &	symbolicFactorization (void)=0
	Performs symbolic factorization on the matrix. More...

virtual type &	numericFactorization (void)=0
	Performs numeric factorization on the matrix. More...

virtual void	solve (void)=0
	Solves (or ) More...

virtual void	solve (const Teuchos::Ptr< Vector > X, const Teuchos::Ptr< const Vector > B) const =0
	Solve using the given X and B vectors. More...

virtual void	solve (Vector X, const Vector B) const =0
	Solve using the given X and B vectors. More...

Parameter Methods
virtual type &	setParameters (const Teuchos::RCP< Teuchos::ParameterList > &parameterList)=0
	Set/update internal variables and solver options. More...

virtual Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters (void) const =0
	Return a const parameter list of all of the valid parameters that this->setParameterList(...) will accept.

Accessor Methods
virtual void	setA (const Teuchos::RCP< const Matrix > a, EPhase keep_phase=CLEAN)=0
	Sets the matrix A of this solver. More...

virtual void	setA (const Matrix *a, EPhase keep_phase=CLEAN)=0
	Sets the matrix A of this solver. More...

virtual bool	matrixShapeOK (void)=0
	Returns `true` if the solver can handle the matrix shape.

virtual void	setX (const Teuchos::RCP< Vector > x)=0
	Sets the LHS vector X.

virtual void	setX (Vector *x)=0
	Sets the LHS vector X using a raw pointer.

virtual const Teuchos::RCP < Vector >	getX (void)=0
	Returns the vector that is the LHS of the linear system.

virtual Vector *	getXRaw (void)=0
	Returns a raw pointer to the LHS of the linear system.

virtual void	setB (const Teuchos::RCP< const Vector > b)=0
	Sets the RHS vector B.

virtual void	setB (const Vector *b)=0
	Sets the RHS vector B using a raw pointer.

virtual const Teuchos::RCP < const Vector >	getB (void)=0
	Returns the vector that is the RHS of the linear system.

virtual const Vector *	getBRaw (void)=0
	Returns a raw pointer to the RHS of the linear system.

virtual Teuchos::RCP< const Teuchos::Comm< int > >	getComm (void) const =0
	Returns a pointer to the Teuchos::Comm communicator with this matrix.

virtual Status &	getStatus () const =0
	Returns a reference to this solver's internal status object.

virtual std::string	name (void) const =0
	Return the name of this solver.

Methods implementing Describable
virtual std::string	description (void) const =0
	Returns a short description of this Solver.

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const =0

Performance and Timing
virtual void	printTiming (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const =0
	Prints timing information about the current solver.

virtual void	getTiming (Teuchos::ParameterList &timingParameterList) const =0
	Extracts timing information from the current solver. More...

Detailed Description

template<class Matrix, class Vector>
class Amesos2::Solver< Matrix, Vector >

Interface to Amesos2 solver objects.

Specifies a uniform interface for interaction with Amesos2 solver wrappers to third-party libraries.

This class holds no definitions itself; it is a contract for concrete solver interfaces only.

Member Function Documentation

template<class Matrix , class Vector >

virtual type& Amesos2::Solver< Matrix, Vector >::preOrdering ( void )

pure virtual

Pre-orders the matrix.

Uses the default solver option, unless a solver-specific pre-ordering parameter is given.

See Also: setParameters

template<class Matrix , class Vector >

virtual type& Amesos2::Solver< Matrix, Vector >::symbolicFactorization ( void )

pure virtual

Performs symbolic factorization on the matrix.

Precondition

The matrix A must not be null

template<class Matrix , class Vector >

virtual type& Amesos2::Solver< Matrix, Vector >::numericFactorization ( void )

pure virtual

Performs numeric factorization on the matrix.

numericFactorization checks first that symbolicFactorization has successfully been called, and if not, calls it before continuing.

Precondition

The matrix A must not be null

Postcondition

The factors L and U of A are computed

Referenced by Amesos2::SolverCore< ConcreteSolver, Matrix, Vector >::solve().

template<class Matrix , class Vector >

virtual void Amesos2::Solver< Matrix, Vector >::solve ( void )

pure virtual

Solves $ A X = B$ (or $ A^T X = B$ )

solve checks first that numericFactorization has successfully been called, and if not, calls it before continuing.

Precondition

The (multi)vectors X and B must not be null

Postcondition

The (multi)vector X (given at construction time) contains the solution to the system.

template<class Matrix , class Vector >

virtual void Amesos2::Solver< Matrix, Vector >::solve	(	const Teuchos::Ptr< Vector >	X,
		const Teuchos::Ptr< const Vector >	B
	)		const

pure virtual

Solve $ A X = B$ using the given X and B vectors.

This overload of solve uses the given X and B vectors when solving. This X and B are used in place of any X and B that were given upon construction of the Amesos2 solver instance and are used only for this solve.

If a permanent change of X and B are required, see the setX() and setB() methods.

Postcondition

The (multi)vector X contains the solution to the system
The X and B given at construction time (if any) are unchanged.

template<class Matrix , class Vector >

virtual void Amesos2::Solver< Matrix, Vector >::solve	(	Vector *	X,
		const Vector *	B
	)		const

pure virtual

Solve $ A X = B$ using the given X and B vectors.

This overload of solve uses the given X and B vectors when solving. This X and B are used in place of any X and B that were given upon construction of the Amesos2 solver instance and are used only for this solve.

If a permanent change of X and B are required, see the setX() and setB() methods.

Postcondition

The (multi)vector X contains the solution to the system
The X and B given at construction time (if any) are unchanged.

template<class Matrix , class Vector >

virtual type& Amesos2::Solver< Matrix, Vector >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > & parameterList )

pure virtual

Set/update internal variables and solver options.

Expects that parameterList be named "Amesos2". That list may contain Amesos2-specific parameters. In addition, it may contain sublist for solver-specific parameters. These sublists should be named according to what is returned by the name() function (i.e. The solver's name when enabling for Amesos2 during configuration).

See each solver interface directly for a list of the supported parameters for that solver.

template<class Matrix , class Vector >

virtual void Amesos2::Solver< Matrix, Vector >::setA	(	const Teuchos::RCP< const Matrix >	a,
		EPhase	keep_phase = `CLEAN`
	)

pure virtual

Sets the matrix A of this solver.

Parameters

[in]	a	An RCP to a matrix will will be used for future computation steps
[in]	keep_phase	This parameter tells the solver what state it should keep. For example, you may want to replace the matrix but keep the symbolic factorization because you know the structure of the new matrix is the same as the structure of the old matrix. In this case you would pass Amesos2::SYMBFACT as this parameter.

The default value for the second parameter is Amesos2::CLEAN, which means that the internal state of the solver will be completely reset. It will be as if no previous computational steps were performed.

template<class Matrix , class Vector >

virtual void Amesos2::Solver< Matrix, Vector >::setA	(	const Matrix *	a,
		EPhase	keep_phase = `CLEAN`
	)

pure virtual

Sets the matrix A of this solver.

Parameters

[in]	a	An raw C pointer to a matrix will will be used for future computation steps.
[in]	keep_phase	This parameter tells the solver what state it should keep. For example, you may want to replace the matrix but keep the symbolic factorization because you know the structure of the new matrix is the same as the structure of the old matrix. In this case you would pass Amesos2::SYMBFACT as this parameter.

The default value for the second parameter is Amesos2::CLEAN, which means that the internal state of the solver will be completely reset. It will be as if no previous computational steps were performed.

template<class Matrix , class Vector >

virtual void Amesos2::Solver< Matrix, Vector >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

pure virtual

Prints the status information about the current solver with some level of verbosity.

template<class Matrix , class Vector >

virtual void Amesos2::Solver< Matrix, Vector >::getTiming ( Teuchos::ParameterList & timingParameterList ) const

pure virtual

Extracts timing information from the current solver.

Results are placed in the parameter list timingParameterList

Parameters

timingParameterList Accepts timing information from the current solver

The documentation for this class was generated from the following file:

Amesos2_Solver_decl.hpp
