Thyra Base interface for time steppers. More...

#include <Tempus_Integrator.hpp>

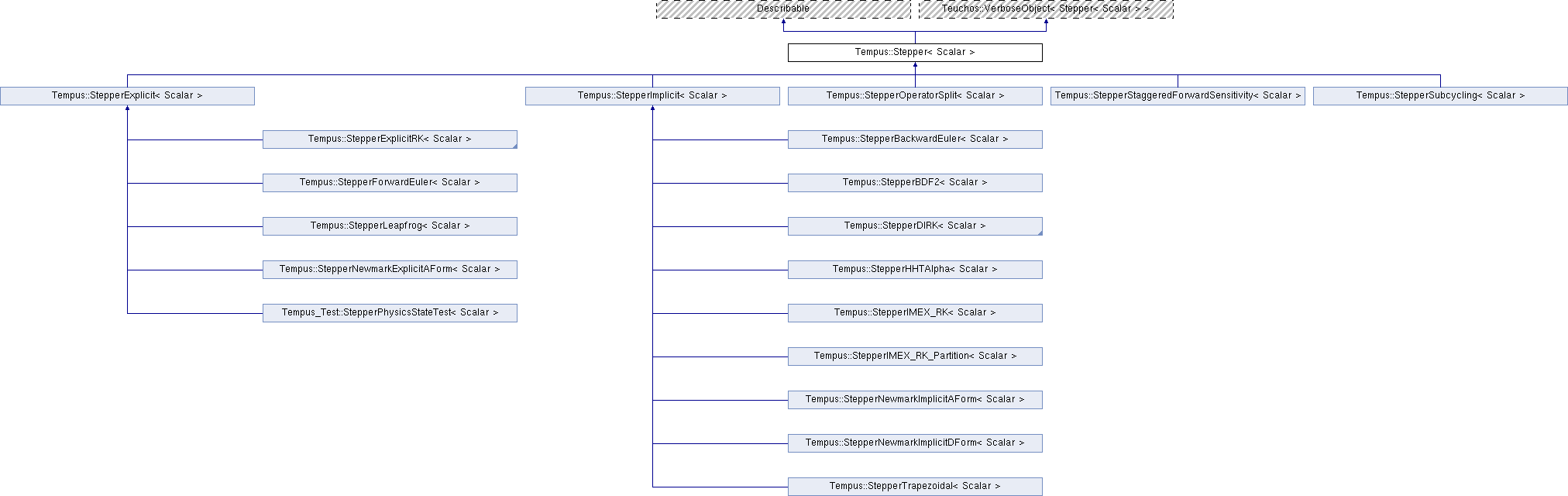

Inheritance diagram for Tempus::Stepper< Scalar >:

Public Member Functions
virtual Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const =0

Basic stepper methods
virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)=0

virtual void	setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)=0

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getModel ()=0

virtual void	setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver=Teuchos::null)=0
	Set solver. More...

virtual Teuchos::RCP < Thyra::NonlinearSolverBase < Scalar > >	getSolver () const =0
	Get solver. More...

virtual void	setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)=0
	Set Observer. More...

virtual Teuchos::RCP < StepperObserver< Scalar > >	getObserver () const =0
	Get Observer. More...

virtual void	initialize ()=0
	Initialize during construction and after changing input parameters. More...

virtual void	setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
	Set initial conditions, make them consistent, and set stepper memory. More...

virtual void	takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
	Take the specified timestep, dt, and return true if successful. More...

virtual void	setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess=Teuchos::null)=0
	Pass initial guess to Newton solver (for implicit schemes) More...

virtual Teuchos::RCP < Tempus::StepperState< Scalar > >	getDefaultStepperState ()=0

virtual Scalar	getOrder () const =0

virtual Scalar	getOrderMin () const =0

virtual Scalar	getOrderMax () const =0

virtual Scalar	getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory) const =0

virtual bool	isExplicit () const =0

virtual bool	isImplicit () const =0

virtual bool	isExplicitImplicit () const =0

virtual bool	isOneStepMethod () const =0

virtual bool	isMultiStepMethod () const =0

void	setStepperType (std::string s)

std::string	getStepperType () const

void	setUseFSAL (bool a)

bool	getUseFSAL () const

virtual bool	getUseFSALDefault () const

void	setICConsistency (std::string s)

std::string	getICConsistency () const

virtual std::string	getICConsistencyDefault () const

void	setICConsistencyCheck (bool c)

bool	getICConsistencyCheck () const

virtual bool	getICConsistencyCheckDefault () const

virtual OrderODE	getOrderODE () const =0

Overridden from Teuchos::Describable
virtual std::string	description () const

Functions for Steppers with subSteppers (e.g., OperatorSplit)
virtual void	createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

Private Attributes
std::string	stepperType_

bool	useFSAL_

std::string	ICConsistency_

bool	ICConsistencyCheck_

Detailed Description

template<typename Scalar>
class Tempus::Stepper< Scalar >

Thyra Base interface for time steppers.

Design Considerations

Time steppers are designed to take a single time step.
- a single implicit solve for a time step
- a single solve for a IMEX time step
Multiple time steps should be managed by Integrators.
Steppers can be built from other Sub-Steppers.
- An operator-split Stepper is possible with interoperable Steppers.
For explicit steppers, only one ModelEvaluator and one solution vector are required.
For implicit steppers, only one ModelEvaluator, one solution vector, and one solver are required.
Steppers will PASS/FAIL the time step based on Solver, error and order requirements, and not adjust the time step size.
Steppers can provide a suggested time step size for the next time step.
For more complex steppers, multiple ModelEvaluators, solution vectors, and solvers are possible when a common single time-integration method is desired for all solutions. Examples:
- Solution A with ModelEvaluator A and Solution B with ModelEvaluator B using the same solver
- Solution A with ModelEvaluator A using Solver A and Solution B with ModelEvaluator B using Solver B
- Solution A with ModelEvaluator A using Solver A and Solutions A and B with ModelEvaluator C using Solver B
Steppers may maintain their own time history of the solution, e.g., BDF steppers.

Definition at line 24 of file Tempus_Integrator.hpp.

Member Function Documentation

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::createSubSteppers ( std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > > )

inlinevirtual

Definition at line 147 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual std::string Tempus::Stepper< Scalar >::description ( ) const

inlinevirtual

Reimplemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >.

Definition at line 142 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Teuchos::RCP<Tempus::StepperState<Scalar> > Tempus::Stepper< Scalar >::getDefaultStepperState ( )

pure virtual

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::getICConsistency ( ) const

inline

Definition at line 130 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::getICConsistencyCheck ( ) const

inline

Definition at line 134 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::getICConsistencyCheckDefault ( ) const

inlinevirtual

Definition at line 135 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual std::string Tempus::Stepper< Scalar >::getICConsistencyDefault ( ) const

inlinevirtual

Reimplemented in Tempus::StepperNewmarkImplicitAForm< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperTrapezoidal< Scalar >.

Definition at line 131 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory ) const

pure virtual

Implemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::Stepper< Scalar >::getModel ( )

pure virtual

Implemented in Tempus::StepperIMEX_RK< Scalar >, Tempus::StepperIMEX_RK_Partition< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperSubcycling< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual Teuchos::RCP<StepperObserver<Scalar> > Tempus::Stepper< Scalar >::getObserver ( ) const

pure virtual

Get Observer.

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrder ( ) const

pure virtual

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrderMax ( ) const

pure virtual

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrderMin ( ) const

pure virtual

template<typename Scalar>

virtual OrderODE Tempus::Stepper< Scalar >::getOrderODE ( ) const

pure virtual

template<typename Scalar>

virtual Teuchos::RCP<Thyra::NonlinearSolverBase<Scalar> > Tempus::Stepper< Scalar >::getSolver ( ) const

pure virtual

Get solver.

Implemented in Tempus::StepperSubcycling< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::getStepperType ( ) const

inline

Definition at line 123 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::getUseFSAL ( ) const

inline

Definition at line 126 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::getUseFSALDefault ( ) const

inlinevirtual

Reimplemented in Tempus::StepperNewmarkImplicitAForm< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, and Tempus::StepperTrapezoidal< Scalar >.

Definition at line 127 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual Teuchos::RCP<const Teuchos::ParameterList> Tempus::Stepper< Scalar >::getValidParameters ( ) const

pure virtual

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::initialize ( )

pure virtual

Initialize during construction and after changing input parameters.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isExplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isExplicitImplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isImplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isMultiStepMethod ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isOneStepMethod ( ) const

pure virtual

template<typename Scalar>

void Tempus::Stepper< Scalar >::setICConsistency ( std::string s )

inline

Definition at line 129 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

void Tempus::Stepper< Scalar >::setICConsistencyCheck ( bool c )

inline

Definition at line 133 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

pure virtual

Set initial conditions, make them consistent, and set stepper memory.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setInitialGuess ( Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess = Teuchos::null )

pure virtual

Pass initial guess to Newton solver (for implicit schemes)

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & appModel )

pure virtual

Implemented in Tempus::StepperIMEX_RK< Scalar >, Tempus::StepperIMEX_RK_Partition< Scalar >, Tempus::StepperNewmarkImplicitAForm< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperHHTAlpha< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperSubcycling< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setNonConstModel ( const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > & appModel )

pure virtual

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperSubcycling< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > > obs = Teuchos::null )

pure virtual

Set Observer.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setSolver ( Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver = Teuchos::null )

pure virtual

Set solver.

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperSubcycling< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

void Tempus::Stepper< Scalar >::setStepperType ( std::string s )

inline

Definition at line 122 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

void Tempus::Stepper< Scalar >::setUseFSAL ( bool a )

inline

Definition at line 125 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

pure virtual

Take the specified timestep, dt, and return true if successful.

Member Data Documentation

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::ICConsistency_

private

Definition at line 156 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::ICConsistencyCheck_

private

Definition at line 157 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

std::string Tempus::Stepper< Scalar >::stepperType_

private

Definition at line 154 of file Tempus_Stepper_decl.hpp.

template<typename Scalar>

bool Tempus::Stepper< Scalar >::useFSAL_

private

Definition at line 155 of file Tempus_Stepper_decl.hpp.

The documentation for this class was generated from the following files:

http://docs.trilinos.org/r12.18/packages/tempus/src/Tempus_Integrator.hpp
http://docs.trilinos.org/r12.18/packages/tempus/src/Tempus_Stepper_decl.hpp
