Tempus::StepperIMEX_RK< Scalar > Class Template Reference

Implicit-Explicit Runge-Kutta (IMEX-RK) time stepper. More...

#include <Tempus_StepperIMEX_RK_decl.hpp>

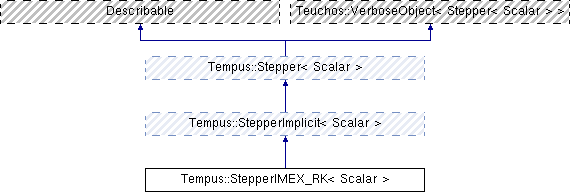

Inheritance diagram for Tempus::StepperIMEX_RK< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperIMEX_RK ()
 Default constructor. More...

 StepperIMEX_RK (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< StepperObserver< Scalar > > &obs, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess, std::string stepperType, Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau, Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau, Scalar order)
 Constructor to specialize Stepper parameters. More...

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const

void evalImplicitModelExplicitly (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &X, Scalar time, Scalar stepSize, Scalar stageNumber, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &G) const

void evalExplicitModel (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &X, Scalar time, Scalar stepSize, Scalar stageNumber, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &F) const

virtual bool getICConsistencyCheckDefault () const

void setOrder (Scalar order)

Basic stepper methods
virtual void setTableaus (std::string stepperType="", Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau=Teuchos::null, Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau=Teuchos::null)
 Set both the explicit and implicit tableau from ParameterList. More...

virtual void setExplicitTableau (Teuchos::RCP< const RKButcherTableau< Scalar > > explicitTableau)
 Set the explicit tableau from tableau. More...

virtual void setImplicitTableau (Teuchos::RCP< const RKButcherTableau< Scalar > > implicitTableau)
 Set the implicit tableau from tableau. More...

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > > 		getModel ()

virtual void setModelPair (const Teuchos::RCP< WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &mePair)
 Create WrapperModelPairIMEX from user-supplied ModelEvaluator pair. More...

virtual void setModelPair (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &explicitModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &implicitModel)
 Create WrapperModelPairIMEX from explicit/implicit ModelEvaluators. More...

virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
 Set Observer. More...

virtual Teuchos::RCP
< StepperObserver< Scalar > > 		getObserver () const
 Get Observer. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > > 		getDefaultStepperState ()
 Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

Overridden from Teuchos::Describable
virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > > 		getWrapperModel ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver=Teuchos::null)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		getSolver () const
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperType (std::string s)

std::string getStepperType () const

void setUseFSAL (bool a)

bool getUseFSAL () const

virtual bool getUseFSALDefault () const

void setICConsistency (std::string s)

std::string getICConsistency () const

virtual std::string getICConsistencyDefault () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual std::string description () const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)


Protected Attributes

Teuchos::RCP< const
RKButcherTableau< Scalar > > 		explicitTableau_

Teuchos::RCP< const
RKButcherTableau< Scalar > > 		implicitTableau_

Scalar order_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stageX_

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > 		stageF_

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > > 		stageG_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		xTilde_

Teuchos::RCP
< StepperRKObserverComposite
< Scalar > > 		stepperObserver_

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > > 		wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > > 		initial_guess_

bool zeroInitialGuess_

Teuchos::RCP< StepperObserver
< Scalar > > 		stepperObserver_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDotDot_


Detailed Description

template<class Scalar>
class Tempus::StepperIMEX_RK< Scalar >

Implicit-Explicit Runge-Kutta (IMEX-RK) time stepper.

For the implicit ODE system, $ \mathcal{F}(\dot{x},x,t) = 0 $, we need to specialize this in order to separate the explicit, implicit, and temporal terms for the IMEX-RK time stepper,

\begin{eqnarray*} M(x,t)\, \dot{x}(x,t) + G(x,t) + F(x,t) & = & 0, \\ \mathcal{G}(\dot{x},x,t) + F(x,t) & = & 0, \end{eqnarray*}

where $\mathcal{G}(\dot{x},x,t) = M(x,t)\, \dot{x} + G(x,t)$, $M(x,t)$ is the mass matrix, $F(x,t)$ is the operator representing the "slow" physics (and is evolved explicitly), and $G(x,t)$ is the operator representing the "fast" physics (and is evolved implicitly). Additionally, we assume that the mass matrix is invertible, so that

\[ \dot{x}(x,t) + g(x,t) + f(x,t) = 0 \]

where $f(x,t) = M(x,t)^{-1}\, F(x,t)$, and $g(x,t) = M(x,t)^{-1}\, G(x,t)$. Using Butcher tableaus for the explicit terms

\[ \begin{array}{c|c} \hat{c} & \hat{A} \\ \hline & \hat{b}^T \end{array} \;\;\;\; \mbox{ and for implicit terms } \;\;\;\; \begin{array}{c|c} c & A \\ \hline & b^T \end{array}, \]

the basic IMEX-RK method for $s$-stages can be written as

\[ \begin{array}{rcll} X_i & = & x_{n-1} - \Delta t \sum_{j=1}^{i-1} \hat{a}_{ij}\, f(X_j,\hat{t}_j) - \Delta t \sum_{j=1}^i a_{ij}\, g(X_j,t_j) & \mbox{for } i=1\ldots s, \\ x_n & = & x_{n-1} - \Delta t \sum_{i=1}^s \hat{b}_{i}\, f(X_i,\hat{t}_i) - \Delta t \sum_{i=1}^s b_{i}\, g(X_i,t_i) & \end{array} \]

where $\hat{t}_i = t_{n-1}+\hat{c}_i\Delta t$ and $t_i = t_{n-1}+c_i\Delta t$. For iterative solvers, it is useful to write the stage solutions as

\[ X_i = \tilde{X} - a_{ii} \Delta t\, g(X_i,t_i) \]

where

\[ \tilde{X} = x_{n-1} - \Delta t \sum_{j=1}^{i-1} \left(\hat{a}_{ij}\, f(X_j,\hat{t}_j) + a_{ij}\, g(X_j,t_j)\right) \]

Rearranging to solve for the implicit term

\[ g(X_i,t_i) = - \frac{X_i - \tilde{X}}{a_{ii} \Delta t} \]

We can use this to determine the time derivative at each stage for the implicit solve.

\[ \dot{X}_i(X_i,t_i) + g(X_i,t_i) + f(X_i,t_i) = 0 \]

Note that the explicit term, $f(X_i,t_i)$, is evaluated at the implicit stage time, $t_i$. We can form the time derivative

\begin{eqnarray*} \dot{X}(X_i,t_i) & = & - g(X_i,t_i) - f(X_i,t_i) \\ \dot{X}(X_i,t_i) & = & \frac{X_i - \tilde{X}}{a_{ii} \Delta t} - f(X_i,t_i) \\ \dot{X}(X_i,t_i) & = & \frac{X_i - \tilde{X}}{a_{ii} \Delta t} -M(X_i, t_i)^{-1}\, F(X_i,t_i)\\ \end{eqnarray*}

Returning to the governing equation

\begin{eqnarray*} M(X_i,t_i)\, \dot{X}(X_i,t_i) + G(X_i,t_i) + F(X_i,t_i) & = & 0 \\ M(X_i,t_i)\, \left[ \frac{X_i - \tilde{X}}{a_{ii} \Delta t} - M(X_i, t_i)^{-1}\, F(X_i,t_i) \right] + G(X_i,t_i) + F(X_i,t_i) & = & 0 \\ M(X_i,t_i)\, \left[ \frac{X_i - \tilde{X}}{a_{ii} \Delta t} \right] + G(X_i,t_i) & = & 0 \\ \end{eqnarray*}

Recall $\mathcal{G}(\dot{x},x,t) = M(x,t)\, \dot{x} + G(x,t)$ and if we define a pseudo time derivative,

\[ \tilde{\dot{X}} = \frac{X_i - \tilde{X}}{a_{ii} \Delta t} = - g(X_i,t_i), \]

we can write

\[ \mathcal{G}(\tilde{\dot{X}},X_i,t_i) = M(X_i,t_i)\, \tilde{\dot{X}} + G(X_i,t_i) = 0 \]

For the case when $a_{ii}=0$, we need the time derivative for the plain explicit case. Thus the stage solution is

\[ X_i = x_{n-1} - \Delta t\,\sum_{j=1}^{i-1} \left( \hat{a}_{ij}\, f_j + a_{ij}\, g_j \right) = \tilde{X} \]

and we can simply evaluate

\begin{eqnarray*} f_i & = & M(X_i,\hat{t}_i)^{-1}\, F(X_i,\hat{t}_i) \\ g_i & = & M(X_i, t_i)^{-1}\, G(X_i, t_i) \end{eqnarray*}

We can then form the time derivative as

\[ \dot{X}_i(X_i,t_i) = - g(X_i,t_i) - f(X_i,t_i) \]

but again note that the explicit term, $f(X_i,t_i)$, is evaluated at the implicit stage time, $t_i$.

IMEX-RK Algorithm

The single-timestep algorithm for IMEX-RK using the real time derivative, $\dot{X}(X_i,t_i)$, is

  • $X_1 \leftarrow x_{n-1}$
  • for $i = 1 \ldots s$ do
    • $\tilde{X} \leftarrow x_{n-1} - \Delta t\,\sum_{j=1}^{i-1} \left( \hat{a}_{ij}\, f_j + a_{ij}\, g_j \right) $
    • if $a_{ii} = 0$
      • $X_i \leftarrow \tilde{X}$
      • $g_i \leftarrow M(X_i, t_i)^{-1}\, G(X_i, t_i)$
    • else
      • Define $\dot{X}(X_i,t_i) = \frac{X_i-\tilde{X}}{a_{ii} \Delta t} - M(X_i,t_i)^{-1}\, F(X_i,t_i) $
      • Solve $\mathcal{G}\left(\dot{X}(X_i,t_i),X_i,t_i\right) + F(X_i,t_i) = 0$ for $X_i$
      • $g_i \leftarrow - \frac{X_i-\tilde{X}}{a_{ii} \Delta t}$
    • $f_i \leftarrow M(X_i,\hat{t}_i)^{-1}\, F(X_i,\hat{t}_i)$
  • end for
  • $x_n \leftarrow x_{n-1} - \Delta t\,\sum_{i=1}^{s}\hat{b}_i\,f_i - \Delta t\,\sum_{i=1}^{s} b_i\,g_i$

The single-timestep algorithm for IMEX-RK using the pseudo time derivative, $\tilde{\dot{X}}$, is (which is currently implemented)

  • $X_1 \leftarrow x_{n-1}$
  • for $i = 1 \ldots s$ do
    • $\tilde{X} \leftarrow x_{n-1} - \Delta t\,\sum_{j=1}^{i-1} \left( \hat{a}_{ij}\, f_j + a_{ij}\, g_j \right) $
    • if $a_{ii} = 0$
      • $X_i \leftarrow \tilde{X}$
      • $g_i \leftarrow M(X_i, t_i)^{-1}\, G(X_i, t_i)$
    • else
      • Define $\tilde{\dot{X}} = \frac{X_i-\tilde{X}}{a_{ii} \Delta t} $
      • Solve $\mathcal{G}\left(\tilde{\dot{X}},X_i,t_i\right) = 0$ for $X_i$
      • $g_i \leftarrow - \tilde{\dot{X}}$
    • $f_i \leftarrow M(X_i,\hat{t}_i)^{-1}\, F(X_i,\hat{t}_i)$
  • end for
  • $x_n \leftarrow x_{n-1} - \Delta t\,\sum_{i=1}^{s}\hat{b}_i\,f_i - \Delta t\,\sum_{i=1}^{s} b_i\,g_i$

The following table contains the pre-coded IMEX-RK tableaus.

IMEX-RK Tableaus
Name Order Implicit Tableau Explicit Tableau
IMEX RK 1st order 1st

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 0 & 1 \\ \hline & 0 & 1 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1 & 0 \end{array} \]

IMEX RK SSP2
$\gamma = 1-1/\sqrt{2}$ 		2nd

\[ \begin{array}{c|cc} \gamma & \gamma & 0 \\ 1-\gamma & 1-2\gamma & \gamma \\ \hline & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|cc} 0 & 0 & 0 \\ 1 & 1 & 0 \\ \hline & 1/2 & 1/2 \end{array} \]

IMEX RK ARS 233
$\gamma = (3+\sqrt{3})/6$ 		3rd

\[ \begin{array}{c|ccc} 0 & 0 & 0 & 0 \\ \gamma & 0 & \gamma & 0 \\ 1-\gamma & 0 & 1-2\gamma & \gamma \\ \hline & 0 & 1/2 & 1/2 \end{array} \]

\[ \begin{array}{c|ccc} 0 & 0 & 0 & 0 \\ \gamma & \gamma & 0 & 0 \\ 1-\gamma & \gamma-1 & 2-2\gamma & 0 \\ \hline & 0 & 1/2 & 1/2 \end{array} \]

The First-Step-As-Last (FSAL) principle is not valid for IMEX RK. The default is to set useFSAL=false, and useFSAL=true will result in an error.

References

  1. Ascher, Ruuth, Spiteri, "Implicit-explicit Runge-Kutta methods for time-dependent partial differential equations", Applied Numerical Mathematics 25 (1997) 151-167.
  2. Cyr, "IMEX Lagrangian Methods", SAND2015-3745C.
  3. Shadid, Cyr, Pawlowski, Widley, Scovazzi, Zeng, Phillips, Conde, Chuadhry, Hensinger, Fischer, Robinson, Rider, Niederhaus, Sanchez, "Towards an IMEX Monolithic ALE Method with Integrated UQ for Multiphysics Shock-hydro", SAND2016-11353, 2016, pp. 21-28.

Definition at line 228 of file Tempus_StepperIMEX_RK_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperIMEX_RK< Scalar >::StepperIMEX_RK ( )

Default constructor.

Requires subsequent setModel(), setSolver() and initialize() calls before calling takeStep().

Definition at line 27 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
Tempus::StepperIMEX_RK< Scalar >::StepperIMEX_RK ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< StepperObserver< Scalar > > &  obs,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess,
std::string  stepperType,
Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau,
Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau,
Scalar  order
)

Constructor to specialize Stepper parameters.

Definition at line 41 of file Tempus_StepperIMEX_RK_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Definition at line 634 of file Tempus_StepperIMEX_RK_impl.hpp.

template<typename Scalar >
void Tempus::StepperIMEX_RK< Scalar >::evalExplicitModel ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &  X,
Scalar  time,
Scalar  stepSize,
Scalar  stageNumber,
const Teuchos::RCP< Thyra::VectorBase< Scalar > > &  F
) const

Definition at line 472 of file Tempus_StepperIMEX_RK_impl.hpp.

template<typename Scalar >
void Tempus::StepperIMEX_RK< Scalar >::evalImplicitModelExplicitly ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &  X,
Scalar  time,
Scalar  stepSize,
Scalar  stageNumber,
const Teuchos::RCP< Thyra::VectorBase< Scalar > > &  G
) const

Definition at line 440 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 314 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 320 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperIMEX_RK< Scalar >::getDefaultStepperState ( )
virtual

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 625 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::getICConsistencyCheckDefault ( ) const
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 340 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getModel ( )
inlinevirtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 271 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperObserver<Scalar> > Tempus::StepperIMEX_RK< Scalar >::getObserver ( ) const
inlinevirtual

Get Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 284 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrder ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 299 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrderMax ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 301 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperIMEX_RK< Scalar >::getOrderMin ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 300 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperIMEX_RK< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 310 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperIMEX_RK< Scalar >::getValidParameters ( ) const
virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 649 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Implements Tempus::Stepper< Scalar >.

Definition at line 363 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 303 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 305 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 304 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 308 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperIMEX_RK< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 307 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setExplicitTableau ( Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau)
virtual

Set the explicit tableau from tableau.

Definition at line 241 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setImplicitTableau ( Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau)
virtual

Set the implicit tableau from tableau.

Definition at line 253 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 393 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel)
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 264 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModelPair ( const Teuchos::RCP< WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &  modelPairIMEX)
virtual

Create WrapperModelPairIMEX from user-supplied ModelEvaluator pair.

The user-supplied ME pair can contain any user-specific IMEX interactions between explicit and implicit MEs.

Definition at line 291 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setModelPair ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  explicitModel,
const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  implicitModel
)
virtual

Create WrapperModelPairIMEX from explicit/implicit ModelEvaluators.

Use the supplied explicit/implicit MEs to create a WrapperModelPairIMEX with basic IMEX interactions between explicit and implicit MEs.

Definition at line 319 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > >  obs = Teuchos::null)
virtual

Set Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 332 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setOrder ( Scalar  order)
inline

Definition at line 342 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::setTableaus ( std::string  stepperType = "",
Teuchos::RCP< const RKButcherTableau< Scalar > >  explicitTableau = Teuchos::null,
Teuchos::RCP< const RKButcherTableau< Scalar > >  implicitTableau = Teuchos::null
)
virtual

Set both the explicit and implicit tableau from ParameterList.

Definition at line 75 of file Tempus_StepperIMEX_RK_impl.hpp.

template<class Scalar >
void Tempus::StepperIMEX_RK< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 507 of file Tempus_StepperIMEX_RK_impl.hpp.

Member Data Documentation

template<class Scalar >
Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::explicitTableau_
protected

Definition at line 346 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<const RKButcherTableau<Scalar> > Tempus::StepperIMEX_RK< Scalar >::implicitTableau_
protected

Definition at line 347 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperIMEX_RK< Scalar >::order_
protected

Definition at line 349 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > > Tempus::StepperIMEX_RK< Scalar >::stageF_
protected

Definition at line 352 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
std::vector<Teuchos::RCP<Thyra::VectorBase<Scalar> > > Tempus::StepperIMEX_RK< Scalar >::stageG_
protected

Definition at line 353 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::StepperIMEX_RK< Scalar >::stageX_
protected

Definition at line 351 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperRKObserverComposite<Scalar> > Tempus::StepperIMEX_RK< Scalar >::stepperObserver_
protected

Definition at line 357 of file Tempus_StepperIMEX_RK_decl.hpp.

template<class Scalar >
Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::StepperIMEX_RK< Scalar >::xTilde_
protected

Definition at line 355 of file Tempus_StepperIMEX_RK_decl.hpp.

The documentation for this class was generated from the following files:
