Provides access for Zoltan2 to Xpetra::CrsGraph data. More...

#include <Zoltan2_XpetraCrsGraphAdapter.hpp>

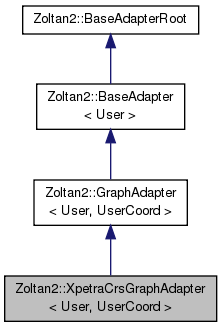

Inheritance diagram for Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >:

Collaboration diagram for Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >:

Public Member Functions
	~XpetraCrsGraphAdapter ()
	Destructor. More...

	XpetraCrsGraphAdapter (const RCP< const User > &ingraph, int nVtxWeights=0, int nEdgeWeights=0)
	Constructor for graph with no weights or coordinates. More...

void	setWeights (const scalar_t *val, int stride, int idx)
	Provide a pointer to weights for the primary entity type. More...

void	setVertexWeights (const scalar_t *val, int stride, int idx)
	Provide a pointer to vertex weights. More...

void	setWeightIsDegree (int idx)
	Specify an index for which the weight should be the degree of the entity. More...

void	setVertexWeightIsDegree (int idx)
	Specify an index for which the vertex weight should be the degree of the vertex. More...

void	setEdgeWeights (const scalar_t *val, int stride, int idx)
	Provide a pointer to edge weights. More...

RCP< const xgraph_t >	getXpetraGraph () const
	Access to Xpetra-wrapped user's graph. More...

RCP< const User >	getUserGraph () const
	Access to user's graph. More...

size_t	getLocalNumVertices () const
	Returns the number of vertices on this process. More...

void	getVertexIDsView (const gno_t *&ids) const
	Sets pointers to this process' graph entries. More...

size_t	getLocalNumEdges () const
	Returns the number of edges on this process. More...

void	getEdgesView (const offset_t &offsets, const gno_t &adjIds) const
	Gets adjacency lists for all vertices in a compressed sparse row (CSR) format. More...

int	getNumWeightsPerVertex () const
	Returns the number (0 or greater) of weights per vertex. More...

void	getVertexWeightsView (const scalar_t *&weights, int &stride, int idx) const

bool	useDegreeAsVertexWeight (int idx) const
	Indicate whether vertex weight with index idx should be the global degree of the vertex. More...

int	getNumWeightsPerEdge () const
	Returns the number (0 or greater) of edge weights. More...

void	getEdgeWeightsView (const scalar_t *&weights, int &stride, int idx) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, RCP< User > &out, const PartitioningSolution< Adapter > &solution) const

Public Member Functions inherited from Zoltan2::GraphAdapter< User, UserCoord >
enum BaseAdapterType	adapterType () const
	Returns the type of adapter. More...

virtual	~GraphAdapter ()
	Destructor. More...

	GraphAdapter ()

virtual void	getVertexWeightsView (const scalar_t *&weights, int &stride, int=0) const
	Provide a pointer to the vertex weights, if any. More...

virtual void	getEdgeWeightsView (const scalar_t *&weights, int &stride, int=0) const
	Provide a pointer to the edge weights, if any. More...

void	setCoordinateInput (VectorAdapter< UserCoord > *coordData)
	Allow user to provide additional data that contains coordinate info associated with the MatrixAdapter's primaryEntityType. Associated data must have the same parallel distribution and ordering of entries as the primaryEntityType. More...

bool	coordinatesAvailable () const
	Indicate whether coordinate information has been set for this MatrixAdapter. More...

VectorAdapter< UserCoord > *	getCoordinateInput () const
	Obtain the coordinate data registered by the user. More...

enum GraphEntityType	getPrimaryEntityType () const
	Returns the entity to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE. More...

void	setPrimaryEntityType (std::string typestr)
	Sets the primary entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to adjacencyEntityType to something reasonable: opposite of primaryEntityType. More...

enum GraphEntityType	getAdjacencyEntityType () const
	Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE. More...

void	setAdjacencyEntityType (std::string typestr)
	Sets the adjacency entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to primaryEntityType to something reasonable: opposite of adjacencyEntityType. More...

size_t	getLocalNumIDs () const
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const
	Provide a pointer to this process' identifiers. More...

int	getNumWeightsPerID () const
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
	Provide pointer to a weight array with stride. More...

bool	useDegreeAsWeight (int idx) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual	~BaseAdapter ()
	Destructor. More...

virtual void	getIDsKokkosView (Kokkos::View< gno_t * > &) const
	Provide a pointer to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t * > &, int=0) const
	Provide pointer to a weight View. More...

void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()

Additional Inherited Members
Public Types inherited from Zoltan2::BaseAdapter< User >
typedef InputTraits< User >::lno_t	lno_t

typedef InputTraits< User >::gno_t	gno_t

typedef InputTraits< User > ::scalar_t	scalar_t

typedef InputTraits< User >::part_t	part_t

typedef InputTraits< User > ::offset_t	offset_t

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User, typename UserCoord = User>
class Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >

Provides access for Zoltan2 to Xpetra::CrsGraph data.

Todo:

test for memory alloc failure when we resize a vector

we assume FillComplete has been called. Should we support objects that are not FillCompleted.

The template parameter is the user's input object:

Tpetra::CrsGraph
Xpetra::CrsGraph
Epetra_CrsGraph

The scalar_t type, representing use data such as matrix values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::CrsMatrix) have an inherent scalar type, and some (like Tpetra::CrsGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.

Definition at line 84 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

Constructor & Destructor Documentation

template<typename User, typename UserCoord = User>

Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::~XpetraCrsGraphAdapter ( )

inline

Destructor.

Definition at line 102 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User , typename UserCoord >

Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::XpetraCrsGraphAdapter	(	const RCP< const User > &	ingraph,
		int	nVtxWeights = `0`,
		int	nEdgeWeights = `0`
	)

Constructor for graph with no weights or coordinates.

Parameters

ingraph	the Epetra_CrsGraph, Tpetra::CrsGraph or Xpetra::CrsGraph
numVtxWeights	the number of weights per vertex (default = 0)
numEdgeWeights	the number of weights per edge (default = 0)

Most adapters do not have RCPs in their interface. This one does because the user is obviously a Trilinos user.

Definition at line 292 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

Member Function Documentation

template<typename User , typename UserCoord >

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::setWeights	(	const scalar_t *	val,
		int	stride,
		int	idx
	)

Provide a pointer to weights for the primary entity type.

Parameters

val	A pointer to the weights for index `idx`.
stride	A stride for the `val` array. If is `k`, then val[n * k] is the weight for the `n` th entity for index .
idx	A number from 0 to one less than weight idx specified in the constructor.

The order of the weights should match the order that entities appear in the input data structure.

Definition at line 364 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::setVertexWeights	(	const scalar_t *	val,
		int	stride,
		int	idx
	)

Provide a pointer to vertex weights.

Parameters

val	A pointer to the weights for index `idx`.
stride	A stride for the `val` array. If is `k`, then val[n * k] is the weight for the `n` th vertex for index .
idx	A number from 0 to one less than number of vertex weights specified in the constructor.

The order of the vertex weights should match the order that vertices appear in the input data structure.

TheGraph->getRowMap()->getNodeElementList()

Definition at line 375 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::setWeightIsDegree ( int idx )

Specify an index for which the weight should be the degree of the entity.

Parameters

idx	Zoltan2 will use the entity's degree as the entity weight for index `idx`.

Definition at line 395 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::setVertexWeightIsDegree ( int idx )

Specify an index for which the vertex weight should be the degree of the vertex.

Parameters

idx	Zoltan2 will use the vertex's degree as the vertex weight for index `idx`.

Definition at line 411 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::setEdgeWeights	(	const scalar_t *	val,
		int	stride,
		int	idx
	)

Provide a pointer to edge weights.

Parameters

val	A pointer to the weights for index `idx`.
stride	A stride for the `val` array. If is `k`, then val[n * k] is the weight for the `n` th edge for index .
dim	A number from 0 to one less than the number of edge weights specified in the constructor.

The order of the edge weights should follow the order that the the vertices and edges appear in the input data structure.

By vertex:

TheGraph->getRowMap()->getNodeElementList()

Then by vertex neighbor:

TheGraph->getLocalRowView(vertexNum, neighborList);

Definition at line 427 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

RCP<const xgraph_t> Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getXpetraGraph ( ) const

inline

Access to Xpetra-wrapped user's graph.

Definition at line 187 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

RCP<const User> Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getUserGraph ( ) const

inline

Access to user's graph.

Definition at line 191 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

size_t Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getLocalNumVertices ( ) const

inlinevirtual

Returns the number of vertices on this process.

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 203 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getVertexIDsView ( const gno_t *& vertexIds ) const

inlinevirtual

Sets pointers to this process' graph entries.

Parameters

vertexIds will on return a pointer to vertex global Ids

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 205 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

size_t Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getLocalNumEdges ( ) const

inlinevirtual

Returns the number of edges on this process.

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 212 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getEdgesView	(	const offset_t *&	offsets,
		const gno_t *&	adjIds
	)		const

inlinevirtual

Gets adjacency lists for all vertices in a compressed sparse row (CSR) format.

Parameters

offsets	is an array of size getLocalNumVertices() + 1. The neighboring vertices for vertexId[i] begin at adjIds[offsets[i]]. The last element of offsets is the size of the adjIds array.
adjIds	on return will point to the array of adjacent vertices for for each vertex.

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 214 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

int Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getNumWeightsPerVertex ( ) const

inlinevirtual

Returns the number (0 or greater) of weights per vertex.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 220 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getVertexWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int	idx
	)		const

inline

Definition at line 222 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

bool Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::useDegreeAsVertexWeight ( int ) const

inlinevirtual

Indicate whether vertex weight with index idx should be the global degree of the vertex.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 238 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

int Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getNumWeightsPerEdge ( ) const

inlinevirtual

Returns the number (0 or greater) of edge weights.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 240 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::getEdgeWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int	idx
	)		const

inline

Definition at line 242 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User , typename UserCoord >

template<typename Adapter >

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::applyPartitioningSolution	(	const User &	in,
		User *&	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 448 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

template<typename User , typename UserCoord >

template<typename Adapter >

void Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >::applyPartitioningSolution	(	const User &	in,
		RCP< User > &	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 472 of file Zoltan2_XpetraCrsGraphAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_XpetraCrsGraphAdapter.hpp

Public Member Functions

Additional Inherited Members

Detailed Description

template<typename User, typename UserCoord = User> class Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >

Constructor & Destructor Documentation

Member Function Documentation

template<typename User, typename UserCoord = User>
class Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >
