MatrixAdapter defines the adapter interface for matrices. More...

#include <Zoltan2_MatrixAdapter.hpp>

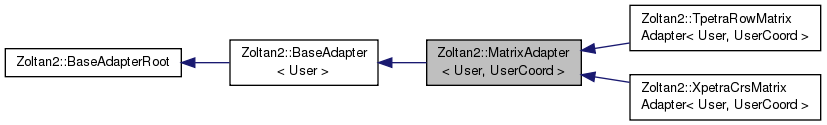

Inheritance diagram for Zoltan2::MatrixAdapter< User, UserCoord >:

Collaboration diagram for Zoltan2::MatrixAdapter< User, UserCoord >:

Public Member Functions
enum BaseAdapterType	adapterType () const
	Returns the type of adapter. More...

	MatrixAdapter ()

virtual	~MatrixAdapter ()
	Destructor. More...

virtual size_t	getLocalNumRows () const =0
	Returns the number of rows on this process. More...

virtual size_t	getLocalNumColumns () const =0
	Returns the number of columns on this process. More...

virtual size_t	getLocalNumEntries () const =0
	Returns the number of nonzeros on this process. More...

virtual bool	CRSViewAvailable () const
	Indicates whether the MatrixAdapter implements a view of the matrix in compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getRowIDsView (const gno_t *&rowIds) const
	Sets pointer to this process' rows' global IDs. More...

virtual void	getCRSView (const offset_t &offsets, const gno_t &colIds) const
	Sets pointers to this process' matrix entries using compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getCRSView (const offset_t &offsets, const gno_t &colIds, const scalar_t *&values) const
	Sets pointers to this process' matrix entries and their values using compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual int	getNumWeightsPerRow () const
	Returns the number of weights per row (0 or greater). Row weights may be used when partitioning matrix rows. More...

virtual void	getRowWeightsView (const scalar_t *&weights, int &stride, int idx=0) const
	Provide a pointer to the row weights, if any. More...

virtual bool	useNumNonzerosAsRowWeight (int idx) const
	Indicate whether row weight with index idx should be the global number of nonzeros in the row. More...

virtual bool	CCSViewAvailable () const
	Indicates whether the MatrixAdapter implements a view of the matrix in compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getColumnIDsView (const gno_t *&colIds) const
	Sets pointer to this process' columns' global IDs. More...

virtual void	getCCSView (const offset_t &offsets, const gno_t &rowIds) const
	Sets pointers to this process' matrix entries using compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual void	getCCSView (const offset_t &offsets, const gno_t &rowIds, const scalar_t *&values) const
	Sets pointers to this process' matrix entries and their values using compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required. More...

virtual int	getNumWeightsPerColumn () const
	Returns the number of weights per column (0 or greater). Column weights may be used when partitioning matrix columns. More...

virtual void	getColumnWeightsView (const scalar_t *&weights, int &stride, int idx=0) const
	Provide a pointer to the column weights, if any. More...

virtual bool	useNumNonzerosAsColumnWeight (int idx) const
	Indicate whether column weight with index idx should be the global number of nonzeros in the column. More...

void	setCoordinateInput (VectorAdapter< UserCoord > *coordData)
	Allow user to provide additional data that contains coordinate info associated with the MatrixAdapter's primaryEntityType. Associated data must have the same parallel distribution and ordering of entries as the primaryEntityType. More...

bool	coordinatesAvailable () const
	Indicate whether coordinate information has been set for this MatrixAdapter. More...

VectorAdapter< UserCoord > *	getCoordinateInput () const
	Obtain the coordinate data registered by the user. More...

enum MatrixEntityType	getPrimaryEntityType () const
	Returns the entity to be partitioned, ordered, colored, etc. Valid values are MATRIX_ROW, MATRIX_COLUMN, MATRIX_NONZERO. More...

void	setPrimaryEntityType (std::string typestr)
	Sets the primary entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to adjacencyEntityType to something reasonable: opposite of primaryEntityType. More...

size_t	getLocalNumIDs () const
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const
	Provide a pointer to this process' identifiers. More...

int	getNumWeightsPerID () const
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
	Provide pointer to a weight array with stride. More...

bool	useDegreeAsWeight (int idx) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual	~BaseAdapter ()
	Destructor. More...

virtual void	getIDsKokkosView (Kokkos::View< gno_t * > &) const
	Provide a pointer to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t * > &, int=0) const
	Provide pointer to a weight View. More...

void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()

Additional Inherited Members
Public Types inherited from Zoltan2::BaseAdapter< User >
typedef InputTraits< User >::lno_t	lno_t

typedef InputTraits< User >::gno_t	gno_t

typedef InputTraits< User > ::scalar_t	scalar_t

typedef InputTraits< User >::part_t	part_t

typedef InputTraits< User > ::offset_t	offset_t

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User, typename UserCoord = User>
class Zoltan2::MatrixAdapter< User, UserCoord >

MatrixAdapter defines the adapter interface for matrices.

Adapter objects provide access for Zoltan2 to the user's data. Many built-in adapters are already defined for common data structures, such as Tpetra and Epetra objects and C-language pointers to arrays.

Data types:

scalar_t row, column or non-zero weights
lno_t local indices and local counts
gno_t global indices and global counts
node_t is a Kokkos Node type

The Kokkos node type can be safely ignored.

The template parameter User is a user-defined data type which, through a traits mechanism, provides the actual data types with which the Zoltan2 library will be compiled. User may be the actual class or structure used by application to represent a vector, or it may be the helper class BasicUserTypes. See InputTraits for more information.

The scalar_t type, representing use data such as matrix values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::CrsMatrix) have an inherent scalar type, and some (like Tpetra::CrsGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.

Todo:

Create BasicCrsMatrixAdapter subclass

Do we want to require adapters to give us the global number of rows, columns etc? We can figure that out.

This is a row-oriented matrix. Do we need a column-oriented matrix? In particular - we assumed coordinates are for rows.

If the user can tell us there are no diagonal entries in a square matrix, it can save time if we have to remove them for the algorithm. Should we have a set method in subclasses for setMatrixHasDiagonalEntries yes, no and maybe?

Definition at line 106 of file Zoltan2_MatrixAdapter.hpp.

Constructor & Destructor Documentation

template<typename User, typename UserCoord = User>

Zoltan2::MatrixAdapter< User, UserCoord >::MatrixAdapter ( )

inline

Definition at line 129 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual Zoltan2::MatrixAdapter< User, UserCoord >::~MatrixAdapter ( )

inlinevirtual

Destructor.

Definition at line 135 of file Zoltan2_MatrixAdapter.hpp.

Member Function Documentation

template<typename User, typename UserCoord = User>

enum BaseAdapterType Zoltan2::MatrixAdapter< User, UserCoord >::adapterType ( ) const

inlinevirtual

Returns the type of adapter.

Implements Zoltan2::BaseAdapter< User >.

Definition at line 126 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual size_t Zoltan2::MatrixAdapter< User, UserCoord >::getLocalNumRows ( ) const

pure virtual

Returns the number of rows on this process.

Implemented in Zoltan2::XpetraCrsMatrixAdapter< User, UserCoord >, and Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >.

template<typename User, typename UserCoord = User>

virtual size_t Zoltan2::MatrixAdapter< User, UserCoord >::getLocalNumColumns ( ) const

pure virtual

Returns the number of columns on this process.

Implemented in Zoltan2::XpetraCrsMatrixAdapter< User, UserCoord >, and Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >.

template<typename User, typename UserCoord = User>

virtual size_t Zoltan2::MatrixAdapter< User, UserCoord >::getLocalNumEntries ( ) const

pure virtual

Returns the number of nonzeros on this process.

Implemented in Zoltan2::XpetraCrsMatrixAdapter< User, UserCoord >, and Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >.

template<typename User, typename UserCoord = User>

virtual bool Zoltan2::MatrixAdapter< User, UserCoord >::CRSViewAvailable ( ) const

inlinevirtual

Indicates whether the MatrixAdapter implements a view of the matrix in compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required.

Reimplemented in Zoltan2::XpetraCrsMatrixAdapter< User, UserCoord >, and Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >.

Definition at line 156 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getRowIDsView ( const gno_t *& rowIds ) const

inlinevirtual

Sets pointer to this process' rows' global IDs.

Parameters

rowIds will on return a pointer to row global Ids

Reimplemented in Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >.

Definition at line 161 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getCRSView	(	const offset_t *&	offsets,
		const gno_t *&	colIds
	)		const

inlinevirtual

Sets pointers to this process' matrix entries using compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required.

Parameters

offsets	is an array of size numRows + 1. The column Ids for rowIds[i] (returned by getRowIDsView) begin at colIds[offsets[i]]. The last element of offsets is the size of the colIds array.
colIds	on return will point to the global column Ids for the non-zeros for each row.

Definition at line 178 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getCRSView	(	const offset_t *&	offsets,
		const gno_t *&	colIds,
		const scalar_t *&	values
	)		const

inlinevirtual

Sets pointers to this process' matrix entries and their values using compressed sparse row (CRS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required.

Parameters

offsets	is an array of size numRows + 1. The column Ids for rowIds[i] (returned by getRowIDsView) begin at colIds[offsets[i]]. The last element of offsets is the size of the colIds array.
colIds	on return will point to the global column Ids for the non-zeros for each row.
values	on return will point to the values stored in the non-zeros for each row.

Definition at line 200 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual int Zoltan2::MatrixAdapter< User, UserCoord >::getNumWeightsPerRow ( ) const

inlinevirtual

Returns the number of weights per row (0 or greater). Row weights may be used when partitioning matrix rows.

Reimplemented in Zoltan2::XpetraCrsMatrixAdapter< User, UserCoord >, and Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >.

Definition at line 214 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getRowWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int	idx = `0`
	)		const

inlinevirtual

Provide a pointer to the row weights, if any.

Parameters

weights	is the list of weights with a given index for the rows returned in getRowIDsView().
stride	The k'th weight is located at weights[stride*k]
idx	ranges from zero to one less than getNumWeightsPerRow().

Definition at line 222 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual bool Zoltan2::MatrixAdapter< User, UserCoord >::useNumNonzerosAsRowWeight ( int idx ) const

inlinevirtual

Indicate whether row weight with index idx should be the global number of nonzeros in the row.

Reimplemented in Zoltan2::XpetraCrsMatrixAdapter< User, UserCoord >, and Zoltan2::TpetraRowMatrixAdapter< User, UserCoord >.

Definition at line 234 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual bool Zoltan2::MatrixAdapter< User, UserCoord >::CCSViewAvailable ( ) const

inlinevirtual

Indicates whether the MatrixAdapter implements a view of the matrix in compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required.

Definition at line 244 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getColumnIDsView ( const gno_t *& colIds ) const

inlinevirtual

Sets pointer to this process' columns' global IDs.

Parameters

colIds will on return a pointer to column global Ids

Definition at line 249 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getCCSView	(	const offset_t *&	offsets,
		const gno_t *&	rowIds
	)		const

inlinevirtual

Sets pointers to this process' matrix entries using compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required.

Parameters

offsets	is an array of size numCols + 1. The row Ids for colIds[i] (returned by getColumnIDsView) begin at rowIds[offsets[i]]. The last element of offsets is the size of the rowIds array.
rowIds	on return will point to the global row Ids for the non-zeros for each column.

Definition at line 266 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getCCSView	(	const offset_t *&	offsets,
		const gno_t *&	rowIds,
		const scalar_t *&	values
	)		const

inlinevirtual

Sets pointers to this process' matrix entries and their values using compressed sparse column (CCS) format. All matrix adapters must implement either getCRSView or getCCSView, but implementation of both is not required.

Parameters

offsets	is an array of size numCols + 1. The row Ids for colIds[i] (returned by getColumnIDsView) begin at rowIds[offsets[i]]. The last element of offsets is the size of the rowIds array.
rowIds	on return will point to the global row Ids for the non-zeros for each column.
values	on return will point to the values stored in the non-zeros for each column.

Definition at line 289 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual int Zoltan2::MatrixAdapter< User, UserCoord >::getNumWeightsPerColumn ( ) const

inlinevirtual

Returns the number of weights per column (0 or greater). Column weights may be used when partitioning matrix columns.

Definition at line 303 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::MatrixAdapter< User, UserCoord >::getColumnWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int	idx = `0`
	)		const

inlinevirtual

Provide a pointer to the column weights, if any.

Parameters

weights	is the list of weights with a given index for the columns returned in getColumnIDsView().
stride	The k'th weight is located at weights[stride*k]
idx	ranges from zero to one less than getNumWeightsPerColumn().

Definition at line 311 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual bool Zoltan2::MatrixAdapter< User, UserCoord >::useNumNonzerosAsColumnWeight ( int idx ) const

inlinevirtual

Indicate whether column weight with index idx should be the global number of nonzeros in the column.

Definition at line 323 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::MatrixAdapter< User, UserCoord >::setCoordinateInput ( VectorAdapter< UserCoord > * coordData )

inline

Allow user to provide additional data that contains coordinate info associated with the MatrixAdapter's primaryEntityType. Associated data must have the same parallel distribution and ordering of entries as the primaryEntityType.

Parameters

coordData is a pointer to a VectorAdapter with the user's coordinate data.

Definition at line 341 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

bool Zoltan2::MatrixAdapter< User, UserCoord >::coordinatesAvailable ( ) const

inline

Indicate whether coordinate information has been set for this MatrixAdapter.

Definition at line 350 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

VectorAdapter<UserCoord>* Zoltan2::MatrixAdapter< User, UserCoord >::getCoordinateInput ( ) const

inline

Obtain the coordinate data registered by the user.

Returns: pointer a VectorAdapter with the user's coordinate data.

Definition at line 355 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

enum MatrixEntityType Zoltan2::MatrixAdapter< User, UserCoord >::getPrimaryEntityType ( ) const

inline

Returns the entity to be partitioned, ordered, colored, etc. Valid values are MATRIX_ROW, MATRIX_COLUMN, MATRIX_NONZERO.

Definition at line 366 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::MatrixAdapter< User, UserCoord >::setPrimaryEntityType ( std::string typestr )

inline

Sets the primary entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to adjacencyEntityType to something reasonable: opposite of primaryEntityType.

Definition at line 376 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

size_t Zoltan2::MatrixAdapter< User, UserCoord >::getLocalNumIDs ( ) const

inlinevirtual

Returns the number of objects on this process.

Objects may be coordinates, graph vertices, matrix rows, etc. They are the objects to be partitioned, ordered, or colored.

Implements Zoltan2::BaseAdapterRoot.

Definition at line 397 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::MatrixAdapter< User, UserCoord >::getIDsView ( const gno_t *& ids ) const

inlinevirtual

Provide a pointer to this process' identifiers.

Parameters

ids	will on return point to the list of the global Ids for this process.

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 411 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

int Zoltan2::MatrixAdapter< User, UserCoord >::getNumWeightsPerID ( ) const

inlinevirtual

Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID.

Reimplemented from Zoltan2::BaseAdapterRoot.

Definition at line 434 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::MatrixAdapter< User, UserCoord >::getWeightsView	(	const scalar_t *&	wgt,
		int &	stride,
		int	idx = `0`
	)		const

inlinevirtual

Provide pointer to a weight array with stride.

Parameters

wgt	on return a pointer to the weights for this idx
stride	on return, the value such that the nth weight should be found at `wgt[n*stride]` .
idx	the weight index, zero or greater This function must be implemented in derived adapter if getNumWeightsPerID > 0. This function should not be called if getNumWeightsPerID is zero.

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 448 of file Zoltan2_MatrixAdapter.hpp.

template<typename User, typename UserCoord = User>

bool Zoltan2::MatrixAdapter< User, UserCoord >::useDegreeAsWeight ( int idx ) const

inline

Definition at line 472 of file Zoltan2_MatrixAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_MatrixAdapter.hpp

Public Member Functions

Additional Inherited Members

Detailed Description

template<typename User, typename UserCoord = User> class Zoltan2::MatrixAdapter< User, UserCoord >

Constructor & Destructor Documentation

Member Function Documentation

template<typename User, typename UserCoord = User>
class Zoltan2::MatrixAdapter< User, UserCoord >
