#include <Trilinos_Util_CrsMatrixGallery.h>

Inheritance diagram for Trilinos_Util::CrsMatrixGallery:

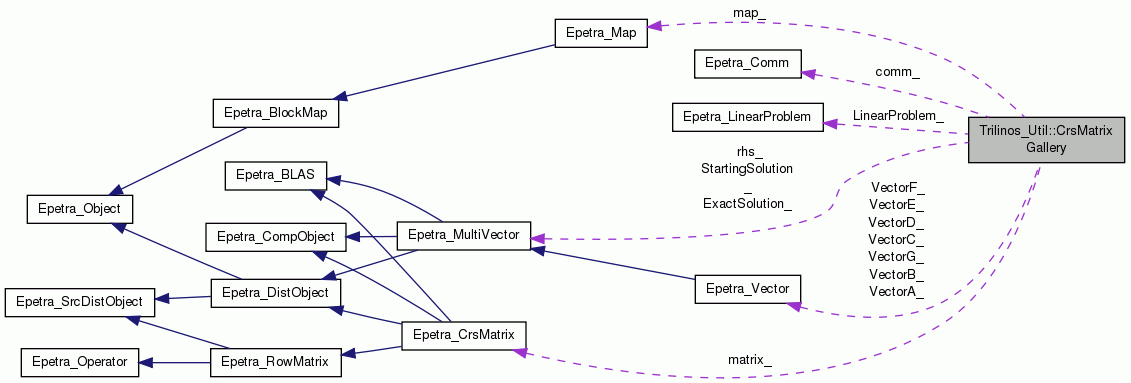

Collaboration diagram for Trilinos_Util::CrsMatrixGallery:

Public Member Functions

	CrsMatrixGallery (const std::string name, const Epetra_Comm &comm, bool UseLongLong=false)
	Triutils_Gallery Constructor. More...

	CrsMatrixGallery (const std::string name, const Epetra_Map &map)
	Creates an Triutils_Gallery object using a given map. More...

	~CrsMatrixGallery ()
	Triutils_Gallery destructor. More...


int	Set (const std::string parameter, const int value)
	Sets a gallery options using an interger value. More...

int	Set (const std::string parameter, const std::string value)
	Sets a gallery options using a C++ string . More...

int	Set (const std::string parameter, const double value)
	Sets a gallery options using an double value. More...

int	Set (const std::string parameter, const Epetra_Vector &value)
	Sets a gallery options using an Epetra_Vector. More...

int	Set (Trilinos_Util::CommandLineParser &CLP)
	Sets gallery options using values passed from the shell. More...

Protected Member Functions
template<typename int_type >
int_type *&	MyGlobalElementsPtr ()

template<typename int_type >
std::vector< int_type > &	MapMapRef ()

template<>
long long *&	MyGlobalElementsPtr ()

template<>
std::vector< long long > &	MapMapRef ()

template<>
int *&	MyGlobalElementsPtr ()

template<>
std::vector< int > &	MapMapRef ()


void	CreateMap ()
	Creates a map. More...

template<typename int_type >
void	TCreateMap ()

void	CreateMatrix ()
	Creates the CrdMatrix. More...

template<typename int_type >
void	TCreateMatrix ()

template<typename int_type >
void	TCreateExactSolution ()
	Creates the exact solution. More...

void	CreateExactSolution ()

void	CreateStartingSolution ()
	Creates the starting solution. More...

template<typename int_type >
void	TCreateRHS ()
	Create the RHS corresponding to the desired exact solution. More...

void	CreateRHS ()

template<typename int_type >
void	CreateEye ()

template<typename int_type >
void	CreateMatrixDiag ()

template<typename int_type >
void	CreateMatrixTriDiag ()

template<typename int_type >
void	CreateMatrixLaplace1d ()

template<typename int_type >
void	CreateMatrixLaplace1dNeumann ()

template<typename int_type >
void	CreateMatrixCrossStencil2d ()

template<typename int_type >
void	CreateMatrixCrossStencil2dVector ()

template<typename int_type >
void	CreateMatrixLaplace2d ()

template<typename int_type >
void	CreateMatrixLaplace2d_BC ()

template<typename int_type >
void	CreateMatrixLaplace2d_9pt ()

template<typename int_type >
void	CreateMatrixStretched2d ()

template<typename int_type >
void	CreateMatrixRecirc2d ()

template<typename int_type >
void	CreateMatrixRecirc2dDivFree ()

template<typename int_type >
void	CreateMatrixLaplace2dNeumann ()

template<typename int_type >
void	CreateMatrixUniFlow2d ()

template<typename int_type >
void	CreateMatrixLaplace3d ()

template<typename int_type >
void	CreateMatrixCrossStencil3d ()

template<typename int_type >
void	CreateMatrixCrossStencil3dVector ()

template<typename int_type >
void	CreateMatrixLehmer ()

template<typename int_type >
void	CreateMatrixMinij ()

template<typename int_type >
void	CreateMatrixRis ()

template<typename int_type >
void	CreateMatrixHilbert ()

template<typename int_type >
void	CreateMatrixJordblock ()

template<typename int_type >
void	CreateMatrixCauchy ()

template<typename int_type >
void	CreateMatrixFiedler ()

template<typename int_type >
void	CreateMatrixHanowa ()

template<typename int_type >
void	CreateMatrixKMS ()

template<typename int_type >
void	CreateMatrixParter ()

template<typename int_type >
void	CreateMatrixPei ()

template<typename int_type >
void	CreateMatrixOnes ()

template<typename int_type >
void	CreateMatrixVander ()

template<typename int_type >
void	TReadMatrix ()

void	GetNeighboursCartesian2d (const int i, const int nx, const int ny, int &left, int &right, int &lower, int &upper)

void	GetNeighboursCartesian3d (const int i, const int nx, const int ny, const int nz, int &left, int &right, int &lower, int &upper, int &below, int &above)

template<typename int_type >
void	TGetCartesianCoordinates (double &x, double &y, double *&z)

void	ZeroOutData ()

void	SetupCartesianGrid2D ()

void	SetupCartesianGrid3D ()

void	ExactSolQuadXY (double x, double y, double &u)

void	ExactSolQuadXY (double x, double y, double &u, double &ux, double &uy, double &uxx, double &uyy)

Protected Attributes
const Epetra_Comm *	comm_

Epetra_CrsMatrix *	matrix_

Epetra_MultiVector *	ExactSolution_

Epetra_MultiVector *	StartingSolution_

Epetra_MultiVector *	rhs_

Epetra_Map *	map_

Epetra_LinearProblem *	LinearProblem_

std::string	name_

long long	NumGlobalElements_

int	NumMyElements_

int *	MyGlobalElements_int_

std::vector< int >	MapMap_int_

long long *	MyGlobalElements_LL_

std::vector< long long >	MapMap_LL_

std::string	MapType_

bool	ContiguousMap_

std::string	ExactSolutionType_

std::string	StartingSolutionType_

std::string	ExpandType_

std::string	RhsType_

int	nx_

int	ny_

int	nz_

int	mx_

int	my_

int	mz_

double	lx_

double	ly_

double	lz_

int	NumPDEEqns_

int	NumVectors_

Epetra_Vector *	VectorA_

Epetra_Vector *	VectorB_

Epetra_Vector *	VectorC_

Epetra_Vector *	VectorD_

Epetra_Vector *	VectorE_

Epetra_Vector *	VectorF_

Epetra_Vector *	VectorG_

double	a_

double	b_

double	c_

double	d_

double	e_

double	f_

double	g_

double	alpha_

double	beta_

double	gamma_

double	delta_

double	conv_

double	diff_

double	source_

double	epsilon_

std::string	FileName_

std::string	ErrorMsg

std::string	OutputMsg

bool	verbose_

bool	UseLongLong_

Epetra_CrsMatrix *	GetMatrix ()
	Returns a pointer to the CrsMatrix. More...

Epetra_CrsMatrix &	GetMatrixRef ()

Epetra_MultiVector *	GetExactSolution ()
	Returns a pointer to the exact solution. More...

Epetra_MultiVector *	GetStartingSolution ()
	Returns a pointer to the starting solution (typically, for HB problems). More...

Epetra_MultiVector *	GetRHS ()
	Returns a pointer to the rhs corresponding to the selected exact solution. More...

const Epetra_Map *	GetMap ()
	Returns a pointer the internally stored Map. More...

const Epetra_Map &	GetMapRef ()

Epetra_LinearProblem *	GetLinearProblem ()
	Returns a pointer to Epetra_LinearProblem. More...

void	ComputeResidual (double *residual)
	Computes the 2-norm of the residual. More...

void	ComputeDiffBetweenStartingAndExactSolutions (double *residual)
	Computes the 2-norm of the difference between the starting solution and the exact solution. More...

void	PrintMatrixAndVectors (std::ostream &os)
	Print out matrix and vectors. More...

void	PrintMatrixAndVectors ()

void	GetCartesianCoordinates (double &x, double &y, double *&z)
	Get pointers to double vectors containing coordinates of points. More...

int	WriteMatrix (const std::string &FileName, const bool UseSparse=true)
	Print matrix on file in MATLAB format. More...

std::ostream &	operator<< (std::ostream &os, const Trilinos_Util::CrsMatrixGallery &G)
	Print out detailed information about the problem at hand. More...

Constructor & Destructor Documentation

Trilinos_Util::CrsMatrixGallery::CrsMatrixGallery	(	const std::string	name,
		const Epetra_Comm &	comm,
		bool	UseLongLong = `false`
	)

Triutils_Gallery Constructor.

  Creates a Triutils_Gallery instance.

The first parameter is the name of the matrix. We refer to the Trilinos Tutorial for a detailed description of available matrices.

Note: The matrix name can be empty (""), and set later using, for example, Set("matrix_name","laplace_2d");

An example of program using this class is reported below.

int main(int argc, char *argv[])
{
#ifdef HAVE_MPI
  MPI_Init(&argc,&argv);
  Epetra_MpiComm Comm (MPI_COMM_WORLD);
#else
  Epetra_SerialComm Comm;
#endif
  // create an Epetra matrix reading an H/B matrix
  Trilinos_Util_CrsMatrixGallery Gallery("hb", Comm);
  // set the name of the matrix
  Gallery.Set("matrix name", "bcsstk14.rsa");
  Epetra_CrsMatrix * A;
  Epetra_Vector * ExactSolution;
  Epetra_Vector * RHS;
  Epetra_Vector * StartingSolution;
  // at this point the matrix is read from file
  A = Gallery.GetMatrix();
  ExactSolution = Gallery.GetExactSolution();
  // at this point the RHS is allocated and filled
  RHS = Gallery.GetRHS();
  StartingSolution = Gallery.GetStartingSolution();
  // create linear problem
  Epetra_LinearProblem Problem(A,StartingSolution,RHS);
  // create AztecOO instance
  AztecOO Solver(Problem);
  Solver.SetAztecOption( AZ_precond, AZ_dom_decomp );
  Solver.Iterate(1000,1E-9);
  // compute residual
  double residual;
  Gallery.ComputeResidual(&residual);
  if( Comm.MyPID()==0 ) cout << "||b-Ax||_2 = " << residual << endl;
  Gallery.ComputeDiffBetweenStartingAndExactSolutions(&residual);
  if( Comm.MyPID()==0 ) cout << "||x_exact - x||_2 = " << residual << endl;
 #ifdef HAVE_MPI
  MPI_Finalize() ;
#endif
return 0 ;
  }

Class CommandLineParser can be used as well. In this case, one may decide to use the following:

Trilinos_Util::CommandLineParser CLP(argc,argv);
// set a problem with no matrix name
Trilinos_Util::CrsMatrixGallery Gallery("", Comm);
// read parameters and settings from the shell line
G.Set(CLP);
// continue with your code...

Parameters

In	comm - Epetra communicator

Trilinos_Util::CrsMatrixGallery::CrsMatrixGallery	(	const std::string	name,
		const Epetra_Map &	map
	)

Creates an Triutils_Gallery object using a given map.

Create a Triutils_Gallery object using an Epetra_Map. Problem size must match the elements in map.

Parameters

In	name - definition of the problem to be created.
In	map - Epetra_Map

Trilinos_Util::CrsMatrixGallery::~CrsMatrixGallery ( void )

Triutils_Gallery destructor.

References ExactSolution_, LinearProblem_, map_, matrix_, rhs_, StartingSolution_, VectorA_, VectorB_, VectorC_, VectorD_, VectorE_, VectorF_, VectorG_, and ZeroOutData().

Member Function Documentation

void Trilinos_Util::CrsMatrixGallery::ComputeDiffBetweenStartingAndExactSolutions ( double * residual )

Computes the 2-norm of the difference between the starting solution and the exact solution.

void Trilinos_Util::CrsMatrixGallery::ComputeResidual ( double * residual )

Computes the 2-norm of the residual.

void Trilinos_Util::CrsMatrixGallery::CreateExactSolution ( void )

protected

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateEye ( void )

protected

void Trilinos_Util::CrsMatrixGallery::CreateMap ( void )

protected

Creates a map.

Creates an Epetra_Map. Before calling this function, the problem

size must have been specified.

CreateMap() allows some different maps. The type of map is set using Set("map",value). Value is a string, defined as:

linear: Creates a linear map. Elements are divided into continuous chunks among the processors.
box: used for problems defined on cartesian grids over a square. The nodes is subdivided into mx x my subdomains. mx and my are specified via Set("mx",IntValue) and Set("my",IntValue).
interlaces: elements are subdivided so that element i is assigned to process iNumProcs.
random: assign each node to a random process
greedy: (only for HB matrices) implements a greedy algorithm to decompose the graph of the HB matrix among the processes

void Trilinos_Util::CrsMatrixGallery::CreateMatrix ( void )

protected

Creates the CrdMatrix.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixCauchy ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixCrossStencil2d ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixCrossStencil2dVector ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixCrossStencil3d ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixCrossStencil3dVector ( void )

protected

References Copy, and TEUCHOS_TEST_FOR_EXCEPT_MSG.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixDiag ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixFiedler ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixHanowa ( void )

protected

References Copy, TEUCHOS_TEST_FOR_EXCEPT_MSG, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixHilbert ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixJordblock ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixKMS ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLaplace1d ( void )

protected

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLaplace1dNeumann ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLaplace2d ( void )

protected

References Scaling.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLaplace2d_9pt ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLaplace2d_BC ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLaplace2dNeumann ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLaplace3d ( void )

protected

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixLehmer ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixMinij ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixOnes ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixParter ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixPei ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixRecirc2d ( void )

protected

References UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixRecirc2dDivFree ( void )

protected

References UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixRis ( void )

protected

References Copy.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixStretched2d ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixTriDiag ( void )

protected

References Copy, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixUniFlow2d ( void )

protected

References UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::CreateMatrixVander ( void )

protected

References Copy.

void Trilinos_Util::CrsMatrixGallery::CreateRHS ( void )

protected

void Trilinos_Util::CrsMatrixGallery::CreateStartingSolution ( void )

protected

Creates the starting solution.

References TEUCHOS_TEST_FOR_EXCEPT_MSG.

void Trilinos_Util::CrsMatrixGallery::ExactSolQuadXY	(	double	x,
		double	y,
		double &	u
	)

protected

void Trilinos_Util::CrsMatrixGallery::ExactSolQuadXY	(	double	x,
		double	y,
		double &	u,
		double &	ux,
		double &	uy,
		double &	uxx,
		double &	uyy
	)

protected

void Trilinos_Util::CrsMatrixGallery::GetCartesianCoordinates	(	double *&	x,
		double *&	y,
		double *&	z
	)

Get pointers to double vectors containing coordinates of points.

Epetra_MultiVector * Trilinos_Util::CrsMatrixGallery::GetExactSolution ( void )

Returns a pointer to the exact solution.

Some choices are available to define the exact solution, using Set("exact solution", value). value can be:

constant: the exact solution vector is made up of 1's.
random: a random solution vector
linear: value at node i is defined as alpha*i. The double value alpha can be set via Set("alpha",DoubleVal).

Epetra_LinearProblem * Trilinos_Util::CrsMatrixGallery::GetLinearProblem ( void )

Returns a pointer to Epetra_LinearProblem.

const Epetra_Map * Trilinos_Util::CrsMatrixGallery::GetMap ( void )

Returns a pointer the internally stored Map.

const Epetra_Map & Trilinos_Util::CrsMatrixGallery::GetMapRef ( void )

Epetra_CrsMatrix * Trilinos_Util::CrsMatrixGallery::GetMatrix ( void )

Returns a pointer to the CrsMatrix.

Epetra_CrsMatrix & Trilinos_Util::CrsMatrixGallery::GetMatrixRef ( void )

void Trilinos_Util::CrsMatrixGallery::GetNeighboursCartesian2d	(	const int	i,
		const int	nx,
		const int	ny,
		int &	left,
		int &	right,
		int &	lower,
		int &	upper
	)

protected

void Trilinos_Util::CrsMatrixGallery::GetNeighboursCartesian3d	(	const int	i,
		const int	nx,
		const int	ny,
		const int	nz,
		int &	left,
		int &	right,
		int &	lower,
		int &	upper,
		int &	below,
		int &	above
	)

protected

Epetra_MultiVector * Trilinos_Util::CrsMatrixGallery::GetRHS ( void )

Returns a pointer to the rhs corresponding to the selected exact solution.

Epetra_MultiVector * Trilinos_Util::CrsMatrixGallery::GetStartingSolution ( void )

Returns a pointer to the starting solution (typically, for HB problems).

Returns a pointer to the starting solution. This is typically used while reading a HB problem. However, the user can set a starting solution using Set("starting solution", "value"). Value can be

zero
random

template<typename int_type >

std::vector<int_type>& Trilinos_Util::CrsMatrixGallery::MapMapRef ( )

protected

template<>

std::vector<long long>& Trilinos_Util::CrsMatrixGallery::MapMapRef ( )

inlineprotected

template<>

std::vector<int>& Trilinos_Util::CrsMatrixGallery::MapMapRef ( )

inlineprotected

template<typename int_type >

int_type*& Trilinos_Util::CrsMatrixGallery::MyGlobalElementsPtr ( )

protected

template<>

long long*& Trilinos_Util::CrsMatrixGallery::MyGlobalElementsPtr ( )

inlineprotected

template<>

int*& Trilinos_Util::CrsMatrixGallery::MyGlobalElementsPtr ( )

inlineprotected

void Trilinos_Util::CrsMatrixGallery::PrintMatrixAndVectors ( std::ostream & os )

Print out matrix and vectors.

void Trilinos_Util::CrsMatrixGallery::PrintMatrixAndVectors ( )

int Trilinos_Util::CrsMatrixGallery::Set	(	const std::string	parameter,
		const int	value
	)

Sets a gallery options using an interger value.

int Trilinos_Util::CrsMatrixGallery::Set	(	const std::string	parameter,
		const std::string	value
	)

Sets a gallery options using a C++ string .

int Trilinos_Util::CrsMatrixGallery::Set	(	const std::string	parameter,
		const double	value
	)

Sets a gallery options using an double value.

int Trilinos_Util::CrsMatrixGallery::Set	(	const std::string	parameter,
		const Epetra_Vector &	value
	)

Sets a gallery options using an Epetra_Vector.

Sets a gallery options using an Epetra_Vector. The Epetra_Vector

is copied into internal structures, and freed by the destructor.

int Trilinos_Util::CrsMatrixGallery::Set ( Trilinos_Util::CommandLineParser & CLP )

Sets gallery options using values passed from the shell.

References Trilinos_Util_Map::Get(), and Trilinos_Util_Map::Has().

void Trilinos_Util::CrsMatrixGallery::SetupCartesianGrid2D ( )

protected

References TEUCHOS_TEST_FOR_EXCEPT_MSG.

void Trilinos_Util::CrsMatrixGallery::SetupCartesianGrid3D ( )

protected

References TEUCHOS_TEST_FOR_EXCEPT_MSG.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::TCreateExactSolution ( void )

protected

Creates the exact solution.

References TEUCHOS_TEST_FOR_EXCEPT_MSG.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::TCreateMap ( void )

protected

References Epetra_Time::ElapsedTime(), Epetra_IntSerialDenseVector::Random(), Epetra_Util::RandomInt(), Epetra_Util::Sort(), and TEUCHOS_TEST_FOR_EXCEPT_MSG.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::TCreateMatrix ( void )

protected

References Epetra_Time::ElapsedTime(), and TEUCHOS_TEST_FOR_EXCEPT_MSG.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::TCreateRHS ( void )

protected

Create the RHS corresponding to the desired exact solution.

References Epetra_Time::ElapsedTime(), TEUCHOS_TEST_FOR_EXCEPT_MSG, and UNDEF.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::TGetCartesianCoordinates	(	double *&	x,
		double *&	y,
		double *&	z
	)

protected

References TEUCHOS_TEST_FOR_EXCEPT_MSG.

template<typename int_type >

void Trilinos_Util::CrsMatrixGallery::TReadMatrix ( void )

protected

References Add, Copy, Epetra_CrsMatrix::ExtractMyRowView(), Epetra_CrsMatrix::MaxNumEntries(), Epetra_BlockMap::NumMyElements(), TEUCHOS_ASSERT, TEUCHOS_TEST_FOR_EXCEPT_MSG, Trilinos_Util_ReadHb2Epetra(), Trilinos_Util_ReadHb2Epetra64(), Trilinos_Util_ReadMatrixMarket2Epetra(), Trilinos_Util_ReadMatrixMarket2Epetra64(), Trilinos_Util_ReadTriples2Epetra(), and Trilinos_Util_ReadTriples2Epetra64().

int Trilinos_Util::CrsMatrixGallery::WriteMatrix	(	const std::string &	FileName,
		const bool	UseSparse = `true`
	)

Print matrix on file in MATLAB format.

void Trilinos_Util::CrsMatrixGallery::ZeroOutData ( )

protected

References UNDEF.

Referenced by ~CrsMatrixGallery().

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const Trilinos_Util::CrsMatrixGallery &	G
	)

friend

Print out detailed information about the problem at hand.

Member Data Documentation

double Trilinos_Util::CrsMatrixGallery::a_

protected

double Trilinos_Util::CrsMatrixGallery::alpha_

protected

double Trilinos_Util::CrsMatrixGallery::b_

protected

double Trilinos_Util::CrsMatrixGallery::beta_

protected

double Trilinos_Util::CrsMatrixGallery::c_

protected

const Epetra_Comm* Trilinos_Util::CrsMatrixGallery::comm_

protected

Referenced by Trilinos_Util::operator<<().

bool Trilinos_Util::CrsMatrixGallery::ContiguousMap_

protected

double Trilinos_Util::CrsMatrixGallery::conv_

protected

double Trilinos_Util::CrsMatrixGallery::d_

protected

double Trilinos_Util::CrsMatrixGallery::delta_

protected

double Trilinos_Util::CrsMatrixGallery::diff_

protected

double Trilinos_Util::CrsMatrixGallery::e_

protected

double Trilinos_Util::CrsMatrixGallery::epsilon_

protected

std::string Trilinos_Util::CrsMatrixGallery::ErrorMsg

protected

Epetra_MultiVector* Trilinos_Util::CrsMatrixGallery::ExactSolution_

protected

Referenced by Trilinos_Util::operator<<(), and ~CrsMatrixGallery().

std::string Trilinos_Util::CrsMatrixGallery::ExactSolutionType_

protected

Referenced by Trilinos_Util::operator<<().

std::string Trilinos_Util::CrsMatrixGallery::ExpandType_

protected

double Trilinos_Util::CrsMatrixGallery::f_

protected

std::string Trilinos_Util::CrsMatrixGallery::FileName_

protected

double Trilinos_Util::CrsMatrixGallery::g_

protected

double Trilinos_Util::CrsMatrixGallery::gamma_

protected

Epetra_LinearProblem* Trilinos_Util::CrsMatrixGallery::LinearProblem_

protected

Referenced by ~CrsMatrixGallery().

double Trilinos_Util::CrsMatrixGallery::lx_

protected

double Trilinos_Util::CrsMatrixGallery::ly_

protected

double Trilinos_Util::CrsMatrixGallery::lz_

protected

Epetra_Map* Trilinos_Util::CrsMatrixGallery::map_

protected

Referenced by ~CrsMatrixGallery().

std::vector<int> Trilinos_Util::CrsMatrixGallery::MapMap_int_

protected

std::vector<long long> Trilinos_Util::CrsMatrixGallery::MapMap_LL_

protected

std::string Trilinos_Util::CrsMatrixGallery::MapType_

protected

Referenced by Trilinos_Util::operator<<().

Epetra_CrsMatrix* Trilinos_Util::CrsMatrixGallery::matrix_

protected

Referenced by Trilinos_Util::operator<<(), and ~CrsMatrixGallery().

int Trilinos_Util::CrsMatrixGallery::mx_

protected

int Trilinos_Util::CrsMatrixGallery::my_

protected

int* Trilinos_Util::CrsMatrixGallery::MyGlobalElements_int_

protected

long long* Trilinos_Util::CrsMatrixGallery::MyGlobalElements_LL_

protected

int Trilinos_Util::CrsMatrixGallery::mz_

protected

std::string Trilinos_Util::CrsMatrixGallery::name_

protected

Referenced by Trilinos_Util::operator<<().

long long Trilinos_Util::CrsMatrixGallery::NumGlobalElements_

protected

Referenced by Trilinos_Util::operator<<().

int Trilinos_Util::CrsMatrixGallery::NumMyElements_

protected

int Trilinos_Util::CrsMatrixGallery::NumPDEEqns_

protected

Referenced by Trilinos_Util::operator<<().

int Trilinos_Util::CrsMatrixGallery::NumVectors_

protected

int Trilinos_Util::CrsMatrixGallery::nx_

protected

int Trilinos_Util::CrsMatrixGallery::ny_

protected

int Trilinos_Util::CrsMatrixGallery::nz_

protected

std::string Trilinos_Util::CrsMatrixGallery::OutputMsg

protected

Epetra_MultiVector* Trilinos_Util::CrsMatrixGallery::rhs_

protected

Referenced by Trilinos_Util::operator<<(), and ~CrsMatrixGallery().

std::string Trilinos_Util::CrsMatrixGallery::RhsType_

protected

double Trilinos_Util::CrsMatrixGallery::source_

protected

Epetra_MultiVector* Trilinos_Util::CrsMatrixGallery::StartingSolution_

protected

Referenced by ~CrsMatrixGallery().

std::string Trilinos_Util::CrsMatrixGallery::StartingSolutionType_

protected

bool Trilinos_Util::CrsMatrixGallery::UseLongLong_

protected

Epetra_Vector* Trilinos_Util::CrsMatrixGallery::VectorA_

protected

Referenced by ~CrsMatrixGallery().

Epetra_Vector * Trilinos_Util::CrsMatrixGallery::VectorB_

protected

Referenced by ~CrsMatrixGallery().

Epetra_Vector * Trilinos_Util::CrsMatrixGallery::VectorC_

protected

Referenced by ~CrsMatrixGallery().

Epetra_Vector * Trilinos_Util::CrsMatrixGallery::VectorD_

protected

Referenced by ~CrsMatrixGallery().

Epetra_Vector * Trilinos_Util::CrsMatrixGallery::VectorE_

protected

Referenced by ~CrsMatrixGallery().

Epetra_Vector * Trilinos_Util::CrsMatrixGallery::VectorF_

protected

Referenced by ~CrsMatrixGallery().

Epetra_Vector * Trilinos_Util::CrsMatrixGallery::VectorG_

protected

Referenced by ~CrsMatrixGallery().

bool Trilinos_Util::CrsMatrixGallery::verbose_

protected

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
