Epetra_Vector: A class for constructing and using dense vectors on a parallel computer. More...

#include <Epetra_Vector.h>

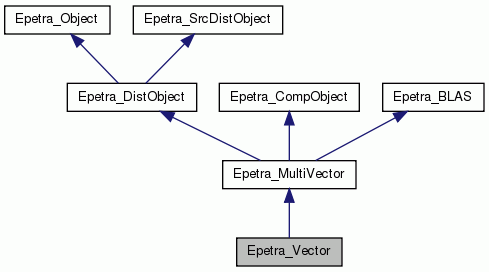

Inheritance diagram for Epetra_Vector:

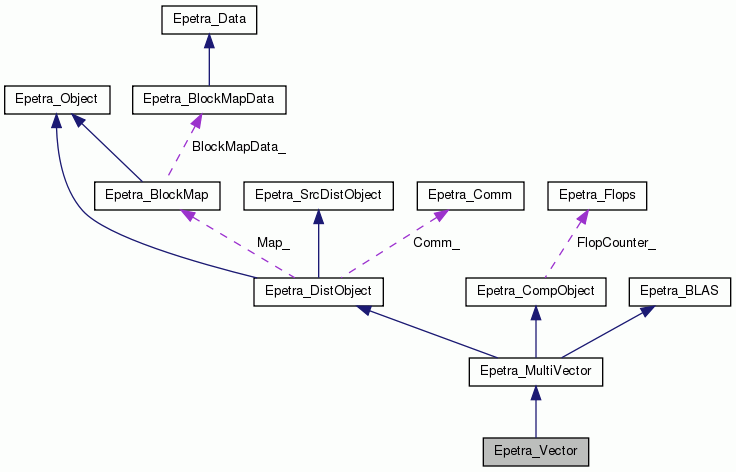

Collaboration diagram for Epetra_Vector:

Public Member Functions
Constructors/destructors
	Epetra_Vector (const Epetra_BlockMap &Map, bool zeroOut=true)
	Basic Epetra_Vector constuctor. More...

	Epetra_Vector (const Epetra_Vector &Source)
	Epetra_Vector copy constructor.

	Epetra_Vector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, double *V)
	Set vector values from user array. More...

	Epetra_Vector (Epetra_DataAccess CV, const Epetra_MultiVector &Source, int Index)
	Set vector values from a vector in an existing Epetra_MultiVector. More...

virtual	~Epetra_Vector ()
	Epetra_Vector destructor.

Post-construction modification routines
int	ReplaceGlobalValues (int NumEntries, const double Values, const int Indices)
	Replace values in a vector with a given indexed list of values, indices are in global index space. More...

int	ReplaceGlobalValues (int NumEntries, const double Values, const long long Indices)

int	ReplaceMyValues (int NumEntries, const double Values, const int Indices)
	Replace values in a vector with a given indexed list of values, indices are in local index space. More...

int	SumIntoGlobalValues (int NumEntries, const double Values, const int Indices)
	Sum values into a vector with a given indexed list of values, indices are in global index space. More...

int	SumIntoMyValues (int NumEntries, const double Values, const int Indices)
	Sum values into a vector with a given indexed list of values, indices are in local index space. More...

int	ReplaceGlobalValues (int NumEntries, int BlockOffset, const double Values, const int Indices)
	Replace values in a vector with a given indexed list of values at the specified BlockOffset, indices are in global index space. More...

int	ReplaceMyValues (int NumEntries, int BlockOffset, const double Values, const int Indices)
	Replace values in a vector with a given indexed list of values at the specified BlockOffset, indices are in local index space. More...

int	SumIntoGlobalValues (int NumEntries, int BlockOffset, const double Values, const int Indices)
	Sum values into a vector with a given indexed list of values at the specified BlockOffset, indices are in global index space. More...

int	SumIntoMyValues (int NumEntries, int BlockOffset, const double Values, const int Indices)
	Sum values into a vector with a given indexed list of values at the specified BlockOffset, indices are in local index space. More...

Extraction methods
int	ExtractCopy (double *V) const
	Put vector values into user-provided array. More...

int	ExtractView (double **V) const
	Set user-provided address of V. More...

Overloaded operators
double &	operator[] (int index)
	Element access function. More...

const double &	operator[] (int index) const
	Element access function. More...

Expert-only unsupported methods
int	ResetView (double *Values_in)
	Reset the view of an existing vector to point to new user data. More...

Public Member Functions inherited from Epetra_MultiVector
int	ReplaceMap (const Epetra_BlockMap &map)

int	Reduce ()

	Epetra_MultiVector (const Epetra_BlockMap &Map, int NumVectors, bool zeroOut=true)
	Basic Epetra_MultiVector constuctor. More...

	Epetra_MultiVector (const Epetra_MultiVector &Source)
	Epetra_MultiVector copy constructor.

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, double *A, int MyLDA, int NumVectors)
	Set multi-vector values from two-dimensional array. More...

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, double **ArrayOfPointers, int NumVectors)
	Set multi-vector values from array of pointers. More...

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_MultiVector &Source, int *Indices, int NumVectors)
	Set multi-vector values from list of vectors in an existing Epetra_MultiVector. More...

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_MultiVector &Source, int StartIndex, int NumVectors)
	Set multi-vector values from range of vectors in an existing Epetra_MultiVector. More...

virtual	~Epetra_MultiVector ()
	Epetra_MultiVector destructor.

int	ReplaceGlobalValue (int GlobalRow, int VectorIndex, double ScalarValue)
	Replace current value at the specified (GlobalRow, VectorIndex) location with ScalarValue. More...

int	ReplaceGlobalValue (long long GlobalRow, int VectorIndex, double ScalarValue)

int	ReplaceGlobalValue (int GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Replace current value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location with ScalarValue. More...

int	ReplaceGlobalValue (long long GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)

int	SumIntoGlobalValue (int GlobalRow, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (GlobalRow, VectorIndex) location. More...

int	SumIntoGlobalValue (long long GlobalRow, int VectorIndex, double ScalarValue)

int	SumIntoGlobalValue (int GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location. More...

int	SumIntoGlobalValue (long long GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)

int	ReplaceMyValue (int MyRow, int VectorIndex, double ScalarValue)
	Replace current value at the specified (MyRow, VectorIndex) location with ScalarValue. More...

int	ReplaceMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Replace current value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location with ScalarValue. More...

int	SumIntoMyValue (int MyRow, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (MyRow, VectorIndex) location. More...

int	SumIntoMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location. More...

int	PutScalar (double ScalarConstant)
	Initialize all values in a multi-vector with constant value. More...

int	Random ()
	Set multi-vector values to random numbers. More...

int	ExtractCopy (double *A, int MyLDA) const
	Put multi-vector values into user-provided two-dimensional array. More...

int	ExtractCopy (double **ArrayOfPointers) const
	Put multi-vector values into user-provided array of pointers. More...

int	ExtractView (double *A, int MyLDA) const
	Set user-provided addresses of A and MyLDA. More...

int	ExtractView (double ***ArrayOfPointers) const
	Set user-provided addresses of ArrayOfPointers. More...

int	Dot (const Epetra_MultiVector &A, double *Result) const
	Computes dot product of each corresponding pair of vectors. More...

int	Abs (const Epetra_MultiVector &A)
	Puts element-wise absolute values of input Multi-vector in target. More...

int	Reciprocal (const Epetra_MultiVector &A)
	Puts element-wise reciprocal values of input Multi-vector in target. More...

int	Scale (double ScalarValue)
	Scale the current values of a multi-vector, this = ScalarValue*this. More...

int	Scale (double ScalarA, const Epetra_MultiVector &A)
	Replace multi-vector values with scaled values of A, this = ScalarA*A. More...

int	Update (double ScalarA, const Epetra_MultiVector &A, double ScalarThis)
	Update multi-vector values with scaled values of A, this = ScalarThis*this + ScalarA*A. More...

int	Update (double ScalarA, const Epetra_MultiVector &A, double ScalarB, const Epetra_MultiVector &B, double ScalarThis)
	Update multi-vector with scaled values of A and B, this = ScalarThis*this + ScalarAA + ScalarBB. More...

int	Norm1 (double *Result) const
	Compute 1-norm of each vector in multi-vector. More...

int	Norm2 (double *Result) const
	Compute 2-norm of each vector in multi-vector. More...

int	NormInf (double *Result) const
	Compute Inf-norm of each vector in multi-vector. More...

int	NormWeighted (const Epetra_MultiVector &Weights, double *Result) const
	Compute Weighted 2-norm (RMS Norm) of each vector in multi-vector. More...

int	MinValue (double *Result) const
	Compute minimum value of each vector in multi-vector. More...

int	MaxValue (double *Result) const
	Compute maximum value of each vector in multi-vector. More...

int	MeanValue (double *Result) const
	Compute mean (average) value of each vector in multi-vector. More...

int	Multiply (char TransA, char TransB, double ScalarAB, const Epetra_MultiVector &A, const Epetra_MultiVector &B, double ScalarThis)
	Matrix-Matrix multiplication, this = ScalarThis*this + ScalarABAB. More...

int	Multiply (double ScalarAB, const Epetra_MultiVector &A, const Epetra_MultiVector &B, double ScalarThis)
	Multiply a Epetra_MultiVector with another, element-by-element. More...

int	ReciprocalMultiply (double ScalarAB, const Epetra_MultiVector &A, const Epetra_MultiVector &B, double ScalarThis)
	Multiply a Epetra_MultiVector by the reciprocal of another, element-by-element. More...

int	SetSeed (unsigned int Seed_in)
	Set seed for Random function. More...

unsigned int	Seed ()
	Get seed from Random function. More...

Epetra_MultiVector &	operator= (const Epetra_MultiVector &Source)
	= Operator. More...

double *&	operator[] (int i)
	Vector access function. More...

double *const &	operator[] (int i) const
	Vector access function. More...

Epetra_Vector *&	operator() (int i)
	Vector access function. More...

const Epetra_Vector *&	operator() (int i) const
	Vector access function. More...

int	NumVectors () const
	Returns the number of vectors in the multi-vector.

int	MyLength () const
	Returns the local vector length on the calling processor of vectors in the multi-vector.

int	GlobalLength () const
	Returns the global vector length of vectors in the multi-vector.

long long	GlobalLength64 () const
	Returns the 64-bit global vector length of vectors in the multi-vector.

int	Stride () const
	Returns the stride between vectors in the multi-vector (only meaningful if ConstantStride() is true).

bool	ConstantStride () const
	Returns true if this multi-vector has constant stride between vectors.

virtual void	Print (std::ostream &os) const
	Print method.

int	ResetView (double **ArrayOfPointers)
	Reset the view of an existing multivector to point to new user data. More...

double *	Values () const
	Get pointer to MultiVector values.

double **	Pointers () const
	Get pointer to individual vector pointers.

Public Member Functions inherited from Epetra_DistObject
	Epetra_DistObject (const Epetra_BlockMap &Map)
	Basic Epetra_DistObject constuctor. More...

	Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

	Epetra_DistObject (const Epetra_DistObject &Source)
	Epetra_DistObject copy constructor.

virtual	~Epetra_DistObject ()
	Epetra_DistObject destructor.

int	Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Import object. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Export object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Import object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_BlockMap &	Map () const
	Returns the address of the Epetra_BlockMap for this multi-vector.

const Epetra_Comm &	Comm () const
	Returns the address of the Epetra_Comm for this multi-vector.

bool	DistributedGlobal () const
	Returns true if this multi-vector is distributed global, i.e., not local replicated.

Public Member Functions inherited from Epetra_Object
	Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
	Epetra_Object Constructor. More...

	Epetra_Object (const char *const Label, int TracebackModeIn=-1)
	Epetra_Object Constructor. More...

	Epetra_Object (const Epetra_Object &Object)
	Epetra_Object Copy Constructor. More...

virtual	~Epetra_Object ()
	Epetra_Object Destructor. More...

virtual int	ReportError (const std::string Message, int ErrorCode) const
	Error reporting method.

virtual void	SetLabel (const char *const Label)
	Epetra_Object Label definition using char *. More...

virtual const char *	Label () const
	Epetra_Object Label access funtion. More...

Public Member Functions inherited from Epetra_SrcDistObject
virtual	~Epetra_SrcDistObject ()
	Epetra_SrcDistObject destructor.

Public Member Functions inherited from Epetra_CompObject
Epetra_CompObject &	operator= (const Epetra_CompObject &src)

	Epetra_CompObject ()
	Basic Epetra_CompObject constuctor.

	Epetra_CompObject (const Epetra_CompObject &Source)
	Epetra_CompObject copy constructor.

virtual	~Epetra_CompObject ()
	Epetra_CompObject destructor.

void	SetFlopCounter (const Epetra_Flops &FlopCounter_in)
	Set the internal Epetra_Flops() pointer.

void	SetFlopCounter (const Epetra_CompObject &CompObject)
	Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject.

void	UnsetFlopCounter ()
	Set the internal Epetra_Flops() pointer to 0 (no flops counted).

Epetra_Flops *	GetFlopCounter () const
	Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none.

void	ResetFlops () const
	Resets the number of floating point operations to zero for this multi-vector.

double	Flops () const
	Returns the number of floating point operations with this multi-vector.

void	UpdateFlops (int Flops_in) const
	Increment Flop count for this object.

void	UpdateFlops (long int Flops_in) const
	Increment Flop count for this object.

void	UpdateFlops (long long Flops_in) const
	Increment Flop count for this object.

void	UpdateFlops (double Flops_in) const
	Increment Flop count for this object.

void	UpdateFlops (float Flops_in) const
	Increment Flop count for this object.

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)
	Epetra_BLAS Constructor. More...

	Epetra_BLAS (const Epetra_BLAS &BLAS)
	Epetra_BLAS Copy Constructor. More...

virtual	~Epetra_BLAS (void)
	Epetra_BLAS Destructor.

float	ASUM (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS one norm function (SASUM).

double	ASUM (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS one norm function (DASUM).

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (SDOT).

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (DDOT).

float	NRM2 (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS norm function (SNRM2).

double	NRM2 (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS norm function (DNRM2).

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
	Epetra_BLAS vector scale function (SSCAL)

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
	Epetra_BLAS vector scale function (DSCAL)

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector copy function (SCOPY)

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector scale function (DCOPY)

int	IAMAX (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (ISAMAX)

int	IAMAX (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (IDAMAX)

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (SAXPY)

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (DAXPY)

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (SGEMV)

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (DGEMV)

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (SGEMM)

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DGEMM)

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM)

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DSYMM)

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (STRMM)

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (DTRMM)

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (ssyrk)

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (dsyrk)

Additional Inherited Members
Static Public Member Functions inherited from Epetra_Object
static void	SetTracebackMode (int TracebackModeValue)
	Set the value of the Epetra_Object error traceback report mode. More...

static int	GetTracebackMode ()
	Get the value of the Epetra_Object error report mode.

static std::ostream &	GetTracebackStream ()
	Get the output stream for error reporting.

Static Public Attributes inherited from Epetra_Object
static int	TracebackMode

Protected Member Functions inherited from Epetra_MultiVector
void	Assign (const Epetra_MultiVector &rhs)

int	CheckInput ()

Protected Member Functions inherited from Epetra_DistObject
virtual int	DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int PermuteToLIDs, int PermuteFromLIDs, int RemoteLIDs, int ExportLIDs, int &LenExports, char &Exports, int &LenImports, char &Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
	Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object.

Protected Member Functions inherited from Epetra_Object
std::string	toString (const int &x) const

std::string	toString (const long long &x) const

std::string	toString (const double &x) const

Protected Attributes inherited from Epetra_MultiVector
double *	Values_

Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap	Map_

const Epetra_Comm *	Comm_

char *	Exports_

char *	Imports_

int	LenExports_

int	LenImports_

int *	Sizes_

Protected Attributes inherited from Epetra_CompObject
Epetra_Flops *	FlopCounter_

Detailed Description

Epetra_Vector: A class for constructing and using dense vectors on a parallel computer.

The Epetra_Vector class enables the construction and use of real-valued,
double-precision dense vectors in a distributed memory environment.  The distribution of the dense
vector is determined in part by a Epetra_Comm object and a Epetra_Map (or Epetra_LocalMap
or Epetra_BlockMap).

This class is derived from the Epetra_MultiVector class.  As such, it has full access
to all of the functionality provided in the Epetra_MultiVector class.

Distributed Global vs. Replicated Local

Distributed Global Vectors - In most instances, a multi-vector will be partitioned across multiple memory images associated with multiple processors. In this case, there is a unique copy of each element and elements are spread across all processors specified by the Epetra_Comm communicator.
Replicated Local Vectors - Some algorithms use vectors that are too small to be distributed across all processors. Replicated local vectors handle these types of situation.

Constructing Epetra_Vectors

There are four Epetra_Vector constructors. The first is a basic constructor that allocates space and sets all values to zero, the second is a copy constructor. The third and fourth constructors work with user data. These constructors have two data access modes:

Copy mode - Allocates memory and makes a copy of the user-provided data. In this case, the user data is not needed after construction.
View mode - Creates a "view" of the user data. In this case, the user data is required to remain intact for the life of the vector.

Warning: View mode is extremely dangerous from a data hiding perspective. Therefore, we strongly encourage users to develop code using Copy mode first and only use the View mode in a secondary optimization phase.

All Epetra_Vector constructors require a map argument that describes the layout of elements on the parallel machine. Specifically, map is a Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object describing the desired memory layout for the vector.

There are four different Epetra_Vector constructors:

Basic - All values are zero.
Copy - Copy an existing vector.
Copy from or make view of user double array.
Copy or make view of a vector from a Epetra_MultiVector object.

Extracting Data from Epetra_Vectors

Once a Epetra_Vector is constructed, it is possible to extract a copy of the values or create a view of them.

Warning: ExtractView functions are extremely dangerous from a data hiding perspective. For both ExtractView fuctions, there is a corresponding ExtractCopy function. We strongly encourage users to develop code using ExtractCopy functions first and only use the ExtractView functions in a secondary optimization phase.

There are two Extract functions:

ExtractCopy - Copy values into a user-provided array.
ExtractView - Set user-provided array to point to Epetra_Vector data.

Vector and Utility Functions

Once a Epetra_Vector is constructed, a variety of mathematical functions can be applied to the vector. Specifically:

Dot Products.
Vector Updates.
p Norms.
Weighted Norms.
Minimum, Maximum and Average Values.

The final useful function is Flops(). Each Epetra_Vector object keep track of the number of serial floating point operations performed using the specified object as the this argument to the function. The Flops() function returns this number as a double precision number. Using this information, in conjunction with the Epetra_Time class, one can get accurate parallel performance numbers.

Warning: A Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object is required for all Epetra_Vector constructors.

Constructor & Destructor Documentation

Epetra_Vector::Epetra_Vector	(	const Epetra_BlockMap &	Map,
		bool	zeroOut = `true`
	)

Basic Epetra_Vector constuctor.

Creates a Epetra_Vector object and fills with zero values.

Parameters

In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
In	zeroOut - If `true` then the allocated memory will be zeroed out initialy. If `false` then this memory will not be touched which can be significantly faster.

Warning: Note that, because Epetra_LocalMap derives from Epetra_Map and Epetra_Map derives from Epetra_BlockMap, this constructor works for all three types of Epetra map classes.

Returns: Pointer to a Epetra_Vector.

Epetra_Vector::Epetra_Vector	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	Map,
		double *	V
	)

Set vector values from user array.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
In	V - Pointer to an array of double precision numbers..

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Epetra_Vector::Epetra_Vector	(	Epetra_DataAccess	CV,
		const Epetra_MultiVector &	Source,
		int	Index
	)

Set vector values from a vector in an existing Epetra_MultiVector.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
In	Source - An existing fully constructed Epetra_MultiVector.
In	Index - Index of vector to access.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Member Function Documentation

int Epetra_Vector::ExtractCopy ( double * V ) const

Put vector values into user-provided array.

Parameters

Out	V - Pointer to memory space that will contain the vector values.

Returns: Integer error code, set to 0 if successful.

int Epetra_Vector::ExtractView ( double ** V ) const

Set user-provided address of V.

Parameters

Out	V - Address of a pointer to that will be set to point to the values of the vector.

Returns: Integer error code, set to 0 if successful.

double& Epetra_Vector::operator[] ( int index )

inline

Element access function.

Returns: V[Index].

References Epetra_MultiVector::MyLength().

const double& Epetra_Vector::operator[] ( int index ) const

inline

Element access function.

Returns: V[Index].

References Epetra_MultiVector::MyLength().

int Epetra_Vector::ReplaceGlobalValues	(	int	NumEntries,
		const double *	Values,
		const int *	Indices
	)

Replace values in a vector with a given indexed list of values, indices are in global index space.

Replace the Indices[i] entry in the this object with Values[i], for i=0; i<NumEntries. The indices are in global index space.

Parameters

In	NumEntries - Number of vector entries to modify.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in global index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

int Epetra_Vector::ReplaceGlobalValues	(	int	NumEntries,
		int	BlockOffset,
		const double *	Values,
		const int *	Indices
	)

Replace values in a vector with a given indexed list of values at the specified BlockOffset, indices are in global index space.

Replace the Indices[i] entry in the this object with Values[i], for i=0; i<NumEntries. The indices are in global index space. This method is intended for vector that are defined using block maps. In this situation, an index value is associated with one or more vector entries, depending on the element size of the given index. The BlockOffset argument indicates which vector entry to modify as an offset from the first vector entry associated with the given index. The offset is used for each entry in the input list.

Parameters

In	NumEntries - Number of vector entries to modify.
In	BlockOffset - Offset from the first vector entry associated with each of the given indices.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in global index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

int Epetra_Vector::ReplaceMyValues	(	int	NumEntries,
		const double *	Values,
		const int *	Indices
	)

Replace values in a vector with a given indexed list of values, indices are in local index space.

Replace the Indices[i] entry in the this object with Values[i], for i=0; i<NumEntries. The indices are in local index space.

Parameters

In	NumEntries - Number of vector entries to modify.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in local index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

int Epetra_Vector::ReplaceMyValues	(	int	NumEntries,
		int	BlockOffset,
		const double *	Values,
		const int *	Indices
	)

Replace values in a vector with a given indexed list of values at the specified BlockOffset, indices are in local index space.

Replace the (Indices[i], BlockOffset) entry in the this object with Values[i], for i=0; i<NumEntries. The indices are in local index space. This method is intended for vector that are defined using block maps. In this situation, an index value is associated with one or more vector entries, depending on the element size of the given index. The BlockOffset argument indicates which vector entry to modify as an offset from the first vector entry associated with the given index. The offset is used for each entry in the input list.

Parameters

In	NumEntries - Number of vector entries to modify.
In	BlockOffset - Offset from the first vector entry associated with each of the given indices.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in local index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

int Epetra_Vector::ResetView ( double * Values_in )

inline

Reset the view of an existing vector to point to new user data.

Allows the (very) light-weight replacement of multivector values for an existing vector that was constructed using an Epetra_DataAccess mode of View. No checking is performed to see if the values passed in contain valid data. It is assumed that the user has verified the integrity of data before calling this method. This method is useful for situations where a vector is needed for use with an Epetra operator or matrix and the user is not passing in a multivector, or the multivector is being passed in with another map that is not exactly compatible with the operator, but has the correct number of entries.

This method is used by AztecOO and Ifpack in the matvec and solve methods to improve performance and reduce repeated calls to constructors and destructors.

Parameters

Values Vector data.

Returns: Integer error code, set to 0 if successful, -1 if the multivector was not created as a View.

Warning: This method is extremely dangerous and should only be used by experts.

References Epetra_MultiVector::ResetView().

int Epetra_Vector::SumIntoGlobalValues	(	int	NumEntries,
		const double *	Values,
		const int *	Indices
	)

Sum values into a vector with a given indexed list of values, indices are in global index space.

Sum Values[i] into the Indices[i] entry in the this object, for i=0; i<NumEntries. The indices are in global index space.

Parameters

In	NumEntries - Number of vector entries to modify.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in global index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

int Epetra_Vector::SumIntoGlobalValues	(	int	NumEntries,
		int	BlockOffset,
		const double *	Values,
		const int *	Indices
	)

Sum values into a vector with a given indexed list of values at the specified BlockOffset, indices are in global index space.

Sum Values[i] into the Indices[i] entry in the this object, for i=0; i<NumEntries. The indices are in global index space. This method is intended for vector that are defined using block maps. In this situation, an index value is associated with one or more vector entries, depending on the element size of the given index. The BlockOffset argument indicates which vector entry to modify as an offset from the first vector entry associated with the given index. The offset is used for each entry in the input list.

Parameters

In	NumEntries - Number of vector entries to modify.
In	BlockOffset - Offset from the first vector entry associated with each of the given indices.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in global index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

int Epetra_Vector::SumIntoMyValues	(	int	NumEntries,
		const double *	Values,
		const int *	Indices
	)

Sum values into a vector with a given indexed list of values, indices are in local index space.

Sum Values[i] into the Indices[i] entry in the this object, for i=0; i<NumEntries. The indices are in local index space.

Parameters

In	NumEntries - Number of vector entries to modify.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in local index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

int Epetra_Vector::SumIntoMyValues	(	int	NumEntries,
		int	BlockOffset,
		const double *	Values,
		const int *	Indices
	)

Sum values into a vector with a given indexed list of values at the specified BlockOffset, indices are in local index space.

Sum Values[i] into the Indices[i] entry in the this object, for i=0; i<NumEntries. The indices are in local index space. This method is intended for vector that are defined using block maps. In this situation, an index value is associated with one or more vector entries, depending on the element size of the given index. The BlockOffset argument indicates which vector entry to modify as an offset from the first vector entry associated with the given index. The offset is used for each entry in the input list.

Parameters

In	NumEntries - Number of vector entries to modify.
In	BlockOffset - Offset from the first vector entry associated with each of the given indices.
In	Values - Values which will replace existing values in vector, of length NumEntries.
In	Indices - Indices in local index space corresponding to Values.

Returns: Integer error code, set to 0 if successful, set to 1 if one or more indices are not associated with calling processor.

The documentation for this class was generated from the following file:

Epetra_Vector.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
