Tempus::ExplicitMerson45_RKBT< Scalar > Class Template Reference

Explicit RK Merson Butcher Tableau. More...

#include <Tempus_RKButcherTableau.hpp>

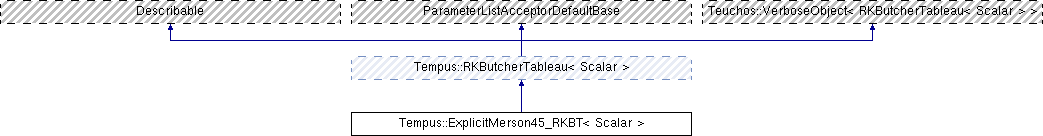

Inheritance diagram for Tempus::ExplicitMerson45_RKBT< Scalar >:
Tempus::RKButcherTableau< Scalar >

Public Member Functions

 ExplicitMerson45_RKBT ()

virtual std::string description () const

- Public Member Functions inherited from Tempus::RKButcherTableau< Scalar >
virtual std::size_t numStages () const
 Return the number of stages. More...

virtual const
Teuchos::SerialDenseMatrix
< int, Scalar > &
A () const
 Return the matrix coefficients. More...

virtual const
Teuchos::SerialDenseVector
< int, Scalar > &
b () const
 Return the vector of quadrature weights. More...

virtual const
Teuchos::SerialDenseVector
< int, Scalar > &
bstar () const
 Return the vector of quadrature weights for embedded methods. More...

virtual const
Teuchos::SerialDenseVector
< int, Scalar > &
c () const
 Return the vector of stage positions. More...

virtual int order () const
 Return the order. More...

virtual int orderMin () const
 Return the minimum order. More...

virtual int orderMax () const
 Return the maximum order. More...

virtual bool isImplicit () const
 Return true if the RK method is implicit. More...

virtual bool isDIRK () const
 Return true if the RK method is Diagonally Implicit. More...

virtual bool isEmbedded () const
 Return true if the RK method has embedded capabilities. More...

virtual void initialize (const Teuchos::SerialDenseMatrix< int, Scalar > &A, const Teuchos::SerialDenseVector< int, Scalar > &b, const Teuchos::SerialDenseVector< int, Scalar > &c, const int order, const std::string &longDescription, bool isEmbedded=false, const Teuchos::SerialDenseVector< int, Scalar > &bstar=Teuchos::SerialDenseVector< int, Scalar >())

virtual void initialize (const Teuchos::SerialDenseMatrix< int, Scalar > &A, const Teuchos::SerialDenseVector< int, Scalar > &b, const Teuchos::SerialDenseVector< int, Scalar > &c, const int order, const int orderMin, const int orderMax, const std::string &longDescription, bool isEmbedded=false, const Teuchos::SerialDenseVector< int, Scalar > &bstar=Teuchos::SerialDenseVector< int, Scalar >())

virtual void setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &pList)

virtual Teuchos::RCP< const
Teuchos::ParameterList >
getValidParameters () const

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const


Additional Inherited Members

- Protected Member Functions inherited from Tempus::RKButcherTableau< Scalar >
virtual void setDescription (std::string longD)

const std::string & getDescription () const

void set_A (const Teuchos::SerialDenseMatrix< int, Scalar > &A)

void set_b (const Teuchos::SerialDenseVector< int, Scalar > &b)

void set_c (const Teuchos::SerialDenseVector< int, Scalar > &c)

void set_order (const int &order)

void set_orderMin (const int &order)

void set_orderMax (const int &order)

void set_isImplicit ()

void set_isDIRK ()
 DIRK is defined as if a_ij = 0 for j>i and a_ii != 0 for at least one i. More...

- Protected Attributes inherited from Tempus::RKButcherTableau< Scalar >
Teuchos::RCP
< Teuchos::ParameterList >
rkbtPL_


Detailed Description

template<class Scalar>
class Tempus::ExplicitMerson45_RKBT< Scalar >

Explicit RK Merson Butcher Tableau.

The tableau (order=4(5)) is

\[ \begin{array}{c|c} c & A \\ \hline & b^T \\ \hline & \hat{b}^T \end{array} \;\;\;\;\mbox{ where }\;\;\;\; \begin{array}{c|ccccc} 0 & 0 & & & & \\ 1/3 & 1/3 & 0 & & & \\ 1/3 & 1/6 & 1/6 & 0 & & \\ 1/2 & 1/8 & 0 & 3/8 & & \\ 1 & 1/2 & 0 & -3/2 & 2 & \\ \hline & 1/6 & 0 & 0 & 2/3 & 1/6 \\ & 1/10 & 0 & 3/10 & 2/5 & 1/5 \end{array} \]

Reference: E. Hairer, S.P. Norsett, G. Wanner, "Solving Ordinary Differential Equations I: Nonstiff Problems", 2nd Revised Edition, Table 4.1, pg 167.

Definition at line 836 of file Tempus_RKButcherTableau.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::ExplicitMerson45_RKBT< Scalar >::ExplicitMerson45_RKBT ( )
inline

Definition at line 840 of file Tempus_RKButcherTableau.hpp.

Member Function Documentation

template<class Scalar >
virtual std::string Tempus::ExplicitMerson45_RKBT< Scalar >::description ( ) const
inlinevirtual

Implements Tempus::RKButcherTableau< Scalar >.

Definition at line 901 of file Tempus_RKButcherTableau.hpp.


The documentation for this class was generated from the following file:
