LOCA::PhaseTransition::ExtendedGroup Class Reference

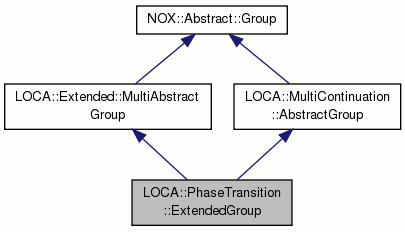

Inheritance diagram for LOCA::PhaseTransition::ExtendedGroup:
Inheritance graph
[legend]

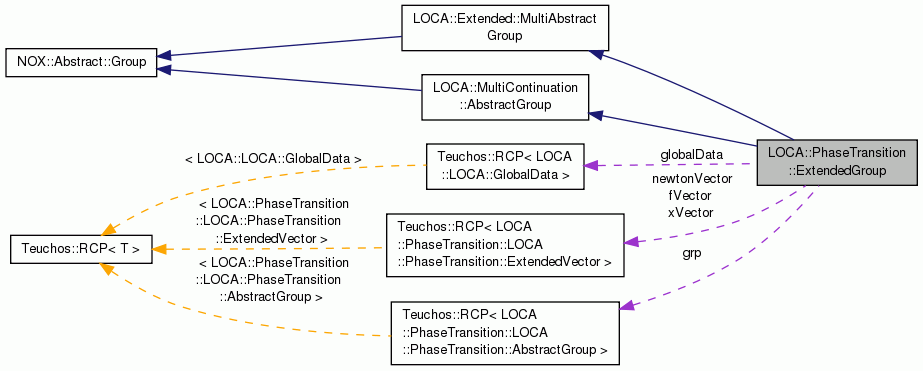

Collaboration diagram for LOCA::PhaseTransition::ExtendedGroup:
Collaboration graph
[legend]

Public Member Functions

 ExtendedGroup (const Teuchos::RCP< LOCA::GlobalData > gD, const Teuchos::RCP< Teuchos::ParameterList > &bifurcationparams_, const Teuchos::RCP< LOCA::PhaseTransition::AbstractGroup > &grp_)
 Constructor.

 ExtendedGroup (const LOCA::PhaseTransition::ExtendedGroup &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

 ~ExtendedGroup ()
 Destructor.

NOX::Abstract::Groupoperator= (const NOX::Abstract::Group &source)
 Copies the source group into this group. More...

NOX::Abstract::Groupoperator= (const LOCA::PhaseTransition::ExtendedGroup &source)
 See above.

virtual Teuchos::RCP
< NOX::Abstract::Group
clone (NOX::CopyType type=NOX::DeepCopy) const
 Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group. More...

void print () const
 Print out the group.

virtual Teuchos::RCP< const
LOCA::MultiContinuation::AbstractGroup
getUnderlyingGroup () const
 Return underlying group.

virtual Teuchos::RCP
< LOCA::MultiContinuation::AbstractGroup
getUnderlyingGroup ()
 Return underlying group.

virtual void setParamsMulti (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)
 Set parameters indexed by (integer) paramIDs.

virtual
NOX::Abstract::Group::ReturnType
computeDfDpMulti (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector &dfdp, bool isValid_F)

"Compute" functions.
void setX (const NOX::Abstract::Vector &y)
 Set the solution vector x to y. More...

void setX (const LOCA::PhaseTransition::ExtendedVector &y)
 See above.

void computeX (const NOX::Abstract::Group &grp, const NOX::Abstract::Vector &d, double step)
 Compute x = grp.x + step * d. More...

void computeX (const LOCA::PhaseTransition::ExtendedGroup &grp, const LOCA::PhaseTransition::ExtendedVector &d, double step)
 See above.

NOX::Abstract::Group::ReturnType computeF ()
 Compute and store F(x). More...

NOX::Abstract::Group::ReturnType computeJacobian ()
 Compute and store Jacobian. More...

NOX::Abstract::Group::ReturnType computeNewton (Teuchos::ParameterList &params)
 Compute the Newton direction, using parameters for the linear solve. More...

Jacobian operations.

Operations using the Jacobian matrix. These may not be defined in matrix-free scenarios.

NOX::Abstract::Group::ReturnType applyJacobian (const LOCA::PhaseTransition::ExtendedVector &input, LOCA::PhaseTransition::ExtendedVector &result) const

NOX::Abstract::Group::ReturnType applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 See above.

NOX::Abstract::Group::ReturnType applyJacobianInverse (Teuchos::ParameterList &params, const LOCA::PhaseTransition::ExtendedVector &input, LOCA::PhaseTransition::ExtendedVector &result) const

NOX::Abstract::Group::ReturnType applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result. More...

"Is" functions

Checks to see if various objects have been computed. Returns true if the corresponding "compute" function has been called since the last update to the solution vector (via instantiation or computeX).

bool isF () const
 Return true if F is valid.

bool isJacobian () const
 Return true if the Jacobian is valid. More...

bool isNewton () const
 Return true if the Newton direction is valid. More...

"Get" functions

Note that these function do not check whether or not the vectors are valid. Must use the "Is" functions for that purpose.

const NOX::Abstract::VectorgetX () const
 Return solution vector.

const NOX::Abstract::VectorgetF () const
 Return F(x)

double getNormF () const
 Return 2-norm of F(x). More...

const NOX::Abstract::VectorgetNewton () const
 Return Newton direction.

const NOX::Abstract::VectorgetGradient () const
 Return gradient.

Teuchos::RCP< const
NOX::Abstract::Vector
getXPtr () const
 Return RCP to solution vector.

Teuchos::RCP< const
NOX::Abstract::Vector
getFPtr () const
 Return RCP to F(x)

Teuchos::RCP< const
NOX::Abstract::Vector
getNewtonPtr () const
 Return RCP to Newton direction.

Teuchos::RCP< const
NOX::Abstract::Vector
getGradientPtr () const
 Return RCP to gradient.

void copy (const NOX::Abstract::Group &source)
 Start methods for LOCA::Abstract::Group.

void setParams (const LOCA::ParameterVector &p)
 Set the parameter vector in the group to p (pVector = p).

void setParam (int paramID, double val)
 Set parameter indexed by (integer) paramID.

void setParam (std::string paramID, double val)
 Set parameter indexed by (std::string) paramID.

const LOCA::ParameterVectorgetParams () const
 Return a const reference to the ParameterVector owned by the group.

double getParam (int paramID) const
 Return copy of parameter indexed by (integer) paramID.

double getParam (std::string paramID) const
 Return copy of parameter indexed by (std::string) paramID.

void printSolution (const NOX::Abstract::Vector &solution, const double param) const
 Set parameter indexed by (std::string) paramID.

void printSolution (const double param) const
 Function to print out solution and parameter after successful step. More...

- Public Member Functions inherited from LOCA::Extended::MultiAbstractGroup
 MultiAbstractGroup ()
 Default constructor.

virtual ~MultiAbstractGroup ()
 Destructor.

virtual Teuchos::RCP< const
LOCA::MultiContinuation::AbstractGroup
getBaseLevelUnderlyingGroup () const
 Return base-level underlying group. More...

virtual Teuchos::RCP
< LOCA::MultiContinuation::AbstractGroup
getBaseLevelUnderlyingGroup ()
 Return base-level underlying group. More...

- Public Member Functions inherited from NOX::Abstract::Group
 Group ()
 Constructor. More...

virtual ~Group ()
 Destructor.

virtual
NOX::Abstract::Group::ReturnType
computeGradient ()
 Compute and store gradient. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies Jacobian-Transpose to the given input vector and puts the answer in the result. More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Apply right preconditiong to the given input vector. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobian for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianTranspose for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianInverse for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyRightPreconditioning for multiple right-hand sides More...

virtual bool isGradient () const
 Return true if the gradient is valid. More...

virtual const
NOX::Abstract::Vector
getScaledX () const

virtual void logLastLinearSolveStats (NOX::SolverStats &stats) const
 Adds statistics from last linear solve to the SovlerStats object.

virtual
NOX::Abstract::Group::ReturnType
getNormLastLinearSolveResidual (double &residual) const
 Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

- Public Member Functions inherited from LOCA::MultiContinuation::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual ~AbstractGroup ()
 Destructor.

virtual void preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
 Perform any preprocessing before a continuation step starts. More...

virtual void postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
 Perform any postprocessing after a continuation step finishes. More...

virtual void projectToDraw (const NOX::Abstract::Vector &x, double *px) const
 Projects solution to a few scalars for multiparameter continuation. More...

virtual int projectToDrawDimension () const
 Returns the dimension of the project to draw array. More...

virtual double computeScaledDotProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
 Compute a scaled dot product. More...

virtual void scaleVector (NOX::Abstract::Vector &x) const
 Scales a vector using scaling vector. More...


Protected Member Functions

void resetIsValid ()
 resets the isValid flags to false


Protected Attributes

Teuchos::RCP
< LOCA::PhaseTransition::AbstractGroup
grp
 Solution vector.

double normF

const Teuchos::RCP
< LOCA::GlobalData
globalData

int bifParamID

Vectors
Teuchos::RCP
< LOCA::PhaseTransition::ExtendedVector
xVector
 Solution vector.

Teuchos::RCP
< LOCA::PhaseTransition::ExtendedVector
fVector
 Right-hand-side vector (function evaluation).

Teuchos::RCP
< LOCA::PhaseTransition::ExtendedVector
newtonVector
 Newton direction vector.

IsValid flags

True if the current solution is up-to-date with respect to the currect xVector.

bool isValidF

bool isValidJacobian

bool isValidNewton


Additional Inherited Members

- Public Types inherited from NOX::Abstract::Group
enum  ReturnType {
  Ok, NotDefined, BadDependency, NotConverged,
  Failed
}
 The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...


Member Function Documentation

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::applyJacobianInverse ( Teuchos::ParameterList params,
const NOX::Abstract::Vector input,
NOX::Abstract::Vector result
) const
virtual

Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result.

Computes

\[ v = J^{-1} u, \]

where $J$ is the Jacobian, $u$ is the input vector, and $v$ is the result vector.

The "Tolerance" parameter specifies that the solution should be such that

\[ \frac{\| J v - u \|_2}{\max \{ 1, \|u\|_2\} } < \mbox{Tolerance} \]

Returns

The parameter "Tolerance" may be added/modified in the list of parameters - this is the ideal solution tolerance for an iterative linear solve.

Reimplemented from NOX::Abstract::Group.

Teuchos::RCP< NOX::Abstract::Group > LOCA::PhaseTransition::ExtendedGroup::clone ( NOX::CopyType  type = NOX::DeepCopy) const
virtual

Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group.

If type is NOX::DeepCopy, then we need to create an exact replica of "this". Otherwise, if type is NOX::ShapeCopy, we need only replicate the shape of "this" (only the memory is allocated, the values are not copied into the vectors and Jacobian). Returns NULL if clone is not supported.

Note
Any shared data should have its ownership transfered to this group from the source for a NOX::DeepCopy.

Implements NOX::Abstract::Group.

References Teuchos::rcp().

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeDfDpMulti ( const std::vector< int > &  paramIDs,
NOX::Abstract::MultiVector dfdp,
bool  isValidF
)
virtual

Compute $\partial F/\partial p$ for each parameter $p$ indexed by paramIDs. The first column of dfdp holds F, which is valid if isValidF is true. Otherwise F must be computed.

Implements LOCA::MultiContinuation::AbstractGroup.

References NOX::Abstract::Group::BadDependency.

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeF ( )
virtual

Compute and store F(x).

Note
It's generally useful to also compute and store the 2-norm of F(x) at this point for later access by the getNormF() function.
Returns

Implements NOX::Abstract::Group.

References NOX::Abstract::Group::Ok.

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeJacobian ( )
virtual

Compute and store Jacobian.

Recall that

\[ F(x) = \left[ \begin{array}{c} F_1(x) \\ F_2(x) \\ \vdots \\ F_n(x) \\ \end{array} \right]. \]

The Jacobian is denoted by $J$ and defined by

\[ J_{ij} = \frac{\partial F_i}{\partial x_j} (x). \]

Note
If this is a shared object, this group should take ownership of the Jacobian before it computes it.
Returns

Reimplemented from NOX::Abstract::Group.

References NOX::Abstract::Group::Ok.

NOX::Abstract::Group::ReturnType LOCA::PhaseTransition::ExtendedGroup::computeNewton ( Teuchos::ParameterList params)
virtual

Compute the Newton direction, using parameters for the linear solve.

The Newton direction is the solution, s, of

\[ J s = -F. \]

The parameters are from the "Linear %Solver" sublist of the "Direction" sublist that is passed to solver during construction.

The "Tolerance" parameter may be added/modified in the sublist of "Linear Solver" parameters that is passed into this function. The solution should be such that

\[ \frac{\| J s - (-F) \|_2}{\max \{ 1, \|F\|_2\} } < \mbox{Tolerance} \]

Returns

Reimplemented from NOX::Abstract::Group.

References NOX::Abstract::Group::Ok.

void LOCA::PhaseTransition::ExtendedGroup::computeX ( const NOX::Abstract::Group grp,
const NOX::Abstract::Vector d,
double  step
)
virtual

Compute x = grp.x + step * d.

Let $x$ denote this group's solution vector. Let $\hat x$ denote the result of grp.getX(). Then set

\[ x = \hat x + \mbox{step} \; d. \]

Note
This should invalidate the function value, Jacobian, gradient, and Newton direction.
Throw an error if the copy fails.
Returns
Reference to this object

Implements NOX::Abstract::Group.

double LOCA::PhaseTransition::ExtendedGroup::getNormF ( ) const
virtual

Return 2-norm of F(x).

In other words,

\[ \sqrt{\sum_{i=1}^n F_i^2} \]

Implements NOX::Abstract::Group.

bool LOCA::PhaseTransition::ExtendedGroup::isJacobian ( ) const
virtual

Return true if the Jacobian is valid.

Note
Default implementation in NOX::Abstract::Group returns false.

Reimplemented from NOX::Abstract::Group.

bool LOCA::PhaseTransition::ExtendedGroup::isNewton ( ) const
virtual

Return true if the Newton direction is valid.

Note
Default implementation in NOX::Abstract::Group returns false.

Reimplemented from NOX::Abstract::Group.

NOX::Abstract::Group & LOCA::PhaseTransition::ExtendedGroup::operator= ( const NOX::Abstract::Group source)
virtual

Copies the source group into this group.

Note
Any shared data owned by the source should have its ownership transfered to this group. This may result in a secret modification to the source object.

Implements NOX::Abstract::Group.

void LOCA::PhaseTransition::ExtendedGroup::printSolution ( const double  ) const
virtual

Function to print out solution and parameter after successful step.

Empty default definition.

Reimplemented from LOCA::MultiContinuation::AbstractGroup.

void LOCA::PhaseTransition::ExtendedGroup::setX ( const NOX::Abstract::Vector y)
virtual

Set the solution vector x to y.

Note
This should invalidate the function value, Jacobian, gradient, and Newton direction.
Throw an error if the copy fails.
Returns
Reference to this object

Implements NOX::Abstract::Group.


The documentation for this class was generated from the following files:
